I realize that the Eclipse graphical layout editor often (usually?) doesn't render things the same way that the physical devices or emulator do. I can usually deal with that. However, I have a situation where I can't figure out why there is such a big difference, and more importantly, I can't figure out how to get what I want for a layout on the target devices.

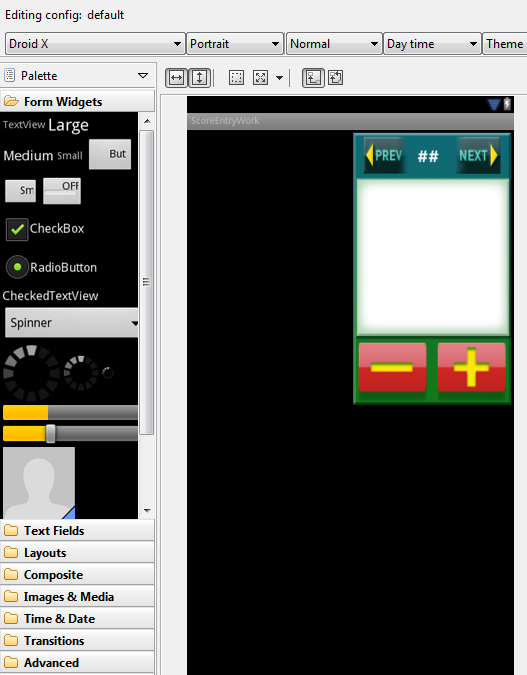

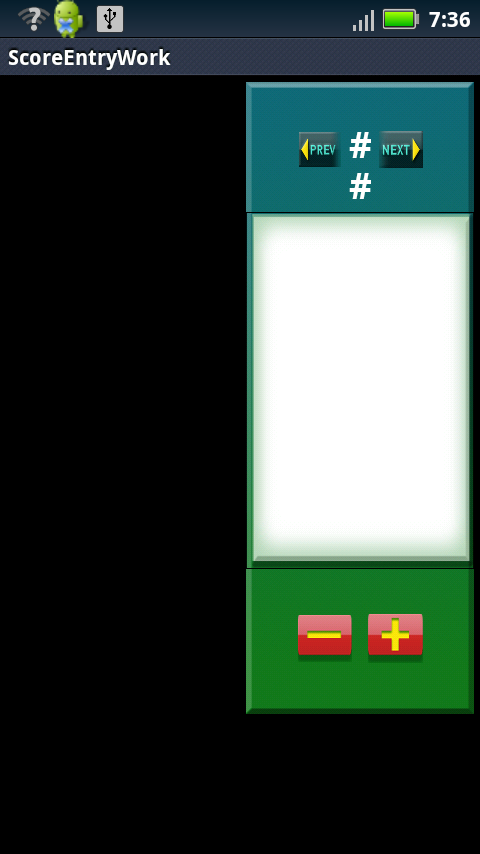

I am attempting to use some custom ImageButton widgets with custom graphics files as buttons. I simply want the buttons to fill the parent layouts they are in. In the designer, they look the way I think they should. But when I run it on a device, the buttons are way to small. Here is what the design looks like, using a device that is set up to emulate the Droid X that I am testing with. <http://pozzy.com/consulting/LayoutDesignInEclipse.PNG> <https://lh3.googleusercontent.com/-MiY8HoEMWMw/UASbZg-o53I/AAAAAAAAABg/-Zs-2TheI0w/s1600/LayoutDesignInEclipse.PNG> Here is a screen capture of the screen when running on my Droid X: <http://pozzy.com/consulting/ScoreEntryDroidXScreenCapture.png> <https://lh6.googleusercontent.com/-f1cf69z790Q/UASbhyu2dYI/AAAAAAAAABo/PchCfnoY8ps/s1600/ScoreEntryDroidXScreenCapture.png> I tried to trim the code down, but it still relies on a number of button image files. The full project is attached. Here is the layout XML: <?xml version="1.0" encoding="utf-8"?> <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"; android:layout_width="fill_parent" Android:layout_height="fill_parent"> <LinearLayout android:id="@+id/scoreEntryPlayersAndMainEntry" android:layout_width="fill_parent" android:layout_height="wrap_content" android:orientation="horizontal" > <LinearLayout android:id="@+id/scoreEntryPlayers" android:layout_width="0dp" android:layout_height="fill_parent" android:layout_weight=".5" android:orientation="vertical" android:paddingBottom="4dp" android:paddingTop="4dp" android:paddingLeft="4dp" > </LinearLayout> <LinearLayout android:id="@+id/scoreEntryMainEntry" android:layout_width="0dp" android:layout_height="fill_parent" android:layout_weight=".5" android:maxWidth="100dp" android:orientation="vertical" android:paddingBottom="4dp" android:paddingLeft="4dp" android:paddingRight="4dp" android:paddingTop="4dp" > <LinearLayout android:id="@+id/scoreEntryPreviousHoleNumberNextRow" android:orientation="horizontal" android:background="@drawable/score_entry_background_top" android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_weight=".1" android:gravity="center|top" > <ImageButton android:id="@+id/previousHoleButton" android:layout_width="0dp" android:layout_height="fill_parent" android:layout_weight="2" android:layout_margin="5dp" android:scaleType="fitCenter" android:background="@null" android:contentDescription="Previous Hole" android:src="@drawable/score_entry_prev" /> <TextView android:id="@+id/holeNumber" android:layout_width="0dp" android:layout_height="match_parent" android:layout_weight="1" android:background="@null" android:paddingTop="20dp" android:text="##" android:textColor="#FFFFFF" android:textSize="24sp" android:textStyle="bold" /> <ImageButton android:id="@+id/nextHoleButton" android:layout_width="0dp" android:layout_height="fill_parent" android:layout_weight="2" android:layout_margin="5dp" android:scaleType="fitCenter" android:background="@null" android:contentDescription="Next Hole" android:src="@drawable/score_entry_next" /> </LinearLayout> <LinearLayout android:id="@+id/scoreEntryCurrentScore" android:background="@drawable/score_entry_background_middle" android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_weight=".8" > <FrameLayout android:id="@+id/scoreEntryScoreOverlays" android:layout_width="fill_parent" android:layout_height="wrap_content" > <LinearLayout android:visibility="invisible" android:id="@+id/scoreEntryPlayerScoreLayout" android:layout_width="fill_parent" android:layout_height="wrap_content" android:orientation="vertical" > <TextView android:id="@+id/currentPlayer" android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_margin="10dp" android:gravity="center" android:text="Player Name" android:textColor="#aaaaaa" android:textSize="16sp" android:textStyle="italic" /> <TextView android:id="@+id/currentScore" android:layout_width="fill_parent" android:layout_height="fill_parent" android:text="99" android:gravity="center" android:layout_gravity="bottom" android:textColor="#ff0000" android:textSize="100sp" android:textStyle="bold|italic" /> </LinearLayout> </FrameLayout> </LinearLayout> <LinearLayout android:id="@+id/scoreEntryScoreDownUpRow" android:layout_width="fill_parent" android:layout_height="wrap_content" android:background="@drawable/score_entry_background_bottom" android:gravity="bottom" android:layout_weight=".1" android:orientation="horizontal" > <ImageButton android:id="@+id/scoreDownButton" android:layout_width="0dp" android:layout_height="fill_parent" android:layout_margin="5dp" android:layout_weight="1" android:background="@null" android:scaleType="fitCenter" android:src="@drawable/score_entry_minus" /> <ImageButton android:id="@+id/scoreUpButton" android:layout_width="0dp" android:layout_height="fill_parent" android:layout_margin="5dp" android:layout_weight="1" android:background="@null" android:scaleType="fitCenter" android:src="@drawable/score_entry_plus" /> </LinearLayout> </LinearLayout> </LinearLayout> </RelativeLayout> Any help in figuring out how to get the buttons filling their respective areas would be greatly appreciated! -- You received this message because you are subscribed to the Google Groups "Android Developers" group. To post to this group, send email to [email protected] To unsubscribe from this group, send email to [email protected] For more options, visit this group at http://groups.google.com/group/android-developers?hl=en
