FabianF92 opened a new issue #15803:
URL: https://github.com/apache/airflow/issues/15803



   **Apache Airflow version**: 2.0.1

   **Environment**: Azure App Service

   **What happened**:

   In UI, when viewing Instance Details of a task (Dag tree view -> task ->
Instance Details) that contains special attribute `json` exception is thrown.
This happens when the json attribute contains a dict with non-string values.

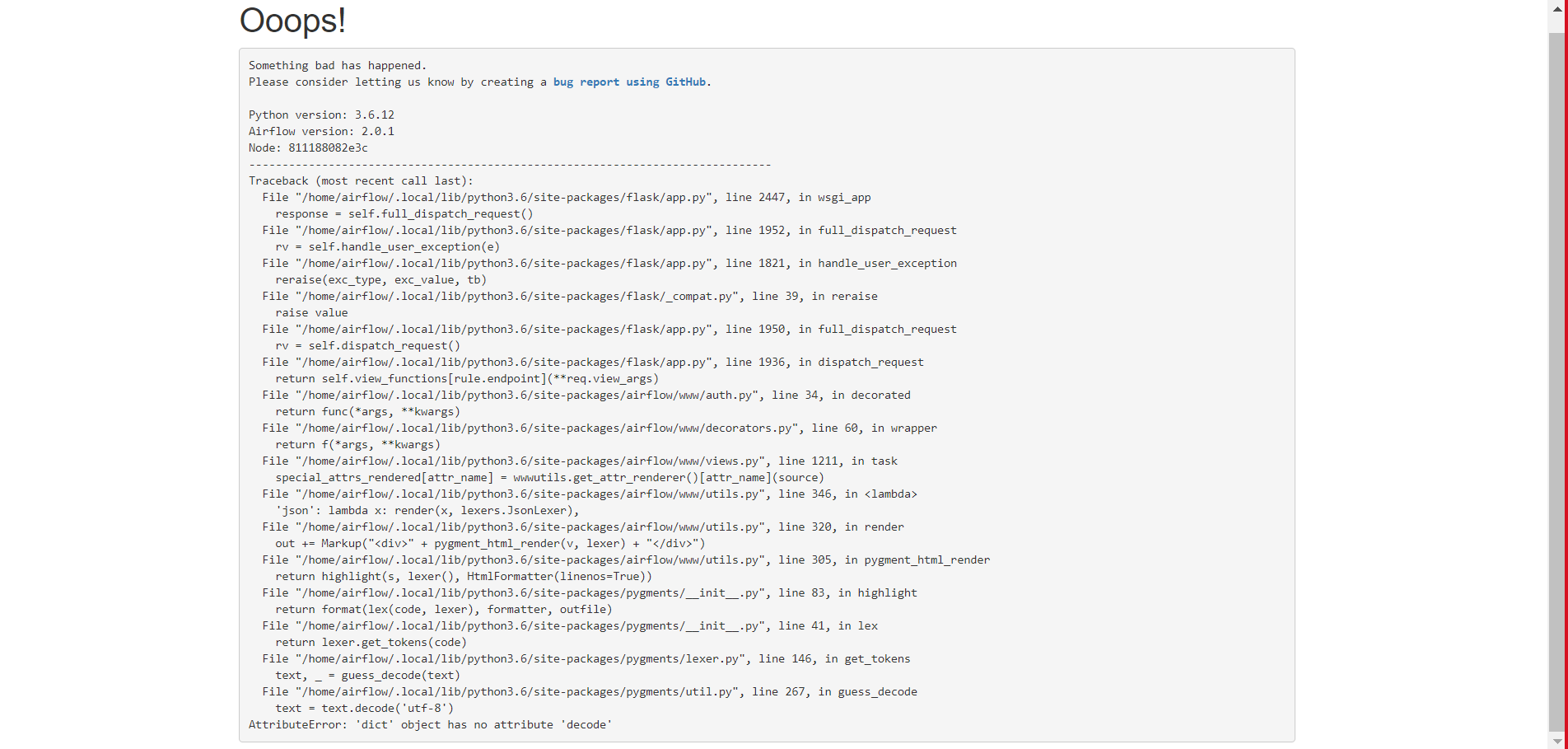

![image](https://user-images.githubusercontent.com/30059482/117994237-ae63ff80-b340-11eb-9449-64e4b3792abe.png)

   **What you expected to happen**:
   Task instance details are rendered including the special attribute json.

   Problem is caused by function `render(obj, lexer)` defined in `utils.py`
(line 317, version 2.0.1):
   ```
       elif isinstance(obj, dict):
           for k, v in obj.items():
               out += Markup('<div>Dict item "{}"</div>').format(k)  # noqa
               out += Markup("<div>" + pygment_html_render(v, lexer) + "</div>")
       return out
   ```
   When value of one item is not a string but for example a dict itself, method
`pygment_html_render(v, lexer)` can't decode data and throws error
`AttributeError: 'dict' object has no attribute 'decode'`.

   **How to reproduce it**:
   Define a task with a dict as json attribute. The dict should contain at
least one value that is another dict.
   For example, the `DatabricksSubmitRunOperator` takes `json` attribute to
pass notebook parameters:
   ```
   json = {
             'new_cluster': {
               'spark_version': '2.1.0-db3-scala2.11',
               'num_workers': 2
             },
             'notebook_task': {
               'notebook_path': '/Users/[email protected]/PrepareData',
             },
           }
           notebook_run = DatabricksSubmitRunOperator(task_id='notebook_run',
json=json)
   ```

   **Anything else we need to know**:

   Might be an idea to convert complete dict to json string and pass it to
`pygments` JsonLexer instead of highlighting all items of the json.

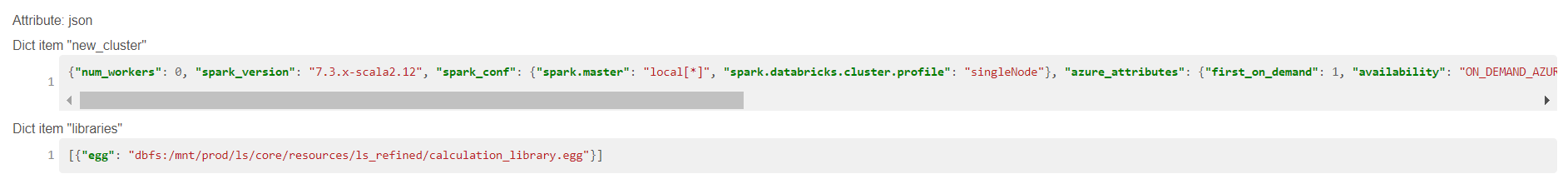

   We wouldn't need all items displayed separately in UI as shown here:

![image](https://user-images.githubusercontent.com/30059482/117995232-74dfc400-b341-11eb-9750-2a26717bab78.png)


   **How often does this problem occur?**
   Every time we use json task attribute that contains non-string item values.





--
