## Summary
When a deadline is missed and its callback fires, the callback's execution
logs are now viewable from the UI. The deadline status on the Dag Run view gets
a Callback Logs button that opens the logs in a modal, rendered through the
same pipeline as task instance logs.
- New endpoint `GET
/ui/dags/{dag_id}/dagRuns/{dag_run_id}/callbacks/{callback_id}/logs` returning
JSON or streamed NDJSON, following the task instance log route pattern. Logs
are read from remote storage when configured, falling back to the local log
folder, at the `executor_callbacks/...` and `triggerer_callbacks/...` paths
written since #66379.
- `DeadlineResponse` gains `callback_id` and `callback_state` so the UI can
link a deadline to its callback.
- The triggerer routes callback trigger output to the
`triggerer_callbacks/...` log path so async callback logs are also retrievable.
- New `CallbackLogViewer` component wired into the deadline display on the
Dag Run view, both the inline single deadline case and the multiple deadlines
modal. It reuses the existing `parseLogs` pipeline and `StateBadge`.
Callbacks can act on a deadline miss, so users need to see what the callback
did. Kaxil requested this during the deadlines UI work: "Some way to know if a
deadline didn't fire and it failed: something on UI would be great, like Task
log."
This supersedes #66610 and addresses the review feedback from it: streamed
NDJSON to avoid buffering large logs in the API server, a single exists-only
query that also verifies the callback belongs to the requested dag run, path
validation at the Depends level, `CallbackState` typing on the datamodel, reuse
of the existing log parsing and badge components in the UI, and path traversal
hardening (path component validation plus a realpath containment check) for the
CodeQL findings.
## E2E verification
Verified in breeze with the full stack (scheduler, dag-processor, triggerer,
API server, LocalExecutor, postgres). A Dag with a `SyncCallback` DeadlineAlert
was parsed, unpaused, and triggered; the deadline missed naturally while the
task ran, the callback executed through the callback supervisor, and its logs
came back through the new endpoint in both JSON and NDJSON form. The
screenshots below are from that live run.

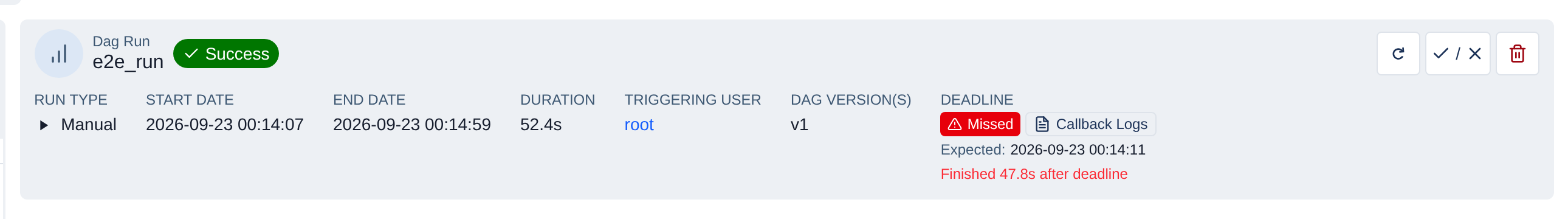

Dag Run view with a missed deadline and the Callback Logs button:

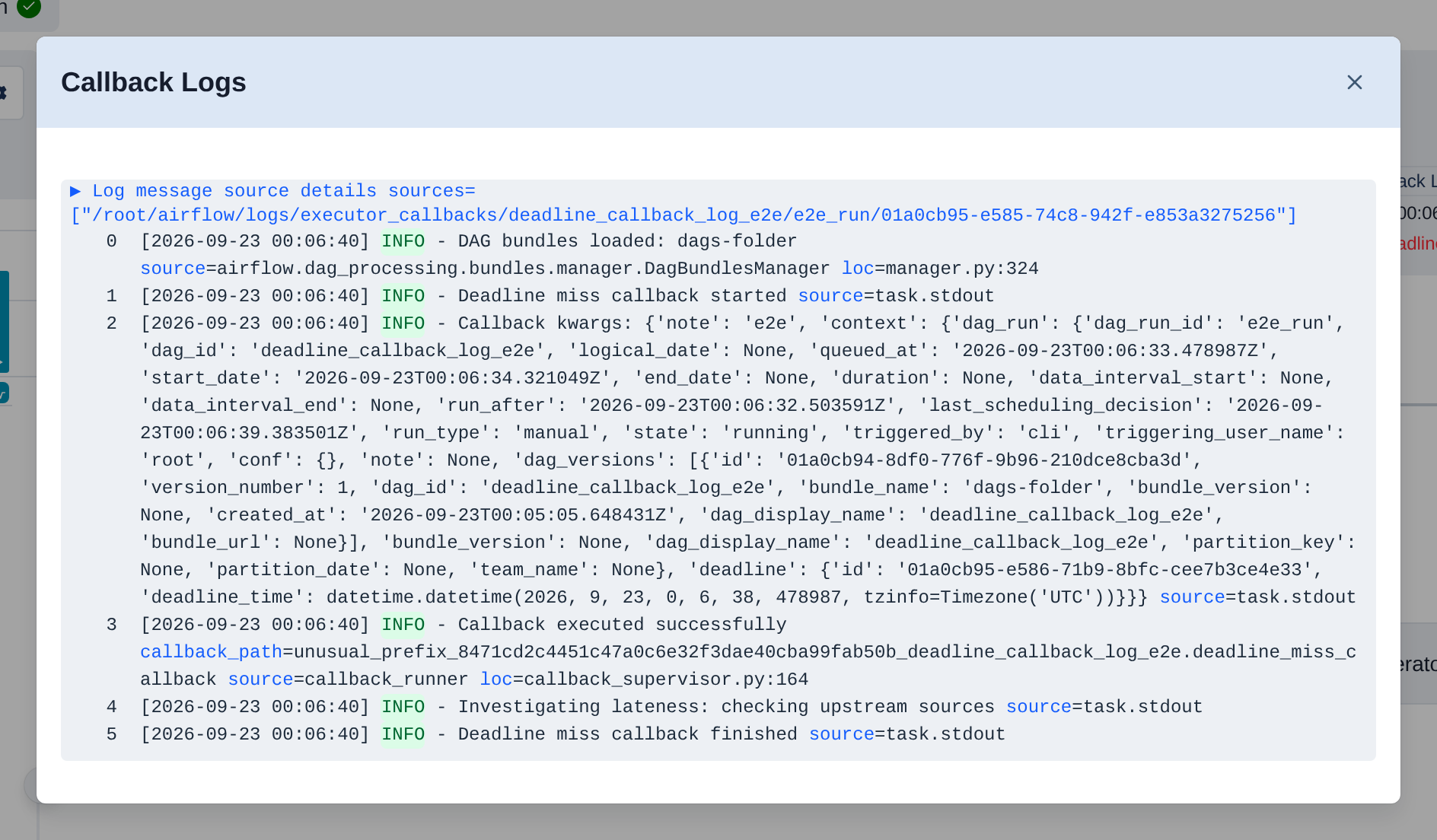

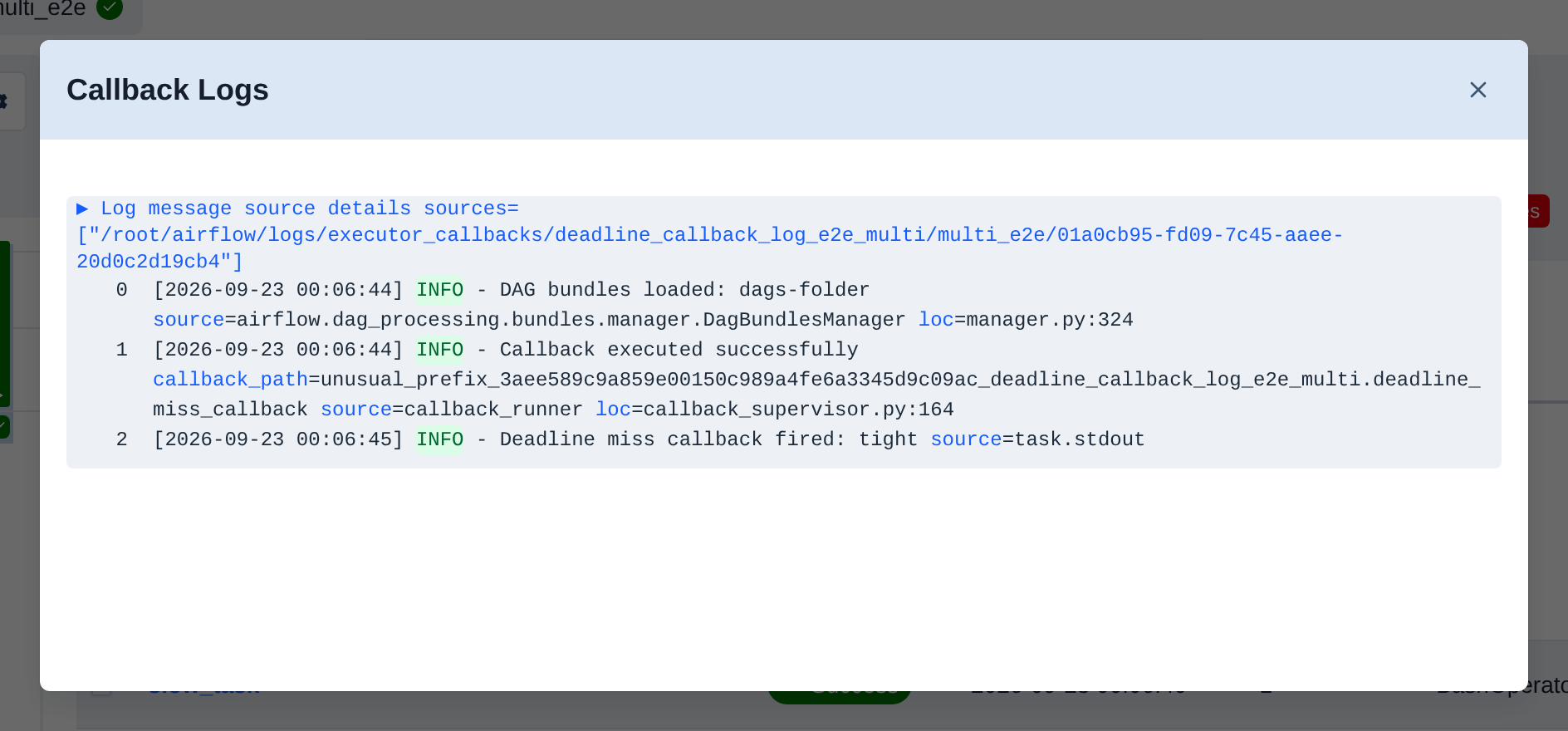

Callback logs modal with the callback state badge and the structured logs:

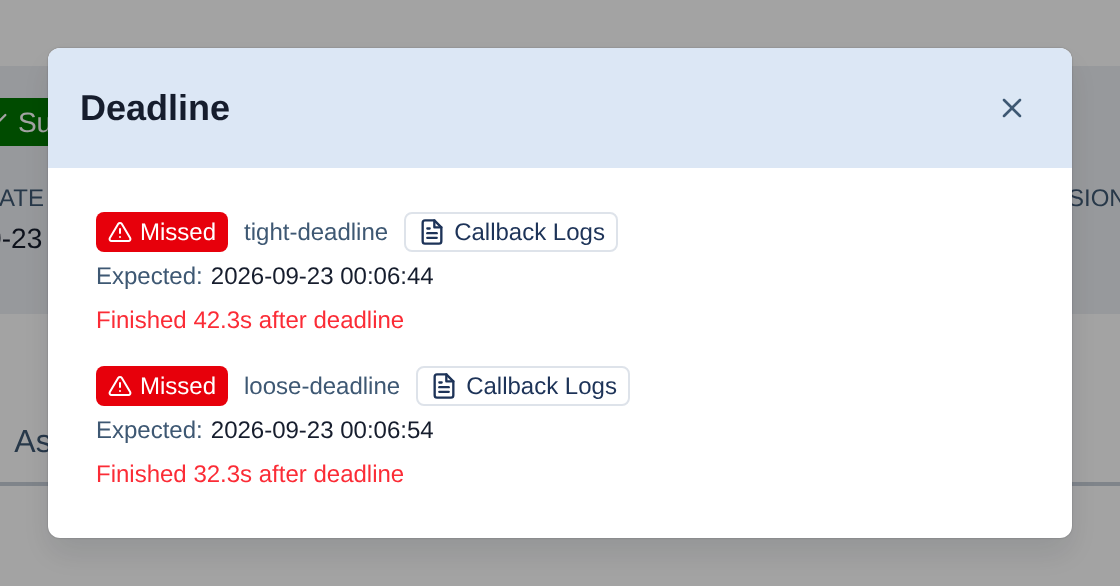

A run with two named deadlines, each with its own Callback Logs button in
the deadlines modal:
## Tests
- `airflow-core/tests/unit/utils/log/test_callback_log_reader.py` and
`airflow-core/tests/unit/api_fastapi/core_api/routes/ui/test_deadlines.py`: 75
passed in breeze.
- `airflow-core/tests/unit/jobs/test_triggerer_job.py`: 118 passed in breeze.
- `pnpm lint` (eslint and tsc) and the Run page vitest suites pass; mypy
clean on the touched core files.
---
##### Was generative AI tooling used to co-author this PR?
- [X] Yes — Claude Code (Fable 5)
Generated-by: Claude Code (Fable 5) following [the
guidelines](https://github.com/apache/airflow/blob/main/contributing-docs/05_pull_requests.rst#gen-ai-assisted-contributions)
--
