weizhouapache commented on issue #5234: URL: https://github.com/apache/cloudstack/issues/5234#issuecomment-889363007

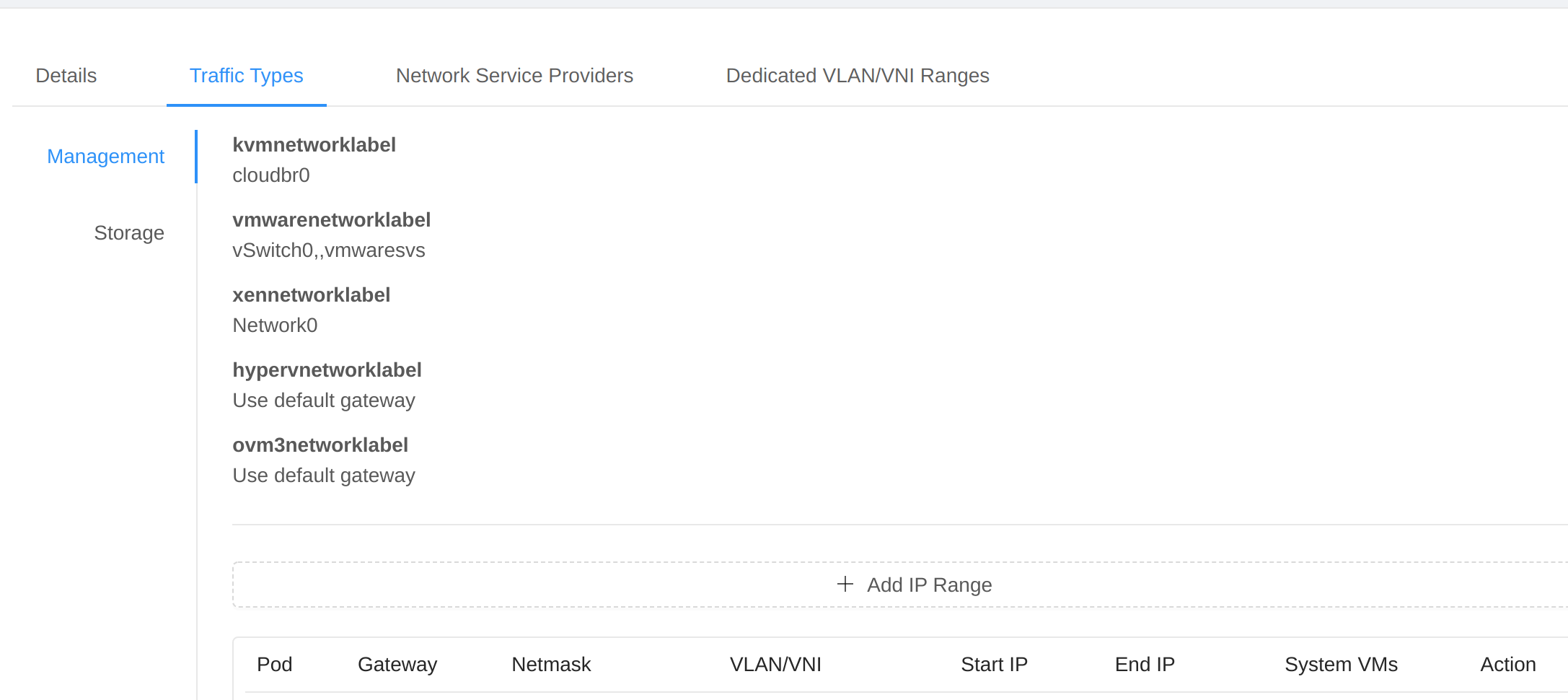

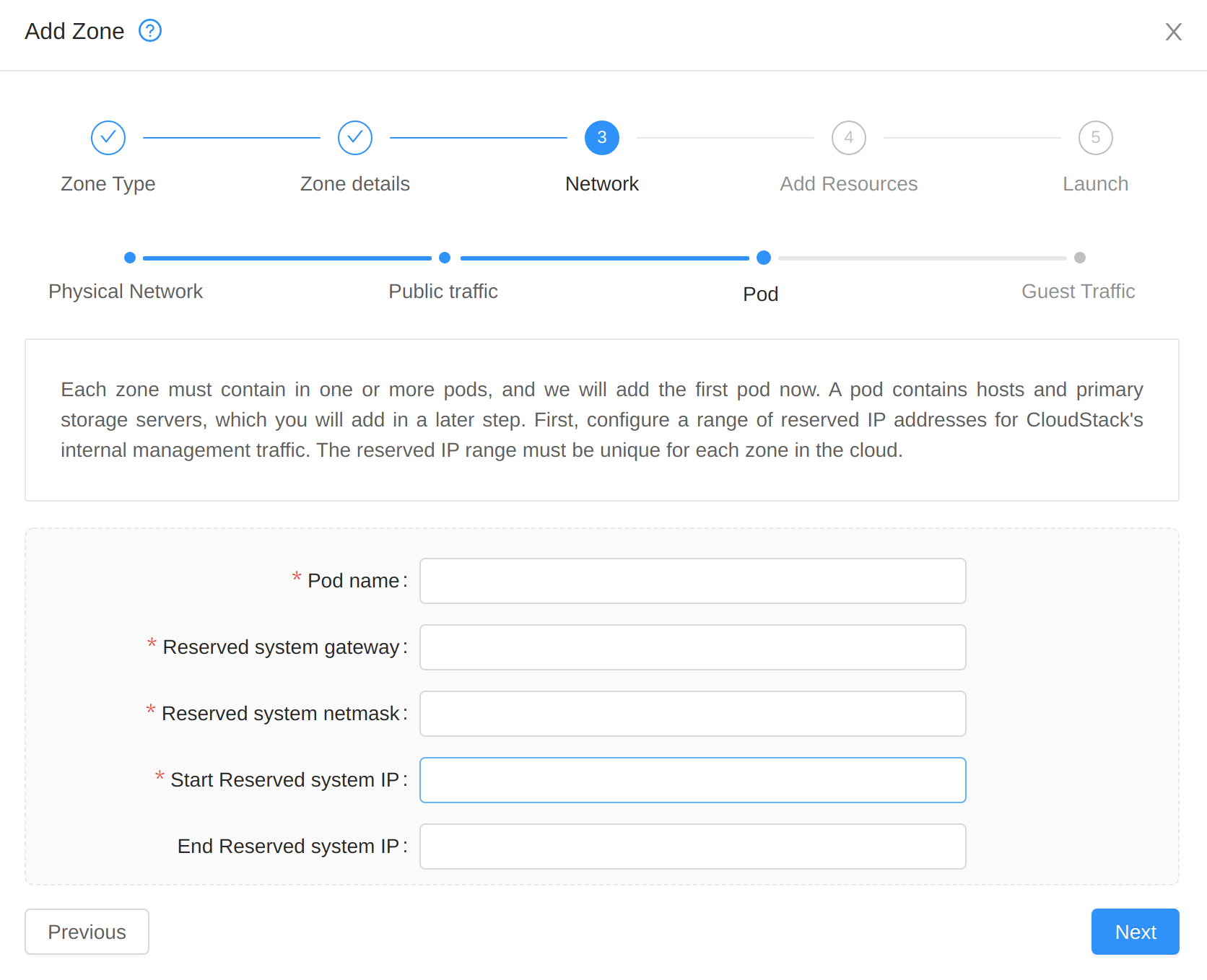

@tampler as I suggested before, please use private IP (eg 192.168.x.x, see RFC1918) for internal communication (management, hosts and systemvms), and add a private ip range to management network (they will be assigned to systemvms). each systemvm has a public Ip, a private Ip and a control Ip. please change your network topology accordingly. when you add zone via wizard on UI, you need to specify some IPs in the "add pod" step, see below.  cloudstack will pick up a ip from the range and assign to systemvm. you can add private ip range on UI as well.  -- This is an automated message from the Apache Git Service. To respond to the message, please log on to GitHub and use the URL above to go to the specific comment. To unsubscribe, e-mail: [email protected] For queries about this service, please contact Infrastructure at: [email protected]
