   The following are some infomation for configure advanced network

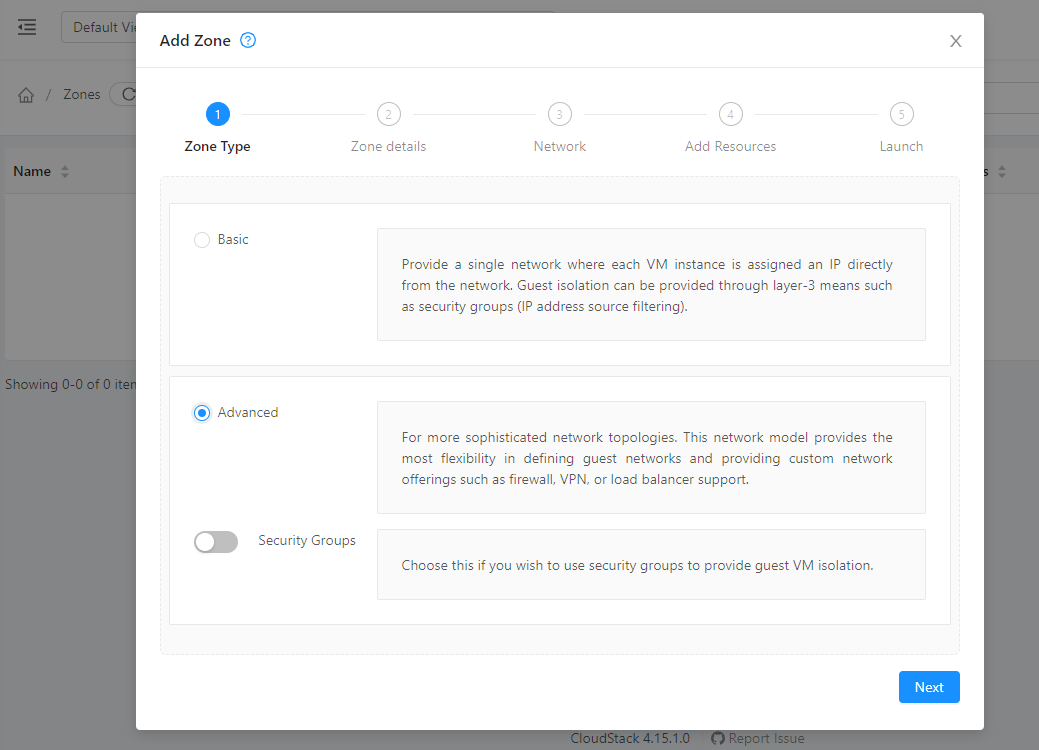

   1. Add zone

![image](https://user-images.githubusercontent.com/8956444/130803681-37a319ae-29ed-426a-9913-13cb364de105.png)

   2. Set up zone name

![image](https://user-images.githubusercontent.com/8956444/130803906-c0a04847-c341-4564-856d-59528611a246.png)

   3. Set up physical network

![image](https://user-images.githubusercontent.com/8956444/130804196-6eba6a30-6e24-4f27-94ec-e9bf1974a55e.png)

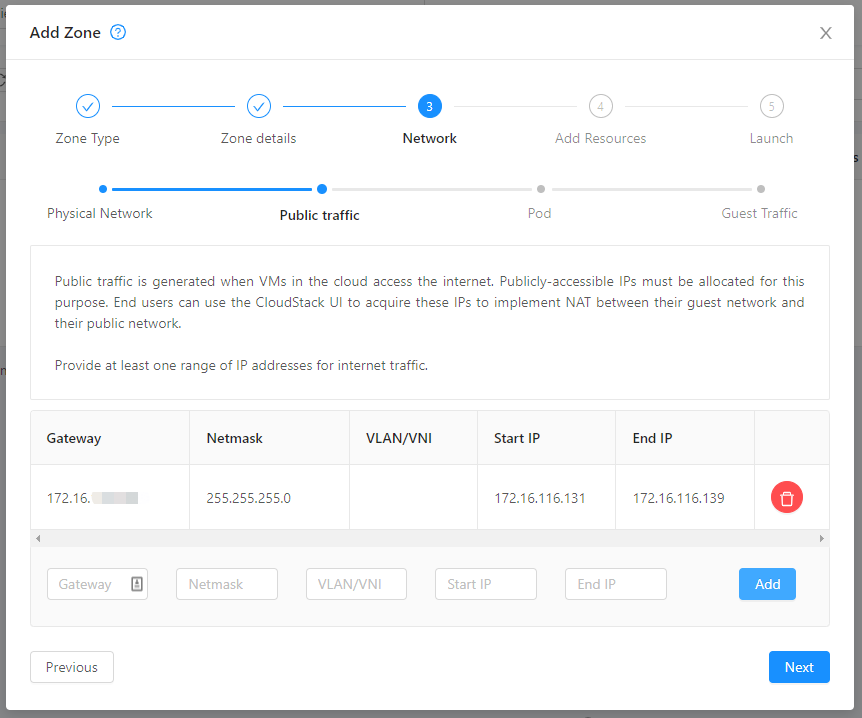

   4. Configure public traffic

![image](https://user-images.githubusercontent.com/8956444/130804528-4335bc09-3ed8-4b9e-8381-a96243f2fc40.png)

   5. Configure Pod

![image](https://user-images.githubusercontent.com/8956444/130804725-f9ab40a0-170c-49df-a9c8-d2f629766edb.png)

   6. Configure guest traffic

![image](https://user-images.githubusercontent.com/8956444/130806316-1b3b3d01-68d3-4646-bf36-3f059dac0865.png)

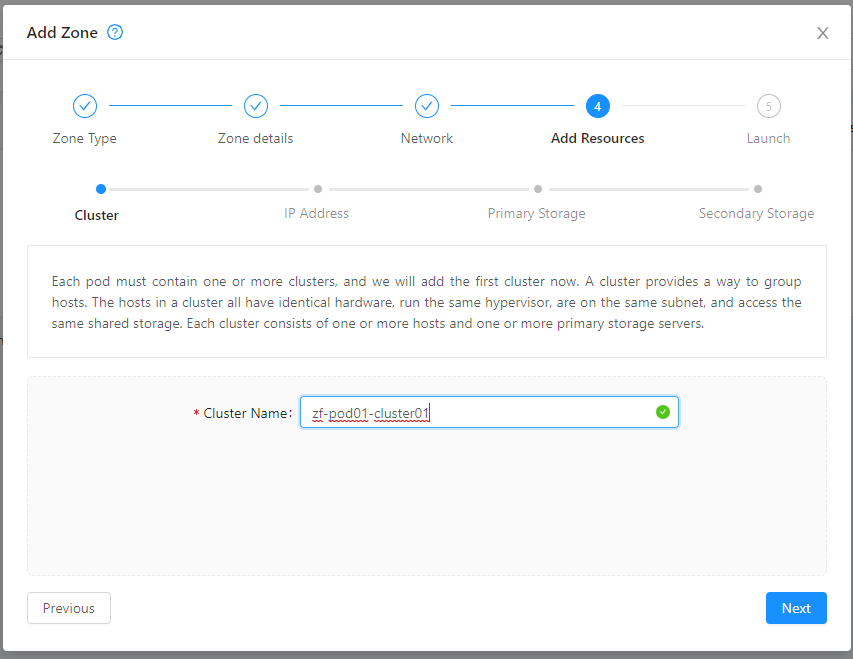

   7. Configure cluster name

![image](https://user-images.githubusercontent.com/8956444/130805100-6e02106d-61b5-4d00-a9ae-4d01cf511e0a.png)

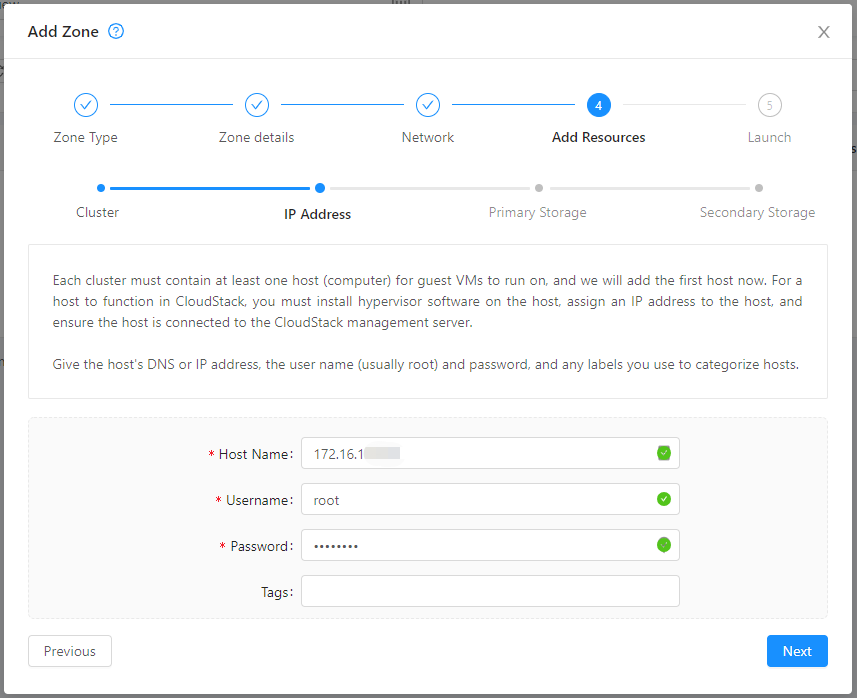

   8. Add hosts for the cluster

![image](https://user-images.githubusercontent.com/8956444/130805350-8b1b969f-debb-4b4f-b96a-b682550951e4.png)

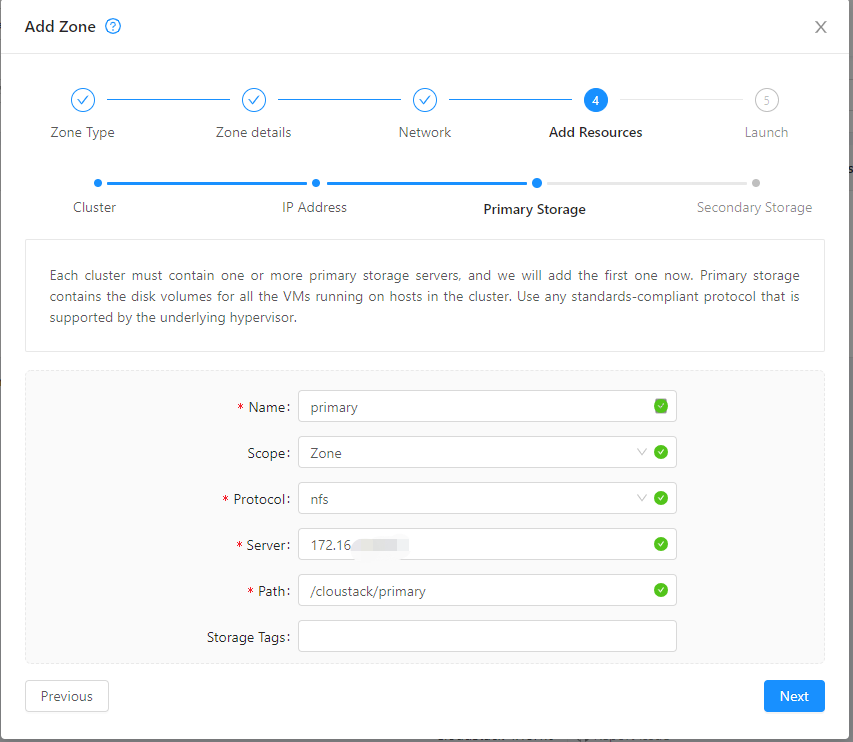

   9. Add primary storage for the zone

![image](https://user-images.githubusercontent.com/8956444/130805646-376d5d29-3adf-47bb-b34e-70690b865e2e.png)

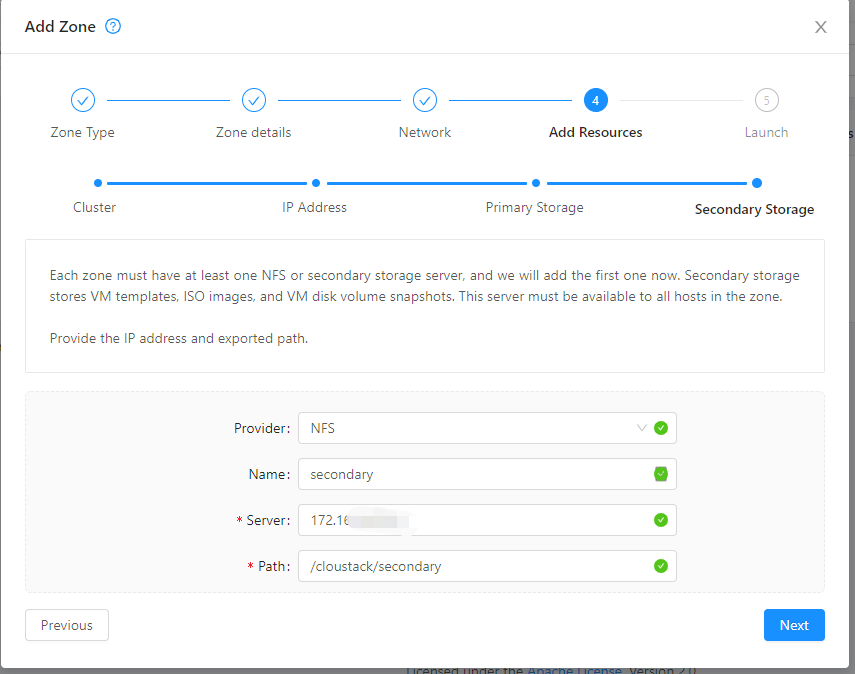

   10. Add secondary storage for the zone

![image](https://user-images.githubusercontent.com/8956444/130805751-b1be59a9-aac4-4a7f-b043-823f0b80e11b.png)

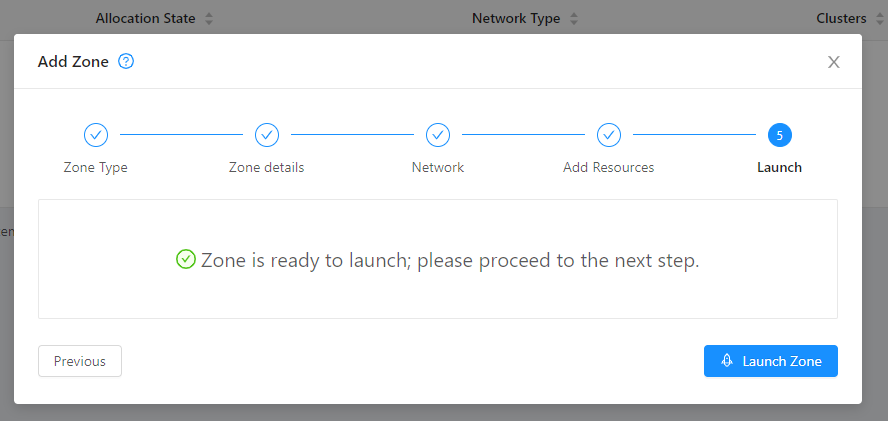

   11. Launch zone

![image](https://user-images.githubusercontent.com/8956444/130805872-348ea03a-5938-4977-8e2c-88c5489e9d2f.png)

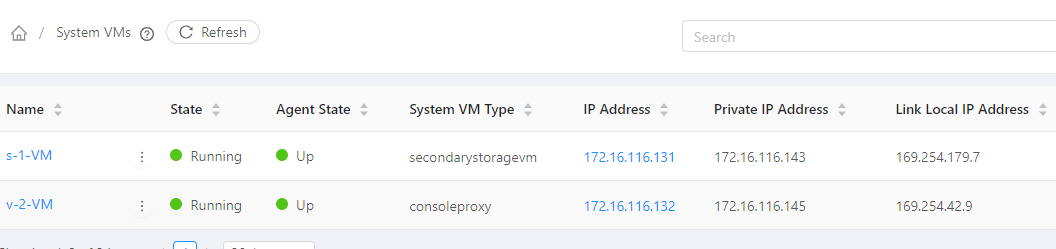

   12. System VMs are running, **but public IP still is unreachable.**

![image](https://user-images.githubusercontent.com/8956444/130808624-ca3cfd25-1505-4efa-a6c8-b0f8816da5ee.png)

   13. Ping 172.16.116.131 from the cloustack-server host

![image](https://user-images.githubusercontent.com/8956444/130809590-e3088f21-e05f-4e71-9f5e-39702b8425c1.png)




--
