JoaoJandre opened a new pull request, #13935:
URL: https://github.com/apache/cloudstack/pull/13935
### Description
This PR adds backup file extraction feature. Currently only supported by
KBOSS.
This feature must be enabled in the backup offering through the
`allowextractfile` parameter. If it is set to `true`, it will be possible to
extract files from backups created with that offering.
The `listBackupFilesystems` API was added to allow listing file systems
inside backup volumes:
| Parameter | Description
| Required? |
| ---------- |
--------------------------------------------------------------------------------------------------------------------------------------------------------------------
| --------- |
| `backupId` | ID of the backup for which the file systems should be listed
| Yes |
| `volumeId` | ID of the volume belonging to the backup for which the file
systems should be listed. If not provided, the file systems of all backup
volumes will be listed | No |
<details><summary>Example execution of the
<code>listBackupFilesystems</code> API</summary>
```
(labinterno) 🐱 > list backupfilesystems
backupid=ecb15182-d6a8-4044-8251-6d437b27b971
{
"count": 1,
"datastoreobject": [
{
"format": "ext4",
"isdirectory": false,
"isfilesystem": true,
"name": "/dev/sda1",
"size": 0,
"volumeid": "4af9cee2-6014-44fa-ac86-09a649b67363",
"volumename": "ROOT-198"
}
]
}
```
</details>
The `listBackupFiles` API was added to allow listing files inside backup
volumes:
| Parameter | Description
| Required? |
| ------------ |
-------------------------------------------------------------------------------
| --------- |
| `backupId` | ID of the backup for which the files should be listed
| Yes |
| `volumeId` | ID of the volume belonging to the backup for which the
files should be listed | Yes |
| `filesystem` | Name of the file system that should be mounted in order to
list the files | Yes |
| `path` | Path to be listed inside the mounted file system
| Yes |
| `issymlink` | If the directory is a symbolic link to another directory.
If not informed, ACS will check it | No |
The `filesystem` and `path` parameters expect that the files do not contain
special characters such as `(`, `|`, or `>`, for example. Both are expected to
receive values in the format `/path/to/something`.
<details><summary>Example execution of the <code>listBackupFiles</code>
API</summary>
```
(labinterno) 🐱 > list backupfiles
backupid=ecb15182-d6a8-4044-8251-6d437b27b971
volumeid=4af9cee2-6014-44fa-ac86-09a649b67363 filesystem=/dev/sda1 path=/tmp
{
"count": 8,
"datastoreobject": [
{
"isdirectory": true,
"lastupdated": "2026-05-26T13:26:39+0000",
"name": ".ICE-unix",
"size": 4096,
"volumeid": "4af9cee2-6014-44fa-ac86-09a649b67363",
"volumename": "ROOT-198"
},
{
"isdirectory": true,
"lastupdated": "2026-05-26T13:26:39+0000",
"name": ".Test-unix",
"size": 4096,
"volumeid": "4af9cee2-6014-44fa-ac86-09a649b67363",
"volumename": "ROOT-198"
},
{
"isdirectory": true,
"lastupdated": "2026-05-26T13:26:39+0000",
"name": ".X11-unix",
"size": 4096,
"volumeid": "4af9cee2-6014-44fa-ac86-09a649b67363",
"volumename": "ROOT-198"
},
{
"isdirectory": true,
"lastupdated": "2026-05-26T13:26:39+0000",
"name": ".XIM-unix",
"size": 4096,
"volumeid": "4af9cee2-6014-44fa-ac86-09a649b67363",
"volumename": "ROOT-198"
},
{
"isdirectory": true,
"lastupdated": "2026-05-26T13:26:39+0000",
"name": ".font-unix",
"size": 4096,
"volumeid": "4af9cee2-6014-44fa-ac86-09a649b67363",
"volumename": "ROOT-198"
},
{
"isdirectory": true,
"lastupdated": "2026-05-26T13:26:45+0000",
"name": "netplan_a2jbieem",
"size": 4096,
"volumeid": "4af9cee2-6014-44fa-ac86-09a649b67363",
"volumename": "ROOT-198"
},
{
"isdirectory": true,
"lastupdated": "2026-05-26T13:26:42+0000",
"name":
"systemd-private-5f39ee6fdaa3434caa2eb42ad39db34f-systemd-resolved.service-jLhWCz",
"size": 4096,
"volumeid": "4af9cee2-6014-44fa-ac86-09a649b67363",
"volumename": "ROOT-198"
},
{
"isdirectory": true,
"lastupdated": "2026-05-26T13:26:39+0000",
"name":
"systemd-private-5f39ee6fdaa3434caa2eb42ad39db34f-systemd-timesyncd.service-3aOZJF",
"size": 4096,
"volumeid": "4af9cee2-6014-44fa-ac86-09a649b67363",
"volumename": "ROOT-198"
}
]
}
```
</details>
To download files, the `downloadBackupFile` API was added:
| Parameter | Description
| Required? |
| ------------ |
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| --------- |
| `backupId` | ID of the backup from which the file should be downloaded
| Yes |
| `volumeId` | ID of the volume belonging to the backup from which the
file should be downloaded
| Yes |
| `filesystem` | Name of the file system that should be mounted in order to
download the file
| Yes |
| `path` | Path to be downloaded inside the mounted filesystem. If it
is a file, it will be compressed using `gzip`; if it is a directory, it will be
added to a `tar` archive and compressed using `gzip` | Yes |
The `filesystem` and `path` parameters expect that the files do not contain
special characters such as `(`, `|`, or `>`, for example. Both are expected to
receive values in the format `/path/to/something`.
<details><summary>Example execution of the <code>downloadBackupFile</code>
API</summary>
```
(labinterno) 🐱 > download backupfile
backupid=ecb15182-d6a8-4044-8251-6d437b27b971
volumeid=4af9cee2-6014-44fa-ac86-09a649b67363 filesystem=/dev/sda1
path=/tmp/systemd-private-5f39ee6fdaa3434caa2eb42ad39db34f-systemd-resolved.service-jLhWCz
{
"downloadbackupfileresponse": {
"name":
"systemd-private-5f39ee6fdaa3434caa2eb42ad39db34f-systemd-resolved.service-jLhWCz",
"state": "DOWNLOAD_URL_CREATED",
"url":
"http://192.168.123.142/userdata/215a45db-70e1-4649-93cb-258abe572573/5967473b-29b1-4057-85a3-cd924a458033.gz";
}
}
```
</details>

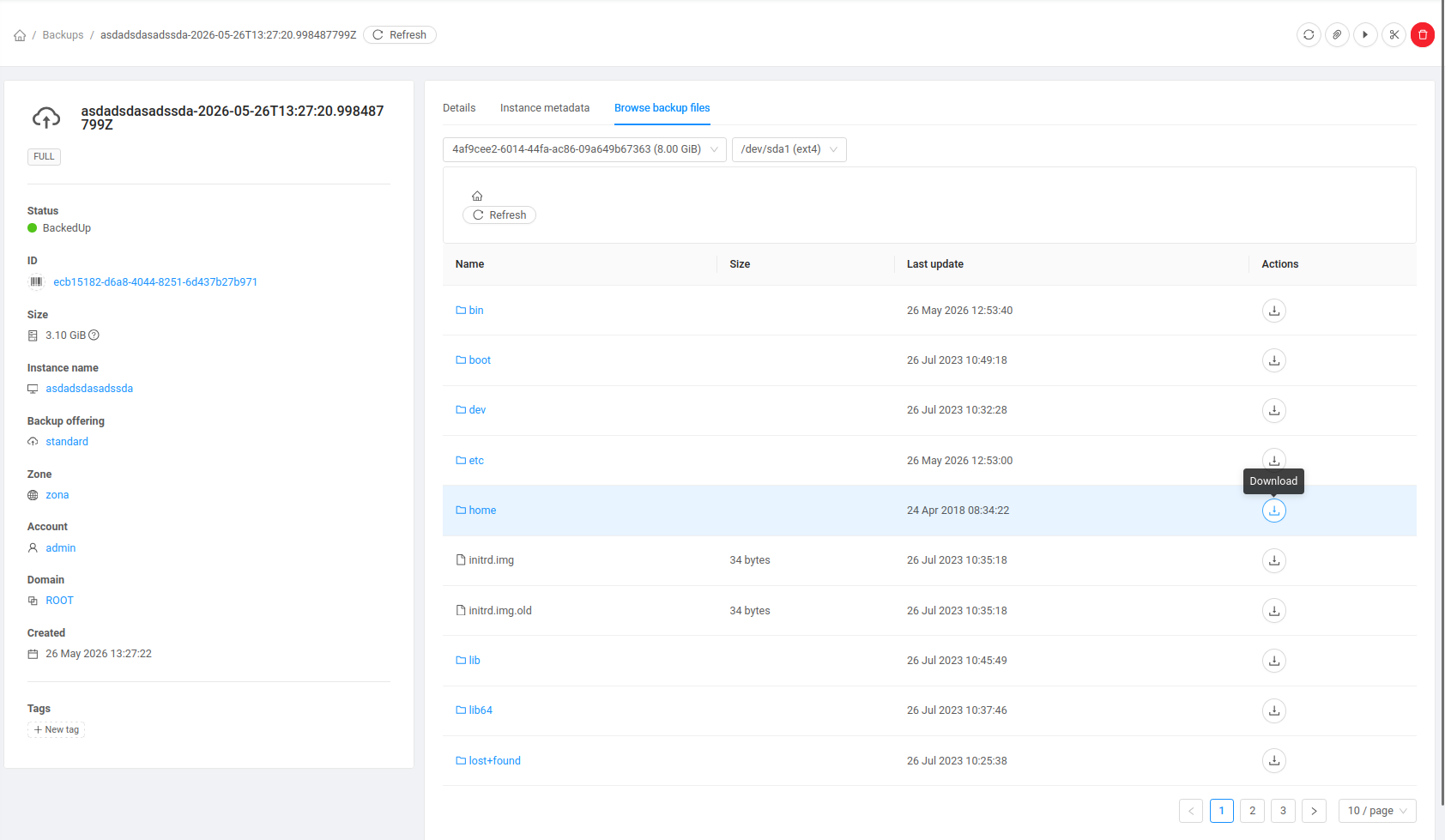

The list and download file workflow was also added to the GUI.
### Types of changes
- [ ] Breaking change (fix or feature that would cause existing
functionality to change)
- [X] New feature (non-breaking change which adds functionality)
- [ ] Bug fix (non-breaking change which fixes an issue)
- [ ] Enhancement (improves an existing feature and functionality)
- [ ] Cleanup (Code refactoring and cleanup, that may add test cases)
- [ ] Build/CI
- [ ] Test (unit or integration test code)
### Feature/Enhancement Scale or Bug Severity
#### Feature/Enhancement Scale
- [X] Major
- [ ] Minor
#### Bug Severity
- [ ] BLOCKER
- [ ] Critical
- [ ] Major
- [ ] Minor
- [ ] Trivial
### Screenshots (if appropriate):
### How Has This Been Tested?
### Test descriptions
| Test | Result |
| --- | --- |
| List filesystems for a volume containing filesystems | Filesystems
returned |
| List filesystems for a volume without filesystems | Empty list returned |
| List filesystems for a backup without specifying the volume | List of all
filesystems across all backup volumes returned |
| List files in a standard directory | List of files returned, with correct
file types and sizes |
| List files in a symlink to a directory, specifying the `isSymlink=true`
flag | List of files returned, with correct file types and sizes |
| List files in a symlink to a directory, without specifying the `isSymlink`
flag | List of files returned, with correct file types and sizes |
| List files in an empty directory | Empty list returned |
| List files in a directory containing symlinks | List of files returned,
including the symlink file, with its canonical path information |
| List files in a directory containing a symlink pointing to a non-existent
path | List of files returned, excluding the symlink file |
| List files in a non-existent directory | Error (expected) |
| List files in a symlink pointing to another symlink | Error (expected) |
| Download a standard file | File downloaded successfully |
| Download a standard directory | File downloaded successfully |
| Download a symlink pointing to a file | File downloaded successfully |
| Download a symlink pointing to a directory | File downloaded successfully |
| Download a symlink pointing to another symlink | Error (expected) |
All the tests above were executed for both Linux ROOT volumes (ext4) and
Windows ROOT volumes (NTFS).
--
