This is an automated email from the ASF dual-hosted git repository. likyh pushed a commit to branch revert-217-likyh/webhook-doc in repository https://gitbox.apache.org/repos/asf/incubator-devlake-website.git

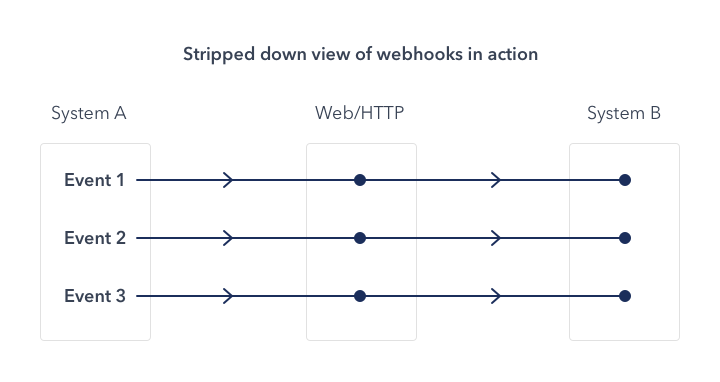

commit fb29a5dc49b1a9be9088c06aa1bd445af5f20627 Author: likyh <[email protected]> AuthorDate: Wed Sep 21 20:38:31 2022 +0800 Revert "doc: add the doc of the plugin webbhook" This reverts commit b7abe60905b8701dfa72ead7c611433ca850ef27. --- docs/Plugins/webhook.md | 173 ------------------------------------------------ 1 file changed, 173 deletions(-) diff --git a/docs/Plugins/webhook.md b/docs/Plugins/webhook.md deleted file mode 100644 index 7acdee38d..000000000 --- a/docs/Plugins/webhook.md +++ /dev/null @@ -1,173 +0,0 @@ ---- -title: "Webhook" -description: > - Webhook Plugin ---- - -## Summary - -[Webhooks](https://en.wikipedia.org/wiki/Webhook) are HTTPs that you need to request. They should be triggered in your deploy and bug recorder systems, such as build shells in Jenkins or Jira. - - -(picture from the Internet) - -Here, your systems play the roles of system A as the picture, and Apache DevLake is system B. Now, you can use webhooks to: - -* record bugs or incidents when DevLake cannot collect data from issue applications directly. -* detect code deployments by custom deploy-time measurement - -DevLake does not limit the number of webhook requests. **But Notice**: Your Database or other servers may not handle unlimited requests. - -## Configuration -Configuring Webhook via config-ui. - -First, You can create a webhook connection. - - -We suggest that one connection must be used in one system. So you can input the name of your system here. - -Then, you can find the webhook URLs here. Copy what you need. (Or copy when you need them) - - - - - -## Incident / Issue - -If you want to collect issue or incident data from your system, you can use the webhook of issues. - -There are 2 hooks. **Notice**: `https://sample-url.com/` and `1` should be replaced with your URL and connectionId. - -#### Update or Create issues - -`POST https://sample-url.com/api/plugins/webhook/1/issues` - -Need to be called when an issue or incident is created. The body includes columns as follows: - -``` -board_key: issue belongs to which board/project -url(Optional): issue's URL -issue_key: issue's key, needs to be unique in a connection -title -description(Optional) -epic_key(Optional): in which epic. -type(Optional): type, such as bug/incident/epic/... -status: issue's status. Must be one of TODO DONE IN_PROGRESS -original_status: status in your system, such as created/open/closed/... -story_point(Optional) -resolution_date(Optional): date, Format should be 2020-01-01T12:00:00+00:00 -created_date: date, Format should be 2020-01-01T12:00:00+00:00 -updated_date(Optional): date, Format should be 2020-01-01T12:00:00+00:00 -lead_time_minutes(Optional): how long from this issue accepted to develop -parent_issue_key(Optional) -priority(Optional) -original_estimate_minutes(Optional) -time_spent_minutes(Optional) -time_remaining_minutes(Optional) -creator_id(Optional): the user id of the creator -creator_name(Optional): the user name of the creator, it will just be used to display -assignee_id(Optional) -assignee_name(Optional) -severity(Optional) -component(Optional): which component is this issue in. -``` - - - -#### Close issue (Optional) - -`POST https://sample-url.com/api/plugins/webhook/1/issue/:boardKey/:issueId/close` - -Need to be called when an issue or incident is closed. Replace `:boardKey` and `:issueId` with specific strings and keep the body empty. - - - -### Sample API Calls - -Sample CURL for Issue Creating : - -``` -curl http://127.0.0.1:4000/api/plugins/webhook/1/issues -X 'POST' -d '{"board_key":"DLK","url":"","issue_key":"DLK-1234","title":"a feature from DLK","description":"","epic_key":"","type":"BUG","status":"TODO","original_status":"created","story_point":0,"resolution_date":null,"created_date":"2020-01-01T12:00:00+00:00","updated_date":null,"lead_time_minutes":0,"parent_issue_key":"DLK-1200","priority":"","original_estimate_minutes":0,"time_spent_minutes":0,"time_remaining_minutes":0,"creat [...] -``` - -Sample CURL for Issue Closing: - -``` -curl http://127.0.0.1:4000/api/plugins/webhook/1/issue/DLK/DLK-1234/close -X 'POST' -``` - -Read more in Swagger: http://localhost:4000/api/swagger/index.html#/plugins%2Fwebhook/post_plugins_webhook__connectionId_issues. - -## Deployment - -Adding pipeline webhook in your deploy shells will help you collect data into DevLake. - -First, let us know there are 2 entities Tasks and Pipelines. A pipeline means one build or deployment, and a pipeline may have more than one task. - - - -(Example 1) - -For example, we can find 6 tasks like `golangci-lint` and `unit-test` in one GitHub pipeline. - - - -(Example 2. Picture from the Internet) - -In Example 2, we can find 12 Jenkins pipelines. - - - -(Example 3. Picture from the Internet) - -In Example 3, we can find 5 Jenkins pipelines, and these pipelines have 1~4 task(s). - - - -After figuring out `pipeline` and `task`, we can start to add webhook. 2 hooks need to be added in shells. **Notice**: `https://sample-url.com/` and `1` should be replaced with your URL and connectionId. - -#### Update or Create the tasks in the pipeline - -This hook should be added when the task starts and finishes. So in Example 3, we need to add 8 CURLs in the 4 tasks. - -`POST https://sample-url.com/api/plugins/webhook/1/cicd_tasks` - -The body should be a JSON and include columns as follows: - -``` -pipeline_name: pipeline's name can be filled by any string unique in a connection -name: task's name should be unique in one pipeline -result: Must be one of SUCCESS FAILURE ABORT IN_PROGRESS -status: Must be one of IN_PROGRESS DONE -type: one of TEST LINT BUILD DEPLOYMENT -environment: which type of machine did this task run in. one of PRODUCTION STAGING TESTING -started_date: date, Format should be 2020-01-01T12:00:00+00:00 -finished_date(Optional): date, Format should be 2020-01-01T12:00:00+00:00 -repo_id: build for which repo/project. It can be a unique string that you can distinguish -branch(Optional) -commit_sha(Optional) -``` - - - -#### Close pipelines - -`POST https://sample-url.com/api/plugins/webhook/1/cicd_pipeline/:pipelineName/finish` - -This hook should be called to tell DevLake a pipeline finish when a pipeline is completed. `:pipelineName` need to be replaced with the pipeline name in the previous webhook. - -### Sample API Calls - -Sample CURL for the tasks starting and finishing in deploy pipelines: - -``` -curl http://127.0.0.1:4000/api/plugins/webhook/1/cicd_tasks -X 'POST' -d '{"pipeline_name":"A123","name":"unit-test","result":"IN_PROGRESS","status":"IN_PROGRESS","type":"TEST","environment":"PRODUCTION","created_date":"2020-01-01T12:00:00+00:00","finished_date":"2020-01-01T12:59:59+00:00","repo_id":"devlake","branch":"main","commit_sha":"015e3d3b480e417aede5a1293bd61de9b0fd051d"}' -``` - -Sample CURL for pipeline completed: - -``` -curl http://127.0.0.1:4000/api/plugins/webhook/1/cicd_pipeline/A123/finish -X 'POST' -d '' -``` - -Read more in Swagger: http://localhost:4000/api/swagger/index.html#/plugins%2Fwebhook/post_plugins_webhook__connectionId_issues.
