elonlo opened a new pull request #3703:
URL: https://github.com/apache/incubator-dolphinscheduler/pull/3703


   ## What is the purpose of the pull request

   The frontend introduces the dagre library, and uses the layered graph
drawing algorithm to calculate the position of each task node

   ## Brief change log

     - *Add dagre:0.8.5 to package.json*
     - *Add dagre info to LICENSE file*
     - *Add LICENSE-dagre new file*
     - *Modify dag.js reformat logic*

   ## Verify this pull request

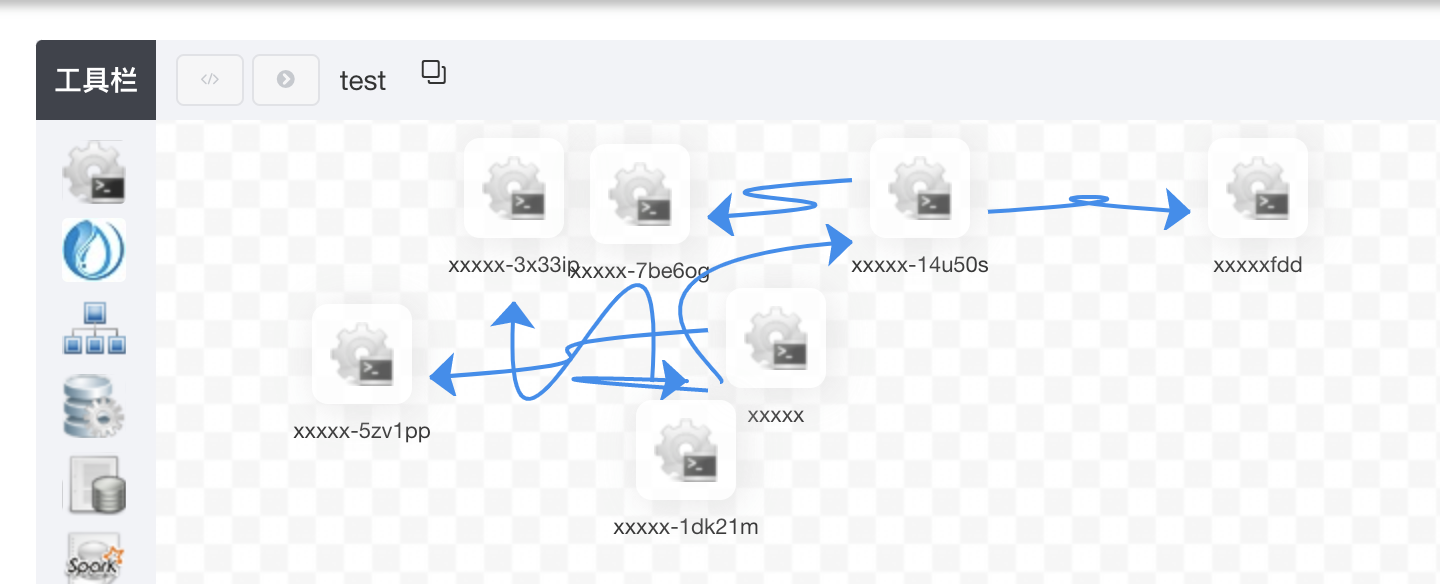

   before

![image](https://user-images.githubusercontent.com/5669148/92559844-ed1e5300-f2a3-11ea-9da8-cd287715c2cd.png)

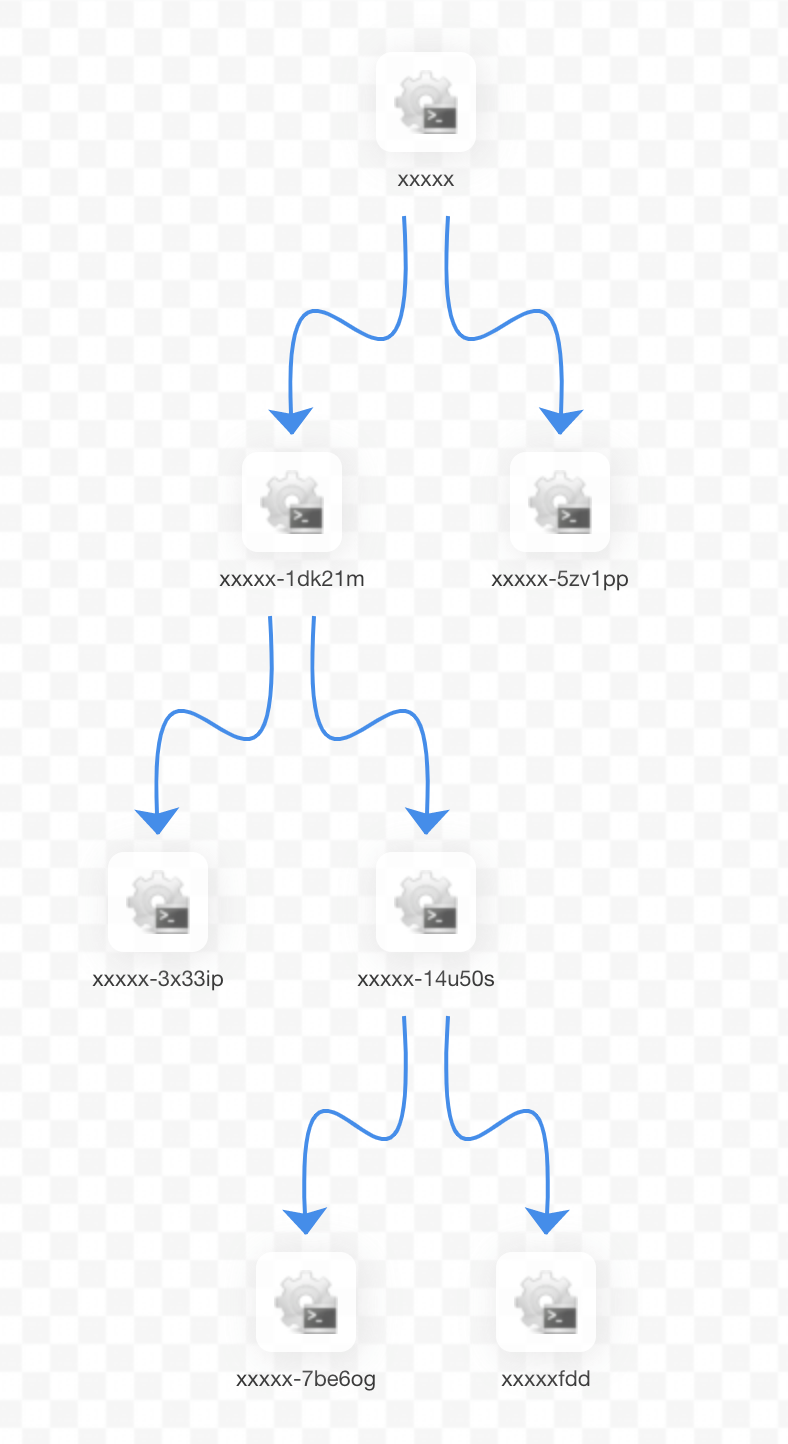

   after

![image](https://user-images.githubusercontent.com/5669148/92559886-03c4aa00-f2a4-11ea-8f47-eed6cfe0573e.png)


   This change added tests and can be verified as follows:

     - *Manually verified the change by testing locally.*



----------------------------------------------------------------
