lenboo opened a new issue #4083:
URL: https://github.com/apache/incubator-dolphinscheduler/issues/4083


   *For better global communication, please give priority to using English
description, thx! *

   improvement for master

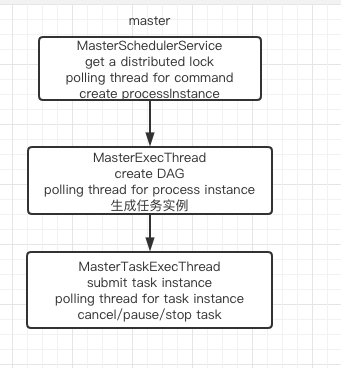

![image](https://user-images.githubusercontent.com/29528966/99616759-c70def80-2a58-11eb-9661-f8f0012354f5.png)

   At present, the problems of master:

   1. There are many polling, that result in unnecessary time-cost

   2. The distributed lock is used when the command is taken, that result in
the bottleneck of concurrency

   3. Too many threads(nProcessInstance*nTaskInstances) are used, that result
in the waste of system resources

   4. Polling database result in database query pressure bottleneck



   Master模块优化：
   目前的master：

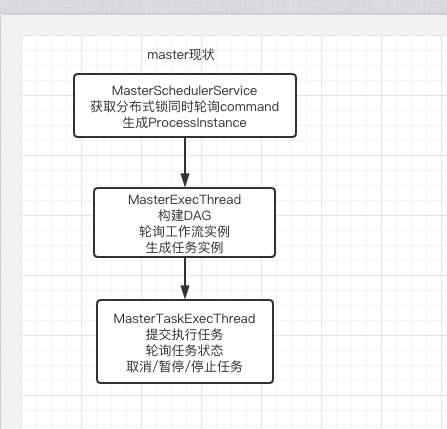

![image](https://user-images.githubusercontent.com/29528966/99615188-ea836b00-2a55-11eb-8fde-0b7bf7af91ca.png)

   目前发现master的问题：
   1.  出现比较多的轮询，造成不必要的耗时
   2.  取command的时候使用了分布式锁，造成并发数量的瓶颈
   3.  线程使用过多(nProcessInstance*nTaskInstances) ，造成系统资源浪费的现象
   4.  轮询数据库，数据量大的情况下，造成数据库查询压力瓶颈






----------------------------------------------------------------
