Wangyizhi1 opened a new pull request #6919:
URL: https://github.com/apache/dolphinscheduler/pull/6919


   See #6918

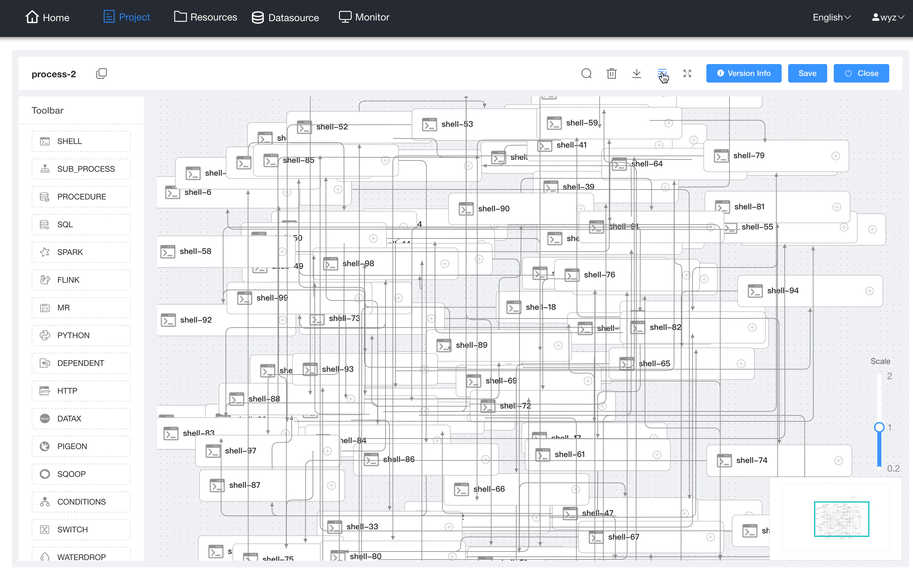

   1. Add grid layout function.
   ![Kapture 2021-11-19 at 10 54
48](https://user-images.githubusercontent.com/87303815/142557374-f3a80b9a-3286-4dd3-b4c1-7f3e267399e4.gif)

   2. Open pre-tasks settings for all tasks
   ![Kapture 2021-11-19 at 11 01
17](https://user-images.githubusercontent.com/87303815/142557787-1fe2d988-d7f9-4d2a-b0a9-0166f2b75881.gif)

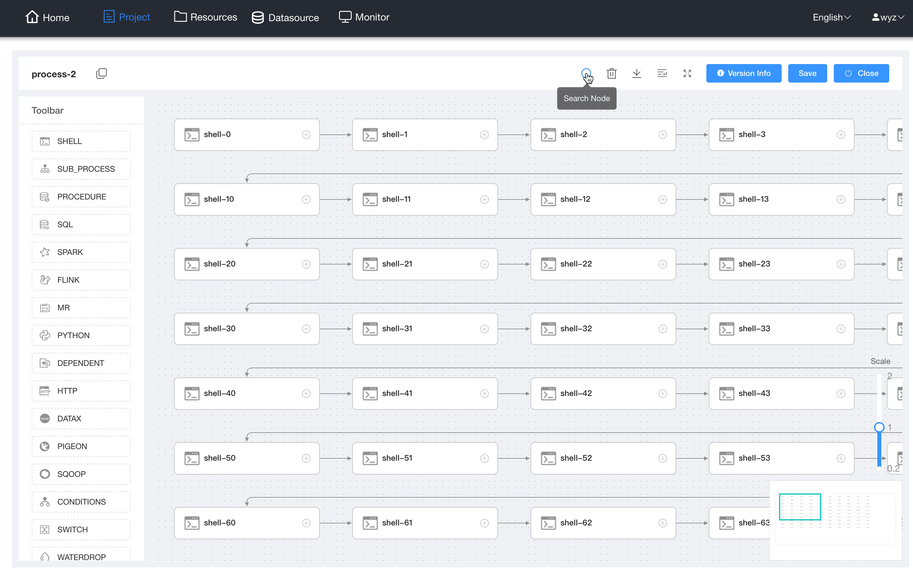

   3. Add node search function
   ![Kapture 2021-11-19 at 11 05
59](https://user-images.githubusercontent.com/87303815/142558169-adbb9b05-33b8-4813-b80c-2b0da011ce6e.gif)

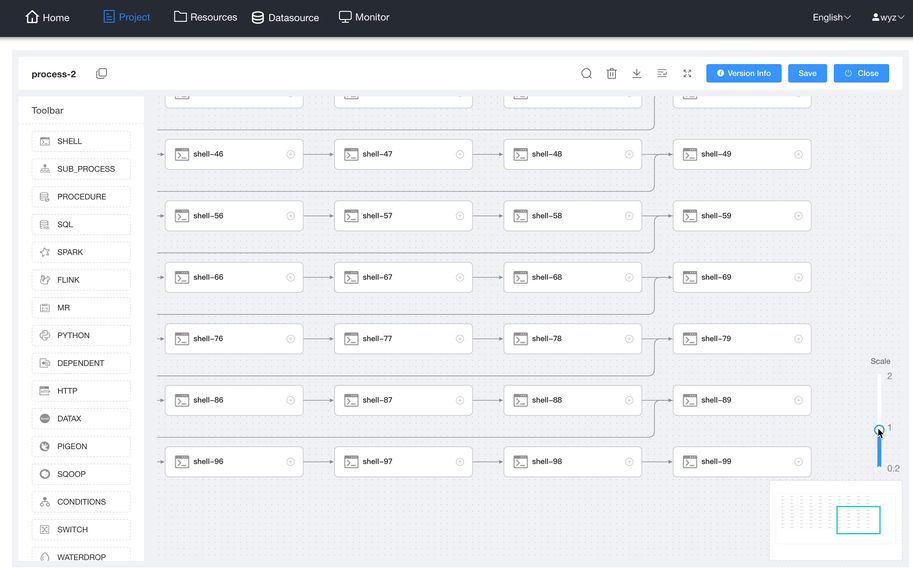

   4. Add DAG scale bar
   ![Kapture 2021-11-19 at 11 09
40](https://user-images.githubusercontent.com/87303815/142558475-83084aab-50c0-45d6-893b-68d9de666541.gif)

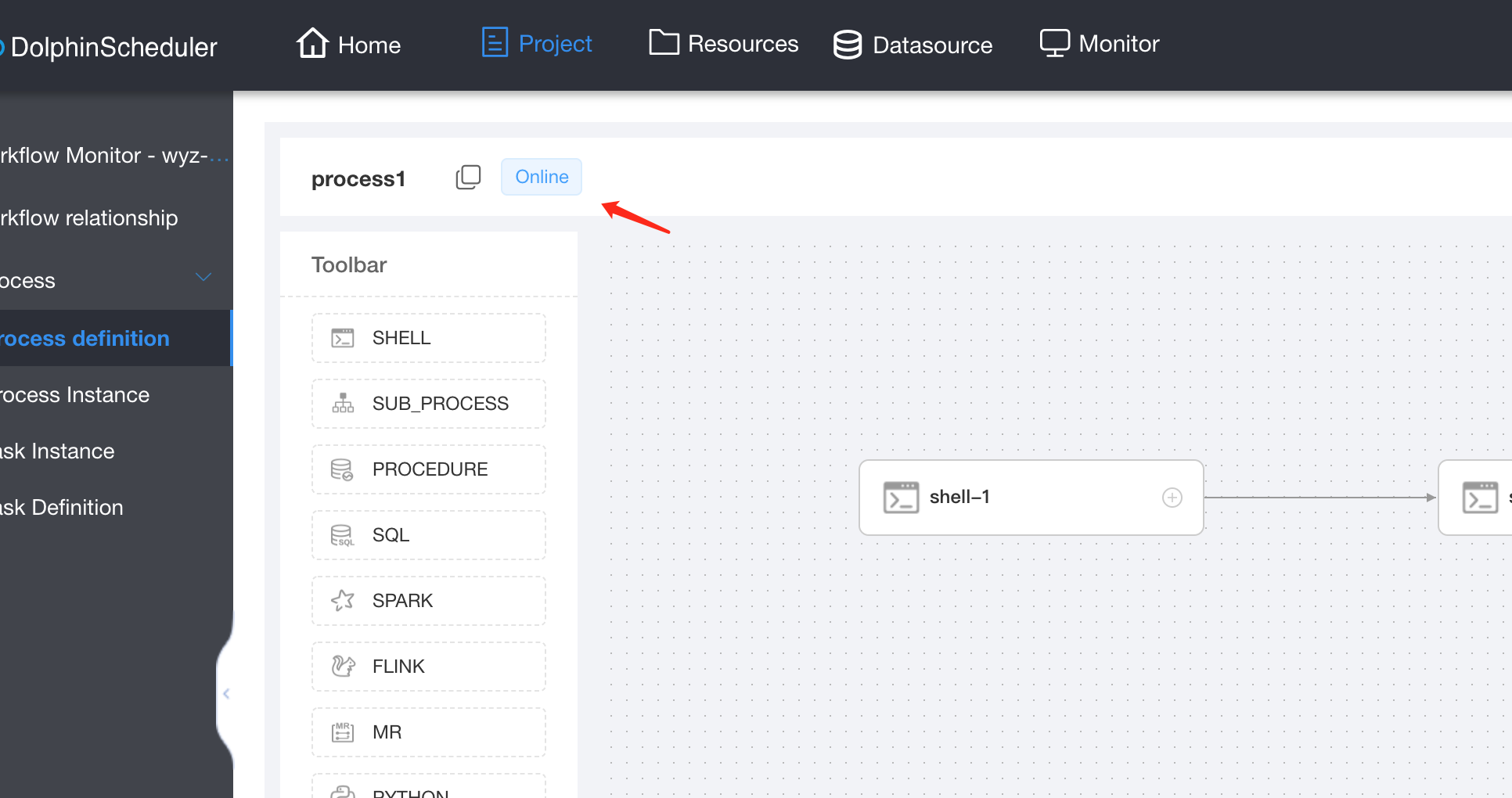

   5. Add process status tag

![image](https://user-images.githubusercontent.com/87303815/142558678-86c08c69-b807-4ca7-b8d6-88692eb92f60.png)

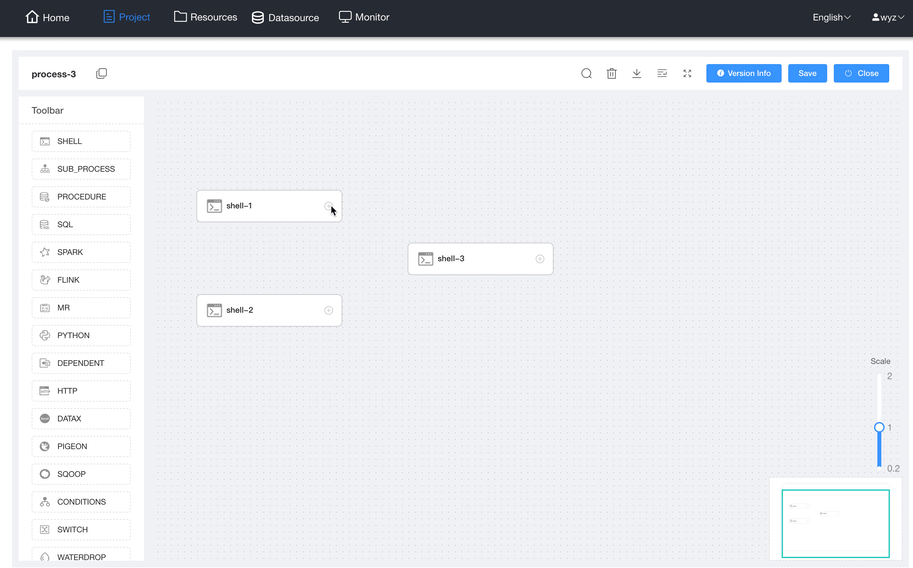

   6. Optimize node feedback when creating connection
   ![Kapture 2021-11-19 at 11 15
46](https://user-images.githubusercontent.com/87303815/142558969-be72606c-106d-4431-b7f3-6d88bf481be6.gif)




--
