songjianet opened a new issue #6969: URL: https://github.com/apache/dolphinscheduler/issues/6969

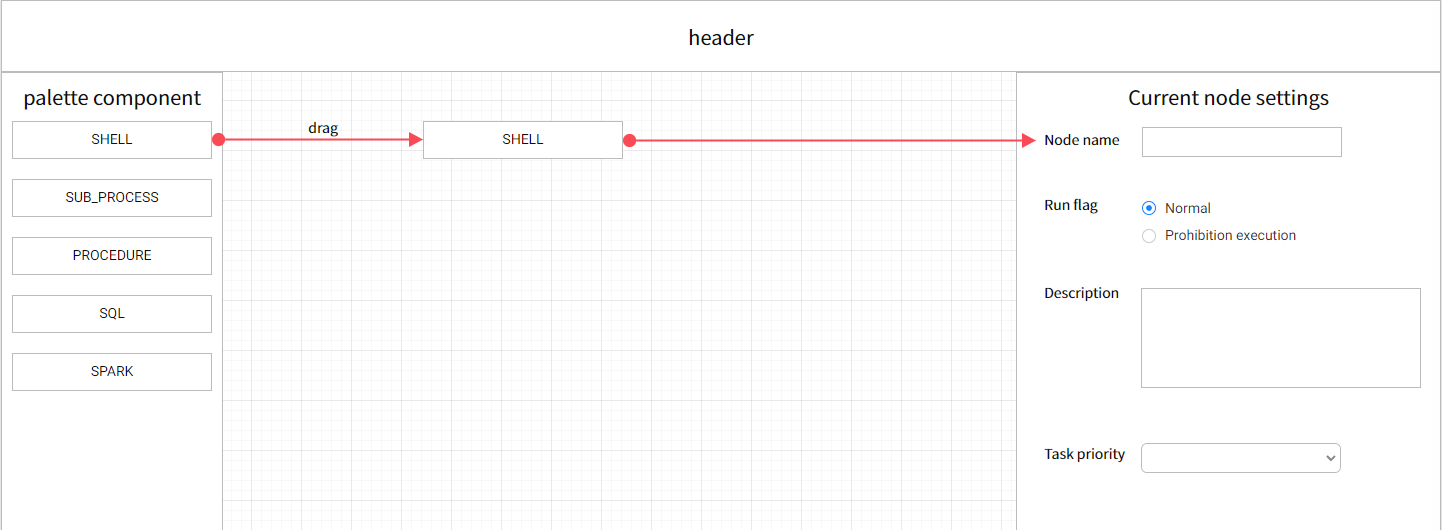

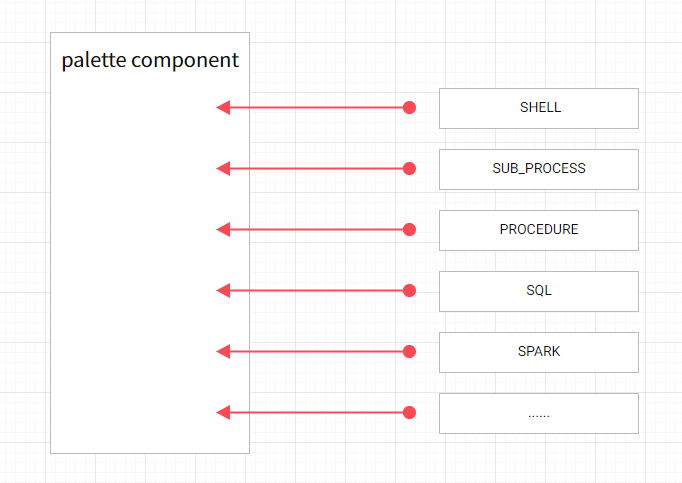

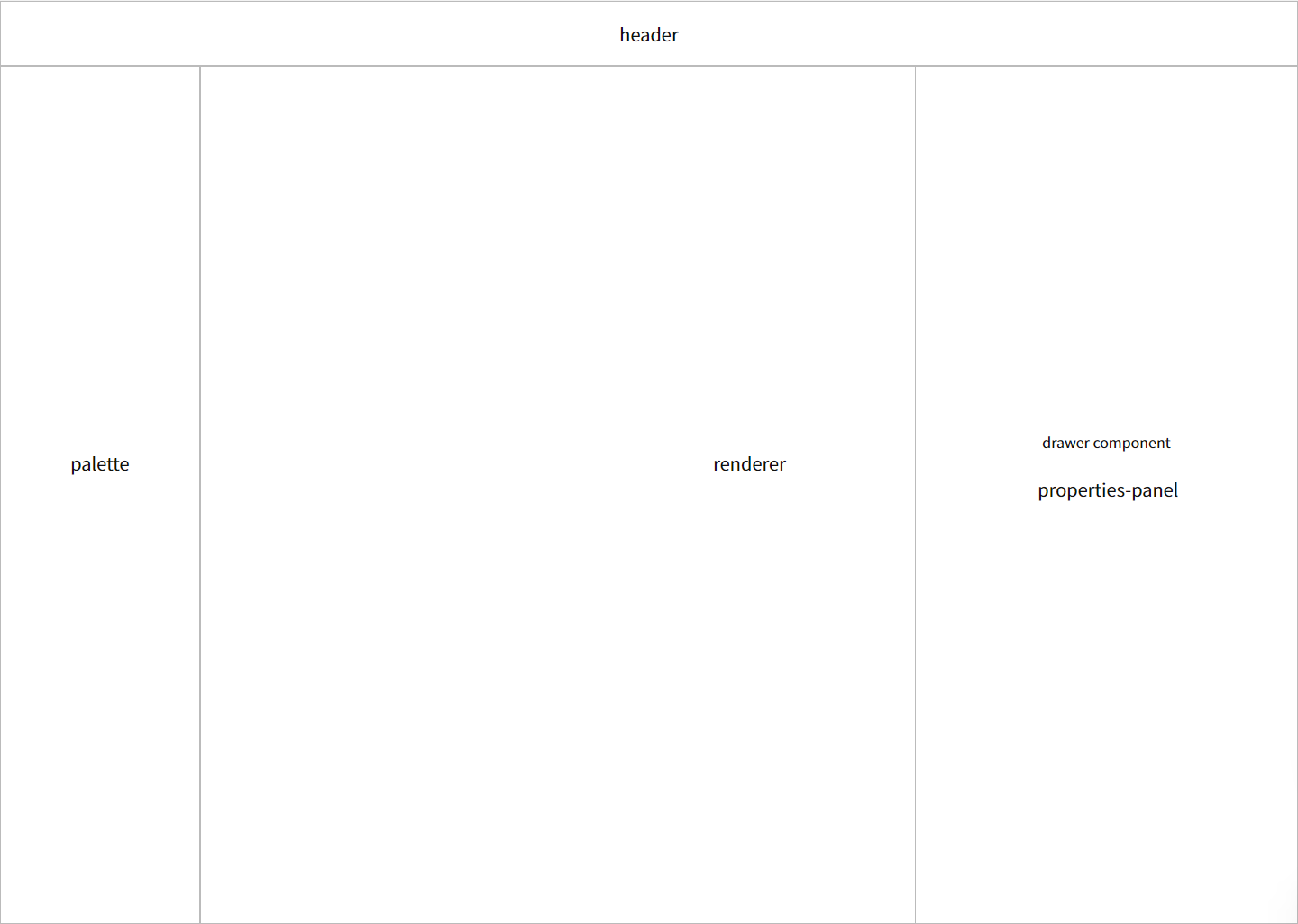

### Search before asking - [X] I had searched in the [issues](https://github.com/apache/dolphinscheduler/issues?q=is%3Aissue) and found no similar feature requirement. ### Description Since the current workflow configuration page is hard-coded on the front end, it is not convenient for subsequent maintenance and function point updates. Therefore, it is planned to optimize the workflow configuration page by refactoring, and allow configuration to render different components after optimization. Page layout division - header：The top area contains the functions of workflow name, copy workflow, download, full screen, save, close, version information and formatting； - palette：Toolbar, including `SHELL`, `SUB_PROCESS`, `PROCEDURE`, `SQL`, `SPARK`, `FLINK`, `MR`, `PYTHON`, `DEPENDENT`, `HTTP`, `DATAX`, `PIGEON `, `SQOOP`, `CONDITIONS`, `SWITCH` and `WATERDROP`； - renderer：Renderer, drag and drop different nodes in the toolbar； - properties-panel：Node attribute configuration bar, rendering different attribute configurations according to different nodes；  Palette design The front-end page queries the nodes that need to be displayed through the interface, only the nodes returned by the interface are displayed, the nodes that are not returned by the interface, and the front-end page is not rendered.  Properties-panel design After dragging a node from the `palette` to the `renderer` area by dragging and dropping, the drawer component on the right can be activated, and the form configuration information in the component is rendered through the interface data.  ### Use case _No response_ ### Related issues _No response_ ### Are you willing to submit a PR? - [X] Yes I am willing to submit a PR! ### Code of Conduct - [X] I agree to follow this project's [Code of Conduct](https://www.apache.org/foundation/policies/conduct) -- This is an automated message from the Apache Git Service. To respond to the message, please log on to GitHub and use the URL above to go to the specific comment. To unsubscribe, e-mail: [email protected] For queries about this service, please contact Infrastructure at: [email protected]
