QJG666 opened a new issue, #13623: URL: https://github.com/apache/dolphinscheduler/issues/13623

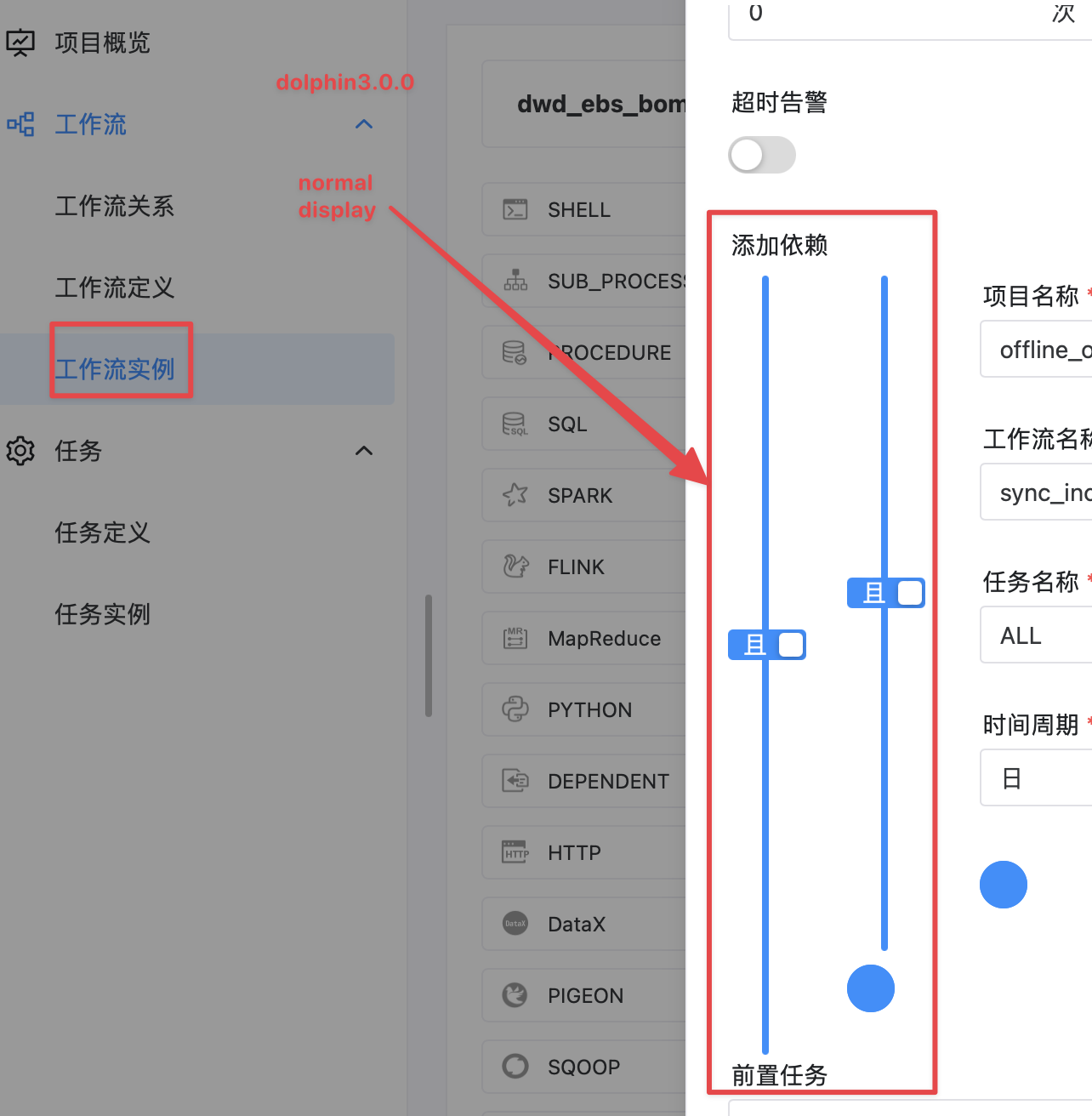

### Search before asking - [X] I had searched in the [issues](https://github.com/apache/dolphinscheduler/issues?q=is%3Aissue) and found no similar issues. ### What happened After I executed the workflow containing the task dependencies under dolphinscheduler 3.1.3, I looked at the workflow instances and found that the task dependencies were not displayed properly, but the same workflow instances were displayed properly under dolphinscheduler 3.0.0 --- Below is a sample workflow illustration under different dolphinscheduler versions. - DolphinScheduler 3.0.0  - DolphinScheduler 3.1.3  ### What you expected to happen - DolphinScheduler 3.0.0  - DolphinScheduler 3.1.3  ### How to reproduce All you need to do is execute a workflow configured with dependent tasks under dolphinscheduler-3.1.3 and you should be able to reproduce the problems I encountered. ### Anything else _No response_ ### Version 3.1.x ### Are you willing to submit PR? - [ ] Yes I am willing to submit a PR! ### Code of Conduct - [X] I agree to follow this project's [Code of Conduct](https://www.apache.org/foundation/policies/conduct) -- This is an automated message from the Apache Git Service. To respond to the message, please log on to GitHub and use the URL above to go to the specific comment. To unsubscribe, e-mail: [email protected] For queries about this service, please contact Infrastructure at: [email protected]
