BrianGilbert opened a new issue #12512:
URL: https://github.com/apache/incubator-echarts/issues/12512


   ### Version
   4.7.0

   ### Steps to reproduce

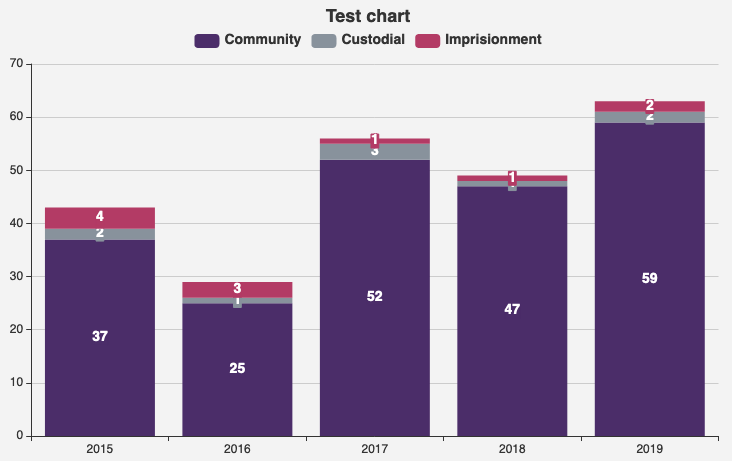

   When there is a bar chart that has some high value and low value peices of
data in the same column the small numbers get occluded by data above them:

   ![Examples - Apache ECharts (incubating) 2020-04-28
10-53-21](https://user-images.githubusercontent.com/114017/80435006-b839e100-893e-11ea-9425-c57531f90eb1.png)

   Option array for the above screenshot that can be pasted into the examples
engine at https://echarts.apache.org/examples/en/editor.html
   ```
   option = {
       aria: {
           show: true
       },
       color: ['#522a6c', '#84939d', '#c81f66', '#039cd6', '#88982f',
'#8f61ad', '#45575e', '#0172a6', '#ce5b8b', '#397519'],
       title: {
         text: 'Test chart',
         left: 'center'
       },
       tooltip: {
           trigger: 'axis',
           axisPointer: {
               type: 'shadow'
           },
           textStyle: {
               fontSize: '14',
               fontWeight: 'bold'
           }
       },
       legend: {
           backgroundColor: '#F3F3F3',
           borderColor: '#F3F3F3',
           data: ['Community', 'Custodial', 'Imprisionment'],
           top: 25,
           textStyle: {
               fontSize: '14',
               fontWeight: 'bold'
           }
       },
       grid: {
           left: '3%',
           right: '4%',
           bottom: '3%',
           containLabel: true
       },
       yAxis: {
           textStyle: {
               fontSize: '14',
               fontWeight: 'bold'
           },
           type: 'value'
       },
       xAxis: {
           data: ['2015', '2016', '2017', '2018', '2019'],
           type: 'category'
       },
       series: [
           {
               name: 'Community',
               type: 'bar',
               stack: 'stack1',
               label: {
                   backgroundColor: 'auto',
                   borderColor: 'auto',
                   borderWidth: 1,
                   fontSize: '14',
                   fontWeight: 'bold',
                   position: 'inside',
                   show: true
               },
               data: ['37', '25', '52', '47', '59']
           },
           {
               name: 'Custodial',
               type: 'bar',
               stack: 'stack1',
               label: {
                   backgroundColor: 'auto',
                   borderColor: 'auto',
                   borderWidth: 1,
                   fontSize: '14',
                   fontWeight: 'bold',
                   position: 'inside',
                   show: true
               },
               data: ['2', '1', '3', '1', '2']
           },
           {
               name: 'Imprisionment',
               type: 'bar',
               stack: 'stack1',
               label: {
                   backgroundColor: 'auto',
                   borderColor: 'auto',
                   borderWidth: 1,
                   fontSize: '14',
                   fontWeight: 'bold',
                   position: 'inside',
                   show: true
               },
               data: ['4', '3', '1', '1', '2']
           }
       ]
   };
   ```

   If there is a way to overcome this in the options I've not yet been able to
find it, so advice would be greatly recommended.

   ### What is expected?
   Data labels should ideally always be visible and not occluded

   ### What is actually happening?
   labels are occluded by data above them

   ---
   I think that if the z-index of the top section of a column was always the
lowest in the column this would help significantly, so that the label below
would always display above the data component above it.
