LiZ2z opened a new issue #13017:
URL: https://github.com/apache/incubator-echarts/issues/13017


   ### Version
   4.8.0

   ### Steps to reproduce
   我需要在项目中实现如下x轴效果:
   ```
   --------------------------------  x轴线
        长
        名
        字
        .
        .
        .
   ```

   formatter是这样的：
   ```
   formatter: (text)=>{
       return `${text.split('').join('\n')}{ellipsis|.\n.\n.}`
   }
   ```
   如果让竖直的**...**的行高与普通文本一致，显然会很丑陋，所以我需要通过rich来修改它们的行高，让它们靠的近一些。


此时问题就来了，在计算label间距的函数`calculateCategoryInterval`中，是将formtter返回值当作普通文本直接检测（可能是为了性能？），而不是将rich解析出来再检测：

   ```
   var rect = textContain.getBoundingRect(labelFormatter(tickValue),
params.font, 'center', 'top');

   // 正确的宽度检测            实际(但错误)的宽度检测
   // ------------------------------------------
   //     x                                 x
   //     x                                 x{ellipsis.
   //     .                                  .
   //     .                                  .
   //     .
   ```

   这就导致了主观上应该密集的label间隔因为错误的检测方式变得稀疏

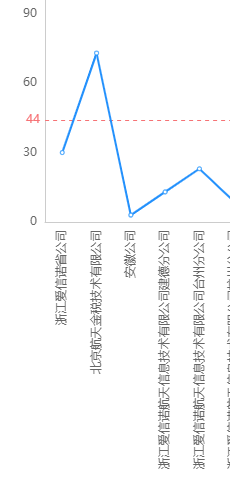

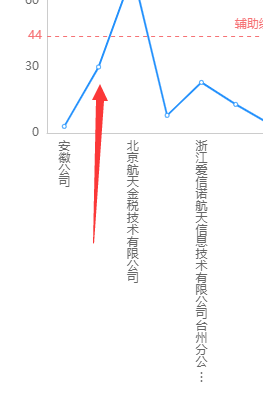

   下面两种实现，主观上label间隔应该相同

![image](https://user-images.githubusercontent.com/30578440/88292560-5cf47080-cd2c-11ea-9960-d576359333d1.png)

![image](https://user-images.githubusercontent.com/30578440/88292631-785f7b80-cd2c-11ea-816a-a09b7b85a0e4.png)


   ### What is expected?
   优化宽度检测算法。或者能有什么其他实现？

   ### What is actually happening?
   宽度检测算法错误
