tyn1998 commented on issue #16152:
URL: https://github.com/apache/echarts/issues/16152#issuecomment-1136906330

   Hi @dirslashls , you can paste this snippet into the [online
editor](https://echarts.apache.org/examples/en/editor.html?c=bar-drilldown) and
have a run:

   ```javascript
   // level 1
   const data_1 = {
     dataGroupId: '1', // In root level, this field dosen't matter
     data: [
       ['1_1', 5, '1_1'], // x, y, groupId
       ['1_2', 2, '1_2']
     ]
   };

   // level 2
   const data_1_1 = {
     dataGroupId: '1_1',
     data: [
       ['1_1_1', 2, '1_1_1'],
       ['1_1_2', 2, '1_1_2'],
       ['1_1_3', 3, '1_1_3']
     ]
   };

   const data_1_2 = {
     dataGroupId: '1_2',
     data: [
       ['1_2_1', 6, '1_2_1'],
       ['1_2_2', 7, '1_2_2']
     ]
   };

   // level 3
   const data_1_1_1 = {
     dataGroupId: '1_1_1',
     data: [
       ['1_1_1_A', 5],
       ['1_1_1_B', 6],
       ['1_1_1_C', 7],
       ['1_1_1_D', 8]
     ]
   };

   const data_1_1_2 = {
     dataGroupId: '1_1_2',
     data: [
       ['1_1_2_A', 2],
       ['1_1_2_B', 9]
     ]
   };

   const data_1_1_3 = {
     dataGroupId: '1_1_3',
     data: [
       ['1_1_3_A', 1],
       ['1_1_3_B', 2],
       ['1_1_3_C', 8]
     ]
   };

   const data_1_2_1 = {
     dataGroupId: '1_2_1',
     data: [
       ['1_2_1_A', 9],
       ['1_2_1_B', 2],
       ['1_2_1_C', 1]
     ]
   };

   const data_1_2_2 = {
     dataGroupId: '1_2_2',
     data: [
       ['1_2_2_A', 7],
       ['1_2_2_B', 7]
     ]
   };

   const allDataGroups = [
     data_1,
     data_1_1,
     data_1_2,
     data_1_1_1,
     data_1_1_2,
     data_1_1_3,
     data_1_2_1,
     data_1_2_2
   ];

   const allOptions = {};

   allDataGroups.forEach((dataGroup, index) => {
     const { dataGroupId, data } = dataGroup;
     const option = {
       xAxis: {
         type: 'category'
       },
       yAxis: {},
       dataGroupId: dataGroupId,
       animationDurationUpdate: 500,
       series: {
         type: 'bar',
         // id: "sales",
         encode: {
           x: 0,
           y: 1,
           itemGroupId: 2
         },
         data: data,
         universalTransition: {
           enabled: true,
           divideShape: 'clone'
         }
       },
       graphic: [
         {
           type: 'text',
           left: 50,
           top: 20,
           style: {
             text: 'Back',
             fontSize: 18
           },
           onclick: function () {
             goBack();
           }
         }
       ]
     };
     allOptions[dataGroupId] = option;
   });

   // A stack to remember previous dataGroups
   const dataGroupIdStack = [];

   const goForward = (dataGroupId) => {
     // push current dataGroupId into stack.
     const currentDataGroupId = myChart.getOption().dataGroupId;
     dataGroupIdStack.push(currentDataGroupId);

     myChart.setOption(allOptions[dataGroupId]);
   };

   const goBack = () => {
     if (dataGroupIdStack.length === 0) {
       console.log('Already in root dataGroup!');
     } else {
       console.log('back to previous level');
       console.log(dataGroupIdStack);
       myChart.setOption(allOptions[dataGroupIdStack.pop()]);
     }
   };

   // use root dataGroup option when init.
   option = allOptions['1'];

   myChart.on('click', 'series.bar', function (params) {
     if (params.data[2]) {
       const dataGroupId = params.data[2];
       goForward(dataGroupId);
     }
   });

   ```

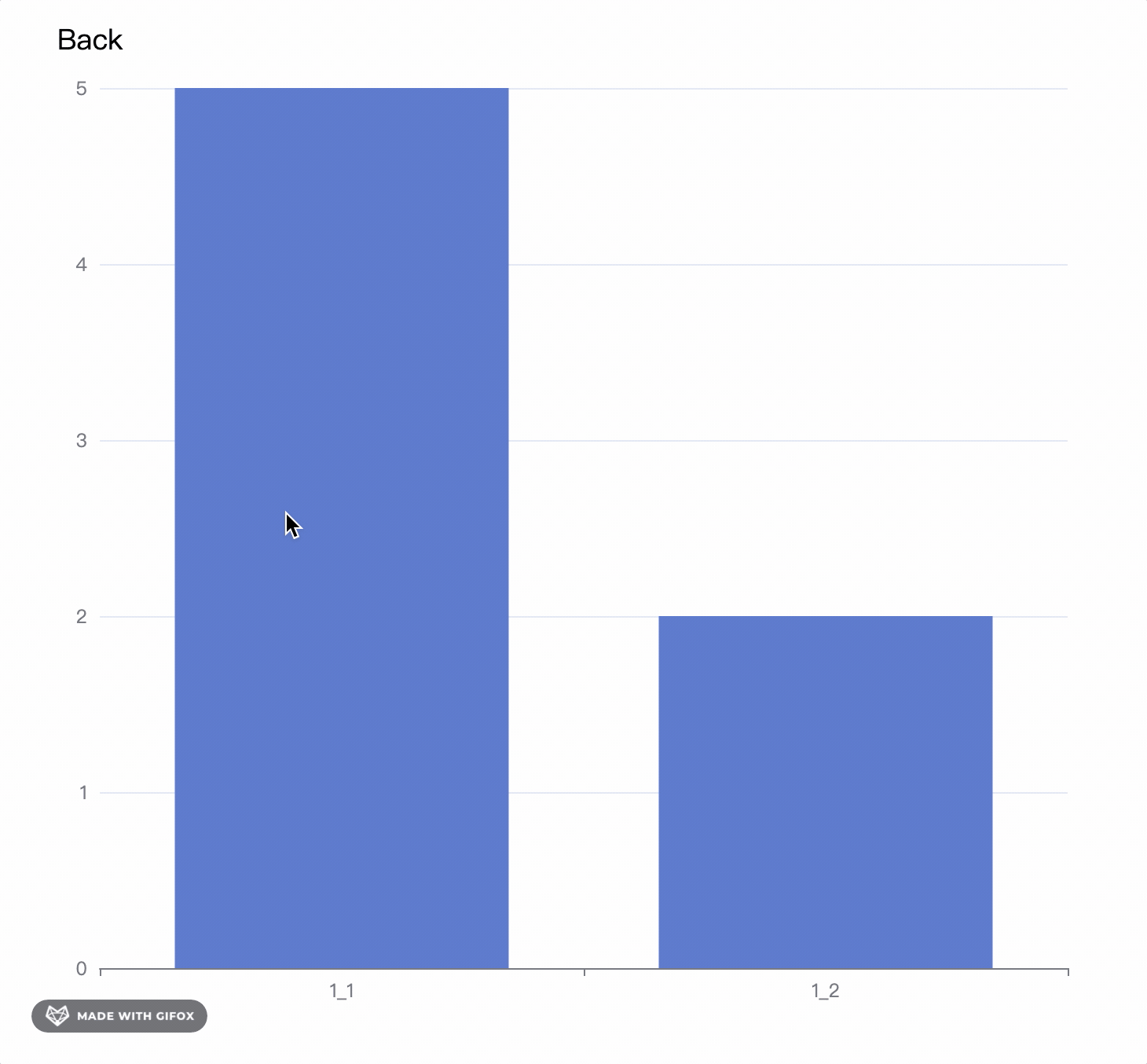

   ![2022-05-25 15 41
15](https://user-images.githubusercontent.com/32434520/170208910-93a5cc3b-54a4-44dd-b1b3-7379b3f41041.gif)

   I will explain this code in another comment.


--
