trushev opened a new pull request, #7626:
URL: https://github.com/apache/hudi/pull/7626
This PR significantly reduces memory footprint on workload with thousand
active partitions between checkpoints. That workload is relevant with wide
checkpoint interval. More specifically, active partition here is a special case
of active fileId.
Write client holds map with write handles to create ReplaceHandle between
checkpoints. It leads to `OutOfMemoryError` on the workload because write
handle is a huge object.
Essentially, it is enough to hold only write path instead of the whole
handle.
### Change Logs
1. Released writer in closed create handle. The same approach is used in
append and merge handles.
1. Introduced `FlinkClosedHandle` with the lowest memory footprint. It is
needed because create handle is a huge object even with released writer.
1. Removed append handle from handle map because it is not used anyway. It
reduces memory footprint and fixes potential NPE issue
1. Replaced `HoodieWriteHandle<?, ?, ?, ?>` with `MiniBatchHandle` in flink
modules. It is needed because lightweight `FlinkClosedHandle` implements
`MiniBatchHandle` and does not extend `HoodieWriteHandle`. Refactoring is
correct because all flink's handlers implement `MiniBatchHandle`.
### Impact
Workload test with `-Xmx2048m`
```SQL
create table source (
`id` int,
`data` string
) with (
'connector' = 'datagen',
'rows-per-second' = '100',
'fields.id.kind' = 'sequence',
'fields.id.start' = '0',
'fields.id.end' = '3000'
);
create table sink (
`id` int primary key,
`data` string,
`part` string
) partitioned by (`part`) with (
'connector' = 'hudi',
'path' = '/tmp/sink',
'write.batch.size' = '0.001', -- 1024 bytes
'write.task.max.size' = '101.001', -- 101.001MB
'write.merge.max_memory' = '1' -- 1024 bytes
);
insert into sink select `id`, `data`, concat('part', cast(`id` as string))
as `part` from source;
```

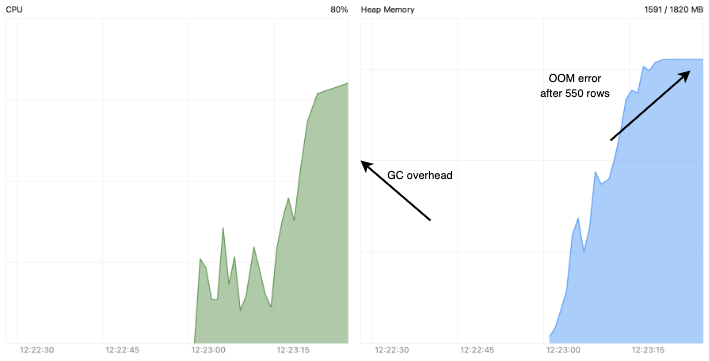

#### Before
Job failure with `OutOfMemoryError` on partition 550. Heap dump says that
handle map holds 1.4 GB
<img width="1300" alt="Снимок экрана 2023-01-09 в 11 13 13"
src="https://user-images.githubusercontent.com/42293632/211240084-c1c136d9-b8bf-46c2-9dde-48404fc5f38a.png";>

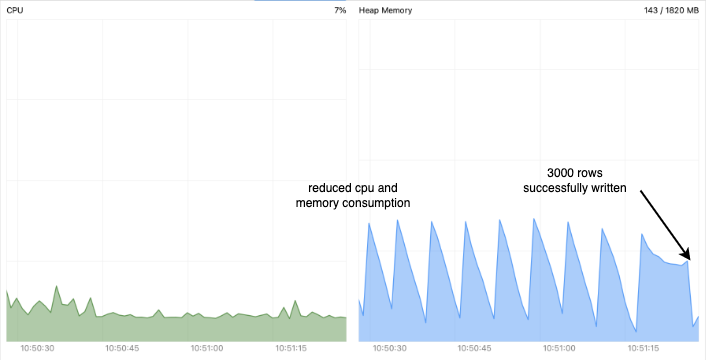

#### After
3000 rows written
### Risk level (write none, low medium or high below)
Low
### Documentation Update
_Describe any necessary documentation update if there is any new feature,
config, or user-facing change_
- _The config description must be updated if new configs are added or the
default value of the configs are changed_
- _Any new feature or user-facing change requires updating the Hudi website.
Please create a Jira ticket, attach the
ticket number here and follow the
[instruction](https://hudi.apache.org/contribute/developer-setup#website) to
make
changes to the website._
### Contributor's checklist
- [ ] Read through [contributor's
guide](https://hudi.apache.org/contribute/how-to-contribute)
- [ ] Change Logs and Impact were stated clearly
- [ ] Adequate tests were added if applicable
- [ ] CI passed
--
