This is an automated email from the ASF dual-hosted git repository. sunzesong pushed a commit to branch tsfile_doc in repository https://gitbox.apache.org/repos/asf/incubator-iotdb.git

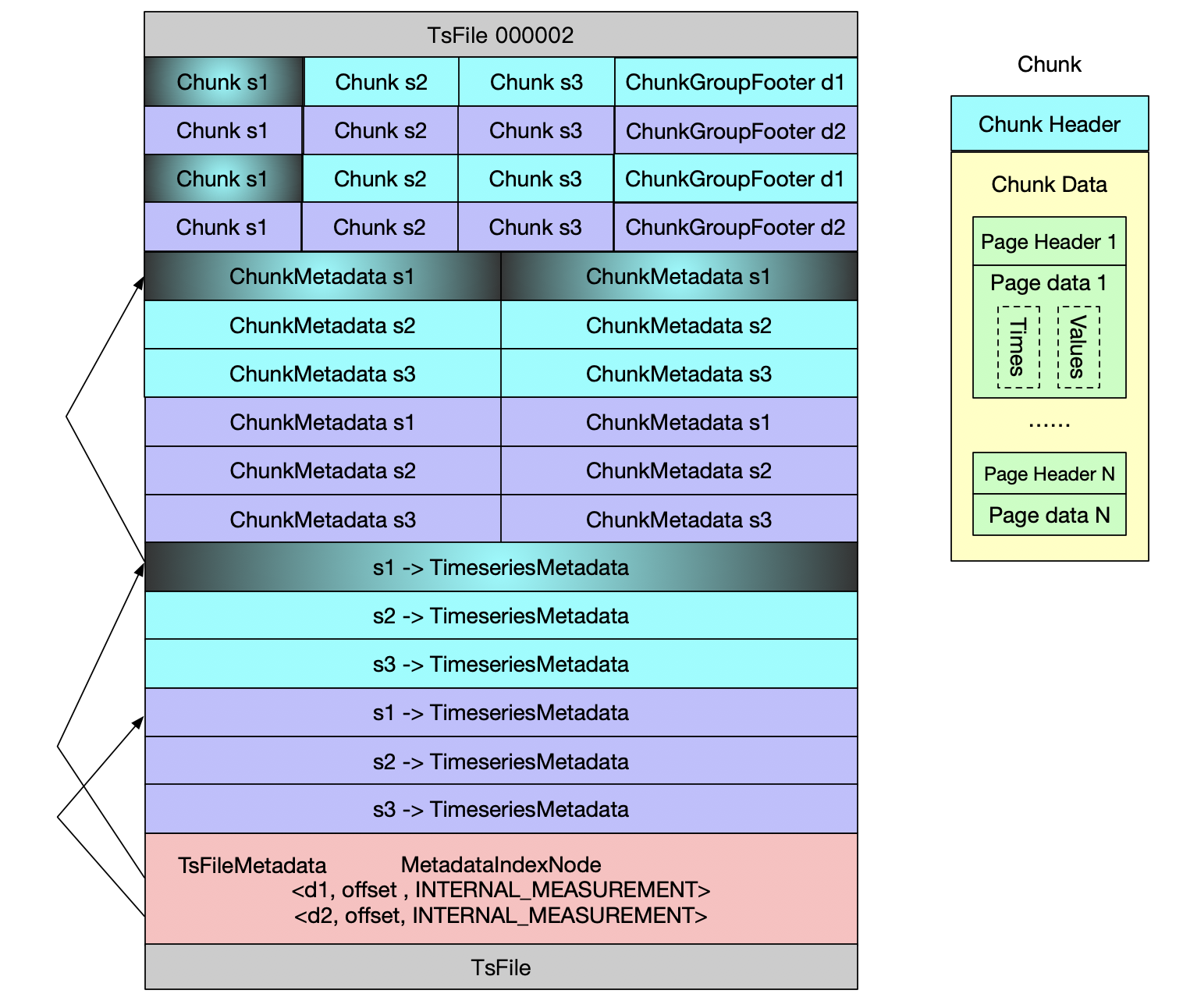

commit 9ab4367aa6c682df344d19faad9e7f34c2b121e4 Author: samperson1997 <[email protected]> AuthorDate: Sun May 10 11:45:53 2020 +0800 [IOTDB-655] Update documents of new version TsFile --- docs/SystemDesign/1-TsFile/2-Format.md | 189 ++++++------ docs/zh/SystemDesign/1-TsFile/2-Format.md | 463 +++++++++++++++++++----------- 2 files changed, 396 insertions(+), 256 deletions(-) diff --git a/docs/SystemDesign/1-TsFile/2-Format.md b/docs/SystemDesign/1-TsFile/2-Format.md index a2aac9c..1d41f1b 100644 --- a/docs/SystemDesign/1-TsFile/2-Format.md +++ b/docs/SystemDesign/1-TsFile/2-Format.md @@ -66,7 +66,7 @@ Here is a graph about the TsFile structure. - + This TsFile contains two devices: d1, d2. Each device contains three measurements: s1, s2, s3. 6 timeseries in total, d1 is blue, d2 is purple. Each timeseries contains 2 Chunks. @@ -78,8 +78,8 @@ There are three parts of metadata Query Process：e.g., read d1.s1 -* deserialize TsFileMetadata，get the position and length of all TimeseriesMetadata of d1 -* deserialize all TimeseriesMetadata of d1，get the TimeseriesMetadata of d1.s1 +* deserialize TsFileMetadata，get the position of TimeseriesMetadata of d1.s1 +* deserialize and get the TimeseriesMetadata of d1.s1 * according to TimeseriesMetadata of d1.s1，deserialize all ChunkMetadata of d1.s1 * according to each ChunkMetadata of d1.s1，read its Chunk @@ -143,18 +143,18 @@ PageHeader Structure #### 1.2.3 Metadata -##### 1.2.3.1 TsDeviceMetaData +##### 1.2.3.1 ChunkMetadata -The first part of metadata is `TsDeviceMetaData` +The first part of metadata is `ChunkMetadata` | Member Description | Member Type | | :------------------------: | :---------: | | Start time | long | | End time | long | | Number of chunk groups | int | -| List of ChunkGroupMetaData | list | +| List of ChunkGroupMetadata | list | -###### ChunkGroupMetaData +###### ChunkGroupMetadata | Member Description | Member Type | | :----------------------------: | :---------: | @@ -162,101 +162,107 @@ The first part of metadata is `TsDeviceMetaData` | Start offset of the ChunkGroup | long | | End offset of the ChunkGroup | long | | Version | long | -| Number of ChunkMetaData | int | -| List of ChunkMetaData | list | +| Number of ChunkMetadata | int | +| List of ChunkMetadata | list | + +###### ChunkMetadata + +| Member Description | Member Type | +| :--------------------------: | :---------: | +| MeasurementId | String | +| Start offset of ChunkHeader | long | +| Data type | short | +| Number of data points | long | +| Start time | long | +| End time | long | +| Minimum value | Type of the chunk | +| Maximum value | Type of the chunk | +| First value | Type of the chunk | +| Last value | Type of the chunk | +| Sum | double | + +As for the five statistics (min, max, first, last and sum), `ChunkMetadata` of Binary and Boolean type only has two values: first and last. + +##### 1.2.3.2 TimeseriesMetadata + +The second part of metadata is `TimeseriesMetadata`. + +| Member Description | Member Type | +| :--------------------------: | :---------: | +| MeasurementId | String | +| Data type | short | +|Start offset of ChunkMetadata list | long | +| ChunkMetadata list size | int | +| Number of data points | long | +| Start time | long | +| End time | long | +| Minimum value | Type of the chunk | +| Maximum value | Type of the chunk | +| First value | Type of the chunk | +| Last value | Type of the chunk | +| Sum | double | + +As for the five statistics (min, max, first, last and sum), `TimeseriesMetadata` of Binary and Boolean type only has two values: first and last. + +##### 1.2.3.3 TsFileMetaData + +The third part of metadata is `TsFileMetaData`. -###### ChunkMetaData +| Member Description | Member Type | +| :------------------------------------------: | :--------------------------------: | +| MetadataIndexNode list | See below | +| Author byte | byte | +| Author(if author byte is 0x01) | String | +| TotalChunkNum | int | +| InvalidChunkNum | int | +| Version info map size | int | +| Version info map | Long, Long Pair | +| MetaMarker.SEPARATOR offset | long | +| Bloom filter size | int | +| Bloom filter bit vector | byte[Bloom filter size] | +| Bloom filter capacity | int | +| Bloom filter hash functions size | int | -| Member Description | Member Type | -| :--------------------------: | :---------: | -| MeasurementId | String | -| Start offset of ChunkHeader | long | -| Number of data points | long | -| Start time | long | -| End time | long | -| Data type | short | -| The statistics of this chunk | TsDigest | +If size of version info map is greater than 0, there is an array of \<Long, Long\> pair as version info. -###### TsDigest +There **may** exist more than one MetadataIndexNode. Each node has members as below: -Right now there are five statistics: `min_value, max_value, first_value, last_value, sum_value`. +| Member Description |Member Type| +| :------------------------------------: | :----: | +| MetadataIndexEntry size | int | +| MetadataIndexEntry list | See below | +| EndOffset of this MetadataIndexNode | long | -In v0.8.0, the storage format of statistics is a name-value pair. That is, `Map<String, ByteBuffer> statistics`. The name is a string (remember the length is before the literal). But for the value, there is also an integer byteLength acting as the self description length of the following value because the value may be of various type. For example, if the `min_value` is an integer 0, then it will be stored as [9 "min_value" 4 0] in the TsFile. +Each MetadataIndexEntry has members as below: +| Member Description |Member Type| +| :------------------------------------: | :----: | +| Name of related device or measurement | String | +| offset | long | +| MetadataIndexEntry type | byte | -The figure below shows an example of `TsDigest.deserializeFrom(buffer)`. In v0.8.0, we will get +All MetadataIndexNode forms a **metadata index tree**, which consists of no more than two levels: device index level and measurement index level. In different situation, the tree could have different component. The MetadataIndexEntry type has four enums: `INTERNAL_DEVICE`, `LEAF_DEVICE`, `INTERNAL_MEASUREMENT`, `LEAF_MEASUREMENT`, which indicates the internal or leaf node of device index level and measurement index level respectively. Only the `LEAF_MEASUREMENT` entry points to `Timeseri [...] -``` -Map<String, ByteBuffer> statistics = { - "min_value" -> ByteBuffer of int value 0, - "last" -> ByteBuffer of int value 19, - "sum" -> ByteBuffer of double value 1093347116, - "first" -> ByteBuffer of int value 0, - "max_value" -> ByteBuffer of int value 99 -} -``` +To describe the structure of metadata index tree more clearly, we will give four examples here in details. -<img style="width:100%; max-width:800px; max-height:600px; margin-left:auto; margin-right:auto; display:block;" src="https://user-images.githubusercontent.com/33376433/63765352-664a4280-c8fb-11e9-869e-859edf6d00bb.png";> +The degree of the metadata index tree (that is, the max number of each node's children) could be configured by users, and is 1024 by default. In the examples below, we assume `max_degree_of_index_node = 10` in the following examples. -In v0.9.x, the storage format is changed to an array for space and time efficiency. That is, `ByteBuffer[] statistics`. Each position of the array has a fixed association with a specific type of statistic, following the order defined in StatisticType: +<img style="width:100%; max-width:800px; max-height:600px; margin-left:auto; margin-right:auto; display:block;" src="https://user-images.githubusercontent.com/19167280/81466597-94f81700-9205-11ea-9476-c3d083872232.png";> -``` -enum StatisticType { - min_value, max_value, first_value, last_value, sum_value -} -``` +5 devices with 5 measurements each: Since the numbers of devices and measurements are both no more than `max_degree_of_index_node`, the tree has only one MetadataIndexNode instead of more levels. The five MetadataIndex entries in MetadataIndexNode point to related `TimeseriesMetadata`. -Therefore, in the above example, we will get +<img style="width:100%; max-width:800px; max-height:600px; margin-left:auto; margin-right:auto; display:block;" src="https://user-images.githubusercontent.com/19167280/81466606-99bccb00-9205-11ea-8ba4-d2ed07529f58.png";> -``` -ByteBuffer[] statistics = [ - ByteBuffer of int value 0, // associated with "min_value" - ByteBuffer of int value 99, // associated with "max_value" - ByteBuffer of int value 0, // associated with "first_value" - ByteBuffer of int value 19, // associated with "last_value" - ByteBuffer of double value 1093347116 // associated with "sum_value" -] -``` +1 device with 150 measurements: The number of measurements exceeds `max_degree_of_index_node`, so the measurement index level of the tree is formed. In this level, each MetadataIndexNode is composed of no more than 10 MetadataIndex entries. Since all the entries point to `TimeseriesMetadata`, their entry type is `LEAF_MEASUREMENT`. The root node of index tree points to the leaf nodes of measurement index level, so its entry type is `INTERNAL_MEASUREMENT`. -As another example in v0.9.x, when deserializing a TsDigest from buffer [3, 0,4,0, 1,4,99, 3,4,19], we get +<img style="width:100%; max-width:800px; max-height:600px; margin-left:auto; margin-right:auto; display:block;" src="https://user-images.githubusercontent.com/19167280/81466613-9b868e80-9205-11ea-860a-4bf224d04359.png";> -``` -ByteBuffer[] statistics = [ - ByteBuffer of int value 0, // associated with "min_value" - ByteBuffer of int value 99, // associated with "max_value" - null, // associated with "first_value" - ByteBuffer of int value 19, // associated with "last_value" - null // associated with "sum_value" -] -``` +150 device with 1 measurement each: The number of devices exceeds `max_degree_of_index_node`, so the device index level of the tree is formed. In this level, each MetadataIndexNode is composed of no more than 10 MetadataIndex entries. Since all the entries point to `TimeseriesMetadata`, their entry type is `LEAF_MEASUREMENT`. Other nodes and root node of index tree are not leaf node of index level, so their entry type is `INTERNAL_DEVICE`. -##### 1.2.3.2 TsFileMetaData +<img style="width:100%; max-width:800px; max-height:600px; margin-left:auto; margin-right:auto; display:block;" src="https://user-images.githubusercontent.com/19167280/81466616-9e817f00-9205-11ea-9dc1-aec392eb5225.png";> -`TsFileMetaData` follows after `TsDeviceMetadatas`. +150 device with 150 measurements each: The numbers of devices and measurements both exceed `max_degree_of_index_node`, so the device index level and measurement index level are both formed. In these two levels, each MetadataIndexNode is composed of no more than 10 MetadataIndex entries. As is described before, from the root node to the leaf nodes of device index level, the entries types are `INTERNAL_DEVICE` and `LEAF_DEVICE`; each leaf node of device index level can be seen as the root [...] -| Member Description | Member Type | -| :------------------------------------------: | :--------------------------------: | -| Number of devices | int | -| Pairs of device name and deviceMetadataIndex | String, TsDeviceMetadataIndex pair | -| Number of measurements | int | -| Pairs of measurement name and schema | String, MeasurementSchema pair | -| Author byte | byte | -| Author(if author byte is 0x01) | String | -| totalChunkNum | int | -| invalidChunkNum | int | -| Bloom filter size | int | -| Bloom filter bit vector | byte[Bloom filter size] | -| Bloom filter capacity | int | -| Bloom filter hash functions size | int | - -###### TsDeviceMetadataIndex - -| Member Description | Member Type | -| :------------------------------: | :---------: | -| DeviceId | String | -| Start offset of TsDeviceMetaData | long | -| length | int | -| Start time | long | -| End time | long | +The MetadataIndex is designed as tree structure so that not all the `TimeseriesMetadata` need to be read when the number of devices or measurements is too large. Only reading specific MetadataIndex nodes according to requirement and reducing I/O could speed up the query. More reading process of TsFile in details will be described in the last section of this chapter. ###### MeasurementSchema @@ -267,12 +273,13 @@ ByteBuffer[] statistics = [ | Encoding | short | | Compressor | short | | Size of props | int | +| Props | String, String pair | -If size of props is greater than 0, there is an array of <String, String> pair as properties of this measurement. +If size of props is greater than 0, there is an array of \<String, String\> pair as properties of this measurement. Such as "max_point_number""2". -##### 1.2.3.3 TsFileMetadataSize +##### 1.2.3.4 TsFileMetadataSize After the TsFileMetaData, there is an int indicating the size of the TsFileMetaData. @@ -622,10 +629,12 @@ You can also use `example/tsfile/org/apache/iotdb/tsfile/TsFileSequenceRead` to ### 1.4 A TsFile Visualization Example -#### v0.8.0 +#### v0.8 <img style="width:100%; max-width:800px; max-height:600px; margin-left:auto; margin-right:auto; display:block;" src="https://user-images.githubusercontent.com/33376433/65209576-2bd36000-dacb-11e9-9e43-49e0dd01274e.png";> -#### v0.9.x +#### v0.9 + +<img style="width:100%; max-width:800px; max-height:600px; margin-left:auto; margin-right:auto; display:block;" src="https://user-images.githubusercontent.com/33376433/69341240-26012300-0ca4-11ea-91a1-d516810cad44.png";> -<img style="width:100%; max-width:800px; max-height:600px; margin-left:auto; margin-right:auto; display:block;" src="https://user-images.githubusercontent.com/33376433/69341240-26012300-0ca4-11ea-91a1-d516810cad44.png";> \ No newline at end of file +#### v0.10 diff --git a/docs/zh/SystemDesign/1-TsFile/2-Format.md b/docs/zh/SystemDesign/1-TsFile/2-Format.md index 4474cf1..30f4fc1 100644 --- a/docs/zh/SystemDesign/1-TsFile/2-Format.md +++ b/docs/zh/SystemDesign/1-TsFile/2-Format.md @@ -65,7 +65,7 @@ 下图是关于TsFile的结构图。 - + 此文件包括两个设备 d1、d2，每个设备包含三个测点 s1、s2、s3，共 6 个时间序列，d1为蓝色，d2为紫色。每个时间序列包含两个 Chunk。 @@ -77,8 +77,8 @@ 查询流程：以查 d1.s1 为例 -* 反序列化 TsFileMetadata，得到 d1 的所有 TimeseriesMetadata 的位置 -* 反序列化 d1 的所有 TimeseriesMetadata，并得到 d1.s1 的 TimeseriesMetadata +* 反序列化 TsFileMetadata，得到 d1.s1 的 TimeseriesMetadata 的位置 +* 反序列化得到 d1.s1 的 TimeseriesMetadata * 根据 d1.s1 的 TimeseriesMetadata，反序列化其所有 ChunkMetadata * 根据 d1.s1 的每一个 ChunkMetadata，读取其 Chunk 数据 @@ -141,123 +141,106 @@ PageHeader 结构 #### 1.2.3 元数据 -##### 1.2.3.1 TsDeviceMetaData +##### 1.2.3.1 ChunkMetadata -第一部分的元数据是 `TsDeviceMetaData` +第一部分的元数据是 `ChunkMetadata` -| 成员 | 类型 | -| :----------------------------------------------: | :--: | -| 开始时间(startTime) | long | -| 结束时间(endTime) | long | -| 包含的ChunkGroup的数量 | int | -| 所有的ChunkGroupMetaData(chunkGroupMetadataList) | list | +| 成员 | 类型 | +| :------------------------------------------------: | :------: | +| 传感器名称(measurementUid) | String | +| 文件中 ChunkHeader 开始的偏移量(offsetOfChunkHeader) | long | +| 数据类型(tsDataType) | short | +| 数据的总数(count) | long | +| 开始时间(startTime) | long | +| 结束时间(endTime) | long | +| 最小值(min) | Type of the chunk | +| 最大值(max) | Type of the chunk | +| 第一个值(first) | Type of the chunk | +| 最后一个值(last) | Type of the chunk | +| 值的和(sum) | double | -###### ChunkGroupMetaData +其中，对于五个统计值(min、max、first、last、sum)，Binary 和 Boolean 类型的 `ChunkMetadata` 只有 first 和 last 两个值。 -| 成员 | 类型 | -| :-----------------------------------------------------: | :----: | -| 设备Id(deviceID) | String | -| 在文件中ChunkGroup开始的偏移量(startOffsetOfChunkGroup) | long | -| 在文件中ChunkGroup结束的偏移量(endOffsetOfChunkGroup) | long | -| 版本(version) | long | -| 包含的ChunkMetaData的数量 | int | -| 所有的ChunkMetaData(chunkMetaDataList) | list | +##### 1.2.3.2 TimeseriesMetadata -###### ChunkMetaData +第二部分的元数据是 `TimeseriesMetadata`。 | 成员 | 类型 | | :------------------------------------------------: | :------: | | 传感器名称(measurementUid) | String | -| 文件中ChunkHeader开始的偏移量(offsetOfChunkHeader) | long | -| 数据的总数(numOfPoints) | long | +| 数据类型(tsDataType) | short | +| 文件中 ChunkMetadata 列表开始的偏移量(startOffsetOfChunkMetadataList) | long | +| ChunkMetadata 列表的大小(chunkMetaDataListDataSize) | int | +| 数据的总数(count) | long | | 开始时间(startTime) | long | | 结束时间(endTime) | long | -| 数据类型(tsDataType) | short | -| chunk的统计信息 | TsDigest | +| 最小值(min) | Type of the Timeseries | +| 最大值(max) | Type of the Timeseries | +| 第一个值(first) | Type of the Timeseries | +| 最后一个值(last) | Type of the Timeseries | +| 值的和(sum) | double | -###### TsDigest +其中，对于五个统计值(min、max、first、last、sum)，Binary 和 Boolean 类型的 `TimeseriesMetadata` 只有 first 和 last 两个值。 -目前有五项统计数据: `min_value, max_value, first_value, last_value, sum_value`。 +##### 1.2.3.3 TsFileMetaData -在 v0.8.0 版本中, 统计数据使用 name-value 编码的键值对。 也就是 `Map<String, ByteBuffer> statistics`。 name使用的一个字符串类型(需要注意的是字符串前有个长度标识)。 对于值来讲，它有可能是很多种类型，所以需要用 integer 类型用来描述值的长度。 比如, 如果 `min_value` 是一个 integer 类型的 0, 那么在 TsFile 中将被存储为 [9 "min_value" 4 0]。 +第三部分的元数据是 `TsFileMetaData`。 -下面是一个调用 `TsDigest.deserializeFrom(buffer)` 方法后的数据示例。在 v0.8.0 版本中, 我们会得到 +| 成员 | 类型 | +| :-------------------------------------------------: | :--------------------------------: | +| 元数据索引节点(MetadataIndexNode)列表 | 见下 | +| 水印标识 | byte | +| 当标识为0x01时的水印信息(createdBy) | String | +| 包含的 Chunk 总数(totalChunkNum) | int | +| 失效的 Chunk 总数(invalidChunkNum) | int | +| 版本信息映射的大小 | int | +| 版本信息映射(versionInfo) | Long, Long Pair | +| MetaMarker.SEPARATOR偏移量 (metaOffset) | long | +| 布隆过滤器序列化大小 | int | +| 布隆过滤器所有数据 | byte[Bloom filter size] | +| 布隆过滤器容量 | int | +| 布隆过滤器容量包含的HashFunction数量 | int | -``` -Map<String, ByteBuffer> statistics = { - "min_value" -> ByteBuffer of int value 0, - "last" -> ByteBuffer of int value 19, - "sum" -> ByteBuffer of double value 1093347116, - "first" -> ByteBuffer of int value 0, - "max_value" -> ByteBuffer of int value 99 -} -``` +如果版本信息映射的数量大于 0, 版本信息映射会以一个列表形式的 \<Long, Long\> 键值对存储。 +其中，元数据索引节点(MetadataIndexNode) **可能**不止一个，每一个节点的成员和类型具体如下： + +| 成员 | 类型 | +| :------------------------------------: | :----: | +| 元数据索引项(MetadataIndexEntry)个数 | int | +| 元数据索引项(MetadataIndexEntry)列表 | 见下 | +| 此元数据索引节点的结束偏移量(endOffset) | long | -<img style="width:100%; max-width:800px; max-height:600px; margin-left:auto; margin-right:auto; display:block;" src="https://user-images.githubusercontent.com/33376433/63765352-664a4280-c8fb-11e9-869e-859edf6d00bb.png";> +每一个元数据索引项(MetadataIndexEntry)的成员和类型具体如下： +| 成员 | 类型 | +| :------------------------------------: | :----: | +| 对应设备或传感器的名字(name) | String | +| 偏移量(offset) | long | +| 元数据索引项类型(MetadataIndexEntry) | byte | -在 v0.9.0 版本中, 为了提高空间和时间的效率，存储的结构被修改为数组的形式。也就是 `ByteBuffer[] statistics`。用固定的位置代表某一个具体的统计信息, 在 StatisticType 中定义的顺序如下: +所有的元数据索引节点构成一棵**元数据索引树**，这棵树最多由两个层级组成：设备索引层级和传感器索引层级，在不同的情况下会有不同的组成方式。元数据索引项类型有四种，分别是`INTERNAL_DEVICE`、`LEAF_DEVICE`、`INTERNAL_MEASUREMENT`、`LEAF_MEASUREMENT`，分别对应其节点设备索引层级的中间节点和叶子节点，和传感器索引层级的中间节点和叶子节点。 +只有传感器索引层级对的叶子节点(`LEAF_MEASUREMENT`) 指向 `TimeseriesMetadata`。 -``` -enum StatisticType { - min_value, max_value, first_value, last_value, sum_value -} -``` +为了更清楚的说明元数据索引树的结构，这里我们使用四个例子来加以详细说明。 -修改存储形式后,在上面的示例中,我们将得到 +元数据索引树的度（即每个节点的最大子节点个数）是可以由用户进行配置的，配置项为`max_degree_of_index_node`，其默认值为1024。在以下例子中，为了简化，我们假定 `max_degree_of_index_node = 10`。 -``` -ByteBuffer[] statistics = [ - ByteBuffer of int value 0, // associated with "min_value" - ByteBuffer of int value 99, // associated with "max_value" - ByteBuffer of int value 0, // associated with "first_value" - ByteBuffer of int value 19, // associated with "last_value" - ByteBuffer of double value 1093347116 // associated with "sum_value" -] -``` +<img style="width:100%; max-width:800px; max-height:600px; margin-left:auto; margin-right:auto; display:block;" src="https://user-images.githubusercontent.com/19167280/81466597-94f81700-9205-11ea-9476-c3d083872232.png";> -另一个关于 v0.9.0 的示例数据, 当我们从 buffer [3, 0,4,0, 1,4,99, 3,4,19] 反序列化为 TsDigest 结构时, 我们将得到 +在5个设备，每个设备有5个传感器的情况下，由于设备数和传感器树均不超过 `max_degree_of_index_node`，因此树并没有产生多个层级，由1个 MetadataIndexNode 节点中的5个 MetadataIndexEntry 直接指向对应的 `TimeseriesMetadata`。 -``` -//这里可能会有些难理解，读取顺序为：1.读取一个int类型的数据总数(3) 2.读取short类型的位于数组中的位置(0) 3.读取int类型的数据长度(4) 4.根据第3步的长度读取数据(0) -//因为示例数据中，索引值只出现了(0,1,3),所以 first_value sum_value 的值为null - -ByteBuffer[] statistics = [ - ByteBuffer of int value 0, // associated with "min_value" - ByteBuffer of int value 99, // associated with "max_value" - null, // associated with "first_value" - ByteBuffer of int value 19, // associated with "last_value" - null // associated with "sum_value" -] -``` +<img style="width:100%; max-width:800px; max-height:600px; margin-left:auto; margin-right:auto; display:block;" src="https://user-images.githubusercontent.com/19167280/81466606-99bccb00-9205-11ea-8ba4-d2ed07529f58.png";> -##### 1.2.3.2 TsFileMetaData +在1个设备，设备中有150个传感器的情况下，传感器个数超过了 `max_degree_of_index_node`，形成元数据索引树的传感器索引层级。在这个层级里，每个 MetadataIndexNode 最多由10个 MetadataIndexEntry 组成，由于均直接指向 `TimeseriesMetadata`，因此其索引项类型为 `LEAF_MEASUREMENT`。而根节点指向传感器索引层级的叶子节点，其索引项类型为 `INTERNAL_MEASUREMENT`。 -上节讲到的是 `TsDeviceMetadatas` 紧跟其后的数据是 `TsFileMetaData`。 +<img style="width:100%; max-width:800px; max-height:600px; margin-left:auto; margin-right:auto; display:block;" src="https://user-images.githubusercontent.com/19167280/81466613-9b868e80-9205-11ea-860a-4bf224d04359.png";> -| 成员 | 类型 | -| :-------------------------------------------------: | :--------------------------------: | -| 包含的设备个数 | int | -| 设备名称和设备元数据索引的键值对(deviceIndexMap) | String, TsDeviceMetadataIndex pair | -| 包含的传感器个数 | int | -| 传感器名称和传感器元数据的键值对(measurementSchema) | String, MeasurementSchema pair | -| 水印标识 | byte | -| 当标识为0x01时的水印信息(createdBy) | String | -| 包含的Chunk总数(totalChunkNum) | int | -| 失效的Chunk总数(invalidChunkNum) | int | -| 布隆过滤器序列化大小 | int | -| 布隆过滤器所有数据 | byte[Bloom filter size] | -| 布隆过滤器容量 | int | -| 布隆过滤器容量包含的HashFunction数量 | int | +在150个设备，每个设备中有1个传感器的情况下，设备个数超过了 `max_degree_of_index_node`，形成元数据索引树的设备索引层级。在这个层级里，每个 MetadataIndexNode 最多由10个 MetadataIndexEntry 组成，由于均直接指向 `TimeseriesMetadata`，因此其索引项类型为 `LEAF_MEASUREMENT`。而后续产生的中间节点和根节点不是设备索引层级的叶子节点，因此索引项类型为 `INTERNAL_DEVICE`。 -###### TsDeviceMetadataIndex +<img style="width:100%; max-width:800px; max-height:600px; margin-left:auto; margin-right:auto; display:block;" src="https://user-images.githubusercontent.com/19167280/81466616-9e817f00-9205-11ea-9dc1-aec392eb5225.png";> -| 成员 | 类型 | -| :------------------------------------: | :----: | -| 设备名 | String | -| 文件中TsDeviceMetaData的偏移量(offset) | long | -| 序列化后数据大小(len) | int | -| 存储的设备最小时间(startTime) | long | -| 存储的设备最大时间(endTime) | long | +在150个设备，每个设备中有150个传感器的情况下，传感器和设备个数均超过了 `max_degree_of_index_node`，形成元数据索引树的传感器层级和设备索引层级。在这两个层级里，每个 MetadataIndexNode 均最多由10个 MetadataIndexEntry 组成。如前所述，从根节点到设备索引层级的叶子节点，索引项类型分别为`INTERNAL_DEVICE` 和 `LEAF_DEVICE`，而每个设备索引层级的叶子节点都是传感器索引层级的根节点，从这里到传感器索引层级的叶子节点，索引项类型分别为`INTERNAL_MEASUREMENT` 和 `LEAF_MEASUREMENT`。 + +元数据索引采用树形结构进行设计的目的是在设备数或者传感器数量过大时，可以不用一次读取所有的 `TimeseriesMetadata`，只需要根据所读取的传感器定位对应的节点，从而减少 I/O，加快查询速度。有关 TsFile 的读流程将在本章最后一节加以详细说明。 ###### MeasurementSchema @@ -270,11 +253,11 @@ ByteBuffer[] statistics = [ | 附带参数的数量 | int | | 所有附带的参数(props) | String, String pair | -如果附带的参数数量大于 0, 传感器的附带参数会以一个数组形式的 <String, String> 键值对存储。 +如果附带的参数数量大于 0, 传感器的附带参数会以一个数组形式的 \<String, String\> 键值对存储。 比如说: "max_point_number""2". -##### 1.2.3.3 TsFileMetadataSize +##### 1.2.3.4 TsFileMetadataSize 在TsFileMetaData之后，有一个int值用来表示TsFileMetaData的大小。 @@ -390,81 +373,227 @@ Linux or MacOs: - 注意: 如果没有设置输出文件的存储路径, 将使用 "TsFile_sketch_view.txt" 做为默认值。 -在Windows系统中的示例: +在 macOS 系统中的示例: -```bat -D:\incubator-iotdb\server\target\iotdb-server-0.10.0\tools\tsfileToolSet>.\print-tsfile-sketch.bat D:\data\data\sequence\root.vehicle\1572496142067-101-0.tsfile +```$xslt +/incubator-iotdb/server/target/iotdb-server-0.10.0/tools/tsfileToolSet$ ./print-tsfile-sketch.sh test.tsfile ```````````````````````` Starting Printing the TsFile Sketch ```````````````````````` -TsFile path:D:\data\data\sequence\root.vehicle\1572496142067-101-0.tsfile +TsFile path:test.tsfile Sketch save path:TsFile_sketch_view.txt -------------------------------- TsFile Sketch -------------------------------- -file path: D:\data\data\sequence\root.vehicle\1572496142067-101-0.tsfile -file length: 187382 - - POSITION| CONTENT - -------- ------- - 0| [magic head] TsFile - 6| [version number] 000001 -||||||||||||||||||||| [Chunk Group] of root.vehicle.d0 begins at pos 12, ends at pos 186469, version:102, num of Chunks:6 - 12| [Chunk] of s3, numOfPoints:10600, time range:[3000,13599], tsDataType:TEXT, - TsDigest:[min_value:A,max_value:E,first_value:A,last_value:E,sum_value:0.0] - | [marker] 1 - | [ChunkHeader] - | 11 pages - 55718| [Chunk] of s4, numOfPoints:10600, time range:[3000,13599], tsDataType:BOOLEAN, - TsDigest:[min_value:false,max_value:true,first_value:true,last_value:false,sum_value:0.0] - | [marker] 1 - | [ChunkHeader] - | 11 pages - 68848| [Chunk] of s5, numOfPoints:10600, time range:[3000,13599], tsDataType:DOUBLE, - TsDigest:[min_value:3000.0,max_value:13599.0,first_value:3000.0,last_value:13599.0,sum_value:8.79747E7] - | [marker] 1 - | [ChunkHeader] - | 11 pages - 98474| [Chunk] of s0, numOfPoints:21900, time range:[3000,100999], tsDataType:INT32, - TsDigest:[min_value:0,max_value:99,first_value:0,last_value:19,sum_value:889750.0] - | [marker] 1 - | [ChunkHeader] - | 22 pages - 123369| [Chunk] of s1, numOfPoints:21900, time range:[3000,100999], tsDataType:INT64, - TsDigest:[min_value:0,max_value:39,first_value:8,last_value:19,sum_value:300386.0] - | [marker] 1 - | [ChunkHeader] - | 22 pages - 144741| [Chunk] of s2, numOfPoints:21900, time range:[3000,100999], tsDataType:FLOAT, - TsDigest:[min_value:0.0,max_value:122.0,first_value:8.0,last_value:52.0,sum_value:778581.0] - | [marker] 1 - | [ChunkHeader] - | 22 pages - 186437| [Chunk Group Footer] - | [marker] 0 - | [deviceID] root.vehicle.d0 - | [dataSize] 186425 - | [num of chunks] 6 -||||||||||||||||||||| [Chunk Group] of root.vehicle.d0 ends - 186469| [marker] 2 - 186470| [TsDeviceMetadata] of root.vehicle.d0, startTime:3000, endTime:100999 - | [startTime] 3000tfi - | [endTime] 100999 - | [num of ChunkGroupMetaData] 1 - | 1 ChunkGroupMetaData - 187133| [TsFileMetaData] - | [num of devices] 1 - | 1 key&TsDeviceMetadataIndex - | [num of measurements] 6 - | 6 key&measurementSchema - | [createBy isNotNull] false - | [totalChunkNum] 6 - | [invalidChunkNum] 0 - | [bloom filter bit vector byte array length] 31 - | [bloom filter bit vector byte array] - | [bloom filter number of bits] 256 - | [bloom filter number of hash functions] 5 - 187372| [TsFileMetaDataSize] 239 - 187376| [magic tail] TsFile - 187382| END of TsFile +file path: test.tsfile +file length: 33436 + + POSITION| CONTENT + -------- ------- + 0| [magic head] TsFile + 6| [version number] 000002 +||||||||||||||||||||| [Chunk Group] of root.group_12.d2, num of Chunks:3 + 12| [Chunk] of s_INT64e_RLE, numOfPoints:10000, time range:[1,10000], tsDataType:INT64, + startTime: 1 endTime: 10000 count: 10000 [minValue:1,maxValue:1,firstValue:1,lastValue:1,sumValue:10000.0] + | [marker] 1 + | [ChunkHeader] + | 2 pages + 677| [Chunk] of s_INT64e_TS_2DIFF, numOfPoints:10000, time range:[1,10000], tsDataType:INT64, + startTime: 1 endTime: 10000 count: 10000 [minValue:1,maxValue:1,firstValue:1,lastValue:1,sumValue:10000.0] + | [marker] 1 + | [ChunkHeader] + | 1 pages + 1349| [Chunk] of s_INT64e_PLAIN, numOfPoints:10000, time range:[1,10000], tsDataType:INT64, + startTime: 1 endTime: 10000 count: 10000 [minValue:1,maxValue:1,firstValue:1,lastValue:1,sumValue:10000.0] + | [marker] 1 + | [ChunkHeader] + | 2 pages + 5766| [Chunk Group Footer] + | [marker] 0 + | [deviceID] root.group_12.d2 + | [dataSize] 5754 + | [num of chunks] 3 +||||||||||||||||||||| [Chunk Group] of root.group_12.d2 ends + 5799| [Version Info pair] + | [marker] 3 + | [offset] 5808 + | [version] 102 +||||||||||||||||||||| [Chunk Group] of root.group_12.d1, num of Chunks:3 + 5808| [Chunk] of s_INT32e_PLAIN, numOfPoints:10000, time range:[1,10000], tsDataType:INT32, + startTime: 1 endTime: 10000 count: 10000 [minValue:1,maxValue:1,firstValue:1,lastValue:1,sumValue:10000.0] + | [marker] 1 + | [ChunkHeader] + | 1 pages + 8231| [Chunk] of s_INT32e_TS_2DIFF, numOfPoints:10000, time range:[1,10000], tsDataType:INT32, + startTime: 1 endTime: 10000 count: 10000 [minValue:1,maxValue:1,firstValue:1,lastValue:1,sumValue:10000.0] + | [marker] 1 + | [ChunkHeader] + | 1 pages + 8852| [Chunk] of s_INT32e_RLE, numOfPoints:10000, time range:[1,10000], tsDataType:INT32, + startTime: 1 endTime: 10000 count: 10000 [minValue:1,maxValue:1,firstValue:1,lastValue:1,sumValue:10000.0] + | [marker] 1 + | [ChunkHeader] + | 1 pages + 9399| [Chunk Group Footer] + | [marker] 0 + | [deviceID] root.group_12.d1 + | [dataSize] 3591 + | [num of chunks] 3 +||||||||||||||||||||| [Chunk Group] of root.group_12.d1 ends + 9432| [Version Info pair] + | [marker] 3 + | [offset] 9441 + | [version] 102 +||||||||||||||||||||| [Chunk Group] of root.group_12.d0, num of Chunks:2 + 9441| [Chunk] of s_BOOLEANe_RLE, numOfPoints:10000, time range:[1,10000], tsDataType:BOOLEAN, + startTime: 1 endTime: 10000 count: 10000 [firstValue:true,lastValue:true] + | [marker] 1 + | [ChunkHeader] + | 1 pages + 9968| [Chunk] of s_BOOLEANe_PLAIN, numOfPoints:10000, time range:[1,10000], tsDataType:BOOLEAN, + startTime: 1 endTime: 10000 count: 10000 [firstValue:true,lastValue:true] + | [marker] 1 + | [ChunkHeader] + | 1 pages + 10961| [Chunk Group Footer] + | [marker] 0 + | [deviceID] root.group_12.d0 + | [dataSize] 1520 + | [num of chunks] 2 +||||||||||||||||||||| [Chunk Group] of root.group_12.d0 ends + 10994| [Version Info pair] + | [marker] 3 + | [offset] 11003 + | [version] 102 +||||||||||||||||||||| [Chunk Group] of root.group_12.d5, num of Chunks:1 + 11003| [Chunk] of s_TEXTe_PLAIN, numOfPoints:10000, time range:[1,10000], tsDataType:TEXT, + startTime: 1 endTime: 10000 count: 10000 [firstValue:version_test,lastValue:version_test] + | [marker] 1 + | [ChunkHeader] + | 3 pages + 19278| [Chunk Group Footer] + | [marker] 0 + | [deviceID] root.group_12.d5 + | [dataSize] 8275 + | [num of chunks] 1 +||||||||||||||||||||| [Chunk Group] of root.group_12.d5 ends + 19311| [Version Info pair] + | [marker] 3 + | [offset] 19320 + | [version] 102 +||||||||||||||||||||| [Chunk Group] of root.group_12.d4, num of Chunks:4 + 19320| [Chunk] of s_DOUBLEe_PLAIN, numOfPoints:10000, time range:[1,10000], tsDataType:DOUBLE, + startTime: 1 endTime: 10000 count: 10000 [minValue:1.1,maxValue:1.1,firstValue:1.1,lastValue:1.1,sumValue:11000.00000000123] + | [marker] 1 + | [ChunkHeader] + | 2 pages + 23740| [Chunk] of s_DOUBLEe_TS_2DIFF, numOfPoints:10000, time range:[1,10000], tsDataType:DOUBLE, + startTime: 1 endTime: 10000 count: 10000 [minValue:1.1,maxValue:1.1,firstValue:1.1,lastValue:1.1,sumValue:11000.000000002045] + | [marker] 1 + | [ChunkHeader] + | 1 pages + 24414| [Chunk] of s_DOUBLEe_GORILLA, numOfPoints:10000, time range:[1,10000], tsDataType:DOUBLE, + startTime: 1 endTime: 10000 count: 10000 [minValue:1.1,maxValue:1.1,firstValue:1.1,lastValue:1.1,sumValue:11000.000000002045] + | [marker] 1 + | [ChunkHeader] + | 1 pages + 25054| [Chunk] of s_DOUBLEe_RLE, numOfPoints:10000, time range:[1,10000], tsDataType:DOUBLE, + startTime: 1 endTime: 10000 count: 10000 [minValue:1.1,maxValue:1.1,firstValue:1.1,lastValue:1.1,sumValue:11000.000000001224] + | [marker] 1 + | [ChunkHeader] + | 2 pages + 25717| [Chunk Group Footer] + | [marker] 0 + | [deviceID] root.group_12.d4 + | [dataSize] 6397 + | [num of chunks] 4 +||||||||||||||||||||| [Chunk Group] of root.group_12.d4 ends + 25750| [Version Info pair] + | [marker] 3 + | [offset] 25759 + | [version] 102 +||||||||||||||||||||| [Chunk Group] of root.group_12.d3, num of Chunks:4 + 25759| [Chunk] of s_FLOATe_GORILLA, numOfPoints:10000, time range:[1,10000], tsDataType:FLOAT, + startTime: 1 endTime: 10000 count: 10000 [minValue:1.1,maxValue:1.1,firstValue:1.1,lastValue:1.1,sumValue:11000.00023841858] + | [marker] 1 + | [ChunkHeader] + | 1 pages + 26375| [Chunk] of s_FLOATe_PLAIN, numOfPoints:10000, time range:[1,10000], tsDataType:FLOAT, + startTime: 1 endTime: 10000 count: 10000 [minValue:1.1,maxValue:1.1,firstValue:1.1,lastValue:1.1,sumValue:11000.00023841858] + | [marker] 1 + | [ChunkHeader] + | 1 pages + 28796| [Chunk] of s_FLOATe_RLE, numOfPoints:10000, time range:[1,10000], tsDataType:FLOAT, + startTime: 1 endTime: 10000 count: 10000 [minValue:1.1,maxValue:1.1,firstValue:1.1,lastValue:1.1,sumValue:11000.00023841858] + | [marker] 1 + | [ChunkHeader] + | 1 pages + 29343| [Chunk] of s_FLOATe_TS_2DIFF, numOfPoints:10000, time range:[1,10000], tsDataType:FLOAT, + startTime: 1 endTime: 10000 count: 10000 [minValue:1.1,maxValue:1.1,firstValue:1.1,lastValue:1.1,sumValue:11000.00023841858] + | [marker] 1 + | [ChunkHeader] + | 1 pages + 29967| [Chunk Group Footer] + | [marker] 0 + | [deviceID] root.group_12.d3 + | [dataSize] 4208 + | [num of chunks] 4 +||||||||||||||||||||| [Chunk Group] of root.group_12.d3 ends + 30000| [Version Info pair] + | [marker] 3 + | [offset] 30009 + | [version] 102 + 30009| [marker] 2 + 30010| [ChunkMetadataList] of root.group_12.d0.s_BOOLEANe_PLAIN, tsDataType:BOOLEAN + | [startTime: 1 endTime: 10000 count: 10000 [firstValue:true,lastValue:true]] + 30066| [ChunkMetadataList] of root.group_12.d0.s_BOOLEANe_RLE, tsDataType:BOOLEAN + | [startTime: 1 endTime: 10000 count: 10000 [firstValue:true,lastValue:true]] + 30120| [ChunkMetadataList] of root.group_12.d1.s_INT32e_PLAIN, tsDataType:INT32 + | [startTime: 1 endTime: 10000 count: 10000 [minValue:1,maxValue:1,firstValue:1,lastValue:1,sumValue:10000.0]] + 30196| [ChunkMetadataList] of root.group_12.d1.s_INT32e_RLE, tsDataType:INT32 + | [startTime: 1 endTime: 10000 count: 10000 [minValue:1,maxValue:1,firstValue:1,lastValue:1,sumValue:10000.0]] + 30270| [ChunkMetadataList] of root.group_12.d1.s_INT32e_TS_2DIFF, tsDataType:INT32 + | [startTime: 1 endTime: 10000 count: 10000 [minValue:1,maxValue:1,firstValue:1,lastValue:1,sumValue:10000.0]] + 30349| [ChunkMetadataList] of root.group_12.d2.s_INT64e_PLAIN, tsDataType:INT64 + | [startTime: 1 endTime: 10000 count: 10000 [minValue:1,maxValue:1,firstValue:1,lastValue:1,sumValue:10000.0]] + 30441| [ChunkMetadataList] of root.group_12.d2.s_INT64e_RLE, tsDataType:INT64 + | [startTime: 1 endTime: 10000 count: 10000 [minValue:1,maxValue:1,firstValue:1,lastValue:1,sumValue:10000.0]] + 30531| [ChunkMetadataList] of root.group_12.d2.s_INT64e_TS_2DIFF, tsDataType:INT64 + | [startTime: 1 endTime: 10000 count: 10000 [minValue:1,maxValue:1,firstValue:1,lastValue:1,sumValue:10000.0]] + 30626| [ChunkMetadataList] of root.group_12.d3.s_FLOATe_GORILLA, tsDataType:FLOAT + | [startTime: 1 endTime: 10000 count: 10000 [minValue:1.1,maxValue:1.1,firstValue:1.1,lastValue:1.1,sumValue:11000.00023841858]] + 30704| [ChunkMetadataList] of root.group_12.d3.s_FLOATe_PLAIN, tsDataType:FLOAT + | [startTime: 1 endTime: 10000 count: 10000 [minValue:1.1,maxValue:1.1,firstValue:1.1,lastValue:1.1,sumValue:11000.00023841858]] + 30780| [ChunkMetadataList] of root.group_12.d3.s_FLOATe_RLE, tsDataType:FLOAT + | [startTime: 1 endTime: 10000 count: 10000 [minValue:1.1,maxValue:1.1,firstValue:1.1,lastValue:1.1,sumValue:11000.00023841858]] + 30854| [ChunkMetadataList] of root.group_12.d3.s_FLOATe_TS_2DIFF, tsDataType:FLOAT + | [startTime: 1 endTime: 10000 count: 10000 [minValue:1.1,maxValue:1.1,firstValue:1.1,lastValue:1.1,sumValue:11000.00023841858]] + 30933| [ChunkMetadataList] of root.group_12.d4.s_DOUBLEe_GORILLA, tsDataType:DOUBLE + | [startTime: 1 endTime: 10000 count: 10000 [minValue:1.1,maxValue:1.1,firstValue:1.1,lastValue:1.1,sumValue:11000.000000002045]] + 31028| [ChunkMetadataList] of root.group_12.d4.s_DOUBLEe_PLAIN, tsDataType:DOUBLE + | [startTime: 1 endTime: 10000 count: 10000 [minValue:1.1,maxValue:1.1,firstValue:1.1,lastValue:1.1,sumValue:11000.00000000123]] + 31121| [ChunkMetadataList] of root.group_12.d4.s_DOUBLEe_RLE, tsDataType:DOUBLE + | [startTime: 1 endTime: 10000 count: 10000 [minValue:1.1,maxValue:1.1,firstValue:1.1,lastValue:1.1,sumValue:11000.000000001224]] + 31212| [ChunkMetadataList] of root.group_12.d4.s_DOUBLEe_TS_2DIFF, tsDataType:DOUBLE + | [startTime: 1 endTime: 10000 count: 10000 [minValue:1.1,maxValue:1.1,firstValue:1.1,lastValue:1.1,sumValue:11000.000000002045]] + 31308| [ChunkMetadataList] of root.group_12.d5.s_TEXTe_PLAIN, tsDataType:TEXT + | [startTime: 1 endTime: 10000 count: 10000 [firstValue:version_test,lastValue:version_test]] + 32840| [MetadataIndex] of root.group_12.d0 + 32881| [MetadataIndex] of root.group_12.d1 + 32920| [MetadataIndex] of root.group_12.d2 + 32959| [MetadataIndex] of root.group_12.d3 + 33000| [MetadataIndex] of root.group_12.d4 + 33042| [MetadataIndex] of root.group_12.d5 + 33080| [TsFileMetadata] + | [num of devices] 6 + | 6 key&TsMetadataIndex + | [totalChunkNum] 17 + | [invalidChunkNum] 0 + | [bloom filter bit vector byte array length] 32 + | [bloom filter bit vector byte array] + | [bloom filter number of bits] 256 + | [bloom filter number of hash functions] 5 + 33426| [TsFileMetadataSize] 346 + 33430| [magic tail] TsFile + 33436| END of TsFile ---------------------------------- TsFile Sketch End ---------------------------------- ```````````````````````` @@ -475,10 +604,12 @@ file length: 187382 ### 1.4 TsFile 的总览图 -#### v0.8.0 +#### v0.8 <img style="width:100%; max-width:800px; max-height:600px; margin-left:auto; margin-right:auto; display:block;" src="https://user-images.githubusercontent.com/33376433/65209576-2bd36000-dacb-11e9-9e43-49e0dd01274e.png";> -#### v0.9.0 +#### v0.9 + +<img style="width:100%; max-width:800px; max-height:600px; margin-left:auto; margin-right:auto; display:block;" src="https://user-images.githubusercontent.com/33376433/69341240-26012300-0ca4-11ea-91a1-d516810cad44.png";> -<img style="width:100%; max-width:800px; max-height:600px; margin-left:auto; margin-right:auto; display:block;" src="https://user-images.githubusercontent.com/33376433/69341240-26012300-0ca4-11ea-91a1-d516810cad44.png";> \ No newline at end of file +#### v0.10
