   ## Summary
   Add NxCamera app similar to NxLooper, which can be used to control video
capture device. The basic capture n' display function is complete, while file
output and camera control features are left TODO.

   The app can be used even without a real camera. To use v4l2loopback virtual
camera (which captures from your desktop screen), you need to have v4l2loopback
module installed and enabled. On Ubuntu the commands are:
   ```
   sudo apt-get -y install v4l2loopback-dkms
   sudo modprobe v4l2loopback
   ```
   Then `lsmod | grep v4l2loopback` will output something like:
   ```
   v4l2loopback           57344  2
   videodev              315392  6
videobuf2_v4l2,v4l2loopback,uvcvideo,videobuf2_common
   ```
   Now that you have v4l2loopback enabled, you can install `ffmpeg` and start a
virtual camera with:
   ```
   ffmpeg -f x11grab -r 30 -s 480x480 -i :0.0+0,0 -vcodec rawvideo -pix_fmt
yuv420p -threads 0 -f v4l2 /dev/videoX
   ```
   where /dev/videoX is your virtual camera path.

   Then, in NuttX, use:
   ```
   nsh> nxcamera
   NxCamera version 1.00
   h for commands, q to exit

   nxcamera>
   nxcamera> input /dev/video
   nxcamera>
   nxcamera> output /dev/fb0
   nxcamera>
   nxcamera> stream 480 480 30 YU12
   nxcamera_stream: ==============================
   nxcamera_stream: streaming video
   nxcamera_stream: ==============================
   nxcamera_loopthread: Entry
   nxcamera>
   ```

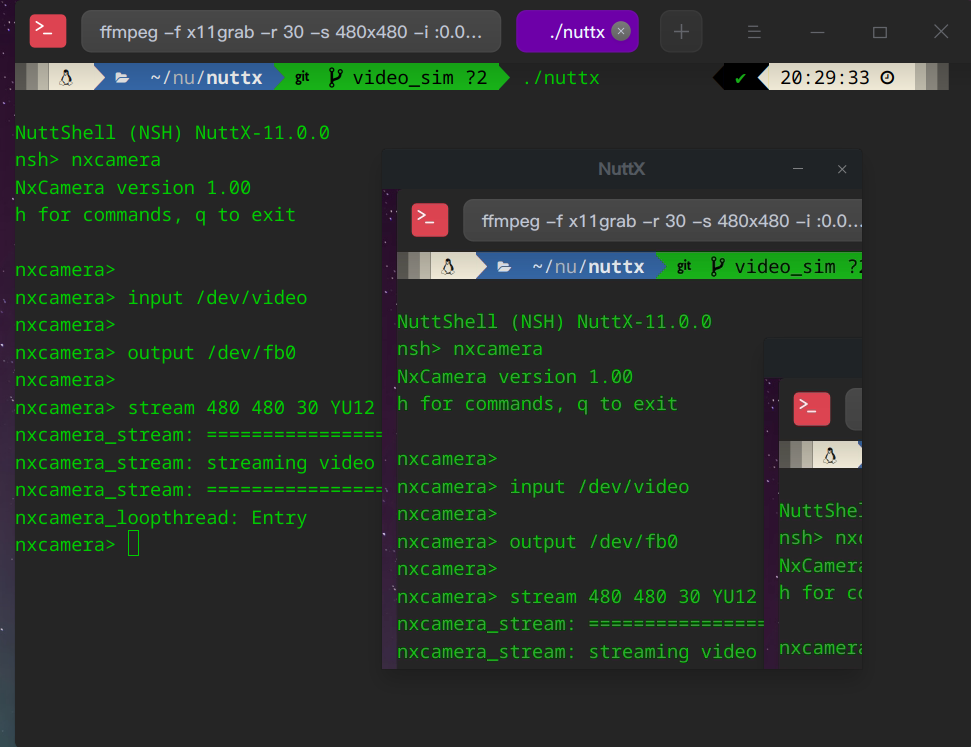

   and you can see the result as shown here:

![image](https://user-images.githubusercontent.com/14850150/205913653-28d274b0-f9ea-423a-94ff-9ff26f87f839.png)

   The usage of regular USB camera is similar, and normally you can use YUYV
format.

   ## Impact

   ## Testing




--
