liangyepianzhou opened a new issue, #15423:
URL: https://github.com/apache/pulsar/issues/15423

   ## Motivation

   In the current implementation, if the user sends messages using the
previously committed transaction, these messages are automatically visible to
the consumer. And this can confuse users.

   ## Goal
   * Add a map to store the lowWaterMark of TC in TB.
   * Check lowWaterMark before appending transaction entry to TB.

   ## What is LowWaterMark
   The transactionId is identify by mostSigBits and leastSigBits. The
mostSigBits is the ID of TC, and the leastSigBits is an incremental ID of TC.
LowWaterMark is the smallest leastSigBits which means the smallest transaction
that have not ended.

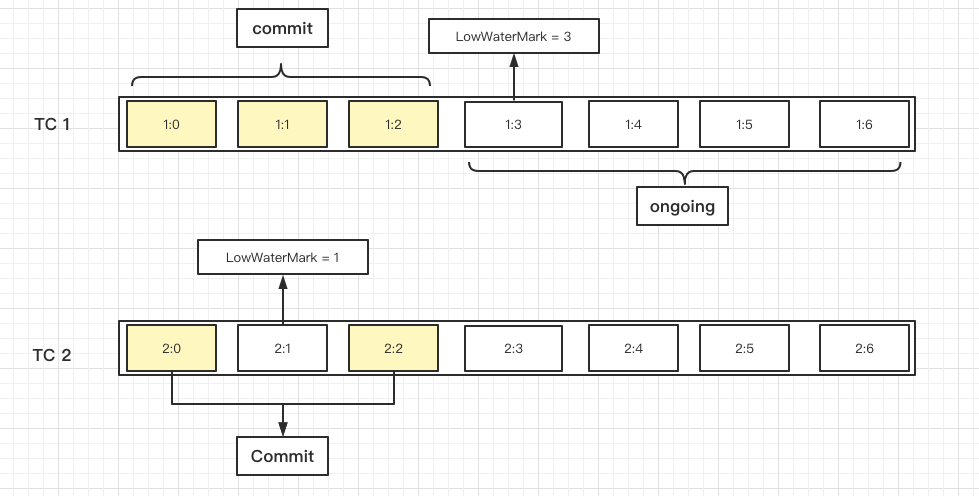

![image](https://user-images.githubusercontent.com/55571188/166635162-d48874aa-8a1e-4443-a045-673779954bdd.png)

   ## How LowWaterMark work for TB now
   Now, we get lowWaterMark from TC when end transaction on topic. And then to
judge if have ongoing transaction < lowWaterMark. If ongoing transaction <
lowWaterMark, we will append an abort mark and change maxReadPosition.
   But we use  a collection(aborts) to filter abort transaction message instead
of mark, so consumer can receive the transaction message sent after committing.

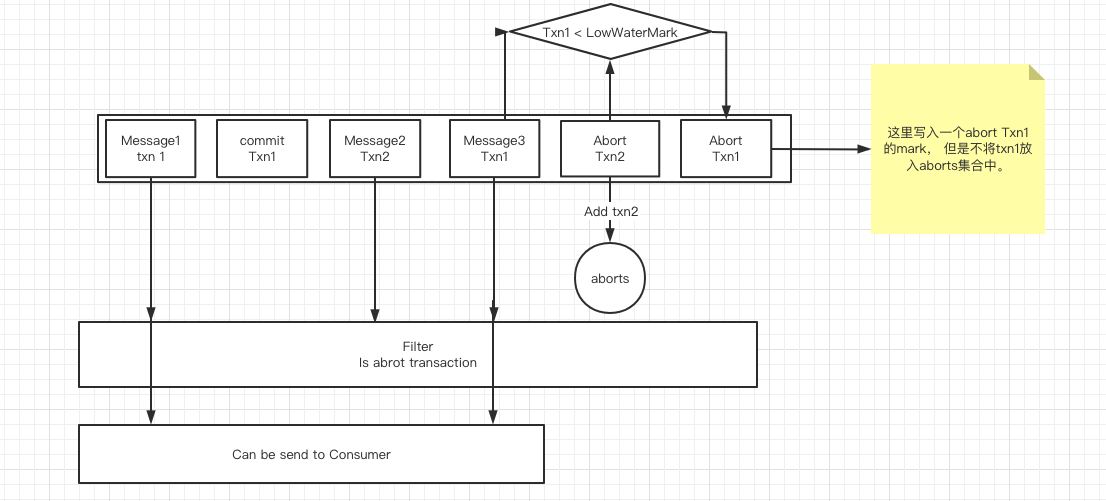

![image](https://user-images.githubusercontent.com/55571188/166636135-0d966f50-f191-4263-becb-b55c86438644.png)

   ## What is expected
   Store the lowWaterMark when TC end transaction on TransactionBuffer.
   And check LowWaterMark before append transaction entry to TB.

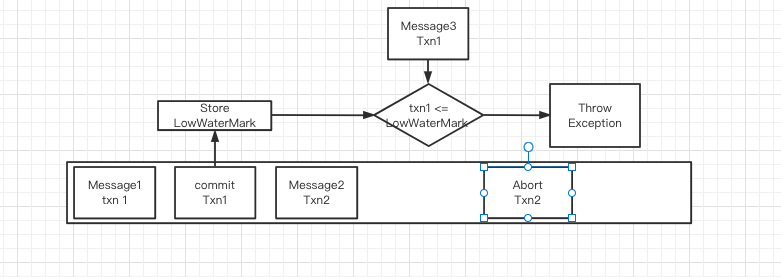

![image](https://user-images.githubusercontent.com/55571188/166638125-c9829144-7bb0-48f1-80a8-3f7c454ac128.png)
   ## Implement
   1. store the lowWaterMark at end txn
   ```java
   lowWaterMarks.compute(txnID.getMostSigBits(), (k, v) -> lowWaterMark);
   ```
   1. check lowWaterMark before append transaction message to TB.
   ```java
     if (lowWaterMarks.get(txnId.getMostSigBits()) != null
                   && lowWaterMarks.get(txnId.getMostSigBits()) >=
txnId.getLeastSigBits()) {
               completableFuture.completeExceptionally(new
TransactionBufferException
                       .TransactionNotFoundException("Transaction [" + txnId +
"] has been ended. "
                       + "Please use a new transaction to send message."));
           }
   ```



--
