asafm commented on code in PR #15878:
URL: https://github.com/apache/pulsar/pull/15878#discussion_r887785670
##########
site2/docs/developing-binary-protocol.md:
##########
@@ -28,39 +28,39 @@ The Pulsar protocol allows for two types of commands:

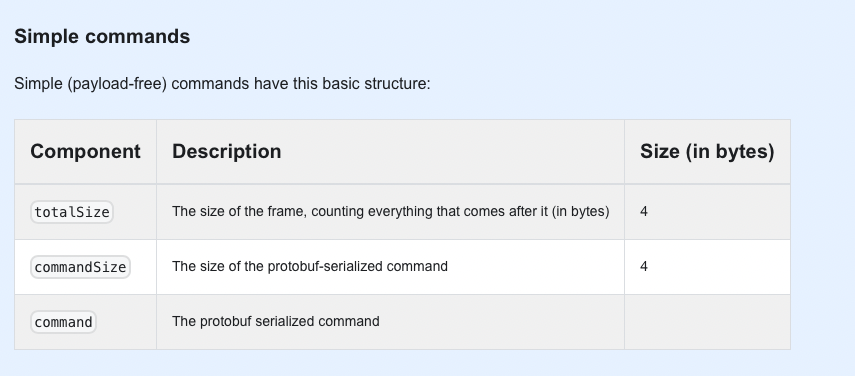

Simple (payload-free) commands have this basic structure:
-| Component | Description
| Size (in bytes) |
-|:--------------|:----------------------------------------------------------------------------------------|:----------------|
-| `totalSize` | The size of the frame, counting everything that comes after
it (in bytes) | 4 |
-| `commandSize` | The size of the protobuf-serialized command
| 4 |
-| `message` | The protobuf message serialized in a raw binary format
(rather than in protobuf format) | |
+| Component | Description
| Size (in bytes) |
+|:--------------|:--------------------------------------------------------------------------|:----------------|
+| `totalSize` | The size of the frame, counting everything that comes after
it (in bytes) | 4 |
+| `commandSize` | The size of the protobuf-serialized command
| 4 |
+| `command` | The protobuf serialized command
| |
-### Payload commands
+### Message commands
Payload commands have this basic structure:
-| Component | Required or optional| Description
|
Size (in bytes) |
-|:-----------------------------------|:----------|:--------------------------------------------------------------------------------------------|:----------------|
-| `totalSize` | Required | The size of the frame,
counting everything that comes after it (in bytes) | 4
|
-| `commandSize` | Required | The size of the
protobuf-serialized command | 4
|
-| `message` | Required | The protobuf message
serialized in a raw binary format (rather than in protobuf format) |
|
-| `magicNumberOfBrokerEntryMetadata` | Optional | A 2-byte byte array
(`0x0e02`) identifying the broker entry metadata <br /> **Note**:
`magicNumberOfBrokerEntryMetadata` , `brokerEntryMetadataSize`, and
`brokerEntryMetadata` should be used **together**. | 2
|
-| `brokerEntryMetadataSize` | Optional | The size of the broker
entry metadata | 4
|
-| `brokerEntryMetadata` | Optional | The broker entry metadata
stored as a binary protobuf message |
|
-| `magicNumber` | Required | A 2-byte byte array
(`0x0e01`) identifying the current format | 2
|
-| `checksum` | Required | A [CRC32-C
checksum](http://www.evanjones.ca/crc32c.html) of everything that comes after
it | 4 |
-| `metadataSize` | Required | The size of the message
[metadata](#message-metadata) | 4
|
-| `metadata` | Required | The message
[metadata](#message-metadata) stored as a binary protobuf message
| |
-| `payload` | Required | Anything left in the frame
is considered the payload and can include any sequence of bytes |
|
+| Component | Required or optional | Description
| Size (in bytes) |
+|:-----------------------------------|:---------------------|:---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|:----------------|
+| `totalSize` | Required | The size of the
frame, counting everything that comes after it (in bytes)
| 4 |
+| `commandSize` | Required | The size of the
protobuf-serialized command
| 4 |
+| `command` | Required | The protobuf
serialized command
| |
+| `magicNumberOfBrokerEntryMetadata` | Optional | A 2-byte byte
array (`0x0e02`) identifying the broker entry metadata <br /> **Note**:
`magicNumberOfBrokerEntryMetadata` , `brokerEntryMetadataSize`, and
`brokerEntryMetadata` should be used **together**. | 2 |
+| `brokerEntryMetadataSize` | Optional | The size of the
broker entry metadata
| 4 |
+| `brokerEntryMetadata` | Optional | The broker entry
metadata stored as a binary protobuf message
| |
+| `magicNumber` | Required | A 2-byte byte
array (`0x0e01`) identifying the current format
| 2 |
+| `checksum` | Required | A [CRC32-C
checksum](http://www.evanjones.ca/crc32c.html) of everything that comes after
it
| 4 |
+| `metadataSize` | Required | The size of the
message [metadata](#message-metadata)
| 4 |
+| `metadata` | Required | The message
[metadata](#message-metadata) stored as a binary protobuf message
| |
+| `payload` | Required | Anything left in
the frame is considered the payload and can include any sequence of bytes
| |
## Broker entry metadata
Broker entry metadata is stored alongside the message metadata as a serialized
protobuf message.
It is created by the broker when the message arrived at the broker and passed
without changes to the consumer if configured.
-| Field | Required or optional | Description
|
-|:-------------------|:----------------|:------------------------------------------------------------------------------------------------------------------------------|
-| `broker_timestamp` | Optional | The timestamp when a message arrived
at the broker (`id est` as the number of milliseconds since January 1st, 1970
in UTC) |
-| `index` | Optional | The index of the message. It is
assigned by the broker.
+| Field | Required or optional | Description
|
Review Comment:
##########
site2/docs/developing-binary-protocol.md:
##########
@@ -28,39 +28,39 @@ The Pulsar protocol allows for two types of commands:
Simple (payload-free) commands have this basic structure:
-| Component | Description
| Size (in bytes) |
-|:--------------|:----------------------------------------------------------------------------------------|:----------------|
-| `totalSize` | The size of the frame, counting everything that comes after
it (in bytes) | 4 |
-| `commandSize` | The size of the protobuf-serialized command
| 4 |
-| `message` | The protobuf message serialized in a raw binary format
(rather than in protobuf format) | |
+| Component | Description
| Size (in bytes) |
Review Comment:
##########
site2/docs/developing-binary-protocol.md:
##########
@@ -28,39 +28,39 @@ The Pulsar protocol allows for two types of commands:
Simple (payload-free) commands have this basic structure:
-| Component | Description
| Size (in bytes) |
-|:--------------|:----------------------------------------------------------------------------------------|:----------------|
-| `totalSize` | The size of the frame, counting everything that comes after
it (in bytes) | 4 |
-| `commandSize` | The size of the protobuf-serialized command
| 4 |
-| `message` | The protobuf message serialized in a raw binary format
(rather than in protobuf format) | |
+| Component | Description
| Size (in bytes) |
+|:--------------|:--------------------------------------------------------------------------|:----------------|
+| `totalSize` | The size of the frame, counting everything that comes after
it (in bytes) | 4 |
+| `commandSize` | The size of the protobuf-serialized command
| 4 |
+| `command` | The protobuf serialized command
| |
-### Payload commands
+### Message commands
Payload commands have this basic structure:
-| Component | Required or optional| Description
|
Size (in bytes) |
-|:-----------------------------------|:----------|:--------------------------------------------------------------------------------------------|:----------------|
-| `totalSize` | Required | The size of the frame,
counting everything that comes after it (in bytes) | 4
|
-| `commandSize` | Required | The size of the
protobuf-serialized command | 4
|
-| `message` | Required | The protobuf message
serialized in a raw binary format (rather than in protobuf format) |
|
-| `magicNumberOfBrokerEntryMetadata` | Optional | A 2-byte byte array
(`0x0e02`) identifying the broker entry metadata <br /> **Note**:
`magicNumberOfBrokerEntryMetadata` , `brokerEntryMetadataSize`, and
`brokerEntryMetadata` should be used **together**. | 2
|
-| `brokerEntryMetadataSize` | Optional | The size of the broker
entry metadata | 4
|
-| `brokerEntryMetadata` | Optional | The broker entry metadata
stored as a binary protobuf message |
|
-| `magicNumber` | Required | A 2-byte byte array
(`0x0e01`) identifying the current format | 2
|
-| `checksum` | Required | A [CRC32-C
checksum](http://www.evanjones.ca/crc32c.html) of everything that comes after
it | 4 |
-| `metadataSize` | Required | The size of the message
[metadata](#message-metadata) | 4
|
-| `metadata` | Required | The message
[metadata](#message-metadata) stored as a binary protobuf message
| |
-| `payload` | Required | Anything left in the frame
is considered the payload and can include any sequence of bytes |
|
+| Component | Required or optional | Description
| Size (in bytes) |
Review Comment:
--
