   Try to provide a brief summary for the deadlock.

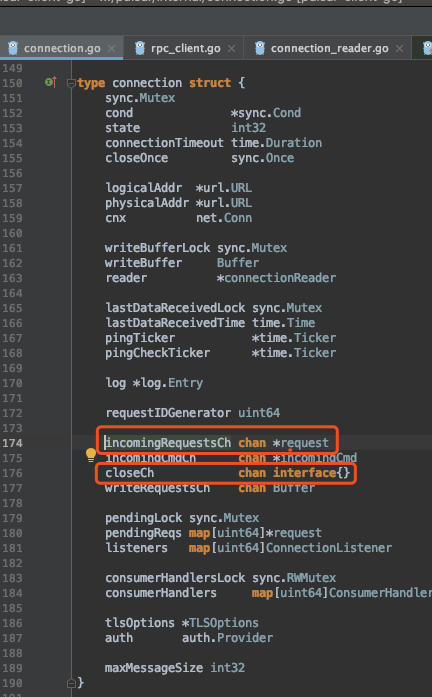

   In pulsar/internal/connection.go we have 2 channels, `closeCh` and
`incomingRequestsCh`, which are init as

   ```
   closeCh:            make(chan interface{}),
   incomingRequestsCh: make(chan *request, 10),    < === buffer limited
   ```
   `incomingRequestsCh` is a buffered channel with length 10.


![image](https://user-images.githubusercontent.com/6348208/93894965-e0791080-fd21-11ea-93ed-716f9ef07c8a.png)

![image](https://user-images.githubusercontent.com/6348208/93895012-ee2e9600-fd21-11ea-9301-372ac000eadb.png)

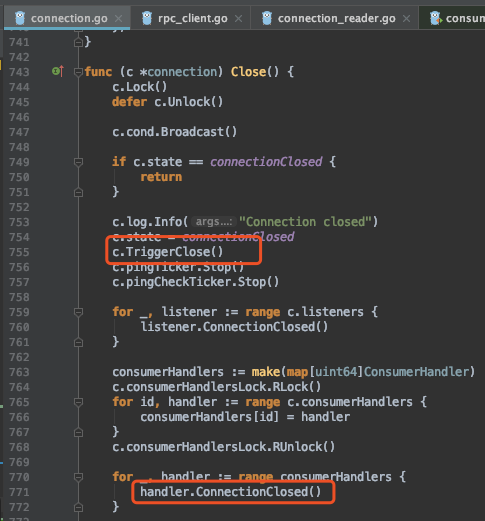

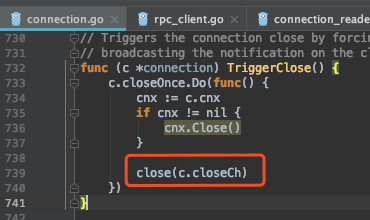

   when connection is closed,  method `func (c *connection) Close()` will call
`func (c *connection) TriggerClose()`, which closed `closeCh` by
`close(c.closeCh)`,

![image](https://user-images.githubusercontent.com/6348208/93895117-10c0af00-fd22-11ea-8b2b-dee3ca3cf232.png)

![image](https://user-images.githubusercontent.com/6348208/93895133-14543600-fd22-11ea-96ce-90cb35b09d32.png)

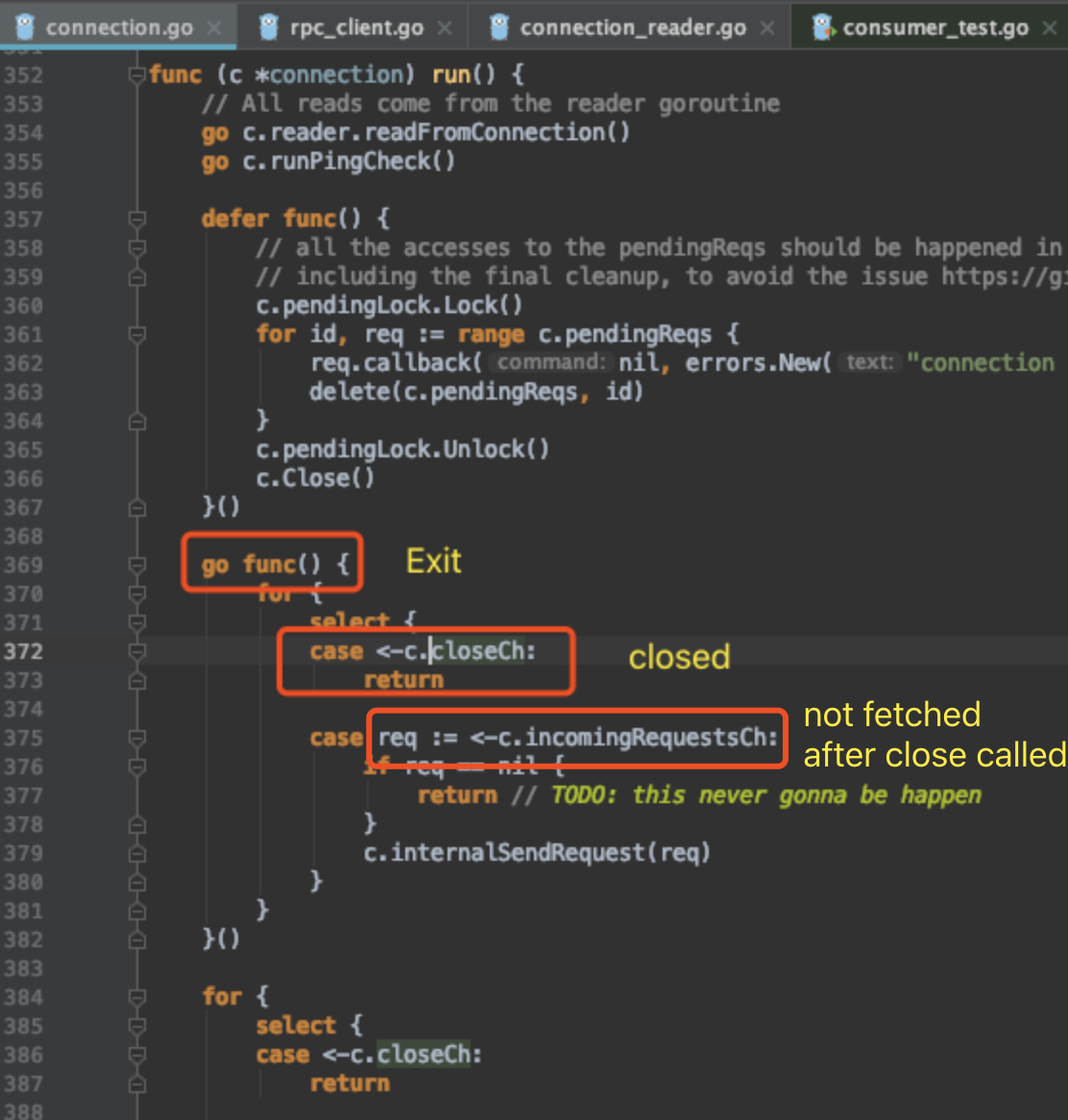

   this will cause go routine (in connection.go.run()) exit,  then no one will
fetch messages in `incomingRequestsCh`. `incomingRequestsCh`, whose buffer

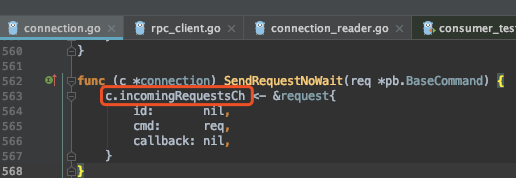

length is 10,  will be filled with incoming requests by method `func (c
*connection) SendRequestNoWait(req *pb.BaseCommand)`,

![image](https://user-images.githubusercontent.com/6348208/93895485-744adc80-fd22-11ea-9bb8-8e75725084a0.png)

![image](https://user-images.githubusercontent.com/6348208/93895552-888ed980-fd22-11ea-87ad-4c2f67beb20b.png)

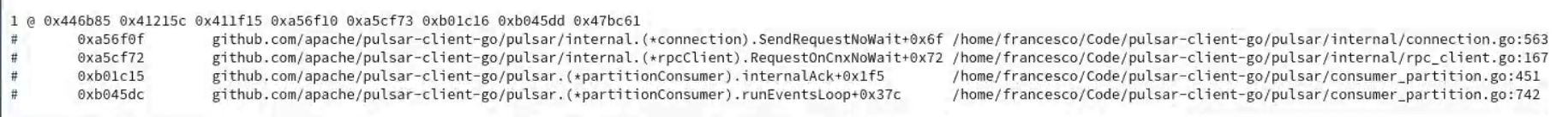

   Then the 10th request, it will be blocked,

![image](https://user-images.githubusercontent.com/6348208/93895661-a78d6b80-fd22-11ea-9cb7-128c4314491b.png)

   As show in above dump thread,  `internalAck` in `runEventsLoop` is blocked,
then other requests like re-connection will not get handled, and caused  `
"consumers" : [ ], <-- NO CONSUMERS HERE`

![image](https://user-images.githubusercontent.com/6348208/93895687-b07e3d00-fd22-11ea-86ea-e8dcddcaba75.png)

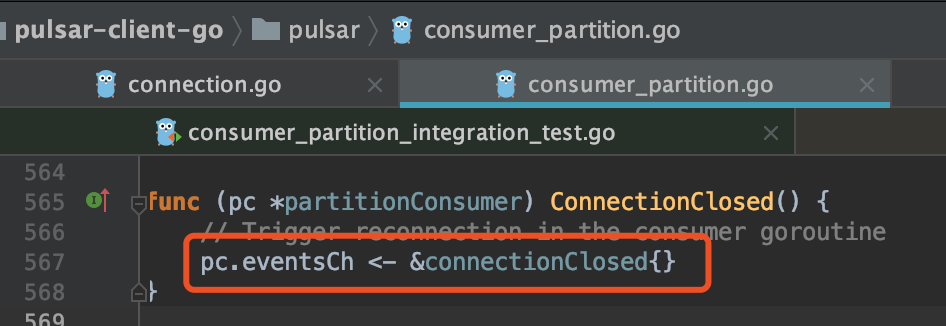

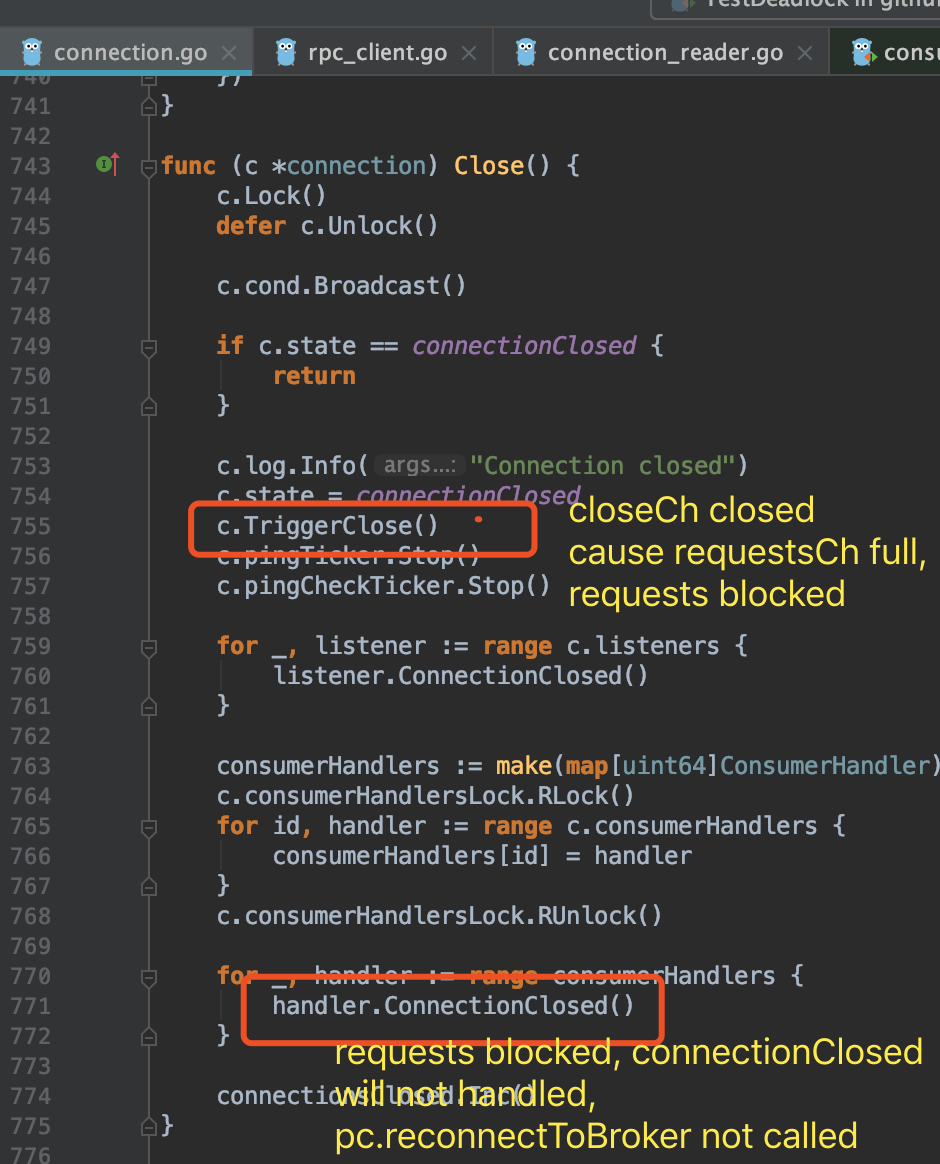

   Backing to `func (c *connection) Close()`, the connection
`handler.ConnectionClosed()` will hang, because  channel `pc.eventsCh` is
blocked as ackRequest is waiting.

![image](https://user-images.githubusercontent.com/6348208/93895803-ca1f8480-fd22-11ea-8371-152eb40a5cd8.png)

![image](https://user-images.githubusercontent.com/6348208/93895822-ce4ba200-fd22-11ea-8231-0a4736169d45.png)








----------------------------------------------------------------
