EickMing commented on issue #3762:
URL:
https://github.com/apache/servicecomb-java-chassis/issues/3762#issuecomment-1525120800

   > ```
   > 我看唯一框架有修改traceId的地方就是这里 你断点点在这里看看这里是啥时候被走的吧
https://github.com/apache/servicecomb-java-chassis/blob/1.0.0-m1/common/common-rest/src/main/java/org/apache/servicecomb/common/rest/filter/tracing/TracingFilter.java
   > ```

   这个过滤器存在于common-rest的包里，在目前使用的CSE商业版中已经找不到了。

在开始RPC调用时，会经过ZipkinTracingHandler，ZipkinTracingHandler里的handler方法调用ZipkinTracingDelegate的createSpan(invocation)方法，这个方法的实现是ZipkinConsumerDelegate的createSapn()；

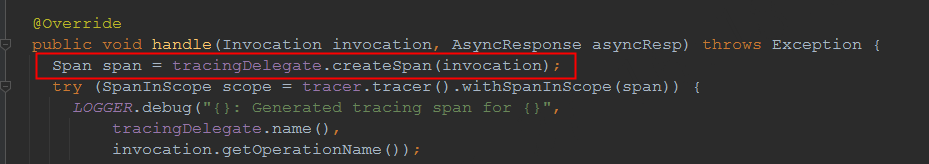

   下图是调用的链路：

![image](https://user-images.githubusercontent.com/20539987/234803641-c9877c47-d012-43cc-bf4c-f4a4ad1b3693.png)

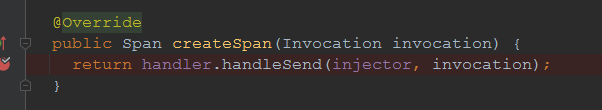

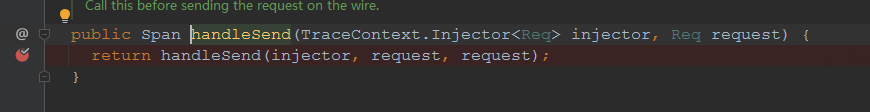

   在这里调用了brave包中的HttpClientHandler的方法，一下三张图是方法调用路径

![image](https://user-images.githubusercontent.com/20539987/234803671-64079764-44f9-4373-ad11-0177954446ea.png)

![image](https://user-images.githubusercontent.com/20539987/234803692-1565f5e0-b3ce-4515-a900-6ff99b059e35.png)

![image](https://user-images.githubusercontent.com/20539987/234803725-6693cd6d-c03c-4f81-b79e-69fd07b332e7.png)

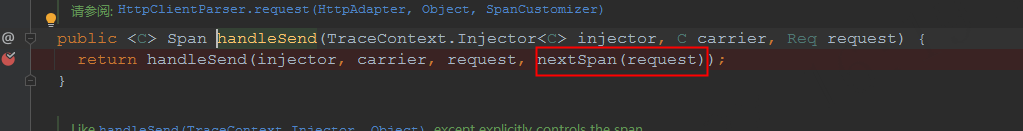

   第三张图中的方法的nextSpan生成了Span对象，以下2张图是进入方法内部的逻辑

![image](https://user-images.githubusercontent.com/20539987/234804686-7ee71942-37dc-4a09-80fc-5fd918a13f35.png)

![image](https://user-images.githubusercontent.com/20539987/234804713-aa480ccf-ca11-4c8f-b3a4-ced545ae94a3.png)

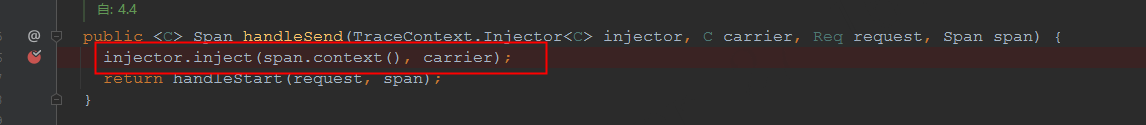

   生成Span以后，回到HttpClientHandler的handlerSend方法，

![image](https://user-images.githubusercontent.com/20539987/234805490-49e0a411-3ea6-460b-a338-64e44866f2c6.png)

![image](https://user-images.githubusercontent.com/20539987/234805784-56ccb1bb-7cf7-49ee-915b-5a5cc8119727.png)
   在B3Propagation的inject方法中将X-B3-SpanId存入invocation








--
