[GitHub] [incubator-weex] krimeshu opened a new issue #2979: [Android] Absolute layout element cover priority not match with element order. 安卓端绝对定位元素的遮挡优先级不符合层级顺序

[GitBox]

krimeshu opened a new issue #2979: [Android] Absolute layout element cover
priority not match with element order. 安卓端绝对定位元素的遮挡优先级不符合层级顺序
URL: https://github.com/apache/incubator-weex/issues/2979


   <!--
   Thanks for using Weex. Github Issue is only used for bur report and please
follow the template to report the bug.
   A good bug report should include the following information:
   -->

   <!-- Requirements: please go through this checklist before opening a new
issue
     - * Review the documentation: https://weex.apache.org/index.html
     - * Search for existing issues:
https://github.com/apache/incubator-weex/issues
     - * Use the latest Weex release:
https://github.com/apache/incubator-weex/releases -->


   ## Describe the bug
   <!-- A clear and concise description of what the bug is. -->
   Absolute layout element cover priority not match with element order.

   安卓端绝对定位元素的遮挡优先级，不符合 template 中对应的层级顺序。

   ## To Reproduce
   <!-- Steps to reproduce the behavior.  Include a MCVE using
http://dotwe.org/vue , crash stacktrace or  share your app project. Please
follow the guidelines for providing a MCVE: https://stackoverflow.com/help/mcve
-->

   ```html
   <style lang="scss" scoped>
       .ring-box {
           width: 200px;
           height: 200px;
           overflow: hidden;
           justify-content: center;
           align-items: center;
       }

       .ring {
           position: absolute;
           top: 0;
           left: 0;
           right: 0;
           bottom: 0;
       }

       .on-left {
           transform: rotate(0deg);
       }

       .on-right {
           transform: rotate(180deg);
       }
   </style>

   <template>
       <div class="ring-box">
           <!-- 右灰 -->
           <div :class="['ring', 'on-right']" v-if="progress < .5">
               <image class="ring" :src="urlRing['0']"/>
           </div>
           <!-- 右彩 -->
           <div :class="['ring']" :style="ringStyle2">
               <image class="ring" :src="urlRing[colorType]"/>
           </div>
           <!-- 左灰 -->
           <div :class="['ring', 'on-left']" :style="ringStyle3">
               <image class="ring" :src="urlRing['0']"/>
           </div>
           <!-- 左彩 -->
           <div :class="['ring']" :style="ringStyle4">
               <image class="ring" :src="urlRing[colorType]"/>
           </div>
           <slot></slot>
       </div>
   </template>
   ```

   ## Environment
   <!--
   * Device: [e.g. iPhone6]
   * OS: [e.g. iOS8.1]
   * Version [e.g. 22]
   * Build from source [e.g. yes/no] -->
   * Device: Xiaomi Mix2
   * OS: MIUI 10
   * Version: 0.24.0
   * Build from source: no

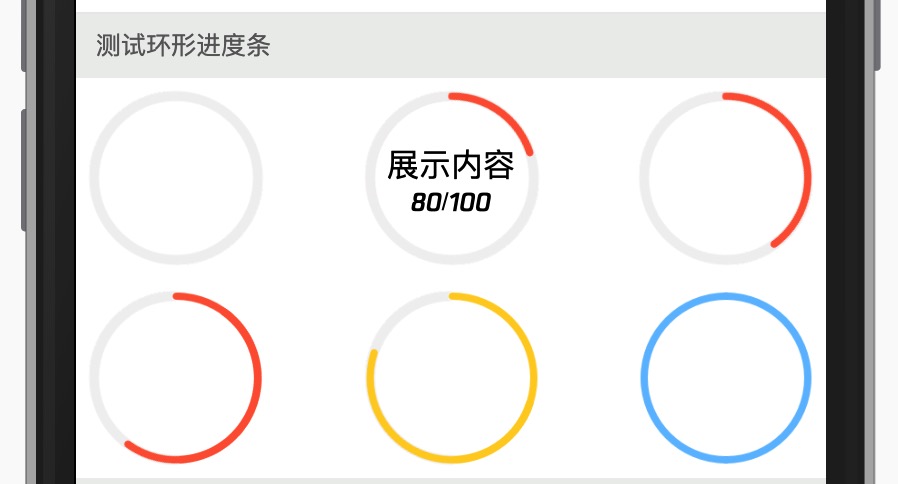

   ## Expected behavior
   <!-- A clear and concise description of what you expected to happen. -->
   ![iOS与Web端效果](https://i.loli.net/2019/10/22/JiYF5Gy1gVd8PRD.jpg)

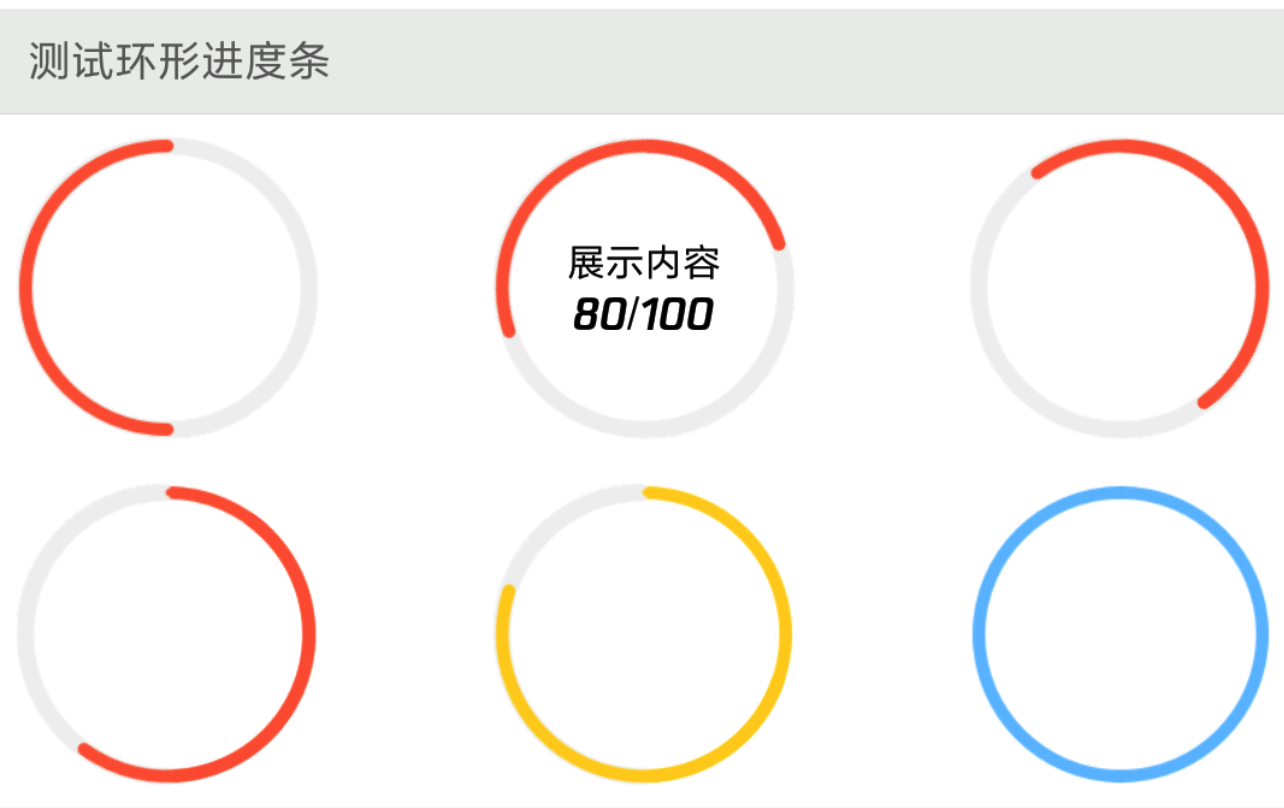

   ## Screenshots
   <!-- If applicable, add screenshots to help explain your problem. -->
   ![Android端效果](https://i.loli.net/2019/10/22/W637DFJ4RioKPmB.png)

   ## Additional context
   <!-- Add any other context about the problem here.-->


----------------------------------------------------------------
