[GitHub] [age] imranzaheer612 commented on issue #381: does age introduce a unique on disk data structure that stores the graphs?

[GitBox]

imranzaheer612 commented on issue #381:
URL: https://github.com/apache/age/issues/381#issuecomment-1345551462

   I think it is done using the Postgres relational tables.
   The `ag_graph` and `ag_label` is stored as a relation under `ag_catalog`
scheme

   ```
   demo=# \dt
              List of relations
      Schema   |   Name   | Type  | Owner
   ------------+----------+-------+-------
    ag_catalog | ag_graph | table | imran
    ag_catalog | ag_label | table | imran
    public     | company  | table | imran
    public     | employee | table | imran
   (4 rows)
   ```

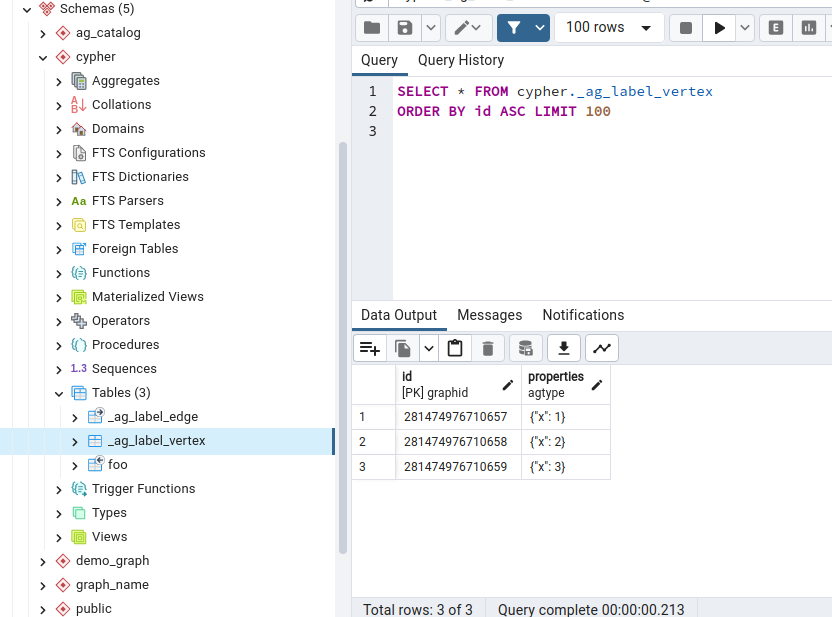

   As you can see that my new graph `cypher` is stored as schema. The `id` and
`properties` data of the nodes is saved in the table name `_ag_label_vertex`.


![working](https://user-images.githubusercontent.com/62287456/206905292-8cbc958c-9840-42f7-aa3e-fa5890fe6912.png)

   So I think it will be like, first we parse the `cypher` function and then
perform corresponding psql operations defined.



--
