[GitHub] [incubator-echarts] fangming666 opened a new issue #10109: 在微信小程序里面使用了dataZoom做滚动条，但是右边数据却出现了缺失空白，初始化的时候可以

Fri, 15 Mar 2019 00:10:34 -0700

fangming666 opened a new issue #10109:
在微信小程序里面使用了dataZoom做滚动条，但是右边数据却出现了缺失空白，初始化的时候可以
URL: https://github.com/apache/incubator-echarts/issues/10109


   ### Version
   4.1.0-rc.2

   ### Steps to reproduce
   import * as echarts from '../../ec-canvas/echarts';

   const app = getApp();

   function initChart(canvas, width, height) {
     const chart = echarts.init(canvas, null, {
       width: width,
       height: height
     });
     canvas.setChart(chart);

     var option = {
       xAxis: {
         type: 'category',
          boundaryGap: false,
         data: [1, 2, 3, 4, 5, 6,7],
         axisLine: {
           lineStyle: {
             color: '#58afed', // X轴及其文字颜色
           }
         }
       },
       yAxis: {
         type: 'value',
         axisLine: {
           lineStyle: {
             color: '#58afed', // y轴及其文字颜色
           }
         }
       },
       series: [{
         data: [820, 932, 901, 934, 1290, 1330, 1320],
         type: 'line'
       }],
       dataZoom: [{ //添加X轴滚动条
         type: 'slider',
         show: true,
         left: 35,
         start: 0,
         end: 66,
         handleSize: 8
       }]
     };

     chart.setOption(option);
     return chart;
   }

   Page({
     data: {
       ec: {
         onInit: initChart
       }
     },
   });

   ### What is expected?
   拖动滚动条的时候数据不会缺失

   ### What is actually happening?
   拖动滚动条数据进行了缺失

   <!-- This issue is generated by echarts-issue-helper. DO NOT REMOVE -->

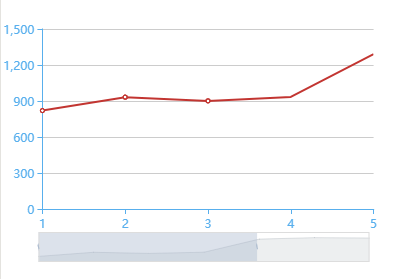

![image](https://user-images.githubusercontent.com/27843052/54414495-4d2a4c80-4734-11e9-93d7-8dd855b35c40.png)

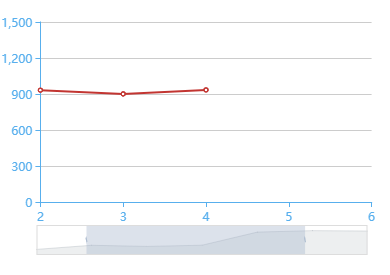

![image](https://user-images.githubusercontent.com/27843052/54414519-63d0a380-4734-11e9-8a7d-8a8cc512b089.png)




----------------------------------------------------------------
