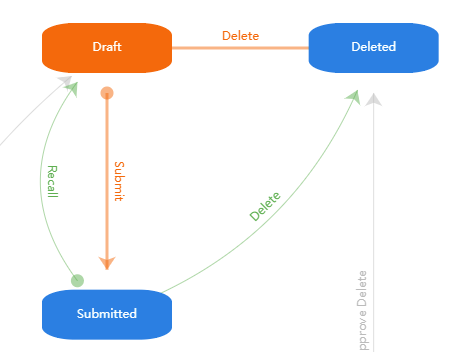

topvis opened a new issue #10498: Issue of the end points of edges in Graph chart URL: https://github.com/apache/incubator-echarts/issues/10498 ### Version 4.2.1 ### Steps to reproduce ``` nodes: { ... symbol: 'roundRect', symbolSize: [130, 50], ... } ``` ### What is expected? The end points of the edges should be visible. ### What is actually happening? The end points of the edges are not visible because they are behind the nodes. Please refer to the line between the node "Draft" and "Delete" in the screenshot.  --- I guess there is something wrong in the algorithm of calculating the positions of the end points. If the x and y of symbolSize is close, there won't be this issue. The issue only appears when the difference between x and y is big (e.g., [130, 50]). <!-- This issue is generated by echarts-issue-helper. DO NOT REMOVE --> <!-- This issue is in English. DO NOT REMOVE -->
