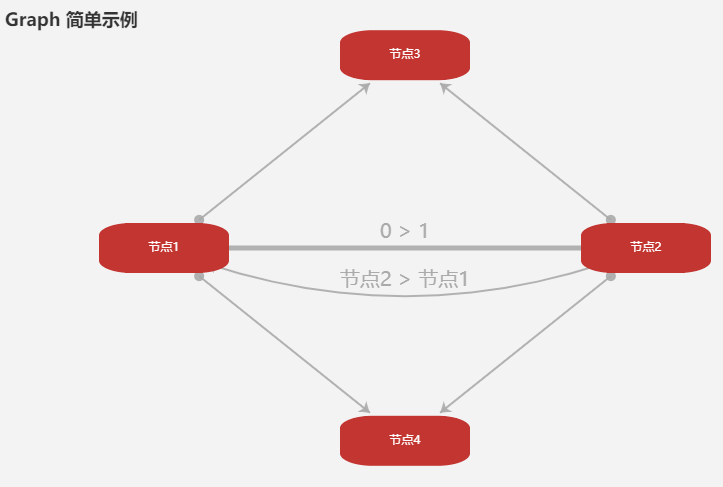

topvis opened a new issue #10562: Issue of the end points of edges in Graph chart URL: https://github.com/apache/incubator-echarts/issues/10562 Version 4.2.1 Steps to reproduce: Open the [official example page for graph](https://ecomfe.github.io/echarts-examples/public/editor.html?c=graph-simple) and replace the ```option``` with the one below: ```JavaScript option = { title: { text: 'Graph 简单示例' }, tooltip: {}, animationDurationUpdate: 1500, animationEasingUpdate: 'quinticInOut', series : [ { type: 'graph', layout: 'none', symbolSize: 50, roam: true, label: { normal: { show: true } }, symbol: 'roundRect', symbolSize: [130, 50], edgeSymbol: ['circle', 'arrow'], edgeSymbolSize: [10, 10], edgeLabel: { normal: { textStyle: { fontSize: 20 } } }, data: [{ name: '节点1', x: 300, y: 300 }, { name: '节点2', x: 800, y: 300 }, { name: '节点3', x: 550, y: 100 }, { name: '节点4', x: 550, y: 500 }], // links: [], links: [{ source: 0, target: 1, symbolSize: [15, 20], label: { normal: { show: true } }, lineStyle: { normal: { width: 5, curveness: 0 } } }, { source: '节点2', target: '节点1', label: { normal: { show: true } }, lineStyle: { normal: { curveness: 0.2 } } }, { source: '节点1', target: '节点3' }, { source: '节点2', target: '节点3' }, { source: '节点2', target: '节点4' }, { source: '节点1', target: '节点4' }], lineStyle: { normal: { opacity: 0.9, width: 2, curveness: 0 } } } ] }; ``` What is expected? The end points of the edges should be visible. What is actually happening? The end points of the edges between "节点 1" and "节点 2" are not visible because they are behind the nodes.
