[GitHub] [incubator-echarts] oustn opened a new pull request #11007: fix: 修复柱图超出 extent 范围

[GitBox]

oustn opened a new pull request #11007: fix: 修复柱图超出 extent 范围
URL: https://github.com/apache/incubator-echarts/pull/11007


   柱形图针对手动设置 Scale 的 min, max 属性有两个问题：

   1. 超出 scale extent 的值依然会绘制
   2. 堆叠柱形图手动设置 min, max 后混乱

   Example1:

   ```
   option = {
       yAxis: {
           type: 'category',
           data: ['Mon', 'Tue', 'Wed', 'Thu', 'Fri', 'Sat', 'Sun']
       },
       xAxis: {
           type: 'value',
           min: 100,
           max: 180,
       },
       series: [{
           data: [120, 200, 150, 80, 70, 110, 130],
           type: 'bar'},
       {
           data: [120, 200, 150, 80, 70, 110, 130],
           type: 'line'
       }],
       tooltip : {
           trigger: 'axis',
           axisPointer : {            // 坐标轴指示器，坐标轴触发有效
               type : 'shadow'        // 默认为直线，可选为：'line' | 'shadow'
           }
       },
   };
   ```

   Result：

![image](https://user-images.githubusercontent.com/16217347/62856257-fb0f4680-bd26-11e9-8ca5-52247486e94d.png)

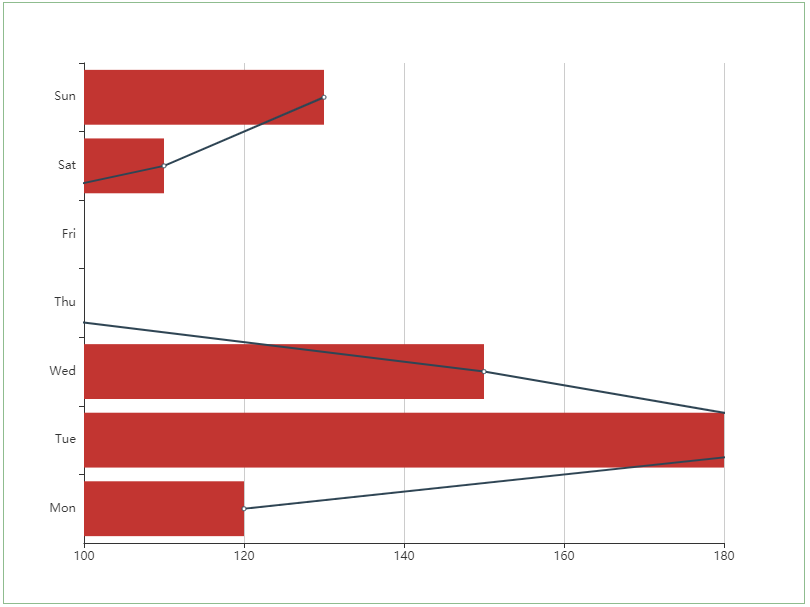

   Expect：

![image](https://user-images.githubusercontent.com/16217347/62856287-111d0700-bd27-11e9-9324-f259c3f0a442.png)


   Example2：

   ```
   option = {
       tooltip : {
           trigger: 'axis',
           axisPointer : {            // 坐标轴指示器，坐标轴触发有效
               type : 'shadow'        // 默认为直线，可选为：'line' | 'shadow'
           }
       },
       legend: {
           data:['直接访问','邮件营销','联盟广告','视频广告','搜索引擎','百度','谷歌','必应','其他']
       },
       grid: {
           left: '3%',
           right: '4%',
           bottom: '3%',
           containLabel: true
       },
       yAxis : [
           {
               type : 'category',
               data : ['周一','周二','周三','周四','周五','周六','周日']
           }
       ],
       xAxis : [
           {
               type : 'value',
               min: 300,
           }
       ],
       series : [
           {
               name:'直接访问',
               type:'bar',
               data:[320, 332, 301, 334, 390, 330, 320]
           },
           {
               name:'邮件营销',
               type:'bar',
               stack: '广告',
               data:[120, 132, 101, 134, 90, 230, 210]
           },
           {
               name:'联盟广告',
               type:'bar',
               stack: '广告',
               data:[220, 182, 191, 234, 290, 330, 310]
           },
           {
               name:'视频广告',
               type:'bar',
               stack: '广告',
               data:[150, 232, 201, 154, 190, 330, 410]
           },
           {
               name:'搜索引擎',
               type:'bar',
               data:[862, 1018, 964, 1026, 1679, 1600, 1570],
               markLine : {
                   lineStyle: {
                       normal: {
                           type: 'dashed'
                       }
                   },
                   data : [
                       [{type : 'min'}, {type : 'max'}]
                   ]
               }
           },
           {
               name:'百度',
               type:'bar',
               barWidth : 5,
               stack: '搜索引擎',
               data:[620, 732, 701, 734, 1090, 1130, 1120]
           },
           {
               name:'谷歌',
               type:'bar',
               stack: '搜索引擎',
               data:[120, 132, 101, 134, 290, 230, 220]
           },
           {
               name:'必应',
               type:'bar',
               stack: '搜索引擎',
               data:[60, 72, 71, 74, 190, 130, 110]
           },
           {
               name:'其他',
               type:'bar',
               stack: '搜索引擎',
               data:[62, 82, 91, 84, 109, 110, 120]
           }
       ]
   };
   ```

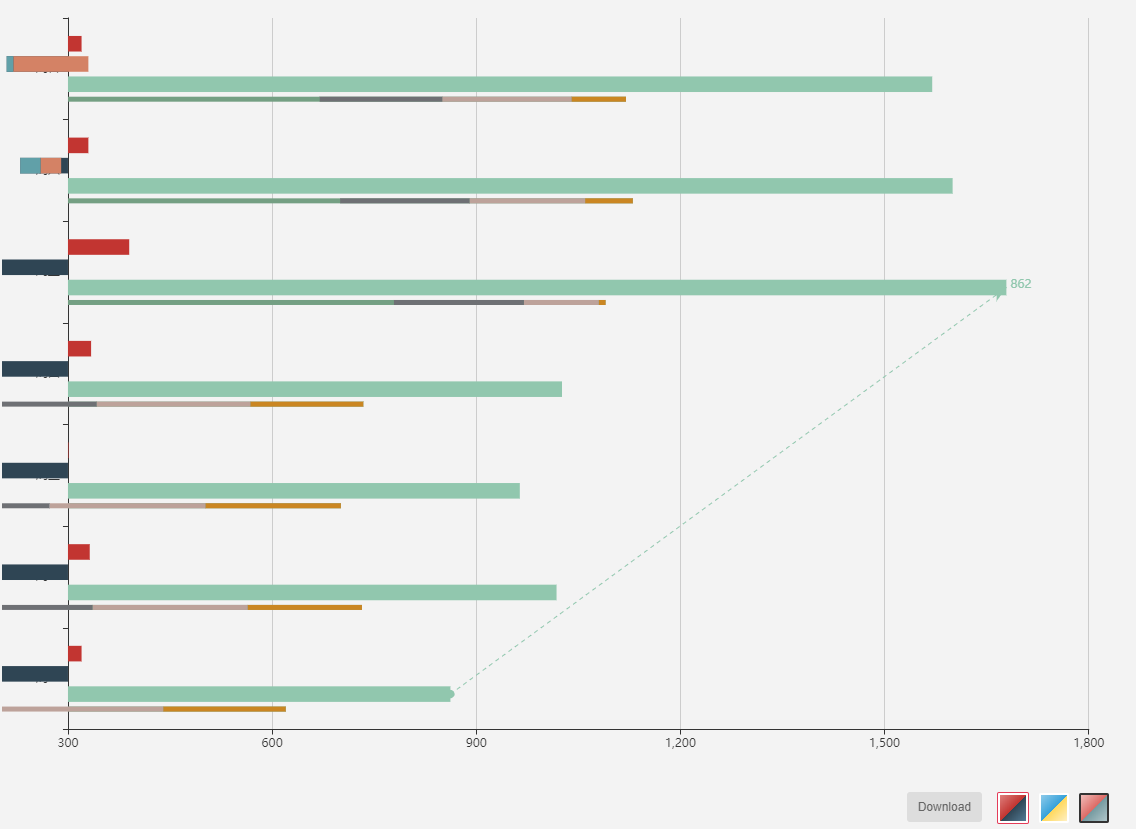

   Result：

![image](https://user-images.githubusercontent.com/16217347/62856352-3f9ae200-bd27-11e9-92ea-fe028ac639e4.png)

   Expect：

![image](https://user-images.githubusercontent.com/16217347/62856393-60fbce00-bd27-11e9-81e2-11f211775ec2.png)


----------------------------------------------------------------
