StyleTang opened a new pull request #744: URL: https://github.com/apache/rocketmq-externals/pull/744

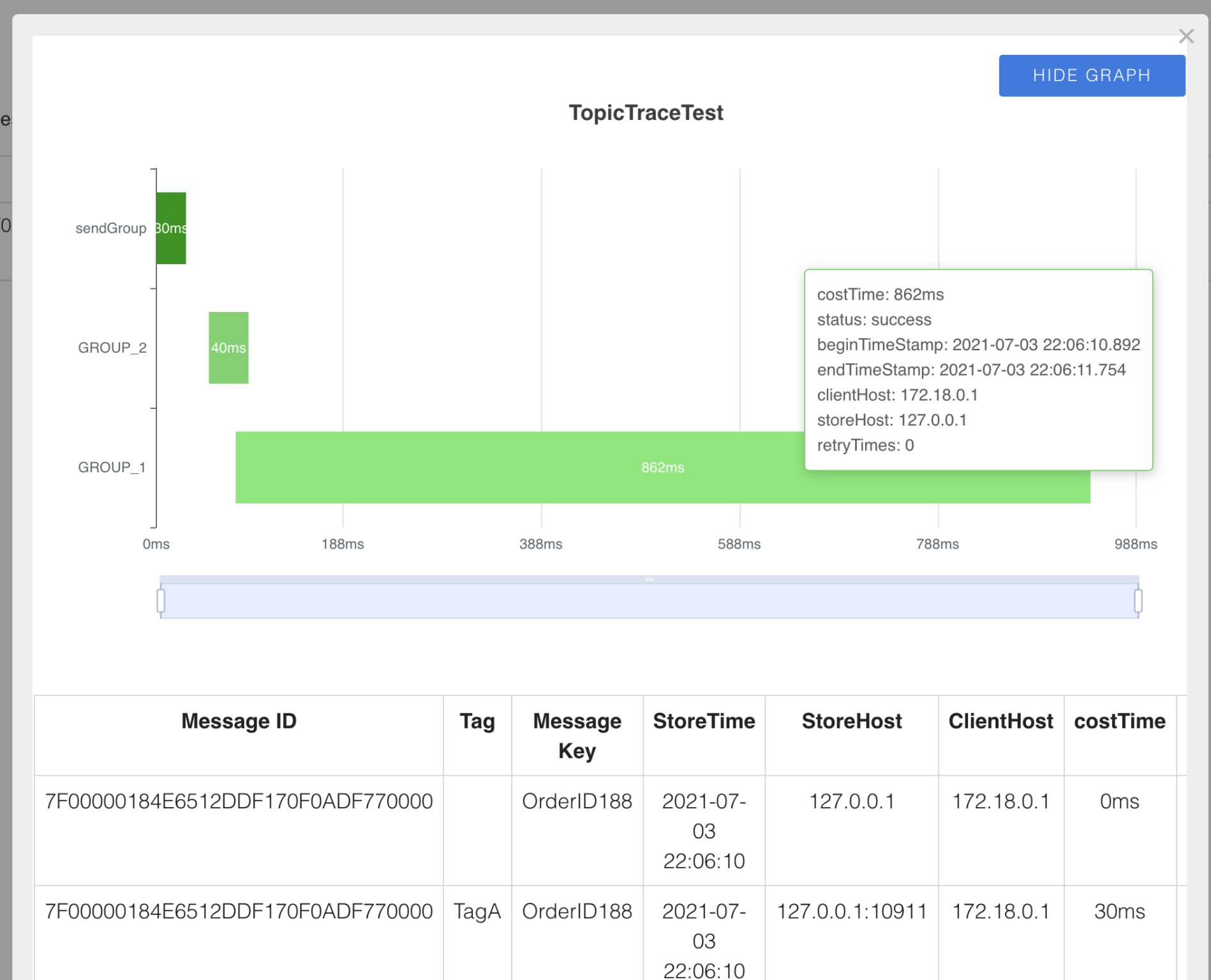

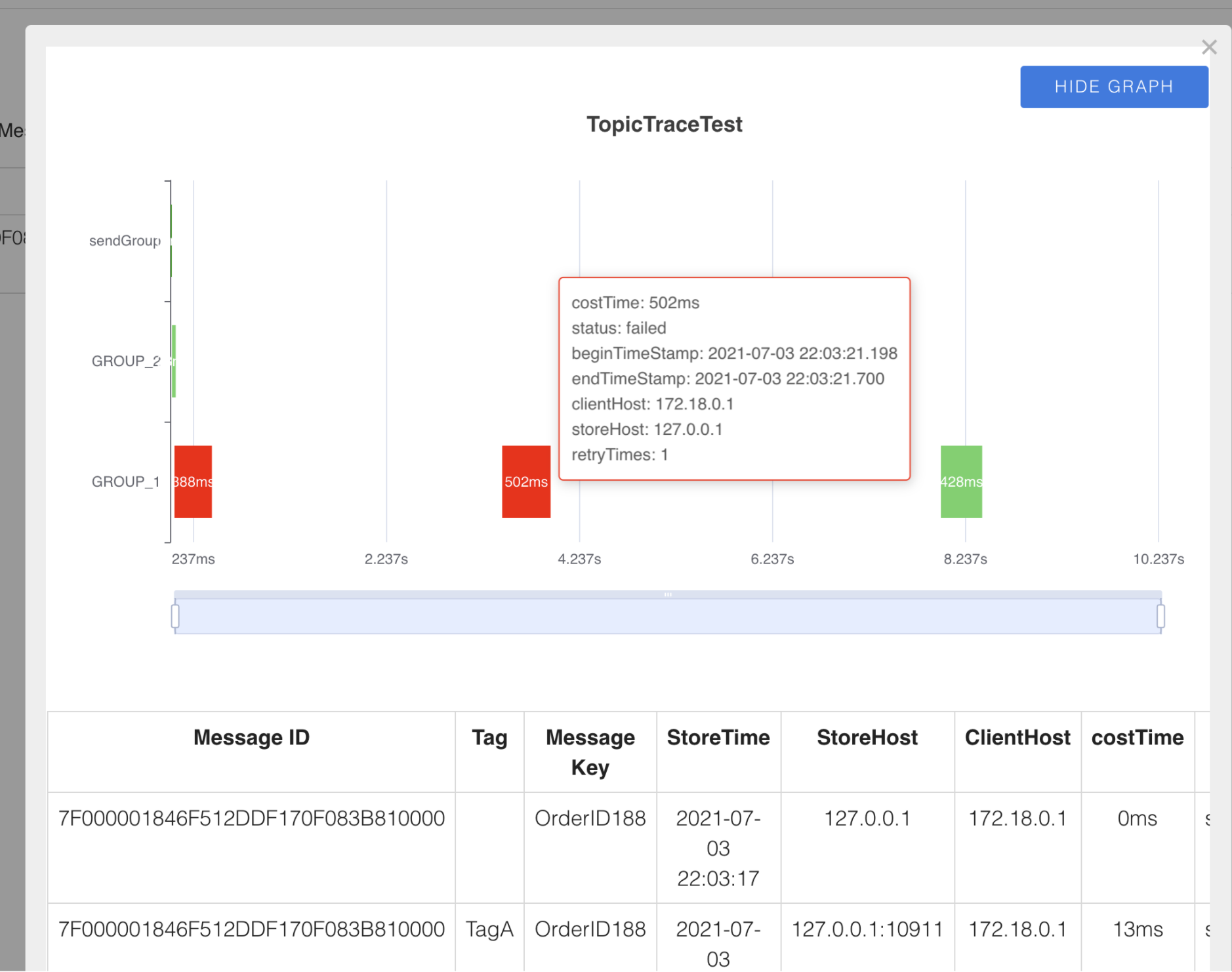

## What is the purpose of the change Add RocketMQ message trace timeline Graph UI. We can find detail information here [#743](https://github.com/apache/rocketmq-externals/issues/743) This is the initial version of Message Trace UI, any suggestions are welcome😀 ## Brief changelog This pull request is mainly for message trace UI, the console project have introduced Echarts before, so we keep using Echarts as our framework to implement the message trace timeline UI. The timeline UI definition is as follows: * xAxis is the duration( Since retry will make the duration very long, we show the first 10 seconds by default) * yAxis shows the performance of each group (1 producer group and >=0 subscription group) * The first line is the producer message trace information. * Everything below the first line is consumer message trace information. (if there are multiple subscription groups then multiple lines in parallel) * message trace node label is costTime (in ms), hover information contains ``` costTime status beginTimeStamp endTimeStamp clientHost storeHost retryTimes ``` * If the consumer trace status is fail, it will turn red, otherwise it will be green The change log in this pull request are as follows: - [x] Backend - [x] Add viewMessageTraceGraph method (aggregate MessageTraceView list) - [x] MessageTraceView add filed requestId and retryTimes - [x] Add Unit Test MessageTraceServiceImplTest - [x] Add lombok dependency - [x] Frontend - [x] Implement message trace graph UI - [x] produce message trace - [x] consume message trace - [x] consumer retry message (error message display) - [x] multiple subscriptions support - [x] Upgrade echarts to 5.1.2 - [x] Message trace page can fetch message id from routeParams ## Verifying this change ### Test Cases #### 1 Multiple subscription groups consume succeed  #### 2 Multiple subscription groups consume succeed (with retry)  ### Unit Test  Follow this checklist to help us incorporate your contribution quickly and easily. Notice, `it would be helpful if you could finish the following 5 checklist(the last one is not necessary)before request the community to review your PR`. - [x] Make sure there is a [Github issue](https://github.com/apache/rocketmq/issues) filed for the change (usually before you start working on it). Trivial changes like typos do not require a Github issue. Your pull request should address just this issue, without pulling in other changes - one PR resolves one issue. - [x] Format the pull request title like `[ISSUE #123] Fix UnknownException when host config not exist`. Each commit in the pull request should have a meaningful subject line and body. - [x] Write a pull request description that is detailed enough to understand what the pull request does, how, and why. - [x] Write necessary unit-test(over 80% coverage) to verify your logic correction, more mock a little better when cross module dependency exist. If the new feature or significant change is committed, please remember to add integration-test in [test module](https://github.com/apache/rocketmq/tree/master/test). - [ ] Run `mvn -B clean apache-rat:check findbugs:findbugs checkstyle:checkstyle` to make sure basic checks pass. Run `mvn clean install -DskipITs` to make sure unit-test pass. Run `mvn clean test-compile failsafe:integration-test` to make sure integration-test pass. - [ ] If this contribution is large, please file an [Apache Individual Contributor License Agreement](http://www.apache.org/licenses/#clas). [[rocketmq-console] Adjust the order of task state management.](https://github.com/apache/rocketmq-externals/issues/702) -- This is an automated message from the Apache Git Service. To respond to the message, please log on to GitHub and use the URL above to go to the specific comment. To unsubscribe, e-mail: [email protected] For queries about this service, please contact Infrastructure at: [email protected]
