Optimization 2:
n way combining.

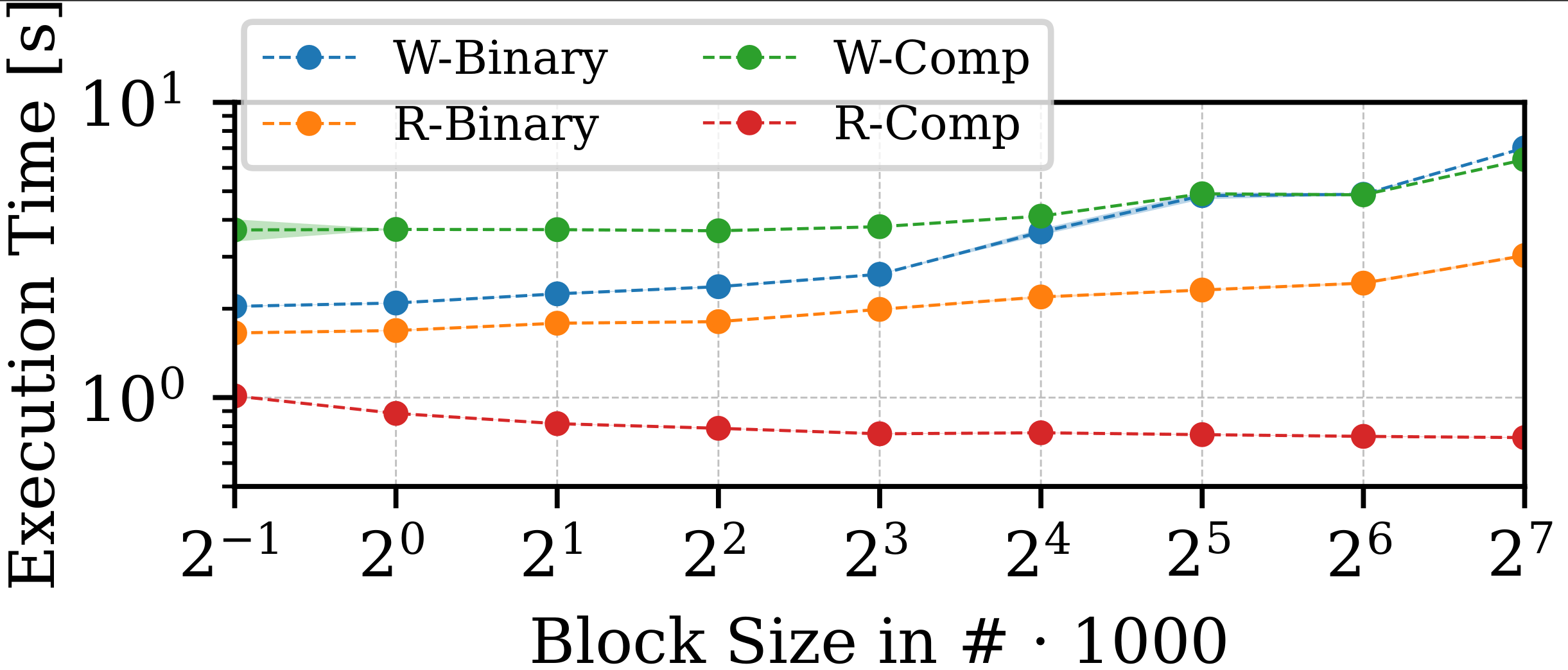

This optimization makes smaller blocks viable, since the combination of the
column groups and allocation of all sub combinations was done before this. Note
the execution did in general improve and reduce the time of execution, but it
is not obvious in the plot since 1. clock speed was low since the experiments
were run multiple times on laptop 2. the overhead of other things in execution.
One such example is compilation of 300 ms.
more detailed breakdown (Binary matrix 0.5 sparsity 64k x 2k):
```txt
Compressed:
blockSize (k), Total Read , Read Time , Plus Time , Sum
Time
0.5, 1.013+-0.029, 0.386+-0.012, 0.403+-0.012,
0.037+-0.005
1.0, 0.884+-0.030, 0.273+-0.014, 0.291+-0.015,
0.034+-0.005
2.0, 0.816+-0.025, 0.210+-0.008, 0.227+-0.008,
0.036+-0.005
4.0, 0.787+-0.031, 0.176+-0.006, 0.196+-0.011,
0.036+-0.006
8.0, 0.754+-0.033, 0.153+-0.008, 0.170+-0.008,
0.031+-0.004
16.0, 0.611, 0.121, 0.133,
0.026
32.0, 0.749+-0.033, 0.141+-0.007, 0.158+-0.008,
0.034+-0.005
64.0, 0.739+-0.034, 0.136+-0.004, 0.152+-0.004,
0.032+-0.005
128.0, 0.732+-0.038, 0.117+-0.011, 0.134+-0.011,
0.033+-0.005
```
```txt
Binary:
blockSize (k), Total Read , Read Time , Plus Time , Sum
Time
0.5, 1.660+-0.014, 0.768+-0.018, 1.161+-0.022,
0.121+-0.013
1.0, 1.665+-0.040, 0.739+-0.017, 1.147+-0.025,
0.106+-0.008
2.0, 1.774+-0.029, 0.805+-0.014, 1.233+-0.026,
0.117+-0.008
4.0, 1.811+-0.016, 0.833+-0.011, 1.269+-0.012,
0.116+-0.009
8.0, 1.995+-0.039, 0.968+-0.020, 1.423+-0.029,
0.126+-0.013
16.0, 1.979, 0.999, 1.426,
0.114
32.0, 2.313+-0.058, 1.372+-0.044, 1.781+-0.048,
0.120+-0.019
64.0, 2.420+-0.120, 1.350+-0.060, 1.770+-0.065,
0.115+-0.004
128.0, 3.040+-0.127, 2.093+-0.090, 2.508+-0.099,
0.112+-0.008
```

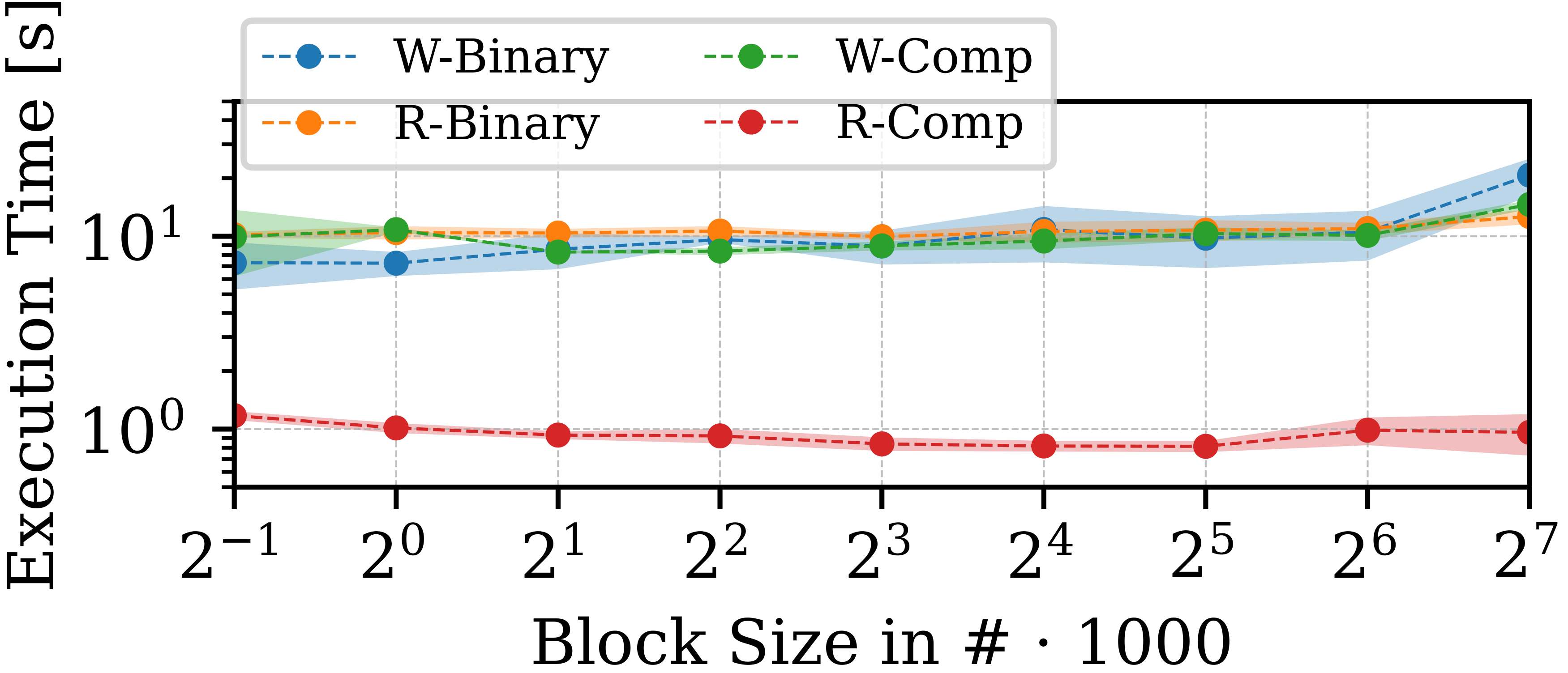

When increasing the size of the matrix the differences become larger, and
the overhead of compressing and writing to disk disappear:
example 256k x 2k binary matrix:
```txt
Compressed:
blockSize (k), Disk Size , Total Read , Read Time , Plus
Time , Sum Time
0.5, 103116, 1.175+-0.031, 0.763+-0.024,
0.779+-0.024, 0.027+-0.003
1.0, 83536, 1.014+-0.030, 0.585+-0.016,
0.599+-0.016, 0.027+-0.003
2.0, 73760, 0.931+-0.022, 0.469+-0.015,
0.483+-0.015, 0.027+-0.004
4.0, 67880, 0.922+-0.040, 0.424+-0.017,
0.438+-0.018, 0.032+-0.005
8.0, 64940, 0.838+-0.034, 0.346+-0.021,
0.360+-0.021, 0.035+-0.007
16.0, 63720, 0.817+-0.026, 0.321+-0.007,
0.335+-0.007, 0.028+-0.003
32.0, 63112, 0.814+-0.027, 0.309+-0.011,
0.324+-0.012, 0.027+-0.003
64.0, 63112, 0.987+-0.081, 0.348+-0.026,
0.364+-0.026, 0.034+-0.004
128.0, 62656, 0.962+-0.117, 0.337+-0.037,
0.354+-0.038, 0.030+-0.003
```
```txt
Binary:
blockSize (k), Disk Size , Total Read , Read Time ,
Plus Time , Sum Time
0.5, 4000152, 10.187+-0.181, 3.308+-0.236,
9.306+-0.142, 0.281+-0.032
1.0, 4000070.667+-4.619, 10.449+-0.419, 3.373+-0.172,
9.635+-0.396, 0.284+-0.007
2.0, 4000073.333+-4.619, 10.391+-0.270, 3.385+-0.258,
9.559+-0.286, 0.298+-0.008
4.0, 4000070.667+-4.619, 10.644+-0.326, 3.645+-0.301,
9.804+-0.345, 0.298+-0.016
8.0, 4000101.333+-29.484, 9.954+-0.190, 3.707+-0.139,
9.123+-0.160, 0.288+-0.025
16.0, 4000080, 10.589+-0.650, 4.211+-0.601,
9.718+-0.650, 0.299+-0.003
32.0, 4000056, 10.757+-0.679, 4.422+-0.548,
9.904+-0.663, 0.307+-0.009
64.0, 4000057.333+-9.238, 10.969+-0.388, 4.224+-0.395,
10.131+-0.386, 0.296+-0.007
128.0, 4000020, 12.660+-0.556, 6.316+-0.380,
11.765+-0.559, 0.325+-0.019
```
--
