为了方便我们能够复现和修复 bug,请遵从下面的规范描述您的问题。
-->


### One-line summary [问题简述]
雷达图中的数据是 ["-", 5, 8, 1, 4],其中“-”处于第一位和中间位置时表现不一致,当“-”处于数组第一位时,tooltip消失后连线消失了。




### Version & Environment [版本及环境]
+ v4.1.0 [ECharts 版本]:
+ Chrome [浏览器类型和版本]:
+ Win8.1 [操作系统类型和版本]:





### Expected behaviour [期望结果]
当雷达图中系列的数据是'-'时,相邻的两个点可以连线,而且当‘-’处于数组中的第一位时,将鼠标放置到某个点时tooltip消失后连线不消失。




### ECharts option [ECharts配置项]
<!-- Copy and paste your 'echarts option' here. -->
<!-- [下方贴你的option,注意不要删掉下方 ```javascript 和 尾部的 ``` 字样。最好是我们能够直接运行的
option。如何得到能运行的 option 参见上方的 guidelines for contributing] -->
```javascript
option = {
        "animation": false,
        "backgroundColor": "rgba(255,255,255,1)",
        "tooltip": {
                "trigger": "item"
        },
        "title": null,
        "legend": {
                "show": true,
                "left": "right",
                "top": "center",
                "orient": "vertical",
                "align": "left",
                "backgroundColor": "rgba(255,255,255,0)",
                "borderColor": "rgba(255,255,255,0)",
                "borderWidth": 1,
                "textStyle": {
                        "color": "rgba(0,0,0,1)",
                        "fontFamily": "'MS PGothic'",
                        "fontSize": 14.67,
                        "fontStyle": "Normal",
                        "fontWeight": 400
                },
                "data": [{
                        "name": "整数",
                        "icon": "roundRect"
                }],
                "itemWidth": 14,
                "itemGap": 12
        },
        "series": [{
                "type": "radar",
                "name": "整数",
                "data": [{
                        "value": ["-", 5, 8, 1, 4]
                }],
                "label": {
                        "show": false,
                        "position": "outside",
                        "color": "rgba(0,0,0,1)",
                        "fontFamily": "'MS PGothic'",
                        "fontSize": 14.67,
                        "fontStyle": "Normal",
                        "fontWeight": 400
                },
                "itemStyle": {
                        "color": "rgba(79,129,189,1)"
                },
                "lineStyle": {
                        "color": "rgba(79,129,189,1)",
                        "width": 1,
                        "type": "solid"
                },
                "symbol": "diamond",
                "symbolSize": 7
        }],
        "radar": {
                "splitNumber": 9,
                "indicator": [{
                        "name": "AronChen",
                        "max": 9,
                        "min": 0
                }, {
                        "name": "Administrator",
                        "max": 9,
                        "min": 0
                }, {
                        "name": "AngelaLi",
                        "max": 9,
                        "min": 0
                }, {
                        "name": "AndrewLiang",
                        "max": 9,
                        "min": 0
                }, {
                        "name": "AmandaDuan",
                        "max": 9,
                        "min": 0
                }],
                "name": {
                        "show": true,
                        "textStyle": {
                                "color": "rgba(0,0,0,1)",
                                "fontFamily": "'MS PGothic'",
                                "fontSize": 14.67,
                                "fontStyle": "Normal",
                                "fontWeight": 400
                        }
                },
                "axisLine": {
                        "show": true,
                        "lineStyle": {
                                "color": "rgba(0,0,0,1)",
                                "type": "solid",
                                "width": 1
                        }
                },
                "axisTick": {
                        "show": false,
                        "inside": false,
                        "length": 7,
                        "lineStyle": {
                                "color": "rgba(134,134,134,1)",
                                "width": 0.5
                        }
                },
                "splitLine": {
                        "show": true,
                        "lineStyle": {
                                "color": "rgba(134,134,134,1)",
                                "width": 0.5,
                                "type": "solid"
                        }
                },
                "splitArea": {
                        "show": true,
                        "areaStyle": {
                                "color": "rgba(255,255,255,1)"
                        }
                },
                "startAngle": 162,
                "center": [204.5, 145],
                "radius": 91.125
        }
}


### Other comments [其他信息]
<!-- For example: Screenshot or Online demo -->
<!-- [例如,截图或线上实例 (JSFiddle/JSBin/Codepen)] -->

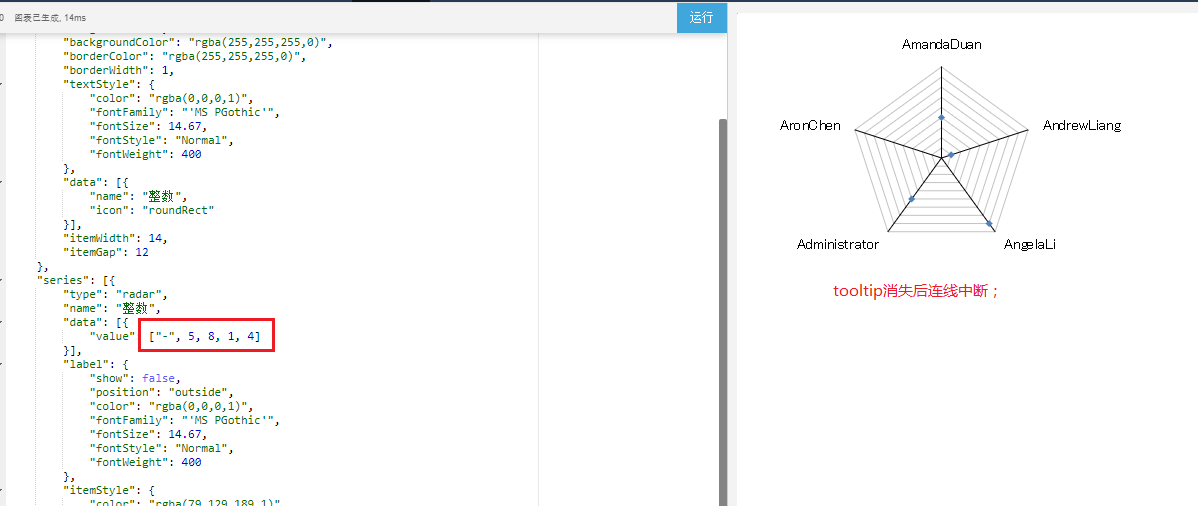

![image](https://user-images.githubusercontent.com/36399340/44698089-1f8bf780-aab1-11e8-849c-ee7f654ae7a9.png)



[ Full content available at:
https://github.com/apache/incubator-echarts/issues/8962 ]
