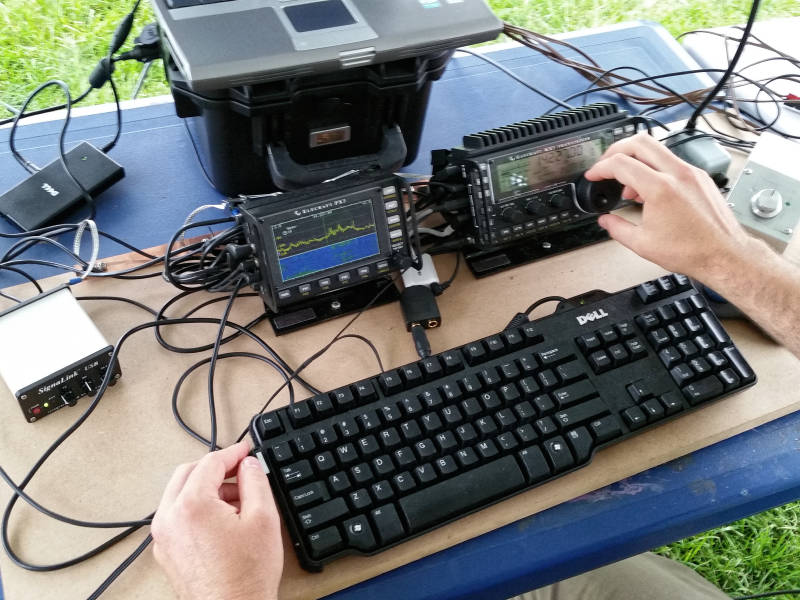

I wish I had more pictures, but this one... http://www.hamradio.me/wp-content/uploads/2015/07/20150627-009.jpg
...from my FD article... http://www.hamradio.me/activities/kx4o-1b-battery-va-field-day-2015.html ...shows a strap of copper running behind all the gear shown roughly following K9YC's advice. I used some 1/4 inch braid I found somewhere, crimped some lugs on each end and connected each chassis to the strap. The RigBlaster connects via one of its case mounting screws. The PX3 and KX3 connect via one of the chassis thumbscrews. Not shown is a 5V linear regulator to power my USB splitter from a Pb equiv. battery. It uses the copper strap as the heatsink. This works quite well. I've never encountered the noisy conditions that Jim's steps help mitigate, but I think it is a good idea regardless. John, kx4o On Fri, June 3, 2016 14:14, David Orman wrote: > Hi, > > > After reading Jim/K9YC's helpful documentation, as well as various > suggestions on this and other lists, it's clear bonding equipment together > is a good plan. I'm curious to see _how_ people have done this with > their KX3/PX3/KXPA100 combinations, as in what points (thumbscrews for the > feet? something else?) they are bonding together, using what kind of > braid/wire, and how they've got everything put together in general. I > searched Google with minimal luck finding any such examples, and I think > it would be useful for the group to see some good examples of how things > should be done. > > Thank you, > David/K5DJO ______________________________________________________________ Elecraft mailing list Home: http://mailman.qth.net/mailman/listinfo/elecraft Help: http://mailman.qth.net/mmfaq.htm Post: mailto:[email protected] This list hosted by: http://www.qsl.net Please help support this email list: http://www.qsl.net/donate.html Message delivered to [email protected]
