OK, great! Let me know if there's anything else I can help with. On Jan 21, 2015 11:07 AM, <[email protected]> wrote:

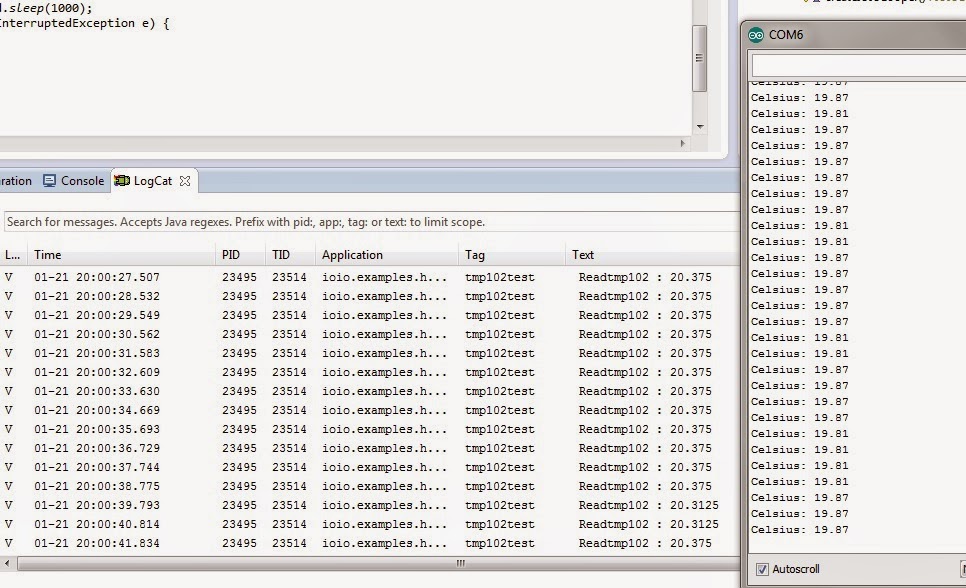

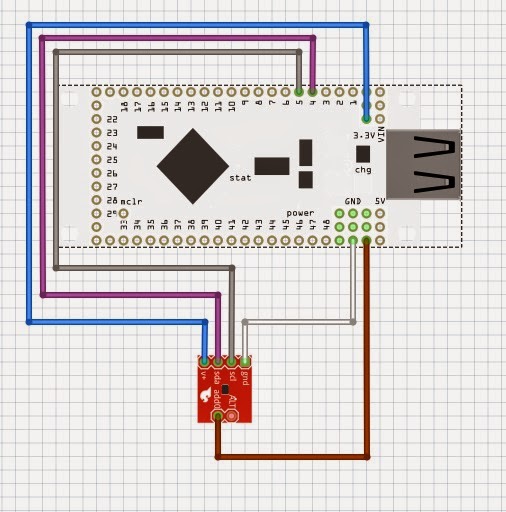

> Thanks for your prompt reply; > > So I'm going to pretend i did NOT swap ADD0 and ALT pins on the sensor. > > After much, pain - (I broke my whole dev environment updating sdk and my > low cost android cellphone do not seem to like the latest adb, reinstall > everything from scratch - while I was finalizing the fritzing pictures for > this post I had an horrible doubt, searched for multiple internet sources > and I wired my tmp102 the wrong way : after grounding pin ADD0 instead of > pin ALT all readings seem to be more in my acceptable range. 0.5°c > > > > <https://lh6.googleusercontent.com/-yeVKsNe18VM/VL_4xpRM7iI/AAAAAAAAAAM/qEFU_AR_SY0/s1600/readings_in_debug.jpg> > > > > <https://lh6.googleusercontent.com/-6r_UkudIXbA/VL_43ea5tnI/AAAAAAAAAAU/ExaaGaPmtfo/s1600/schematics.jpg> > > > > On Wednesday, January 21, 2015 at 7:05:44 AM UTC+1, Ytai wrote: >> >> >> 1. The 3.3V rail on the IOIO should be very stable, I don't think >> this is a likely problem. >> 2. Can you share your electrical diagram as well as a minimal app >> with which you're seeing the problem? >> 3. Is it possible that for some reason the sensor is actually indeed >> warmer than the reference with this setup? >> >> Since you're actually able to talk to the sensor, I find it hard to >> imagine what sort of conditions may cause reading an incorrect temperature. >> I've used this sensor pretty extensively in the past (both with and without >> the IOIO) and tend to trust it a lot. >> >> On Tue, Jan 20, 2015 at 1:07 AM, <[email protected]> wrote: >> >>> Hello, >>> >>> I'm having a hard time with TMP102 sensor. >>> >>> Thanks to Ytai code snippet conversion and register reading is correct. >>> >>> What is incorrect *seems *to be the sensor itself. >>> >>> Analog thermometer is used as a reference, and I get errors from 6° to >>> 1,5° in excess on the tmp102, In "ambient temperature" area (from 10°c to >>> 25°c) >>> I tested with another TMP102 sensor (also purchased from sparkfun, thus >>> with a different pin layout), the same weird behavior. >>> The error seems to be changing over time (As if the sensor needed 30+ >>> minutes to stabilize) but never disappears. At the time being I have set a >>> "-1.5" correction. >>> >>> The sensor is read every 5 seconds. >>> >>> >>> I tested the same tmp102 sensor on a arduino board (with a very fast >>> loop), and the readings are correct (well, within 0.2°c of the reference >>> thermometer). >>> >>> >>> >>> I wonder If the arduino fast loop helps the sensor reaching operational >>> conditions (let's call that warming up ?), and the 5 sec loop on the >>> android does not allow tmp102 to work properly. Or maybe my ioio power >>> supply is interfering (8 volts, 1000mah) with the tmp102 (sensor VCC is >>> plugged to 3v on the board itself). >>> >>> >>> I'm working on a thermostat, temperature reading reliability is rather >>> important. >>> >>> >>> I ordered an MCP9808 sensor to compare readings. >>> >>> Any idea, testing pattern or any "reliable" sensor to recommend ? >>> >>> >>> (BTW Ytai : Many, many thanks for your *great* work. ) >>> -- >>> You received this message because you are subscribed to the Google >>> Groups "ioio-users" group. >>> To unsubscribe from this group and stop receiving emails from it, send >>> an email to [email protected]. >>> To post to this group, send email to [email protected]. >>> Visit this group at http://groups.google.com/group/ioio-users. >>> For more options, visit https://groups.google.com/d/optout. >>> >> >> -- > You received this message because you are subscribed to the Google Groups > "ioio-users" group. > To unsubscribe from this group and stop receiving emails from it, send an > email to [email protected]. > To post to this group, send email to [email protected]. > Visit this group at http://groups.google.com/group/ioio-users. > For more options, visit https://groups.google.com/d/optout. > -- You received this message because you are subscribed to the Google Groups "ioio-users" group. To unsubscribe from this group and stop receiving emails from it, send an email to [email protected]. To post to this group, send email to [email protected]. Visit this group at http://groups.google.com/group/ioio-users. For more options, visit https://groups.google.com/d/optout.
