mxsm commented on issue #3485: URL: https://github.com/apache/incubator-eventmesh/issues/3485#issuecomment-1480542198

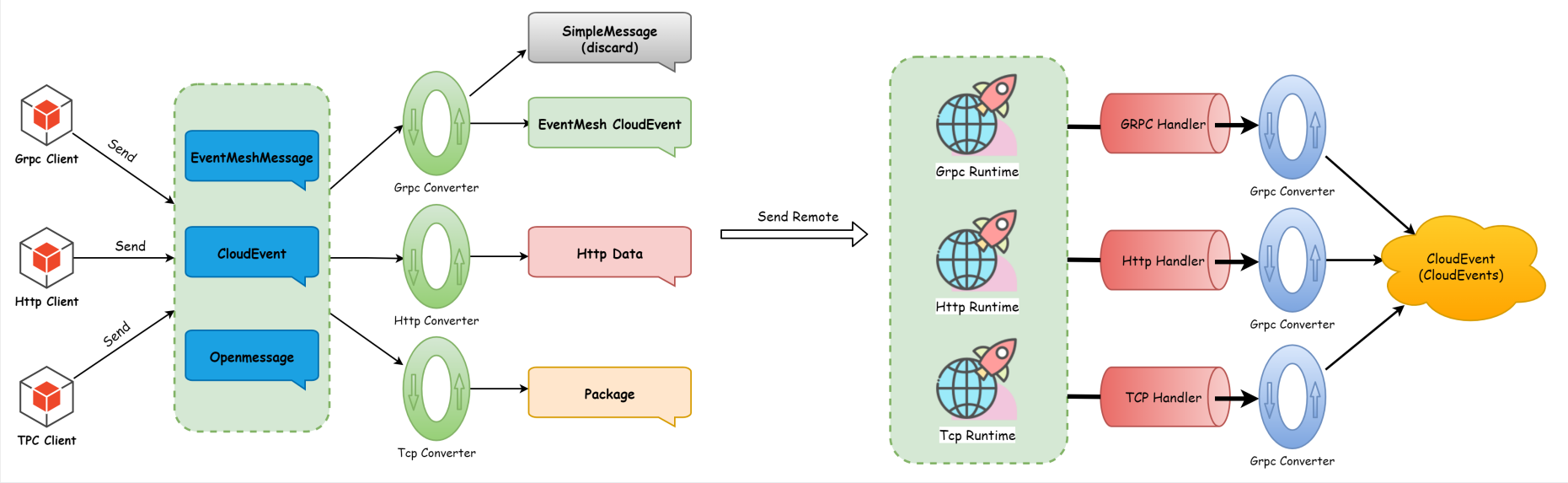

SDK publish message to runtime flow:  SimpleMessage will discard and replace with CloudEvent of EventMesh customed. proto as follows: eventmesh-cloudevents.proto ``` syntax = "proto3"; package eventmesh.common.protocol.grpc.v1; import "google/protobuf/any.proto"; import "google/protobuf/timestamp.proto"; option java_package = "org.apache.eventmesh.common.protocol.grpc.cloudevents"; option java_multiple_files = true; option java_outer_classname = "EventMeshCloudevents"; message CloudEvent { // -- CloudEvent Context Attributes // Required Attributes string id = 1; string source = 2; // URI-reference string spec_version = 3; string type = 4; // Optional & Extension Attributes map<string, CloudEventAttributeValue> attributes = 5; // -- CloudEvent Data (Bytes, Text, or Proto) oneof data { bytes binary_data = 6; string text_data = 7; google.protobuf.Any proto_data = 8; } /** * The CloudEvent specification defines * seven attribute value types... */ message CloudEventAttributeValue { oneof attr { bool ce_boolean = 1; int32 ce_integer = 2; string ce_string = 3; bytes ce_bytes = 4; string ce_uri = 5; string ce_uri_ref = 6; google.protobuf.Timestamp ce_timestamp = 7; } } } /** * CloudEvent Protobuf Batch Format * */ message CloudEventBatch { repeated CloudEvent events = 1; } ``` eventmesh-service.proto ``` syntax = "proto3"; package eventmesh.common.protocol.grpc.v1; import "google/protobuf/empty.proto"; import "eventmesh-cloudevents.proto"; option java_package = "org.apache.eventmesh.common.protocol.grpc.cloudevents"; option java_multiple_files = true; option java_outer_classname = "EventMeshGrpcService"; service PublisherService { //publish event rpc publish(CloudEvent) returns (CloudEvent); //publish event no reply rpc publishNoReply(CloudEvent) returns (google.protobuf.Empty); // publish batch event rpc batchPublish(CloudEventBatch) returns (CloudEvent); //publish batch event no reply rpc batchPublishNoReply(CloudEventBatch) returns (google.protobuf.Empty); } service ConsumerService { // The subscribed event will be delivered by invoking the webhook url in the Subscription rpc subscribe(CloudEvent) returns (CloudEvent); // The subscribed event will be delivered through stream of Message rpc subscribeStream(stream CloudEvent) returns (stream CloudEvent); rpc unsubscribe(CloudEvent) returns (CloudEvent); } service HeartbeatService { rpc heartbeat(CloudEvent) returns (CloudEvent); } ``` -- This is an automated message from the Apache Git Service. To respond to the message, please log on to GitHub and use the URL above to go to the specific comment. To unsubscribe, e-mail: [email protected] For queries about this service, please contact Infrastructure at: [email protected] --------------------------------------------------------------------- To unsubscribe, e-mail: [email protected] For additional commands, e-mail: [email protected]
