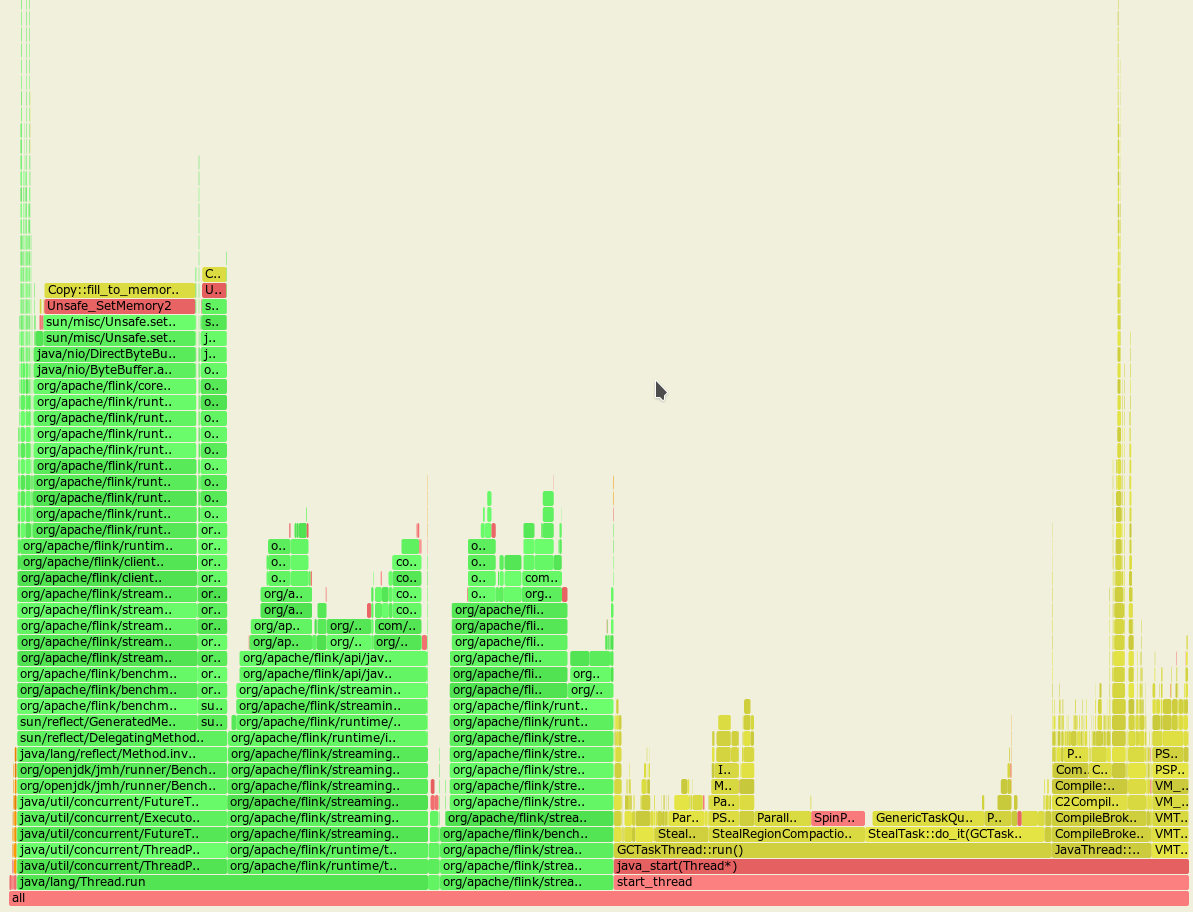

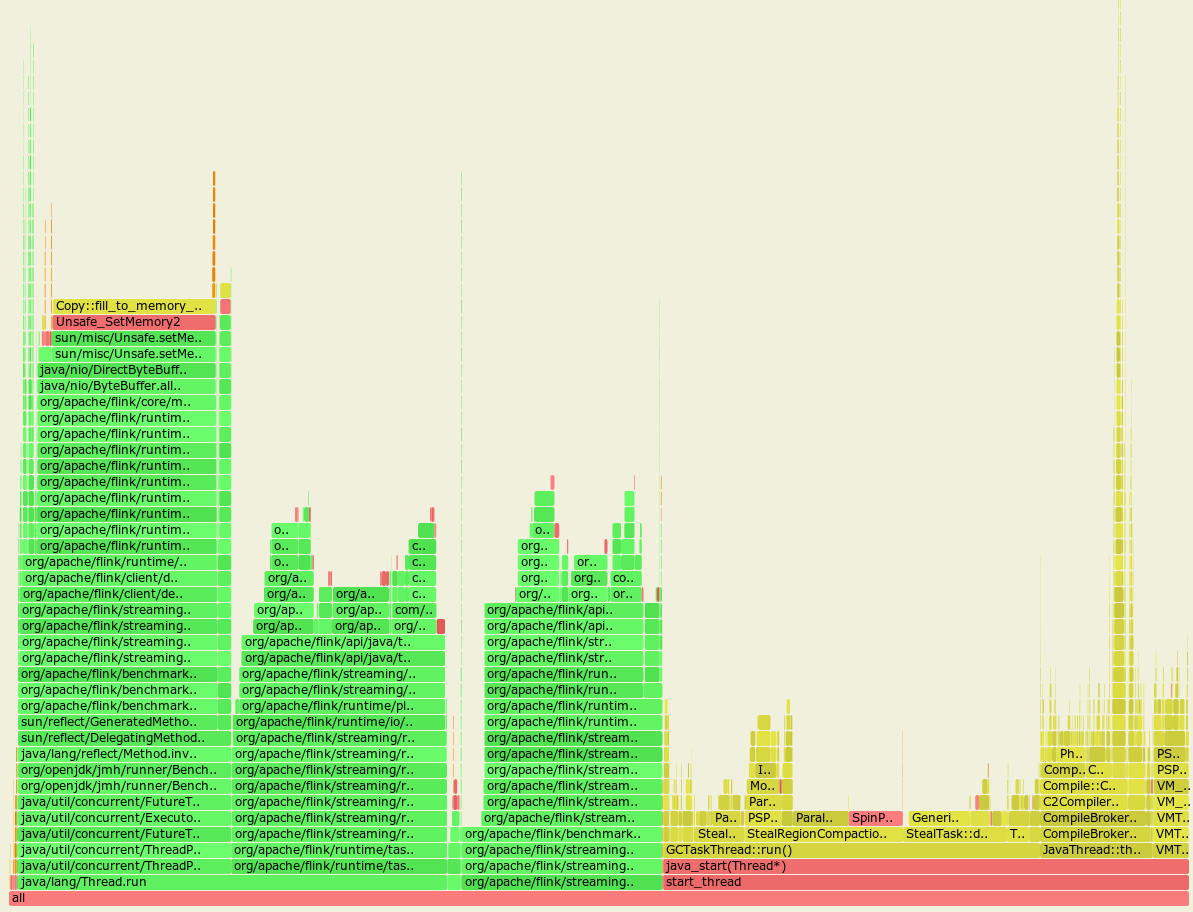

shuttie opened a new pull request #10529: [FLINK-15171] [serialization] fix performance regression caused by too many buffer allocations on string serialization URL: https://github.com/apache/flink/pull/10529 ## What is the purpose of the change [FLINK-14346](https://issues.apache.org/jira/browse/FLINK-14346) Introduced a faster implementation for string [de]serialization. But while running the flink-benchmarks suite, there was a [performance regression found](https://issues.apache.org/jira/browse/FLINK-15171) for almost all serialization tests: a significant 10% drop-down for the total job throughput. Flame graph before the FLINK-14346 was applied:  Flame graph after the FLINK-14346 was applied:  From these almost identical graphs we may notice that the GC spends much more time cleaning up the heap with the FLINK-14346 applied. Running the new and old code with the allocation profiling proved the theory with higher allocation rate: Top allocations, with FLINK-14346: ``` bytes percent samples top ---------- ------- ------- --- 8222540128 32.45% 40779 byte[] 7509810768 29.64% 37258 char[] 4320201040 17.05% 21491 java.lang.String 1667513984 6.58% 8247 org.apache.flink.api.java.tuple.Tuple2 749432744 2.96% 3711 org.apache.flink.api.java.tuple.Tuple8 589192264 2.33% 2897 java.lang.String[] 497193120 1.96% 2458 org.apache.flink.streaming.runtime.streamrecord.StreamRecord 478790376 1.89% 2372 org.apache.flink.api.java.tuple.Tuple2[] 404943784 1.60% 2007 java.lang.ThreadLocal$ThreadLocalMap 156780240 0.62% 564 java.nio.DirectByteBuffer ``` Top allocations, no FLINK-14346: ``` bytes percent samples top ---------- ------- ------- --- 7591122240 29.43% 3271 char[] 5360582240 20.78% 2243 java.lang.ThreadLocal$ThreadLocalMap 5147640184 19.96% 2231 java.lang.String 1758207472 6.82% 765 org.apache.flink.api.java.tuple.Tuple2 1717572128 6.66% 758 java.util.concurrent.locks.AbstractQueuedSynchronizer$Node 891013696 3.45% 380 org.apache.flink.api.java.tuple.Tuple8 598698832 2.32% 266 java.lang.String[] 440182240 1.71% 202 org.apache.flink.streaming.runtime.streamrecord.StreamRecord 364959680 1.41% 141 org.apache.flink.api.java.tuple.Tuple2[] ``` So almost third of all the allocations made were done for these intermediate array buffers. All the benchmarks posted in the [original PR](https://github.com/apache/flink/pull/10358) were done on Ryzen 7 2700 (8 physical cores), and the CPU used for the `flink-benchmarks` is i7 7700 (4 physical cores). Also note that almost all the flink-benchmarks use parallelism=4, so: * new code generated +30% more garbage. * as originally performance was measured on a 8 core CPU with only 4 threads, GC threads were scheduled on the idle cores and didn't interfere with the benchmark. * on the i7 7700 flink-benchmarks used 4 threads on 4 core CPU with additional active GC threads, heavily interfering with the main benchmark. * this is the reason why lowering the parallelism for [the stringHeavyBenchmark](src/main/java/org/apache/flink/benchmark/SerializationFrameworkMiniBenchmarks.java) improved the throughput: it added more space for the GC threads to run. With this PR we did the following: * added a static `ThreadLocal<byte[]>` buffer for short strings smaller than 1024 characters * when the string is short enough, we do not allocate the buffer, but reuse the static one, eliminating the allocation completely. * for this case we need to always preallocate a small buffer for each worker thread, even if there is almost no string serialization at all. * for long strings we do a regular allocation as before. ## Brief change log - Add ThreadLocal byte buffer for write and read path for short strings instead of allocating it on each invocation. ## Verifying this change This change is already covered by existing tests, such as StringSerializationTest. ## Does this pull request potentially affect one of the following parts: - Dependencies (does it add or upgrade a dependency): (yes / **no**) - The public API, i.e., is any changed class annotated with `@Public(Evolving)`: (yes / **no**) - The serializers: ( **yes** / no / don't know) - The runtime per-record code paths (performance sensitive): (**yes** / no / don't know) - Anything that affects deployment or recovery: JobManager (and its components), Checkpointing, Yarn/Mesos, ZooKeeper: (yes / **no** / don't know) - The S3 file system connector: (yes / **no** / don't know) ## Documentation - Does this pull request introduce a new feature? (yes / **no**) - If yes, how is the feature documented? (**not applicable** / docs / JavaDocs / not documented)
