ASF GitHub Bot commented on KYLIN-4206:
---------------------------------------
Rongnengwei commented on pull request #996: KYLIN-4206 Add kylin supports aws
glue catalog metastroeclient
URL: https://github.com/apache/kylin/pull/996
This modification mainly solves the problem of aw glue catalog supported by
kylin, and the associated jira is
[https://issues.apache.org/jira/browse/KYLIN-4206](https://issues.apache.org/jira/browse/KYLIN-4206)。
1.First you need to modify the aws-glue-data-catalog-client source code.
aws-glue-data-catalog-client-for-apache-hive-metastore github address is
https://github.com/awslabs/aws-glue-data-catalog-client-for-apache-hive-metastore，aws-glue-client
development environment see README.MD.
I downloaded hive 2.3.7 locally, so after following the steps in the
README.MD file, the version of hive is 2.3.7-SNAPSHOT.
1）Modify the pom.xml file in the home directory.
```
<hive2.version>2.3.7-SNAPSHOT</hive2.version>
<spark-hive.version>1.2.1.spark2</spark-hive.version>
```

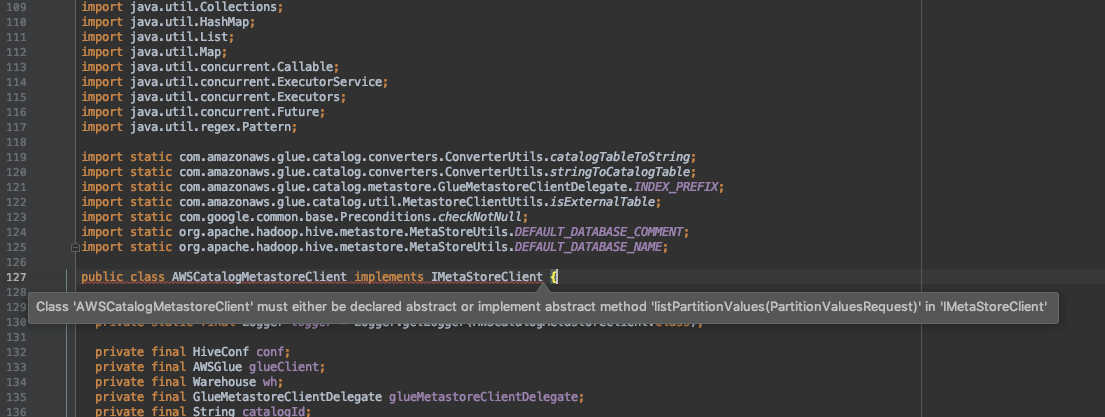

2)Modify the class of
aws-glue-datacatalog-hive2-client/com.amazonaws.glue.catalog.metastore.AWSCatalogMetastoreClient
Implementation method
```
@Override
public PartitionValuesResponse listPartitionValues (PartitionValuesRequest
partitionValuesRequest) throws MetaException, TException, NoSuchObjectException
{
return null;
}
```

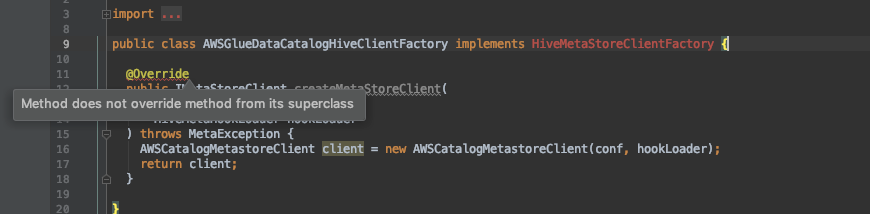

3)Modify the class of
aws-glue-datacatalog-spark-client/com.amazonaws.glue.catalog.metastore.AWSCatalogMetastoreClient.
The problems are as follows：
This method is not available in the parent class，so delete the method，Then
copy the method of aws-glue-datacatalog-hive2-client /
com.amazonaws.glue.catalog.metastore.AWSCatalogMetastoreClient.Add dependency
in aws-glue-datacatalog-spark-client / pom.xml file
```
<dependency>
<groupId>org.apache.hive</groupId>
<artifactId>hive-exec</artifactId>
<version>${hive2.version}</version>
<scope>provided</scope>
</dependency>
```

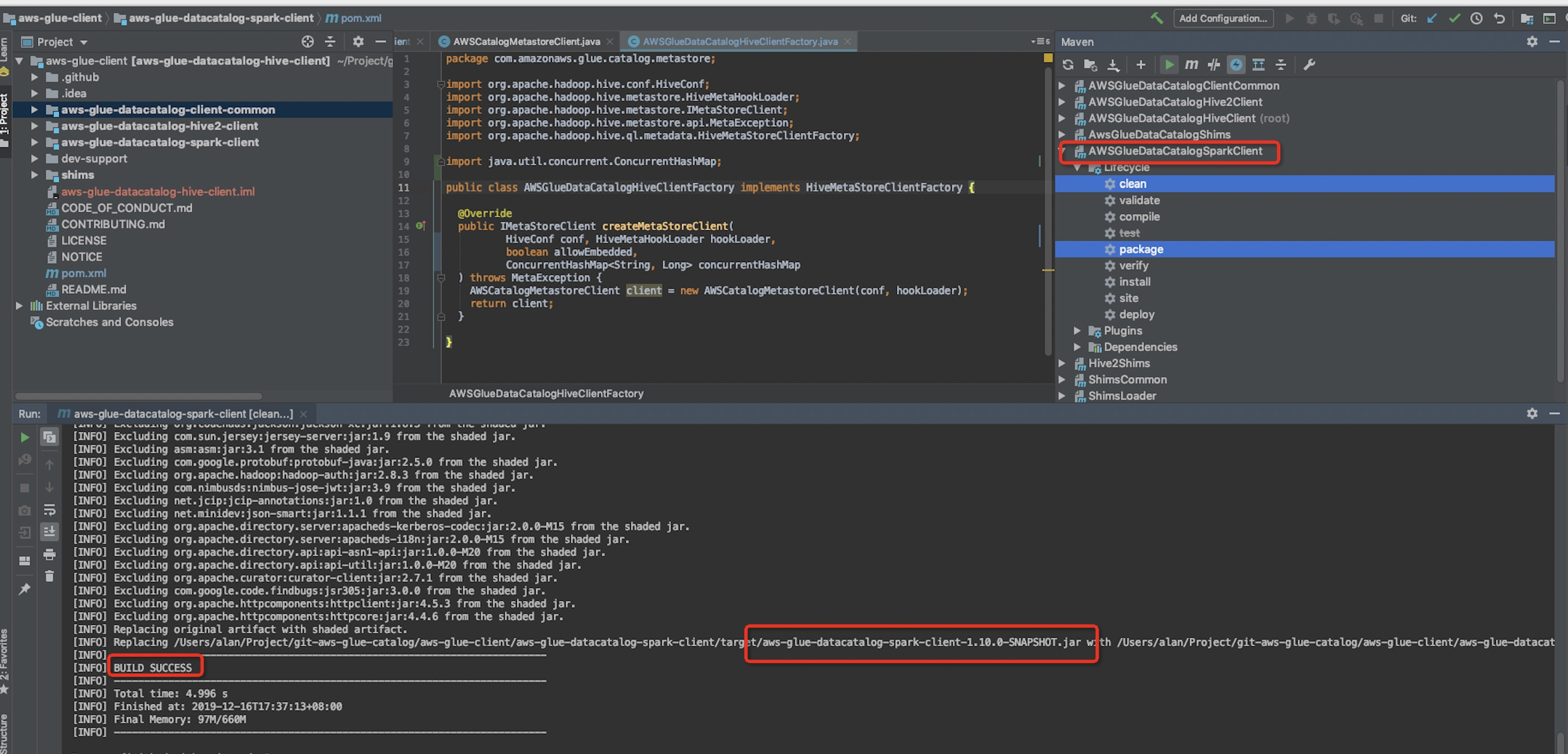

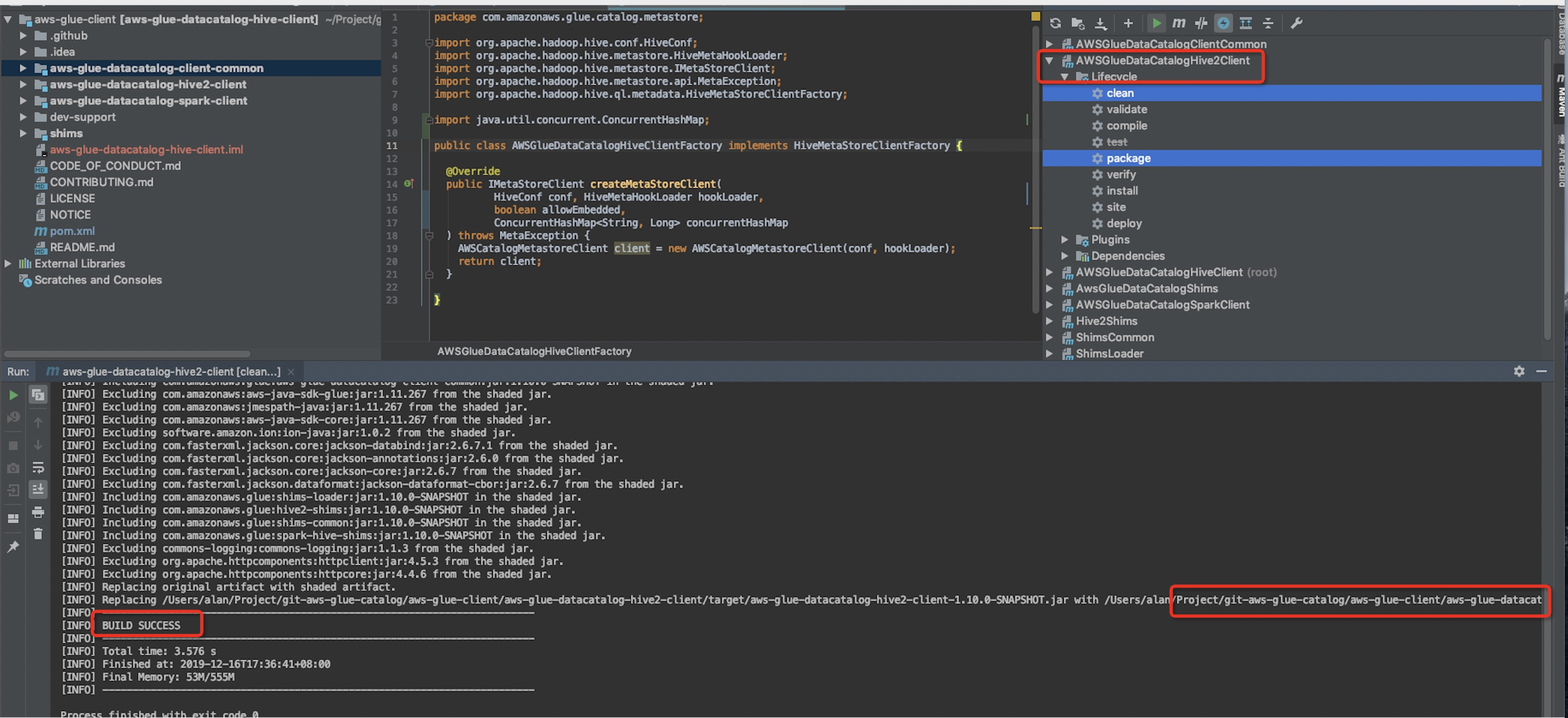

4）Package，need to package three projects,as follows.
5).Copy the three package
```
aws-glue-datacatalog-client-common-1.10.0-SNAPSHOT.jar
aws-glue-datacatalog-hive2-client-1.10.0-SNAPSHOT.jar
aws-glue-datacatalog-spark-client-1.10.0-SNAPSHOT.jar
```
to /kylin/lib
2.Modify the source code of kylin,See submission of PR.
1)Add the gluecatalog in the config of kylin.properties.
```
##The default access HiveMetastoreClient is hcatalog. If AWS user and glue
catalog is used, it can be configured as gluecatalog
##kylin.source.hive.metadata-type=hcatalog
```
The default is hcatalog. If you want to use glue, please configure
kylin.source.hive.metadata-type = gluecatalog.
if config gluecatalog,so need to configure in hive-site.xml，as follows:
<property>
<name>hive.metastore.client.factory.class</name>
<value>com.amazonaws.glue.catalog.metastore.AWSGlueDataCatalogHiveClientFactory</value>
</property>
### **kylin install on EMR**
Note: The new cluster uses the metadata of the S3 storage hbase. So you need
to build the path of S3
s3://*******/hbase
s3://*******/kylin
1. Upload .tar.gz to Server
2.Build directory
Use root user
cd /usr/local
mkdir -p kylin
Copy the kylin package to
/usr/local/kylin/apache-kylin-3.0.0-SNAPSHOT-bin
Modify the group the folder belongs to
chown -R hadoop:hadoop /usr/local/kylin
Switch user
sudo su hadoop
3. Configure user global variables
vi .bashrc
#####hadoop spark kylin#########
export HIVE_HOME=/usr/lib/hive
export HADOOP_HOME=/usr/lib/hadoop
export HBASE_HOME=/usr/lib/hbase
export SPARK_HOME=/usr/lib/spark
##kylin
export KYLIN_HOME=/usr/local/kylin/apache-kylin-3.0.0-SNAPSHOT-bin
export HCAT_HOME=/usr/lib/hive-hcatalog
export KYLIN_CONF_HOME=$KYLIN_HOME/conf
export tomcat_root=$KYLIN_HOME/tomcat
export
hive_dependency=$HIVE_HOME/conf:$HIVE_HOME/lib/*:$HIVE_HOME/lib/hive-hcatalog-core.jar:$SPARK_HOME/jars/*
export PATH=$KYLIN_HOME/bin:$PATH
source .bashrc
4.Configure kylin.properties
The jackson-datatype-joda-2.4.6.jar package that comes with hive conflicts
with jackson-datatype-joda-2.9.5.jar in kylin / tomcat / weapps / kylin /
WEB-INF / lib, so you need to modify the hive Bag
mv $HIVE_HOME/lib/jackson-datatype-joda-2.4.6.jar
$HIVE_HOME/lib/jackson-datatype-joda-2.4.6.jar.back
1) Configure the jar package to be run by the spark engine. This jar package
needs to be generated and uploaded to HDFS.
New /usr/local/kylin/apache-kylin-3.0.0-SNAPSHOT-bin/spark_jars
Copy the required jar packages to the spark_jars directory
cp /usr/lib/spark/jars/*.jar cp /usr/lib/hbase/lib/*.jar
/usr/local/kylin/spark_jars
Remove lower version of netr-all-4.1.17.Final.jar in spark_jars
##### Package conflict
Remove the lower version of netr-all-4.1.17.Final.jar in spark_jars
package
jar cv0f spark-libs.jar -C /usr/local/kylin/spark_jars/ ./
Configure mr dependent packages
cp /usr/lib/hive/lib/*.jar cp /usr/lib/hbase/lib/*.jar
/usr/local/kylin/mr_lib
Remove the lower version of netr-all-4.1.17.Final.jar in mr_lib
kylin.job.mr.lib.dir=/usr/local/kylin/mr_lib
2) Upload spark-libs.ja to hdfs
hdfs dfs -mkdir -p /kylin/spark/
hdfs dfs -put spark-libs.jar /kylin/spark
## The metadata store in hbase
kylin.metadata.url=kylin_metadata@hbase
## Working folder in HDFS, better be qualified absolute path, make sure user
has the right permission to this directory
kylin.env.hdfs-working-dir=s3://*******/kylin
## DEV|QA|PROD. DEV will turn on some dev features, QA and PROD has no
difference in terms of functions.
kylin.env=DEV
##The default access HiveMetastoreClient is hcatalog. If AWS user and glue
catalog is used, it can be configured as gluecatalog
kylin.source.hive.metadata-type=hcatalog
## kylin zk base path
kylin.env.zookeeper-base-path=/kylin
## Kylin server mode, valid value [all, query, job]
kylin.server.mode=all
## Display timezone on UI,format like[GMT+N or GMT-N]
kylin.web.timezone=GMT+8
## Hive database name for putting the intermediate flat tables
kylin.source.hive.database-for-flat-table=kylin_flat_db_test1
## Whether redistribute the intermediate flat table before building
kylin.source.hive.redistribute-flat-table=false
## The storage for final cube file in hbase
kylin.storage.url=hbase
## The prefix of hbase table
kylin.storage.hbase.table-name-prefix=KYLIN_
## HBase Cluster FileSystem, which serving hbase, format as
hdfs://hbase-cluster:8020
## Leave empty if hbase running on same cluster with hive and mapreduce
kylin.storage.hbase.cluster-fs=s3://*************/hbase
#### SPARK ENGINE CONFIGS ###
#
## Hadoop conf folder, will export this as "HADOOP_CONF_DIR" to run
spark-submit
## This must contain site xmls of core, yarn, hive, and hbase in one folder
kylin.env.hadoop-conf-dir=/etc/hadoop/conf
#kylin.engine.spark.max-partition=5000
#
## Spark conf (default is in spark/conf/spark-defaults.conf)
kylin.engine.spark-conf.spark.master=yarn
kylin.engine.spark-conf.spark.submit.deployMode=cluster
kylin.engine.spark-conf.spark.yarn.queue=default
kylin.engine.spark-conf.spark.driver.memory=2G
kylin.engine.spark-conf.spark.executor.memory=18G
kylin.engine.spark-conf.spark.executor.instances=6
kylin.engine.spark-conf.spark.yarn.executor.memoryOverhead=1024
kylin.engine.spark-conf.spark.shuffle.service.enabled=true
kylin.engine.spark-conf.spark.eventLog.enabled=true
## manually upload spark-assembly jar to HDFS and then set this property
will avoid repeatedly uploading jar at runtime
kylin.engine.spark-conf.spark.yarn.archive=hdfs://ip-172-*****:8020/kylin/spark/spark-libs.jar
kylin.engine.spark-conf.spark.io.compression.codec=org.apache.spark.io.SnappyCompressionCodec
############define###########
kylin.job.jar=/usr/local/kylin/apache-kylin-3.0.0-SNAPSHOT-bin/lib/kylin-job-3.0.0-SNAPSHOT.jar
kylin.coprocessor.local.jar=/usr/local/kylin/apache-kylin-3.0.0-SNAPSHOT-bin/lib/kylin-coprocessor-3.0.0-SNAPSHOT.jar
kylin.job.mr.lib.dir=/usr/local/kylin/mr_lib
kylin.query.max-return-rows=10000000
5. Configure * .XML file
kylin_job_conf.xml, configure zk address, zk address is obtained from hbase
/ conf / hbase-site.xml
<property>
<name>hbase.zookeeper.quorum</name>
<value>ip-172-40-***.ec2.internal</value>
</property>
<property>
<name>mapreduce.task.timeout</name>
<value>3600000</value>
<description>Set task timeout to 1 hour</description>
</property>
kylin_hive_conf.xml, configure metastore address
<property>
<name>hive.metastore.uris</name>
<value>thrift://ip-17*******.internal:9083</value>
</property>
Added at the beginning of the kylin.sh file
export
HBASE_CLASSPATH_PREFIX=${tomcat_root}/bin/bootstrap.jar:${tomcat_root}/bin/tomcat-juli.jar:${tomcat_root}/lib/*:$hive_dependency:$HBASE_CLASSPATH_PREFIX
/usr/lib/hive/conf/hive-site.xml，Configure the use of aws glue to share data
sources
<property>
<name>hive.metastore.client.factory.class</name>
<value>com.amazonaws.glue.catalog.metastore.AWSGlueDataCatalogHiveClientFactory</value>
</property>
6. Configure hbase rpc timeout
Add in hbase-site.xml file:
<property>
<name>hbase.rpc.timeout</name>
<value>3600000</value>
</property>
7. Start hadoop historyserver
./mr-jobhistory-daemon.sh start historyserver

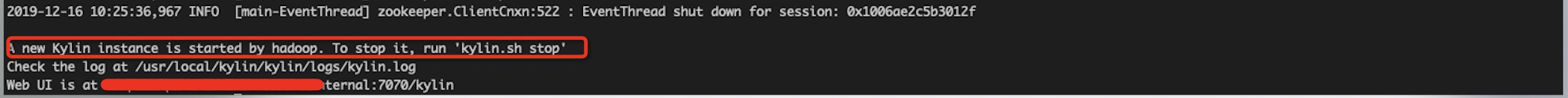

8. Start the kylin service
./kylin.sh start
----------------------------------------------------------------
This is an automated message from the Apache Git Service.
To respond to the message, please log on to GitHub and use the
URL above to go to the specific comment.
For queries about this service, please contact Infrastructure at:
[email protected]
> Build kylin on EMR 5.23. The kylin version is 2.6.4. When building the cube,
> the hive table cannot be found
> -----------------------------------------------------------------------------------------------------------
>
> Key: KYLIN-4206
> URL: https://issues.apache.org/jira/browse/KYLIN-4206
> Project: Kylin
> Issue Type: Bug
> Components: Environment
> Affects Versions: v2.6.4
> Environment: EMR 5.23(hadoop 2.8.5\HBase 1.4.9\hive 2.3.4\Spark
> 2.4.0\Tez 0.9.1\HCatalog 2.3.4\Zookeeper 3.4.13)
> kylin 2.6.4
> Reporter: rongneng.wei
> Priority: Major
> Attachments: kylin.properties, kylin_hive_conf.xml, kylin_job_conf.xml
>
>
> hi，
> I Build kylin on EMR 5.23. The kylin version is 2.6.4.When building the
> cube, the hive table cannot be found.The detailed error information is as
> follows：
> java.lang.RuntimeException: java.io.IOException:
> NoSuchObjectException(message:kylin_flat_db_test1.kylin_intermediate_kylin_sales_cube_4e93b31d_3be2_c9e8_55de_a9814f63c4ba
> table not found)java.lang.RuntimeException: java.io.IOException:
> NoSuchObjectException(message:kylin_flat_db_test1.kylin_intermediate_kylin_sales_cube_4e93b31d_3be2_c9e8_55de_a9814f63c4ba
> table not found) at
> org.apache.kylin.source.hive.HiveMRInput$HiveTableInputFormat.configureJob(HiveMRInput.java:83)
> at
> org.apache.kylin.engine.mr.steps.FactDistinctColumnsJob.setupMapper(FactDistinctColumnsJob.java:126)
> at
> org.apache.kylin.engine.mr.steps.FactDistinctColumnsJob.run(FactDistinctColumnsJob.java:104)
> at
> org.apache.kylin.engine.mr.common.MapReduceExecutable.doWork(MapReduceExecutable.java:131)
> at
> org.apache.kylin.job.execution.AbstractExecutable.execute(AbstractExecutable.java:167)
> at
> org.apache.kylin.job.execution.DefaultChainedExecutable.doWork(DefaultChainedExecutable.java:71)
> at
> org.apache.kylin.job.execution.AbstractExecutable.execute(AbstractExecutable.java:167)
> at
> org.apache.kylin.job.impl.threadpool.DefaultScheduler$JobRunner.run(DefaultScheduler.java:114)
> at
> java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
> at
> java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
> at java.lang.Thread.run(Thread.java:748)
> On the EMR, hive metadata is shared by glue, and the URL of Metastore is
> configured in hive-site.xml.
> <name>hive.metastore.uris</name>
> <value>thrift://ip-172-40-15-164.ec2.internal:9083</value>
> <description>JDBC connect string for a JDBC metastore</description>
> </property>
> <property>
> <name>hive.metastore.client.factory.class</name>
>
> <value>com.amazonaws.glue.catalog.metastore.AWSGlueDataCatalogHiveClientFactory</value>
> </property>
> But when I use hive's own metadata, that is, don't use glue to share
> metadata, the above exception will not occur, comment out the following
> configuration.
> <!--<property>
> <name>hive.metastore.client.factory.class</name>
> <value>com.amazonaws.glue.catalog.metastore.AWSGlueDataCatalogHiveClientFactory</value>
> </property>
> -->
> But since EMR uses shared metadata, if you don't use metadata sharing, then I
> can't query other hive tables built by the cluster.
> The configuration file is detailed in the attachment. Please help me solve
> this problem.Thank you。
> Best regard.
--
This message was sent by Atlassian Jira
(v8.3.4#803005)
