Github user ijokarumawak commented on a diff in the pull request:
https://github.com/apache/nifi/pull/2947#discussion_r220829589
--- Diff:
nifi-nar-bundles/nifi-framework-bundle/nifi-framework/nifi-framework-core/src/main/java/org/apache/nifi/controller/queue/clustered/server/StandardLoadBalanceProtocol.java
---
@@ -0,0 +1,578 @@
+/*
+ * Licensed to the Apache Software Foundation (ASF) under one or more
+ * contributor license agreements. See the NOTICE file distributed with
+ * this work for additional information regarding copyright ownership.
+ * The ASF licenses this file to You under the Apache License, Version 2.0
+ * (the "License"); you may not use this file except in compliance with
+ * the License. You may obtain a copy of the License at
+ *
+ * http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software
+ * distributed under the License is distributed on an "AS IS" BASIS,
+ * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+ * See the License for the specific language governing permissions and
+ * limitations under the License.
+ */
+
+package org.apache.nifi.controller.queue.clustered.server;
+
+import org.apache.nifi.connectable.Connection;
+import org.apache.nifi.controller.FlowController;
+import org.apache.nifi.controller.queue.FlowFileQueue;
+import org.apache.nifi.controller.queue.LoadBalanceCompression;
+import org.apache.nifi.controller.queue.LoadBalancedFlowFileQueue;
+import org.apache.nifi.controller.repository.ContentRepository;
+import org.apache.nifi.controller.repository.FlowFileRecord;
+import org.apache.nifi.controller.repository.FlowFileRepository;
+import org.apache.nifi.controller.repository.RepositoryRecord;
+import org.apache.nifi.controller.repository.StandardFlowFileRecord;
+import org.apache.nifi.controller.repository.StandardRepositoryRecord;
+import org.apache.nifi.controller.repository.claim.ContentClaim;
+import org.apache.nifi.controller.repository.io.LimitedInputStream;
+import org.apache.nifi.flowfile.attributes.CoreAttributes;
+import org.apache.nifi.provenance.ProvenanceEventRecord;
+import org.apache.nifi.provenance.ProvenanceEventType;
+import org.apache.nifi.provenance.ProvenanceRepository;
+import org.apache.nifi.provenance.StandardProvenanceEventRecord;
+import org.apache.nifi.remote.StandardVersionNegotiator;
+import org.apache.nifi.remote.VersionNegotiator;
+import org.apache.nifi.security.util.CertificateUtils;
+import org.apache.nifi.stream.io.ByteCountingInputStream;
+import org.apache.nifi.stream.io.LimitingInputStream;
+import org.apache.nifi.stream.io.StreamUtils;
+import org.slf4j.Logger;
+import org.slf4j.LoggerFactory;
+
+import javax.net.ssl.SSLPeerUnverifiedException;
+import javax.net.ssl.SSLSession;
+import javax.net.ssl.SSLSocket;
+import java.io.BufferedInputStream;
+import java.io.BufferedOutputStream;
+import java.io.DataInputStream;
+import java.io.EOFException;
+import java.io.IOException;
+import java.io.InputStream;
+import java.io.OutputStream;
+import java.net.Socket;
+import java.net.SocketTimeoutException;
+import java.nio.ByteBuffer;
+import java.nio.charset.StandardCharsets;
+import java.security.cert.Certificate;
+import java.security.cert.CertificateException;
+import java.security.cert.X509Certificate;
+import java.util.ArrayList;
+import java.util.HashMap;
+import java.util.List;
+import java.util.Map;
+import java.util.Set;
+import java.util.concurrent.atomic.AtomicLong;
+import java.util.stream.Collectors;
+import java.util.zip.CRC32;
+import java.util.zip.CheckedInputStream;
+import java.util.zip.Checksum;
+import java.util.zip.GZIPInputStream;
+
+import static
org.apache.nifi.controller.queue.clustered.protocol.LoadBalanceProtocolConstants.ABORT_PROTOCOL_NEGOTIATION;
+import static
org.apache.nifi.controller.queue.clustered.protocol.LoadBalanceProtocolConstants.ABORT_TRANSACTION;
+import static
org.apache.nifi.controller.queue.clustered.protocol.LoadBalanceProtocolConstants.COMPLETE_TRANSACTION;
+import static
org.apache.nifi.controller.queue.clustered.protocol.LoadBalanceProtocolConstants.CONFIRM_CHECKSUM;
+import static
org.apache.nifi.controller.queue.clustered.protocol.LoadBalanceProtocolConstants.CONFIRM_COMPLETE_TRANSACTION;
+import static
org.apache.nifi.controller.queue.clustered.protocol.LoadBalanceProtocolConstants.DATA_FRAME_FOLLOWS;
+import static
org.apache.nifi.controller.queue.clustered.protocol.LoadBalanceProtocolConstants.MORE_FLOWFILES;
+import static
org.apache.nifi.controller.queue.clustered.protocol.LoadBalanceProtocolConstants.NO_DATA_FRAME;
+import static
org.apache.nifi.controller.queue.clustered.protocol.LoadBalanceProtocolConstants.NO_MORE_FLOWFILES;
+import static
org.apache.nifi.controller.queue.clustered.protocol.LoadBalanceProtocolConstants.REJECT_CHECKSUM;
+import static
org.apache.nifi.controller.queue.clustered.protocol.LoadBalanceProtocolConstants.REQEUST_DIFFERENT_VERSION;
+import static
org.apache.nifi.controller.queue.clustered.protocol.LoadBalanceProtocolConstants.VERSION_ACCEPTED;
+
+public class StandardLoadBalanceProtocol implements LoadBalanceProtocol {
+ private static final Logger logger =
LoggerFactory.getLogger(StandardLoadBalanceProtocol.class);
+
+ private static final int SOCKET_CLOSED = -1;
+ private static final int NO_DATA_AVAILABLE = 0;
+
+ private final FlowFileRepository flowFileRepository;
+ private final ContentRepository contentRepository;
+ private final ProvenanceRepository provenanceRepository;
+ private final FlowController flowController;
+ private final LoadBalanceAuthorizer authorizer;
+
+ private final ThreadLocal<byte[]> dataBuffer = new ThreadLocal<>();
+ private final AtomicLong lineageStartIndex = new AtomicLong(0L);
+
+ public StandardLoadBalanceProtocol(final FlowFileRepository
flowFileRepository, final ContentRepository contentRepository, final
ProvenanceRepository provenanceRepository,
+ final FlowController
flowController, final LoadBalanceAuthorizer authorizer) {
+ this.flowFileRepository = flowFileRepository;
+ this.contentRepository = contentRepository;
+ this.provenanceRepository = provenanceRepository;
+ this.flowController = flowController;
+ this.authorizer = authorizer;
+ }
+
+
+ @Override
+ public void receiveFlowFiles(final Socket socket) throws IOException {
+ final InputStream in = new
BufferedInputStream(socket.getInputStream());
+ final OutputStream out = new
BufferedOutputStream(socket.getOutputStream());
+
+ String peerDescription = socket.getInetAddress().toString();
+ if (socket instanceof SSLSocket) {
+ final SSLSession sslSession = ((SSLSocket)
socket).getSession();
+
+ final Set<String> certIdentities;
+ try {
+ certIdentities = getCertificateIdentities(sslSession);
+
+ final String dn =
CertificateUtils.extractPeerDNFromSSLSocket(socket);
+ peerDescription = CertificateUtils.extractUsername(dn);
+ } catch (final CertificateException e) {
+ throw new IOException("Failed to extract Client
Certificate", e);
+ }
+
+ logger.debug("Connection received from peer {}. Will perform
authorization against Client Identities '{}'",
+ peerDescription, certIdentities);
+
+ authorizer.authorize(certIdentities);
+ logger.debug("Client Identities {} are authorized to load
balance data", certIdentities);
+ }
+
+ final int version = negotiateProtocolVersion(in, out,
peerDescription);
+
+ if (version == SOCKET_CLOSED) {
+ socket.close();
+ return;
+ }
+ if (version == NO_DATA_AVAILABLE) {
+ logger.debug("No data is available from {}",
socket.getRemoteSocketAddress());
+ return;
+ }
+
+ receiveFlowFiles(in, out, peerDescription, version,
socket.getInetAddress().getHostName());
+ }
+
+ private Set<String> getCertificateIdentities(final SSLSession
sslSession) throws CertificateException, SSLPeerUnverifiedException {
+ final Certificate[] certs = sslSession.getPeerCertificates();
+ if (certs == null || certs.length == 0) {
+ throw new SSLPeerUnverifiedException("No certificates found");
+ }
+
+ final X509Certificate cert =
CertificateUtils.convertAbstractX509Certificate(certs[0]);
+ cert.checkValidity();
+
+ final Set<String> identities =
CertificateUtils.getSubjectAlternativeNames(cert).stream()
+ .map(CertificateUtils::extractUsername)
+ .collect(Collectors.toSet());
+
+ return identities;
+ }
+
+
+ protected int negotiateProtocolVersion(final InputStream in, final
OutputStream out, final String peerDescription) throws IOException {
+ final VersionNegotiator negotiator = new
StandardVersionNegotiator(1);
+
+ for (int i=0;; i++) {
+ final int requestedVersion;
+ try {
+ requestedVersion = in.read();
+ } catch (final SocketTimeoutException ste) {
+ // If first iteration, then just consider this to indicate
"no data available". Otherwise, we were truly expecting data.
+ if (i == 0) {
+ logger.debug("SocketTimeoutException thrown when
trying to negotiate Protocol Version");
+ return NO_DATA_AVAILABLE;
+ }
+
+ throw ste;
+ }
+
+ if (requestedVersion < 0) {
+ logger.debug("Encountered End-of-File when receiving the
the recommended Protocol Version. Returning -1 for the protocol version");
+ return -1;
+ }
+
+ final boolean supported =
negotiator.isVersionSupported(requestedVersion);
+ if (supported) {
+ logger.debug("Peer {} requested version {} of the Load
Balance Protocol. Accepting version.", peerDescription, requestedVersion);
+
+ out.write(VERSION_ACCEPTED);
+ out.flush();
+ return requestedVersion;
+ }
+
+ final Integer preferredVersion =
negotiator.getPreferredVersion(requestedVersion);
+ if (preferredVersion == null) {
+ logger.debug("Peer {} requested version {} of the Load
Balance Protocol. This version is not acceptable. Aborting communications.",
peerDescription, requestedVersion);
+
+ out.write(ABORT_PROTOCOL_NEGOTIATION);
+ out.flush();
+ throw new IOException("Peer " + peerDescription + "
requested that we use version " + requestedVersion
+ + " of the Load Balance Protocol, but this version is
unacceptable. Aborted communications.");
+ }
+
+ logger.debug("Peer {} requested version {} of the Load Balance
Protocol. Requesting that peer change to version {} instead.", peerDescription,
requestedVersion, preferredVersion);
+
+ out.write(REQEUST_DIFFERENT_VERSION);
+ out.write(preferredVersion);
+ out.flush();
+ }
+ }
+
+
+ protected void receiveFlowFiles(final InputStream in, final
OutputStream out, final String peerDescription, final int protocolVersion,
final String nodeName) throws IOException {
+ logger.debug("Receiving FlowFiles from {}", peerDescription);
+ final long startTimestamp = System.currentTimeMillis();
+
+ final Checksum checksum = new CRC32();
+ final InputStream checkedInput = new CheckedInputStream(in,
checksum);
+
+ final DataInputStream dataIn = new DataInputStream(checkedInput);
+ final String connectionId = getConnectionID(dataIn,
peerDescription);
+ if (connectionId == null) {
+ logger.debug("Received no Connection ID from Peer {}. Will
consider receipt of FlowFiles complete", peerDescription);
+ return;
+ }
+
+ final Connection connection =
flowController.getConnection(connectionId);
+ if (connection == null) {
+ logger.error("Attempted to receive FlowFiles from Peer {} for
Connection with ID {} but no connection exists with that ID", peerDescription,
connectionId);
+ throw new TransactionAbortedException("Attempted to receive
FlowFiles from Peer " + peerDescription + " for Connection with ID " +
connectionId + " but no Connection exists with that ID");
+ }
+
+ final FlowFileQueue flowFileQueue = connection.getFlowFileQueue();
+ if (!(flowFileQueue instanceof LoadBalancedFlowFileQueue)) {
+ throw new TransactionAbortedException("Attempted to receive
FlowFiles from Peer " + peerDescription + " for Connection with ID " +
connectionId + " but the Connection with that ID is " +
+ "not configured to allow for Load Balancing");
+ }
+
+ final LoadBalanceCompression compression =
connection.getFlowFileQueue().getLoadBalanceCompression();
+ logger.debug("Receiving FlowFiles from Peer {} for Connection {};
Compression = {}", peerDescription, connectionId, compression);
+
+ ContentClaim contentClaim = null;
+ final List<RemoteFlowFileRecord> flowFilesReceived = new
ArrayList<>();
+ OutputStream contentClaimOut = null;
+ long claimOffset = 0L;
+
+ try {
+ try {
+ while (isMoreFlowFiles(dataIn, protocolVersion)) {
+ if (contentClaim == null) {
+ contentClaim = contentRepository.create(false);
+ contentClaimOut =
contentRepository.write(contentClaim);
+ } else {
+
contentRepository.incrementClaimaintCount(contentClaim);
+ }
+
+ final RemoteFlowFileRecord flowFile;
+ try {
+ flowFile = receiveFlowFile(dataIn,
contentClaimOut, contentClaim, claimOffset, protocolVersion, peerDescription,
compression);
+ } catch (final Exception e) {
+
contentRepository.decrementClaimantCount(contentClaim);
+ throw e;
+ }
+
+ flowFilesReceived.add(flowFile);
+
+ claimOffset += flowFile.getFlowFile().getSize();
+ }
+ } finally {
+ if (contentClaimOut != null) {
+ contentClaimOut.close();
+ }
+ }
+
+ verifyChecksum(checksum, in, out, peerDescription,
flowFilesReceived.size());
+ completeTransaction(in, out, peerDescription,
flowFilesReceived, nodeName, connectionId, startTimestamp,
(LoadBalancedFlowFileQueue) flowFileQueue);
+ } catch (final Exception e) {
+ // If any Exception occurs, we need to decrement the claimant
counts for the Content Claims that we wrote to because
+ // they are no longer needed.
+ for (final RemoteFlowFileRecord remoteFlowFile :
flowFilesReceived) {
+
contentRepository.decrementClaimantCount(remoteFlowFile.getFlowFile().getContentClaim());
+ }
+
+ throw e;
+ }
+
+ logger.debug("Successfully received {} FlowFiles from Peer {} to
Load Balance for Connection {}", flowFilesReceived.size(), peerDescription,
connectionId);
+ }
+
+ private void completeTransaction(final InputStream in, final
OutputStream out, final String peerDescription, final
List<RemoteFlowFileRecord> flowFilesReceived,
+ final String nodeName, final String
connectionId, final long startTimestamp, final LoadBalancedFlowFileQueue
flowFileQueue) throws IOException {
+ final int completionIndicator = in.read();
+ if (completionIndicator < 0) {
+ throw new EOFException("Expected to receive a Transaction
Completion Indicator from Peer " + peerDescription + " but encountered EOF");
+ }
+
+ if (completionIndicator == ABORT_TRANSACTION) {
+ throw new TransactionAbortedException("Peer " +
peerDescription + " chose to Abort Load Balance Transaction");
+ }
+
+ if (completionIndicator != COMPLETE_TRANSACTION) {
+ logger.debug("Expected to receive Transaction Completion
Indicator from Peer " + peerDescription + " but instead received a value of " +
completionIndicator + ". Sending back an Abort " +
+ "Transaction Flag.");
+ out.write(ABORT_TRANSACTION);
+ out.flush();
+ throw new IOException("Expected to receive Transaction
Completion Indicator from Peer " + peerDescription + " but instead received a
value of " + completionIndicator);
+ }
+
+ logger.debug("Received Complete Transaction indicator from Peer
{}", peerDescription);
+ registerReceiveProvenanceEvents(flowFilesReceived, nodeName,
connectionId, startTimestamp);
+ updateFlowFileRepository(flowFilesReceived, flowFileQueue);
+ transferFlowFilesToQueue(flowFilesReceived, flowFileQueue);
+
+ out.write(CONFIRM_COMPLETE_TRANSACTION);
+ out.flush();
+ }
+
+ private void registerReceiveProvenanceEvents(final
List<RemoteFlowFileRecord> flowFiles, final String nodeName, final String
connectionId, final long startTimestamp) {
+ final long duration = System.currentTimeMillis() - startTimestamp;
+
+ final List<ProvenanceEventRecord> events = new
ArrayList<>(flowFiles.size());
+ for (final RemoteFlowFileRecord remoteFlowFile : flowFiles) {
+ final ProvenanceEventRecord provenanceEvent = new
StandardProvenanceEventRecord.Builder()
+ .fromFlowFile(remoteFlowFile.getFlowFile())
+ .setEventType(ProvenanceEventType.RECEIVE)
+ .setTransitUri("nifi://" + nodeName + "/loadbalance/"
+ connectionId)
+
.setSourceSystemFlowFileIdentifier(remoteFlowFile.getRemoteUuid())
+ .setEventDuration(duration)
+ .setComponentId(connectionId)
+ .setComponentType("Load Balanced Connection")
+ .build();
--- End diff --

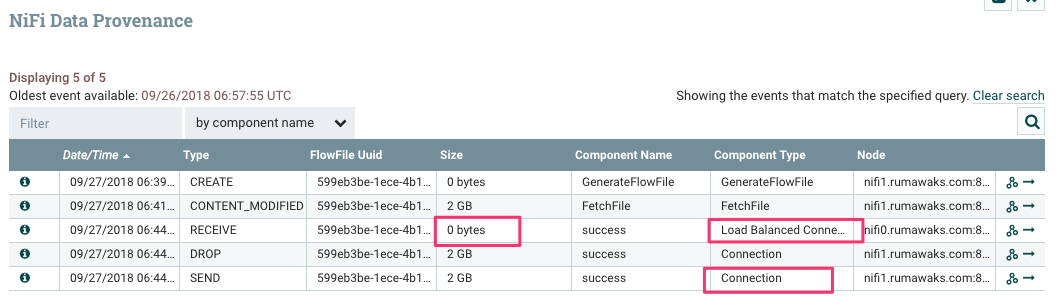

* Although the provenance event is created from a FlowFile, and the
FlowFile's content size is set by content claim triple, somehow the provenance
shows size as 0.
* `RECEIVE` is reported by `Load Balanced Connection`. I'd expect to the
same for the `SEND` event, too. Is this intentional?
---
