Sladerix opened a new issue #5176:
URL: https://github.com/apache/openwhisk/issues/5176


   Hi everyone.. i trying to understand the right way to to thing with actions,
trigger, rules and serverless in general.
   My idea is:
   When a triggers fires, a sequence of actions must start -> generate a random
color, turn on a led with that color, save to a DB the record using an input
ID, timestamp and the color generated at the first step.

   I need to fire the trigger using the OW API.

   so i did like so:

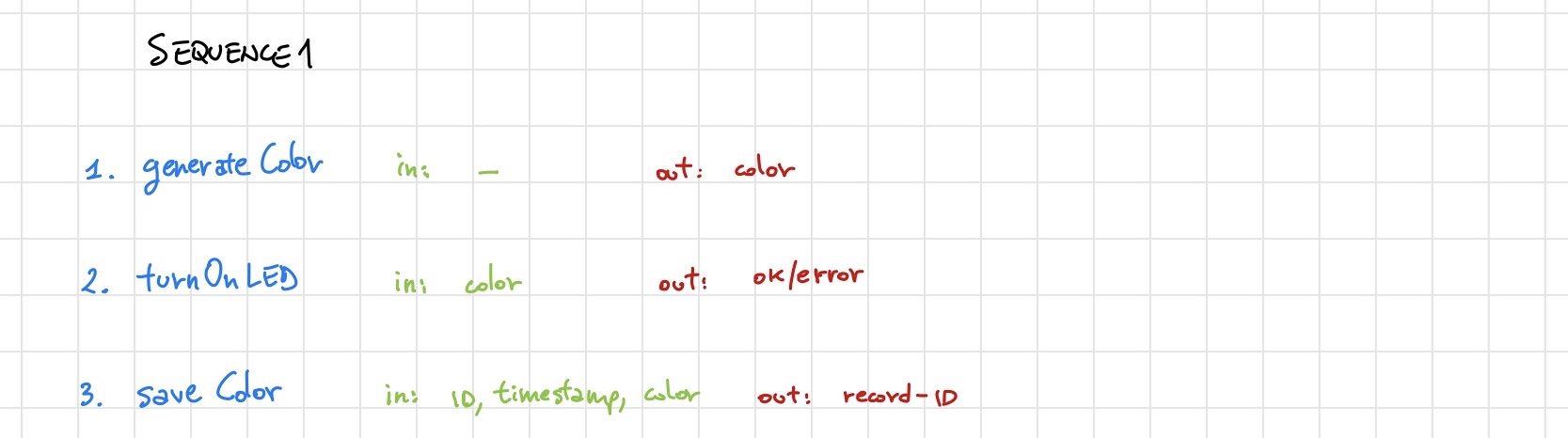

   ![IMG_0493
3](https://user-images.githubusercontent.com/6717214/141679615-868b2365-493e-4d79-8c43-5b0a26eb41ef.jpg)

   the problem is that the parameters you pass to the trigger at the beginning
is used ONLY from the first action (_generateColor_), then them are lost, same
thing apply for the output of the actions.. the output of _generateColor_ is
needed for _turnOnLED_ and _saveColor_, but the last will not receive the data
because there another action in between, and also will not receive the
parameters used to fire the trigger (needed to save the record to the DB)

![IMG_0493](https://user-images.githubusercontent.com/6717214/141679779-e6ccebb5-7a06-473f-818c-b9e3115e198d.jpg)

   Last but not least... keeping in mind that the trigger will be fired using
the API, you should expect sometype of response.. instead you got only an
activationid relative to the trigger. This means:
   Imagine the above sequence works. saveColor returns a value (in this case
called "record-id"), when you fire to trigger you expect this as output, but
instead you have to:

   1. Get  the activationId of the trigger
   2. Make another api request to get the activations of the single actions
used bye the sequence
   3. Make another api request to get the result of the right action of the
found at step 2 (so you have to do it for all, in this case are only 3, but if
were 50?)


   At this point i think i'm doing something wrong, this is not the right way
to design actions? how should they be done? my inderstandin of serverless is
wrong?.. i don't know but this thing is bit confusing for me.

   Thanks in advance


--
