cristallium opened a new issue, #1193:
URL: https://github.com/apache/royale-asjs/issues/1193

   Hi,
   I found a bug in a special case with `TileHorizontalLayout`

   Take this exemple :

   ```
       <j:List localId="lst" className="ImageListItemRenderer" height="90%"
width="400" change="ev_change(event)" includeIn="loaded">
           <j:beads><j:TileHorizontalLayout requestedColumnCount="2"
itemsExpand="false" horizontalGap="0" columnWidth="186" /></j:beads>
       </j:List>
   ```

   ItemRenderer :

   ```
   <j:ListItemRenderer ... width="186" height="91">
   ...
     <j:Image src="{image_src}" width="170" height="75"/>
   ...
   </j:ListItemRenderer>
   ```

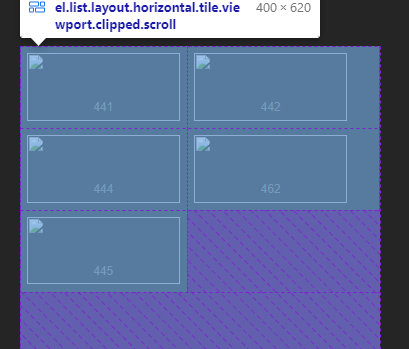

   This is working fine if no scrollbar like this screenshoot

![image](https://user-images.githubusercontent.com/6851433/163570050-a946d648-c74f-4db2-9d8e-8450de2cfab3.png)

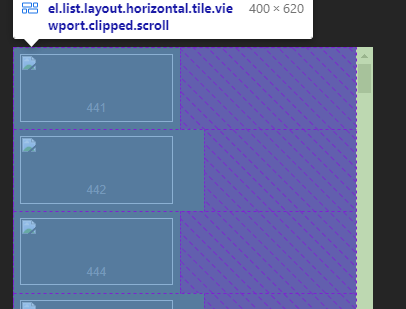

   However if the scrollbar appears then it could have 2 items by row. But the
compute of `margin-right` wrong because it doesn't take into account the
scrollbar width. So margin-right is too high and list has only 1 item per row


![image](https://user-images.githubusercontent.com/6851433/163569800-f915610c-64a5-4667-bd4e-06b4e75b6425.png)

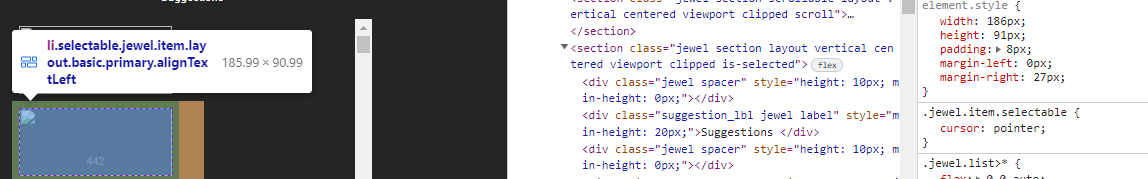

   In the following screenshoot, brown color matches the `margin-right` and is
too large


![image](https://user-images.githubusercontent.com/6851433/163570272-50ce2381-e7c7-4dc5-ac7e-3efb902524e8.png)


   If I manually change margin-right substracting scrollbar width (with dev
tools in browser) , then this is fine :


![image](https://user-images.githubusercontent.com/6851433/163570327-4dbbaf1d-f6fe-49eb-8dde-b758622d193a.png)







--
