hachikuji commented on pull request #9401:
URL: https://github.com/apache/kafka/pull/9401#issuecomment-729258346


   Here are a couple additional test runs. This was on Ubuntu 20
(ami-00831fc7c1e3ddc60). The machine type was m5a.xlarge with 200GB gp2 EBS
storage. One instance was running the broker and one instance was running the
producer perf test.

   Commands:
   ```
   bin/kafka-topics.sh --create --topic foo --replication-factor 1 --partitions
10 --bootstrap-server $BROKER
   bin/kafka-producer-perf-test.sh --topic foo --num-records 250000000
--throughput -1  --record-size 256 --producer-props bootstrap.servers=$BROKER
   ```

   Here are the results:
   ```
   Patch:
   250000000 records sent, 826003.925171 records/sec (201.66 MB/sec), 149.39 ms
avg latency, 1623.00 ms max latency, 131 ms 50th, 380 ms 95th, 464 ms 99th, 650
ms 99.9th.
   250000000 records sent, 825684.740355 records/sec (201.58 MB/sec), 149.22 ms
avg latency, 1276.00 ms max latency, 124 ms 50th, 364 ms 95th, 451 ms 99th, 775
ms 99.9th.

   Trunk:
   250000000 records sent, 833144.487250 records/sec (203.40 MB/sec), 148.20 ms
avg latency, 1361.00 ms max latency, 111 ms 50th, 437 ms 95th, 551 ms 99th, 807
ms 99.9th.
   250000000 records sent, 810927.409022 records/sec (197.98 MB/sec), 152.59 ms
avg latency, 1430.00 ms max latency, 127 ms 50th, 382 ms 95th, 467 ms 99th, 809
ms 99.9th.
   ```

   Given variance in these tests, I think we're probably inline with trunk. I
looked at the flame graph as well and did not observe any substantial
difference in performance. Here are a few interesting highlights from one run.
This patch is listed first with trunk second.

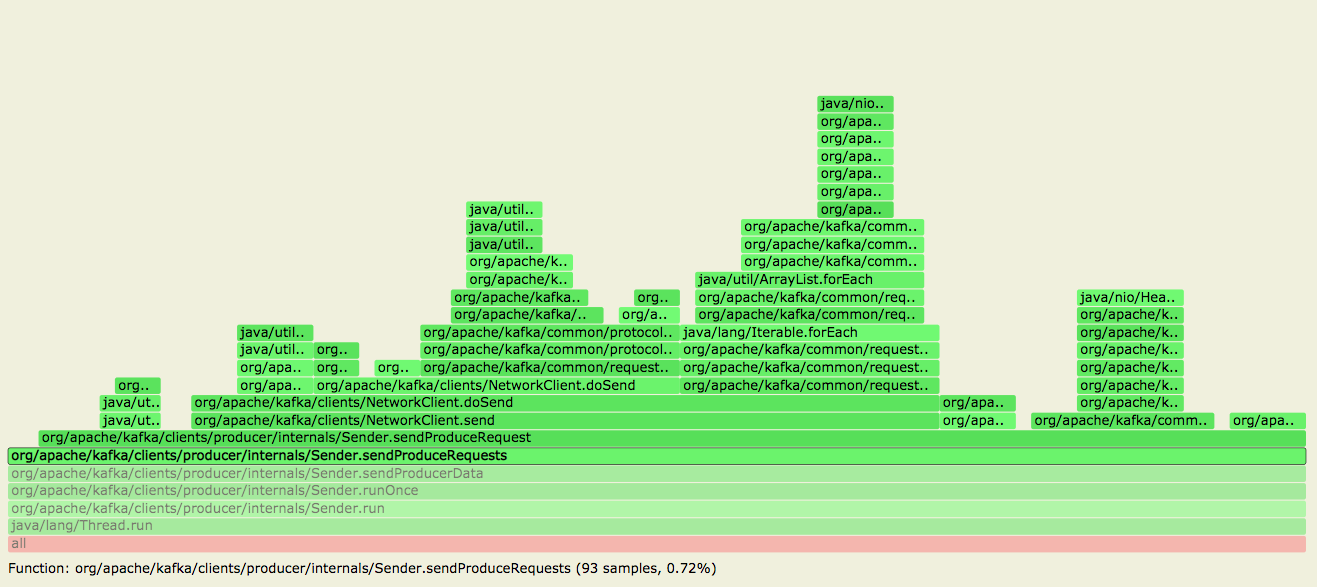

   `Sender.sendProduceRequests`:

   ![Screen Shot 2020-11-17 at 2 36 34
PM](https://user-images.githubusercontent.com/12502538/99459188-89875600-28e2-11eb-93ed-1ffb46b74e63.png)
   ![Screen Shot 2020-11-17 at 2 36 49
PM](https://user-images.githubusercontent.com/12502538/99459193-8b511980-28e2-11eb-9d19-51bbc2d7ca56.png)

   `KafkaChannel.write`:

   ![Screen Shot 2020-11-17 at 2 32 56
PM](https://user-images.githubusercontent.com/12502538/99459229-9c018f80-28e2-11eb-9431-61a450291a72.png)
   ![Screen Shot 2020-11-17 at 2 33 17
PM](https://user-images.githubusercontent.com/12502538/99459235-9e63e980-28e2-11eb-92fe-0a472fbee0d6.png)






----------------------------------------------------------------
