Hi Pierre,
thanks for taking the time to think about it.
Meanwhile, after some sleepless nights ;-) I've found another way to
get some results:
% -------------------------------------------------------
\version "2.18.0"
colorSpan =
#(define-music-function (parser location y-lower y-upper color) (number?
number? color?)
#{
\override Staff.HorizontalBracket #'stencil =
$(lambda (grob)
(let* (
(area (ly:horizontal-bracket::print grob))
(X-ext (ly:stencil-extent area X))
(Y-ext (ly:stencil-extent area Y))
)
(set! Y-ext (cons y-lower y-upper)
)
(ly:grob-set-property! grob 'layer -10)
(ly:make-stencil (list 'color color
(ly:stencil-expr (ly:round-filled-box X-ext Y-ext 0))
X-ext Y-ext))
))
#})
{
<< { R1
\colorSpan #-5 #5 #(rgb-color 1.0 0.9 0.5) c'2\startGroup g' c' \stopGroup
\colorSpan #0 #5 #(rgb-color 0.5 1.0 0.5)
r4\startGroup r \stopGroup
\colorSpan #-5 #0 #(rgb-color 0.9 1.0 0.5) r\startGroup r\stopGroup }
\\
{
\override Voice.ClusterSpanner.color = #(rgb-color 0.5 0.6 1)
\override Voice.ClusterSpanner.layer = #-1
\makeClusters { s1 c'2 g' c' s s1 }
}
>>
}
\layout {
\context {
\Voice
\consists "Horizontal_bracket_engraver"
\override HorizontalBracket #'thickness = #0
\override HorizontalBracket #'bracket-flare = #'(0 . 0)
\override HorizontalBracket #'Y-extent = #'(0 . 0)
\override HorizontalBracket #'edge-height = #'(0 . 0)
\override HorizontalBracket #'Y-offset = #0
\override HorizontalBracket #'shorten-pair = #'(-1 . -0.75)
}
}
% -------------------------------------------------------
Result:
http://4.bp.blogspot.com/-THmAQWfqDaw/VHztoaE6N2I/AAAAAAAAACs/9Sqgl4ViMBc/s1600/ly-ex3.gif
This time, I "abused" the Horizontal_bracket_engraver that is used for
\startGroup and \stopGroup and replaced it's stencil by a rectangle.
Because it's not attached to the StaffSymbol, it can be placed in a
different layer, so the blue cluster and the staff lines both stay visible.
Anyway, LilyPond does the horizontal spacing without the need for manual
work.

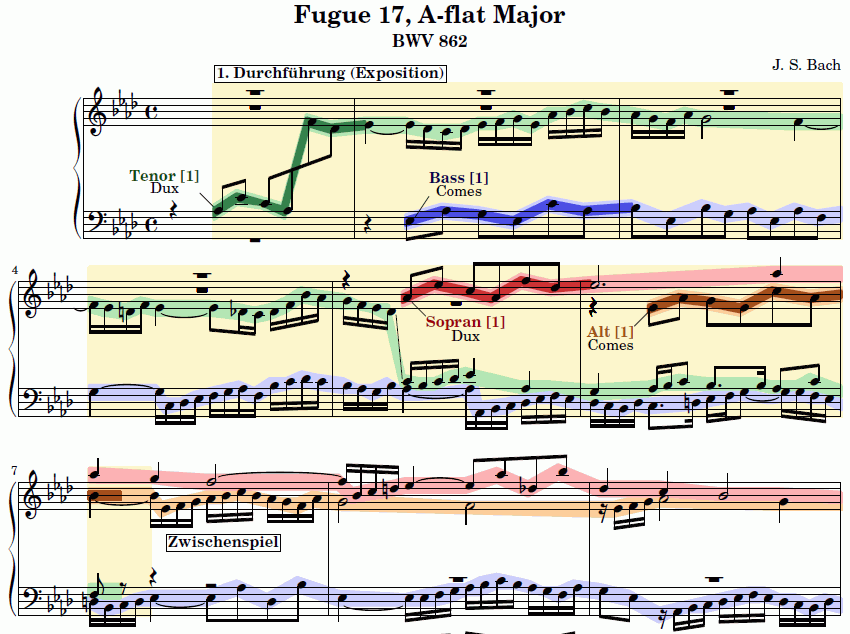

This might make life easier for doing crazy things like this:
http://4.bp.blogspot.com/-kEXoxAx6HG0/VHzvH9GW9KI/AAAAAAAAAC8/48vNguVdp2A/s1600/ly-ex4.gif
http://4.bp.blogspot.com/-ChtL4-lGKoE/VHzvHuNU76I/AAAAAAAAAC4/Do8L81Al19I/s1600/ly-ex5.gif
Cheers,
Klaus Blum
Am 29.11.2014 um 10:43 schrieb Pierre Perol-Schneider:
Hi Klaus,
2014-11-29 10:30 GMT+01:00 Big Noise <[email protected]
<mailto:[email protected]>>:
thanks for your reply.
Unfortunately, changing the layer value from -10 to -2 doesn't
help. The problem is that the function places the staff lines and
the colored rectangle into the *same* layer, whereas I need to
leave the staff lines in layer 0 and put the rectangle into layer
-2 (or even less).
This would allow me to put other clusters *between* them like in
the first example.
Right ! Now I see the problem, 'seems that I've replied without
thinking...
I have already found another interesting snippet:
http://lsr.di.unimi.it/LSR/Item?id=953
But in that case, I would have to find the dimensions for the
rectangle by trial-and-error, whereas overriding the StaffSymbol
seems to be a very easy way...
Actually I've made this one (which is more or less a draft). I'll try
to see what I can do with it. No promise though :(
Cheers,
Pierre
