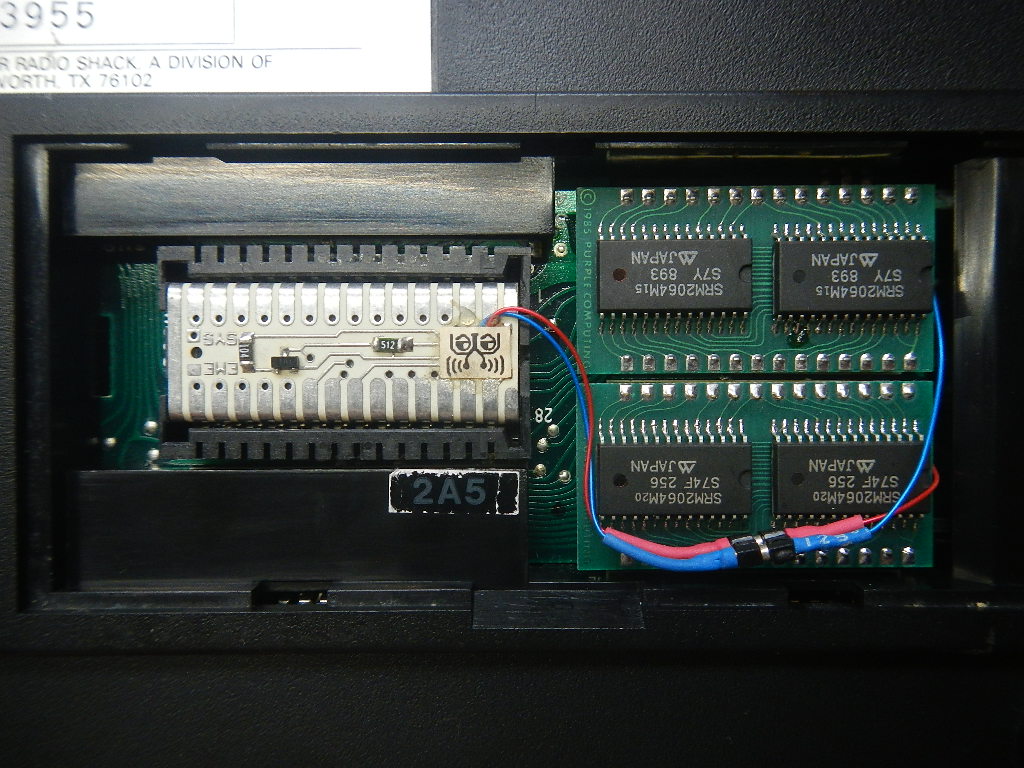

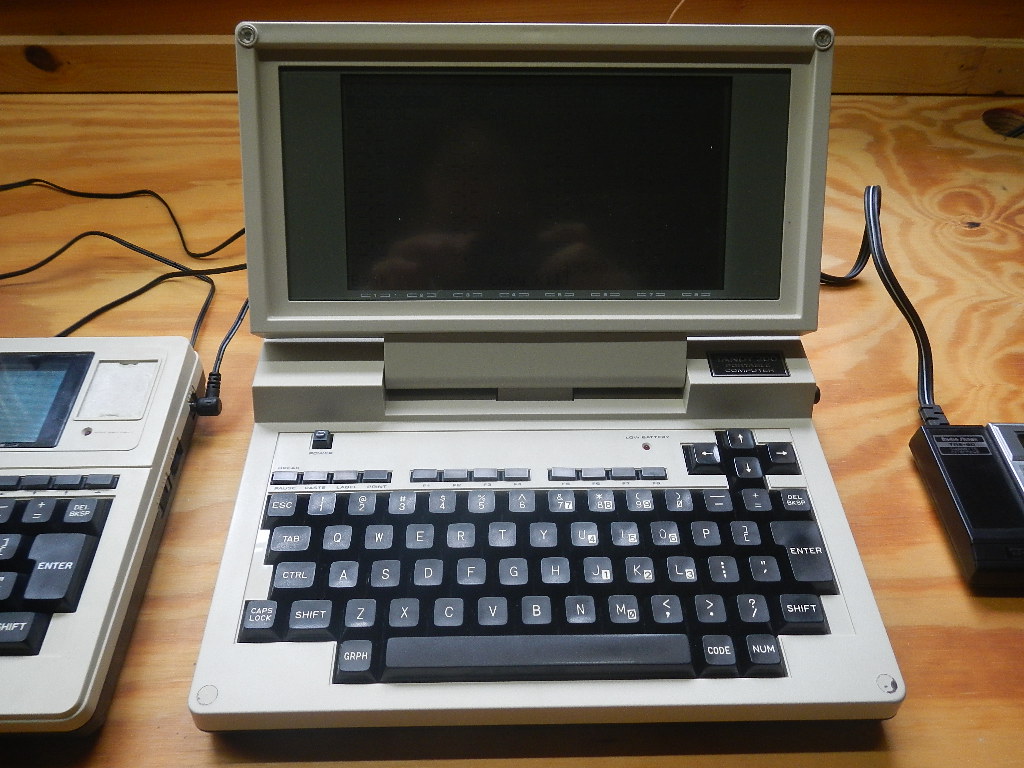

Thanks to all for the info and helpful tips. Last work on the T200 for now, 4PPM clock crystal and 15F Supercap NiCad swap. So far I've not experienced the power on/stuck issue that was reported with the T200 supercap mod, and that was with it powered on all night with a supercap voltage reaching a max of 5.2v. (Powered on brings the highest charge voltage for me)

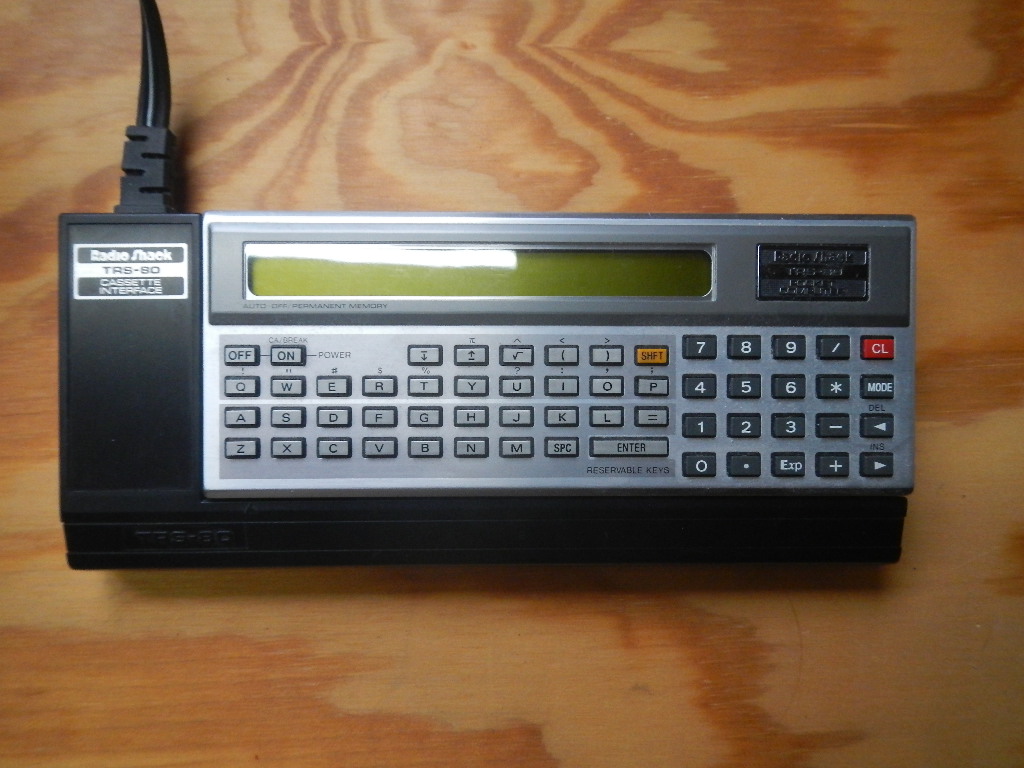

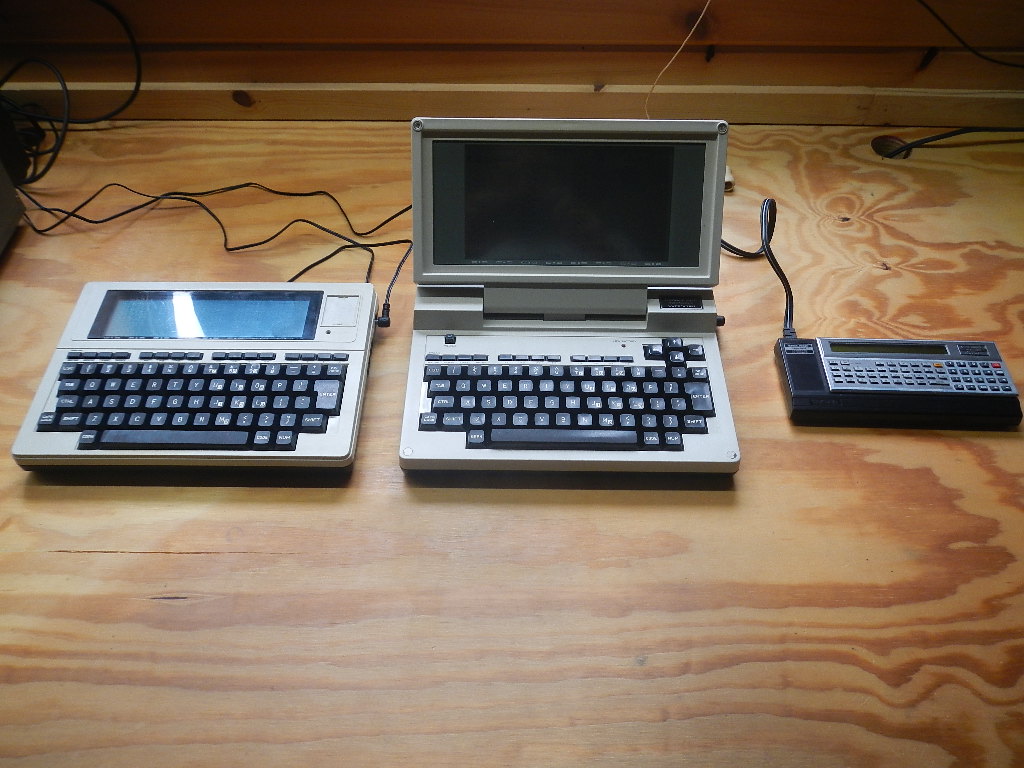

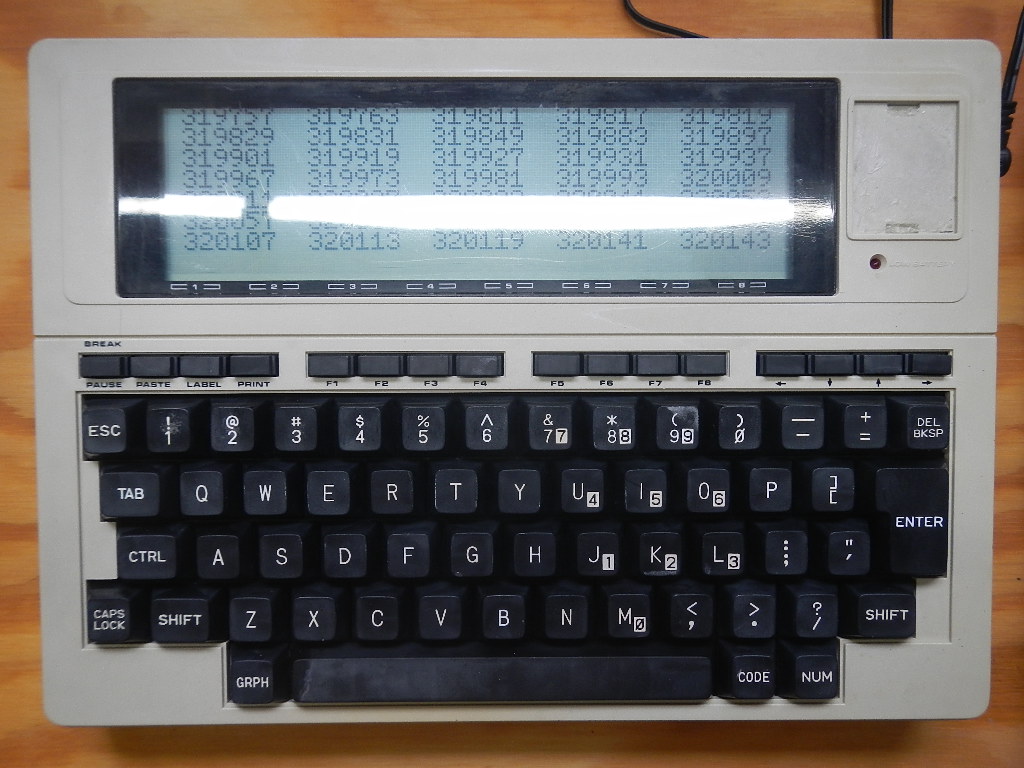

Overall I'm pretty happy, no plans for the T102 aside from 3D printing a new emblem, as for the T200, I'd like to try some BBS work with that. Also pictured was my Dad's TRS80 Pocket, which I spent hundreds of hours poking in basic programs in the 80s, with no tape drive for backing up. :D A few picts of the family: http://streamlinemechatronics.com/picts/t102.JPG http://streamlinemechatronics.com/picts/t200.JPG http://streamlinemechatronics.com/picts/t200ext.JPG http://streamlinemechatronics.com/picts/trs80pocket.JPG http://streamlinemechatronics.com/picts/tandyfamily.JPG I apologize in advance for the poor lighting in my lab. BR, Andy On Sat, Jul 28, 2018 at 12:07 PM Bob Pigford <[email protected]> wrote: > EME (owner and inventor Tracey Allen) made and sold an OptROM for data > gathering and dumping to higher computers. He named it the OWL for onsite > weather logger. I have one along with the EME A/D board made as an > inclined plastic stand for the M100. The board includes a gell battery so > it will survive power dips. Quite a terrific piece at the time. But the > A/D inputs are only 8-bit so the fidelity is somewhat limited. > > > > EME systems now makes later generations of the same concept for data > gathering: > > https://www.emesystems.com/loggers.html > > > > I think that Tracey’s OWL firmware/software for the Model100 is not in the > public domain and probably is still copyrighted. > > > > Might your OptROM be an EME Systems OWL? > > > > Bob > > *From:* M100 [mailto:[email protected]] *On Behalf Of *Andy > Lawrence > *Sent:* Saturday, July 28, 2018 9:53 AM > *To:* [email protected] > *Subject:* Re: [M100] T200 Restoration and Mods/Playing > > > > Bare with me, still getting up to speed, I thought EME was a product of > some-sort that was known. > > > > Anyhow, chip pulled, which turns out to be a M5M5256BP, static RAM. > > > > > > > > On Fri, Jul 27, 2018 at 10:00 PM Brian White <[email protected]> wrote: > > We can't know what it is until you dump it and upload it. Maybe then we > still don't know, or maybe someday we eventually do even if not today, but > absolutely not if it never gets dumped. If it's just the eme adapter with > no label, then it could be literally anything or nothing. > > > I don't sell REX's, I just tried to document the process of building, to > remove all the mysteries and question marks and risk as much as possible so > anyone could build their own, and put it where anyone else could improve > the directions even further. > > > > On Fri, Jul 27, 2018 at 6:41 PM Andy Lawrence <[email protected]> wrote: > > Hi Brian, maybe, do you have a spare REX? > > > > Either way I can dump the ROM, no problem. It's of no use right, some > proprietary something or other? > > > > On Fri, Jul 27, 2018 at 5:28 PM Brian White <[email protected]> wrote: > > You should sell it to me :) also dump the rom, or let me dump it. > > > > On Fri, Jul 27, 2018 at 2:17 PM Andy Lawrence <[email protected]> wrote: > > Ha, thanks, I now understand my mistake. > > > > Still locks it up, now to think how/if I'll re-purpose the ROM sleeve. > > > > On Fri, Jul 27, 2018 at 2:05 PM Stephen Adolph <[email protected]> > wrote: > > Call 61167,2 > > > > ;) > > On Friday, July 27, 2018, Andy Lawrence <[email protected]> wrote: > > After the fun with my T102 I decided to continue the fun with a busted > T200 off eBay. After a complete re-cap, fixing lots of keyboard traces, > huge mounts of cleaning I now have a nice functional T200! This unit came > with the RAM fully populated and an EME ROM, which doesn't seem to do > anything, calling 63012 locks is up, and 63013 returns OK with nothing else > obvious. No NiCad or Y2K mods yet cause I ran out of parts, waiting on > Digikey. > > > > Well I got bored waiting on Digikey and thought, how fast can this thing > go, so I swapped the 4.9151 crystal with a 10Mhz (all I had in-stock), and > it boots and runs! So I quickly threw this program together, prime number > example I found online modded to time the loop: > > > > 1 POWER CONT > > 10 CLS > > 20 PRINT "LIMIT"; > > 30 INPUT L > > 31 HH$ = LEFT$(TIME$,2) > > 32 MM$ = MID$(TIME$,4,2) > > 33 SS$ = RIGHT$(TIME$,2) > > 37 SEC = VAL(SS$) + (VAL(MM$) * 60) + (VAL(HH$) * 3600) > > 40 FOR N = 3 TO L > > 50 FOR D = 2 TO (N-1) > > 60 IF N/D=INT(N/D) THEN GOTO 100 > > 70 NEXT D > > 80 PRINT N; > > 90 GOTO 110 > > 100 PRINT "."; > > 110 NEXT N > > 111 HH$ = LEFT$(TIME$,2) > > 112 MM$ = MID$(TIME$,4,2) > > 113 SS$ = RIGHT$(TIME$,2) > > 114 SECE = (VAL(SS$) + (VAL(MM$) * 60) + (VAL(HH$) * 3600) - SEC) > > 117 PRINT "Duration = "; SECE ; " Seconds" > > 120 END > > > > Duration factory = 43sec, duration overclocked = 21sec! (with an input of > 100) > > > > It isn't completely stable, sometimes I have to power it on 2-3 times, but > once on it doesn't seem to have any trouble, aside from the clock resetting > on occasion. I've not yet studied the schematic to determine if it's > because 10Mhz isn't a multiple of the factory 4.9152, or because it's > simply too fast to read properly, but I'll figure it out. I ran the > above to 1000 a few times without issue or any lock ups. File transfer > even works if I set my PC to 2400bps and the T200 to 1200. > > > > Overclocked comes at a 20mA over stock hit. > > > > Fun fun, happy Friday. > > BR, > > Andy > > > > > > > > > > > > > -- > > projecthuh.com > Never underestimate the carelessness of boredom... > Most people prefer Windows because most people are idiots... > > > > -- > > bkw > > > > > -- > > projecthuh.com > Never underestimate the carelessness of boredom... > Most people prefer Windows because most people are idiots... > > > > -- > > bkw > > > > > -- > > projecthuh.com > Never underestimate the carelessness of boredom... > Most people prefer Windows because most people are idiots... > -- projecthuh.com Never underestimate the carelessness of boredom... Most people prefer Windows because most people are idiots...
