I thought I would share this little project <https://www.youtube.com/watch?v=TVslqpSRKj4&list=FLCzYPC6--I0qVJd0UfMI0GQ> (not mine, I just stumbled across it).The video is really well made and there is a link to the author's web site. So I ordered the parts so I could build it. In the meantime I simulated it in LTSpice. The simulation showed an unloaded voltage of around 130V and a loaded voltage of about 70V. The real thing seems to produce an unloaded voltage of around 200V. The loaded voltage (driving the tube you see in the picture) was around 140V. BTW the design called for a 10K anode resistor, which always seemed optimistic to me, and did indeed turn out to be. I dropped it to 1K, (I had a choice of 10K or 1K given the SMD resistors I had). It worked much better, still the loaded current was only 0.15mA! I'm amazed the tube glows at all with that!

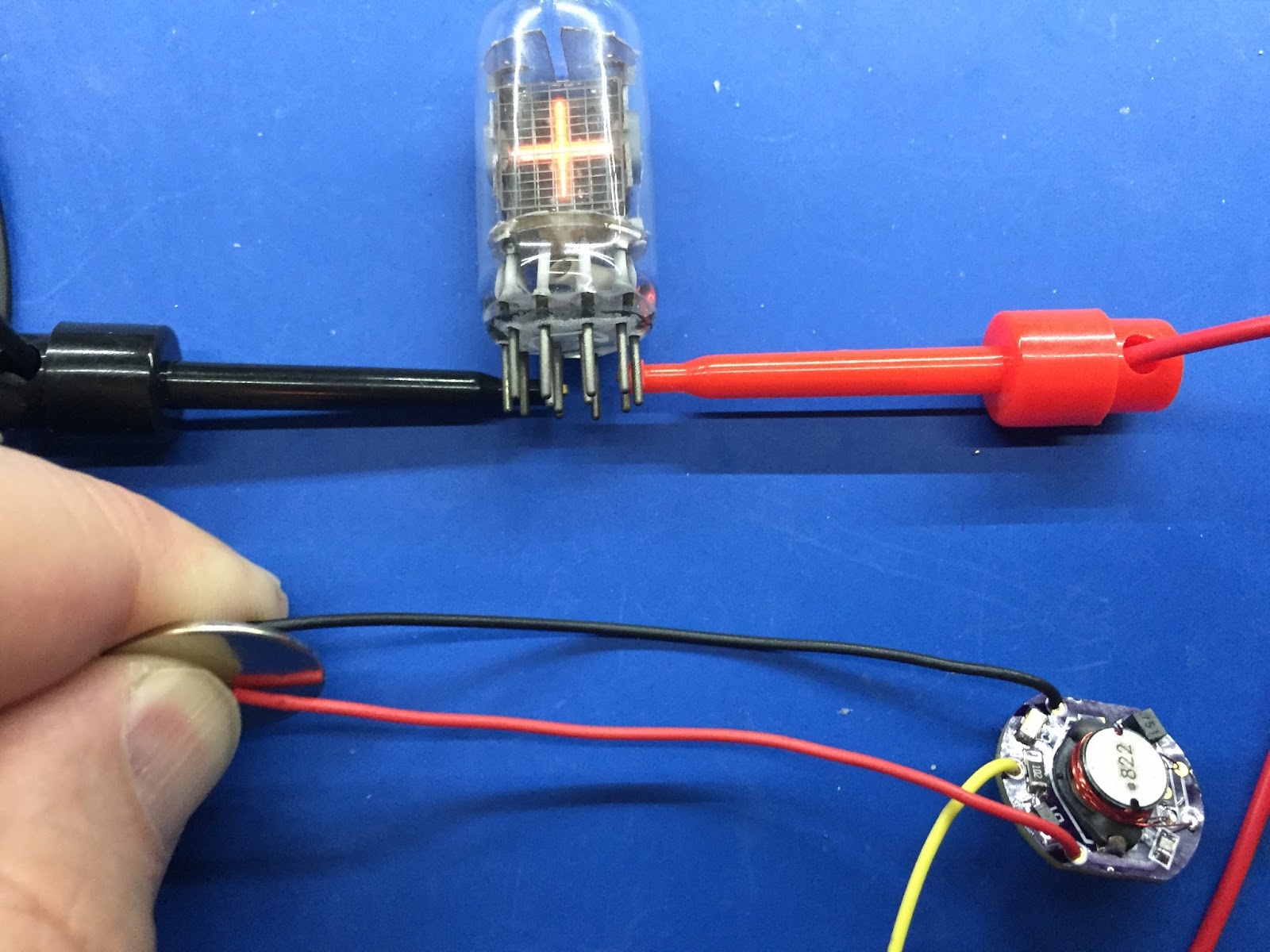

Here is a picture: <https://lh3.googleusercontent.com/-hYFetgOssf0/WTDZCY9hrdI/AAAAAAAAAlo/vlN3raXHQRYfyTf_ppKgelsjIw7pl4WXwCLcB/s1600/FullSizeRender%2B3.jpg> -- You received this message because you are subscribed to the Google Groups "neonixie-l" group. To unsubscribe from this group and stop receiving emails from it, send an email to [email protected]. To post to this group, send an email to [email protected]. To view this discussion on the web, visit https://groups.google.com/d/msgid/neonixie-l/51a33788-58d6-447d-8e00-b7a637c7b1a2%40googlegroups.com. For more options, visit https://groups.google.com/d/optout.
