wwd5613 opened a new issue #1233: bug: route by radixtree_host_uri Stress
Testing cannot reach expect
URL: https://github.com/apache/incubator-apisix/issues/1233


   ### I set 10 to 5000 route with host,like
   {
       "uri": "*",
       "hosts": ["www.websockettest1.com"],
        "vars":[["server_port","==","80"]],
       "upstream": {
           "type": "roundrobin",
           "nodes": {
               "172.28.73.60:80": 1
           }
       }
   }
   and set config.yaml
     router:
        http: 'radixtree_host_uri'

   ### Environment

   * apisix version (cmd: `apisix version`): 1.0
   * OS: Centos7.4 8c16g

   ### Minimal test code / Steps to reproduce the issue
   1.wrk -t16 -c200 -d300s -T300s --latency  --script=get500.lua
http://www.websockettest1/test?a=123
   2.get500.lua
   wrk.method = "GET"
   wrk.host = "www.testwaf1.com"
   wrk.headers["Content-Type"] = "application/x-www-form-urlencoded"
   wrk.headers["Accept-Encoding"] = "gzip, deflate"
   wrk.headers["Accept-Language"] = "zh-CN,zh;q=0.9"
   wrk.headers["Cache-Control"] = "no-cache"
   wrk.headers["Connection"] = "keep-alive"
   --wrk.headers["Connection"] = "close"
   wrk.headers["Cookie"] =
"JSESSIRE45ONID=988051FA6F8638AD356HY0FC40DEB861604F677676GHG878123EDGTE1245;
name=%22wuwng%22"
   wrk.headers["Host"] = "www.websockettest1"
   wrk.headers["Referer"] = "http://www.websockettest1/";
   wrk.headers["User-Agent"] = "Mozilla/5.0 (Windows NT 6.1; Win64; x64)
AppleWebKit/537.36 (KHTML, like Gecko) Chrome/75.0.3770.100 Safari/537.36"
   wrk.headers["Pragma"] = "no-cache"

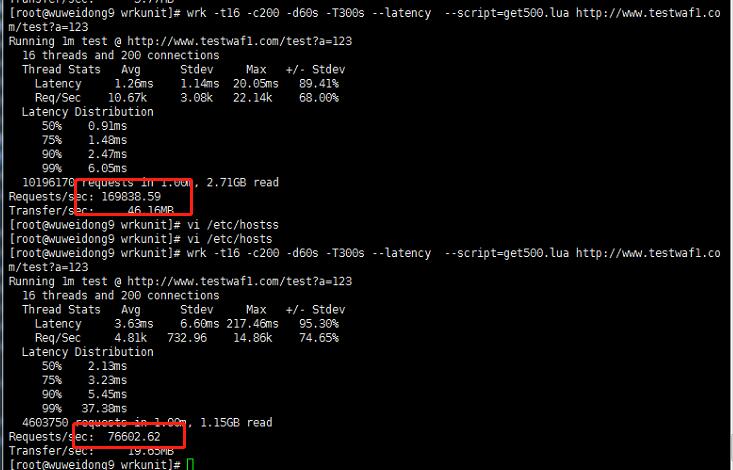

   ### What's the actual result? (including assertion message & call stack if
applicable)


![QQ图片20200312101743](https://user-images.githubusercontent.com/2143396/76480831-d0b37200-644a-11ea-9cdd-ebbcfc4f6378.jpg)
   Stress Testing Contrast:
     tps of source site is 16W,
     tps of source site pass by apisix is 7W

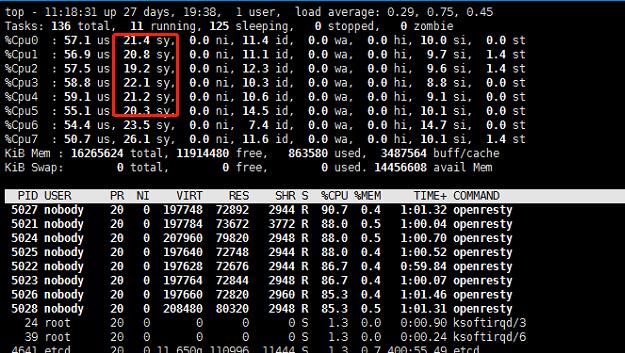

   and cpu is near 100% with 20% sys cost.

![QQ图片20200312102413](https://user-images.githubusercontent.com/2143396/76481170-c5ad1180-644b-11ea-8227-316e7e5d5e0f.jpg)

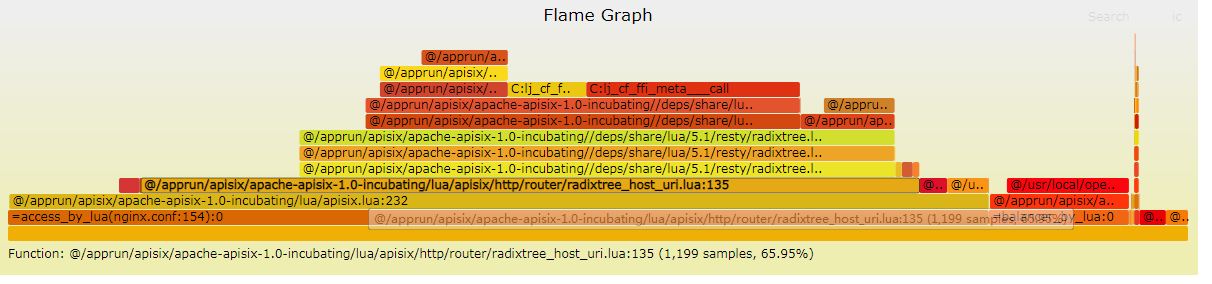

   and Flame Graphs is as follow

![微信截图_20200312102431](https://user-images.githubusercontent.com/2143396/76481209-e07f8600-644b-11ea-9042-4d81c7c50413.png)


   ### What's the expected result?
     tps can be higher


----------------------------------------------------------------
