tao12345666333 opened a new issue, #459: URL: https://github.com/apache/apisix-helm-chart/issues/459

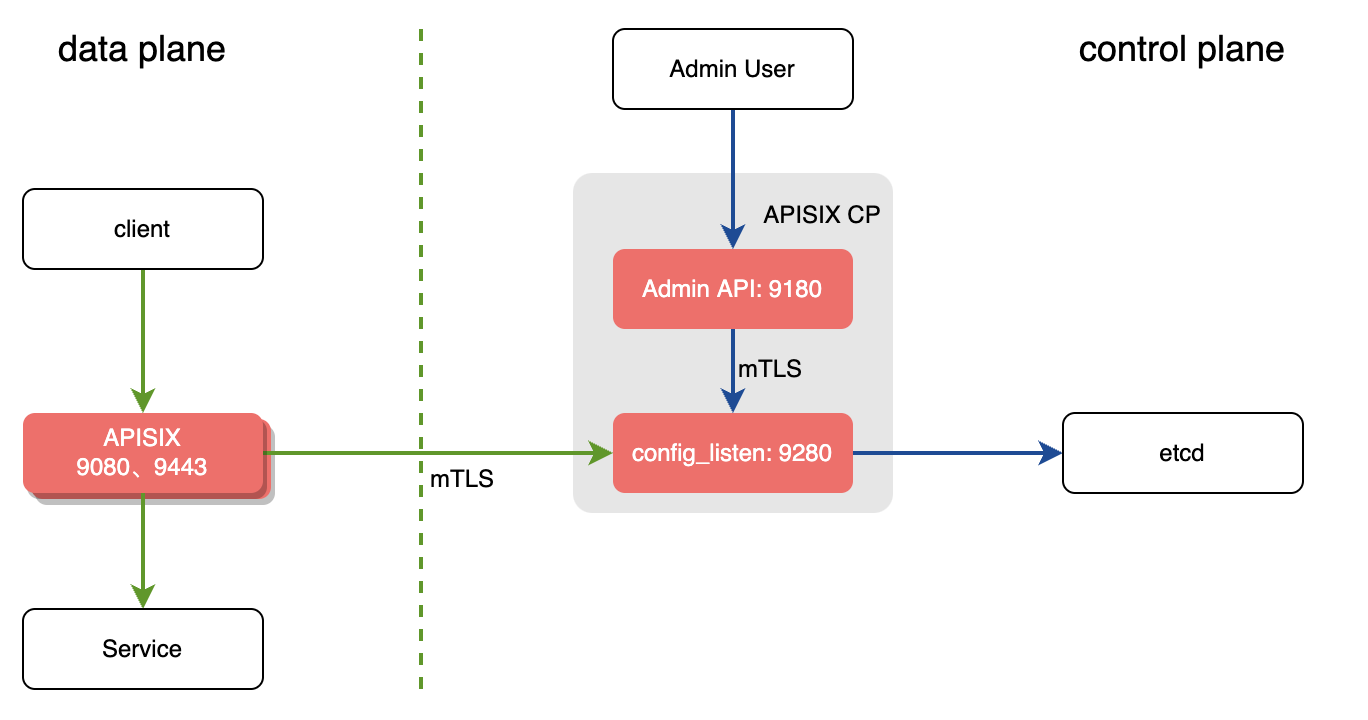

Apache APISIX v3 adds a **decoupled** deployment mode. ref: https://apisix.apache.org/docs/apisix/deployment-modes/#decoupled In the decoupled deployment mode the data plane and control plane instances of APISIX are deployed separately. i.e one instance of APISIX is configured to be a data plane and the other to be a control plane.  In this mode, there are different configuration files for the data plane and control plane. ## control plane ```yaml deployment: role: control_plane role_control_plane: config_provider: etcd conf_server: listen: 0.0.0.0:9280 cert: /path/to/ca-cert cert_key: /path/to/ca-cert client_ca_cert: /path/to/ca-cert etcd: host: - https://${etcd_IP}:${etcd_Port} prefix: /apisix timeout: 30 certs: cert: /path/to/ca-cert cert_key: /path/to/ca-cert trusted_ca_cert: /path/to/ca-cert ``` ## data plane ```yaml deployment: role: data_plane role_data_plane: config_provider: control_plane control_plane: host: - https://${Control_Plane_IP}:9280 prefix: /apisix timeout: 30 certs: cert: /path/to/ca-cert cert_key: /path/to/ca-cert trusted_ca_cert: /path/to/ca-cert ``` If we want to add this kind of support in the Helm chart, I think **we can manage them separately through two releases**. In this way, users can operate independently during subsequent maintenance and upgrades. e.g. ``` # Deploy APISIX's control plane ➜ ~ helm install apisix-control-plane apisix/apisix --set deployment.mode=control_plane # Deploy APISIX's data plane ➜ ~ helm install apisix-data-plane apisix/apisix --set deployment.mode=data_plane --set deployment.control_plane.host=https://apisix-control-plane-admin.apisix.svc:9280 --set deployment.control_plane.prefix="/apisix" ``` -- This is an automated message from the Apache Git Service. To respond to the message, please log on to GitHub and use the URL above to go to the specific comment. To unsubscribe, e-mail: [email protected] For queries about this service, please contact Infrastructure at: [email protected]
