imjoey opened a new issue #2432:
URL: https://github.com/apache/apisix/issues/2432
Part of #2082 .
Current request-validation schema definition is shown as below:
```json
{
"anyOf": [
{
"required": [
"body_schema"
]
},
{
"required": [
"header_schema"
]
}
],
"properties": {
"body_schema": {
"type": "object"
},
"header_schema": {
"type": "object"
}
},
"type": "object"
}
```
The definition should be changed to:
```json
{
"anyOf":[
{
"title": "Body schema",
"properties":{
"body_schema":{
"type":"object"
}
},
"required":[
"body_schema"
]
},
{
"title": "Header schema",
"properties":{
"header_schema":{
"type":"object"
}
},
"required":[
"header_schema"
]
}
],
"type": "object"
}
```
**BTW**:

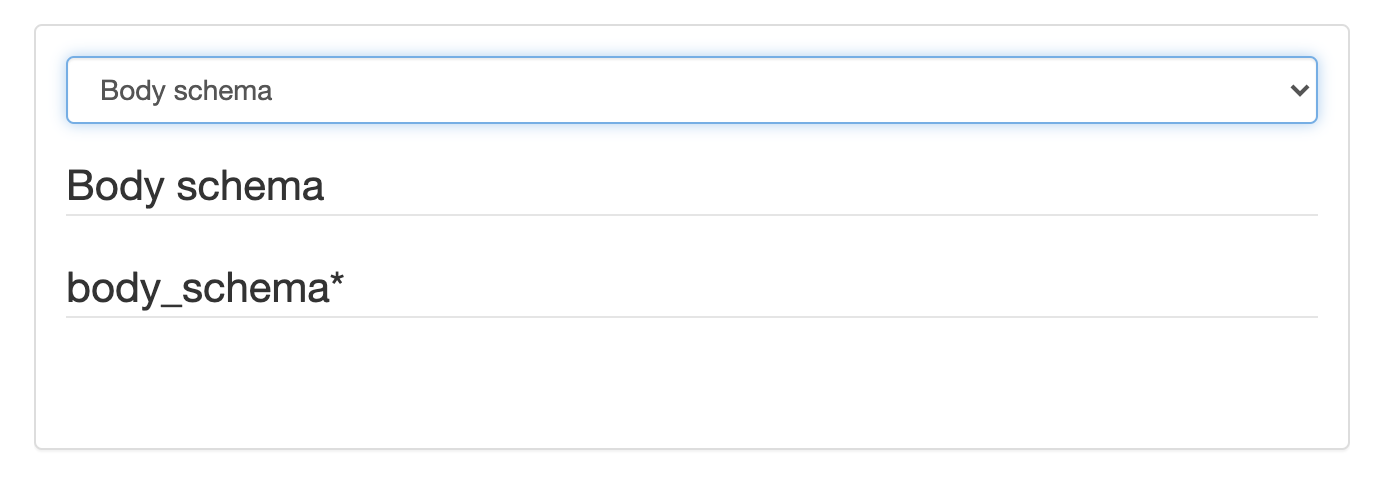

Honestly, after the schema has been updated, we are still not be able to
input anything for `header_schema` and `body_schema` fields. See the snapshot
below:
The reason is that both `body_schema` and `header_schema` are of `object`
type without any `properties` defined, while the react-jsonschema-form library
will not show any input fields for them. I tried to refer to
https://react-jsonschema-form.readthedocs.io/en/v1.8.1/form-customization/ ,
unfortunately there seems no way to make use of `uiSchema` to solve this
problem.
After discussed with @liuxiran , in order to make it happen that we could
define the schema on the web, we also need to customize the dashboard UI, as
well as well design the `header_schema` and `body_schema` data structures
submitted to APISIX. That could be committed to dashboard project following
this issue got fixed.
----------------------------------------------------------------
