Yilialinn commented on code in PR #2115: URL: https://github.com/apache/apisix-website/pull/2115#discussion_r3879763470

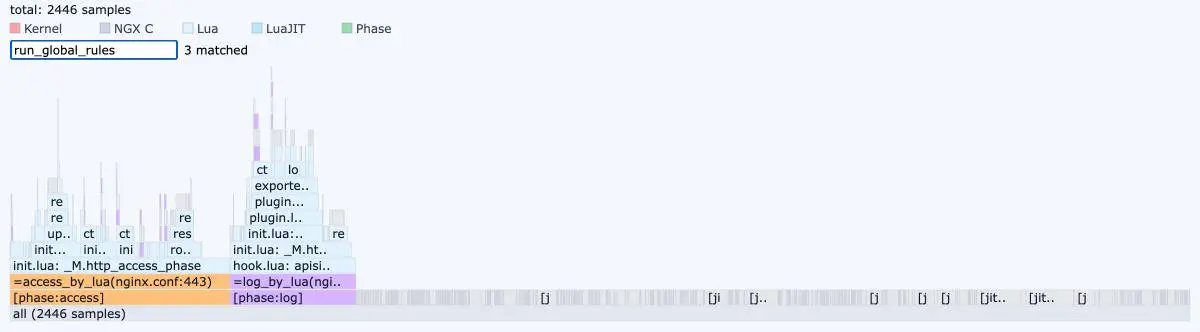

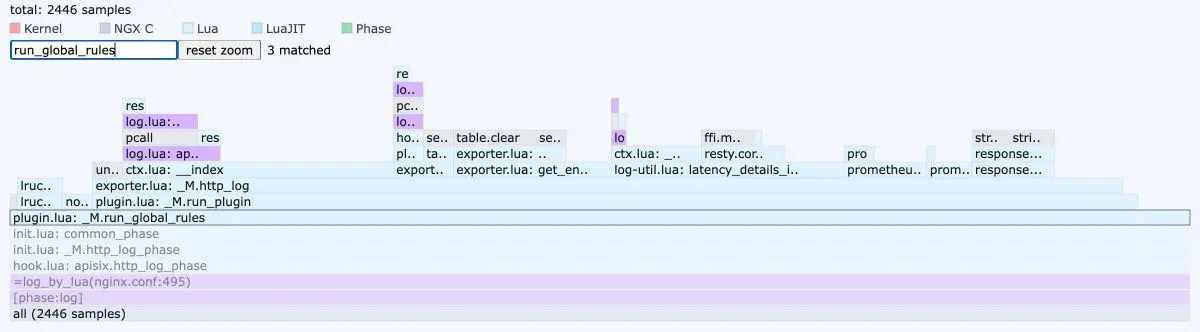

########## blog/en/blog/2026/08/28/debugging-apisix-throughput-regression.md: ########## @@ -0,0 +1,232 @@ +--- +title: "APISIX Throughput Regression: Beyond the Flame Graph" +authors: + - name: "Xin Rong" + title: "Author" + url: "https://github.com/AlinsRan"; + image_url: "https://github.com/AlinsRan.png"; + - name: "Yilia Lin" + title: "Technical Writer" + url: "https://github.com/Yilialinn"; + image_url: "https://github.com/Yilialinn.png"; +keywords: + - Apache APISIX + - flame graph + - LuaJIT + - performance optimization + - throughput regression +description: "An APISIX throughput regression showed why the widest path in the flame graph is not always the real bottleneck—and how CPU data, call stacks, LuaJIT events, and paired A/B tests exposed it." +tags: [Ecosystem] +--- + +Flame graphs are honest, but they are not verdicts. In this APISIX throughput regression, the widest path was not the real bottleneck. The paths worth chasing accounted for just 3.0% and 3.9% of the Lua samples. + +<!--truncate--> + +Ranked by hotspot size alone, neither path would have made the first optimization shortlist. The key was not a single patch but a chain of evidence: confirm that the worker is CPU-bound, compare flame-graph widths, follow repeated call paths, inspect LuaJIT compilation and aborts when the numbers stop adding up, and use per-request call counts plus paired A/B tests to measure the impact. + +> **Data scope:** The data below comes from one internally customized APISIX build in the same controlled environment, with more than 100 plugins loaded. Throughput is normalized and is used only to illustrate the diagnostic method and causal chain. It does not represent the general performance of Apache APISIX OSS under other hardware, configurations, or workloads. + +## 1. Confirm the Worker Is CPU-Bound + +A flame graph shows where the CPU spent its sampled time. Its width matters to a throughput regression only when the target worker is close to saturation and that core limits throughput. + +Before collecting the profile, we held the following conditions constant: + +- APISIX ran with a single worker pinned to a dedicated physical core. +- The upstream service and load generator ran on other cores to avoid CPU contention. +- The request model, configuration, and response content remained unchanged. +- The regression reproduced consistently, with stable error rates and response results. +- The target worker remained close to saturation, while the upstream service, network, and load generator still had headroom. + +If any of these conditions is not met, start with connections, the network, the upstream service, or the load generator—not an on-CPU flame graph. + +## 2. Read Width, Not Rank + +We used eBPF to sample C and Lua call stacks simultaneously at 500 Hz. Here is the actual Lua on-CPU flame graph from the investigation. + + + +Figure 1: Global view of the actual flame graph. Searching for `run_global_rules` produced 3 matches, none of which stood out in the full graph. The original profile contained 2,446 samples; process PIDs were removed from the screenshot. + +In a flame graph, x-axis position does not imply order. Width reflects how many samples landed on a path. Ranked by Lua self time, the first shortlist looked like this: + +| Candidate location | Lua self time | Initial assessment | +|---|---:|---| +| Prometheus exporter | 25.9% | Highest-priority candidate | +| `ctx.var` metamethod | 15.1% | Second candidate | +| Custom logging bypass | 3.9% | Easy to overlook | +| `run_global_rules` | 3.0% | Easy to overlook | + +Here, self time is the share of samples with Lua context that landed directly at a location—not a share of total CPU time. About 19.6% of the samples lacked Lua context, so these percentages are useful for selecting candidates, not predicting throughput gains. + +This ranking has four blind spots: + +1. When LuaJIT executes interpreted code, different Lua code paths may collapse into shared `lj_BC_*` and `lj_vm_*` symbols. +2. Compiled JIT traces cannot always be fully expanded by conventional stack unwinding, so observable JIT samples provide only a lower bound. +3. Costs such as table lookups, memory allocation, and garbage collection are attributed to C symbols rather than to the Lua lines that triggered them. +4. A call can change the caller's JIT state, making the resulting cost appear at the head of the caller function. + +There was another clue: `run_global_rules` did not form one large column. It appeared across stacks from several request phases. No single occurrence was wide, but the combined cost could still be substantial. + +## 3. Follow the Stack to See How 3% Gets Amplified + +Select a `run_global_rules` frame and follow the stack upward. The request-phase entry point sits at the bottom, followed by `common_phase`, Global Rule plugin filtering, dispatch, and finally individual plugin execution. + + + +Figure 2: Interactive zoomed view after selecting one `run_global_rules` stack. The selected stack is stretched to fill the canvas, so its width is normalized and must not be interpreted as its share of total CPU time. Click the image to view it at full size. + +Stack height does not represent elapsed time. It shows where the cost enters, who invokes it, and why it keeps coming back. + +Before the fix, `run_global_rules()` called `_M.filter()` in several request phases. `_M.filter()` iterated through every loaded plugin and checked each one to determine whether it had been configured in the Global Rule: + +```lua +-- Simplified illustration, not the complete APISIX implementation +for _, plugin_obj in ipairs(local_plugins) do + local name = plugin_obj.name + local plugin_conf = user_plugin_conf[name] + if type(plugin_conf) ~= "table" then + goto continue + end + -- Process configured plugins + ::continue:: +end +``` + +Two factors amplified the cost: + +1. The cost of each filtering pass increased with the number of loaded plugins. +2. The same filtering result was regenerated across request phases. The `body_filter` and `delayed_body_filter` phases could also be entered multiple times for response-body chunks. + +In this test configuration, one request triggered 9 filtering passes. The same request scanned more than 100 loaded plugins for the same small configured set 9 times. + +This explains why a Lua-level self time of 3.0% understated the cost of the entire path: + +| Actual work | Common flame-graph attribution | +|---|---| +| The loop itself | Corresponding location in `plugin.lua` | +| Large numbers of table lookups | `lj_BC_TGETS` | +| Temporary table allocation | `lj_alloc_malloc` | +| Temporary object reclamation | `gc_sweep` | +| Uncompiled interpreter dispatch | `lj_vm_*` / `lj_BC_*` | + +At 3% self time, this path looked minor. Following the stack showed that it sat on a shared path entered repeatedly. The optimization followed directly: within one request, if the Global Rule and matched route have not changed, reuse the filtered plugin set instead of rebuilding it in every phase. + +## 4. When the Flame Graph Doesn't Add Up, Check LuaJIT + +The second lead came from a custom observability component. Neither the component nor its logging bypass is part of APISIX OSS, but the failure mode matters to APISIX plugins and OpenResty extensions: a call that looks cheap can add direct cost and change whether subsequent caller code runs in the interpreter or as machine code. + +### 4.1 Interpreter Dispatch Was Abnormally Active + +After reclassifying the C-level samples by runtime category, the most notable signal was not any individual Lua line, but the relationship between interpreter execution and JIT execution: + +| Runtime category | CPU time per request | Share of samples | +|---|---:|---:| +| Interpreter dispatch: `lj_BC_*` / `lj_vm_*` | 5.86 μs | 29.6% | +| Observable JIT trace execution | 2.55 μs | 12.9% | + +JIT traces do not always unwind cleanly, so 12.9% is only a lower bound. Still, the amount of interpreter dispatch in the same environment was a strong signal that some high-frequency paths might not be running consistently as machine code. + +This is not an argument for maximizing trace count. Initialization code does not need to be compiled, and trace costs vary widely. Compilation results are worth investigating only when the CPU is saturated, the path is hot, and interpreter dispatch is unusually active. + +### 4.2 `jit.v` Raised the Alarm—and Caused the First Misdiagnosis + +With `jit.v` enabled, one short load test reported 417 successful trace compilations and 493 aborts. After aggregation by source location, a group of paths each stopped at exactly 11 aborts. + +These are compilation-event counts—not unique functions, coverage, or CPU time. `jit.v` also has several important limitations: + +- An abort line shows the trace abort location, while the penalty is applied to the trace starting point; the two may not be the same line. +- A function never appearing as a trace starting point does not mean it was never compiled. Its body may have been inlined into a parent trace. +- Text logs make it difficult to perform stable set comparisons between results collected with a feature enabled and disabled. + +At first, we read “0 appearances as a starting point” as “the whole function runs in the interpreter.” The bytecode mode of `jit.dump` proved otherwise: several function entries never became root traces, but their bodies repeatedly entered other traces. The recurring failures were in phase-entry and orchestration functions. + +> The absence of a trace starting point proves only that the location did not become a root-trace anchor. It does not prove that the entire function never entered machine code. + +### 4.3 Correlate `start`, `stop`, and `abort` by Trace Start + +To learn what failed to compile and why, we needed the event stream from LuaJIT itself. Store each `start` location by trace ID, then map the matching `stop` or `abort` back to that same starting point: + +```lua +-- Simplified illustration; actual callback arguments and parsing are more complex +local trace_start = {} + +jit.attach(function(what, trace_id, func, pc, err_code) + if what == "start" then + trace_start[trace_id] = locate(func, pc) + elseif what == "stop" then + record_compiled(trace_start[trace_id]) + trace_start[trace_id] = nil + elseif what == "abort" then + record_abort(trace_start[trace_id], err_code) + trace_start[trace_id] = nil + end +end, "trace") +``` + +The real probe also needs `jit.util.funcinfo` to resolve source locations and `jit.vmdef.traceerr` to recover abort reasons. With that data, we can compare the component's enabled and disabled states: which starting points compile, which repeatedly abort, and whether a trace flush occurs. + +In the LuaJIT build used here, the failure penalty started at 72 and doubled after each failure. It was 36,864 on the 10th failure and reached 73,728 on the 11th, above the 60,000 limit. Several starting points stopped at exactly 11 aborts and never entered the compiled set; no trace flush occurred during collection. The number of live traces in both test variants remained below the cache limit, ruling out trace-cache exhaustion. Together, the evidence showed that LuaJIT had abandoned further compilation attempts for those trace starts. + +Keep the conclusion narrow: LuaJIT abandoned those trace starts, not necessarily the entire functions. Other parts of the same functions could still have been inlined into different traces. Review Comment: Updated in abd89cc. Removed the editor-style instruction and stated the technical limit directly: LuaJIT may not have abandoned those functions entirely. ########## blog/en/blog/2026/08/28/debugging-apisix-throughput-regression.md: ########## @@ -0,0 +1,232 @@ +--- +title: "APISIX Throughput Regression: Beyond the Flame Graph" +authors: + - name: "Xin Rong" + title: "Author" + url: "https://github.com/AlinsRan"; + image_url: "https://github.com/AlinsRan.png"; + - name: "Yilia Lin" + title: "Technical Writer" + url: "https://github.com/Yilialinn"; + image_url: "https://github.com/Yilialinn.png"; +keywords: + - Apache APISIX + - flame graph + - LuaJIT + - performance optimization + - throughput regression +description: "An APISIX throughput regression showed why the widest path in the flame graph is not always the real bottleneck—and how CPU data, call stacks, LuaJIT events, and paired A/B tests exposed it." +tags: [Ecosystem] +--- + +Flame graphs are honest, but they are not verdicts. In this APISIX throughput regression, the widest path was not the real bottleneck. The paths worth chasing accounted for just 3.0% and 3.9% of the Lua samples. + +<!--truncate--> + +Ranked by hotspot size alone, neither path would have made the first optimization shortlist. The key was not a single patch but a chain of evidence: confirm that the worker is CPU-bound, compare flame-graph widths, follow repeated call paths, inspect LuaJIT compilation and aborts when the numbers stop adding up, and use per-request call counts plus paired A/B tests to measure the impact. + +> **Data scope:** The data below comes from one internally customized APISIX build in the same controlled environment, with more than 100 plugins loaded. Throughput is normalized and is used only to illustrate the diagnostic method and causal chain. It does not represent the general performance of Apache APISIX OSS under other hardware, configurations, or workloads. + +## 1. Confirm the Worker Is CPU-Bound + +A flame graph shows where the CPU spent its sampled time. Its width matters to a throughput regression only when the target worker is close to saturation and that core limits throughput. + +Before collecting the profile, we held the following conditions constant: + +- APISIX ran with a single worker pinned to a dedicated physical core. +- The upstream service and load generator ran on other cores to avoid CPU contention. +- The request model, configuration, and response content remained unchanged. +- The regression reproduced consistently, with stable error rates and response results. +- The target worker remained close to saturation, while the upstream service, network, and load generator still had headroom. + +If any of these conditions is not met, start with connections, the network, the upstream service, or the load generator—not an on-CPU flame graph. + +## 2. Read Width, Not Rank + +We used eBPF to sample C and Lua call stacks simultaneously at 500 Hz. Here is the actual Lua on-CPU flame graph from the investigation. + + + +Figure 1: Global view of the actual flame graph. Searching for `run_global_rules` produced 3 matches, none of which stood out in the full graph. The original profile contained 2,446 samples; process PIDs were removed from the screenshot. + +In a flame graph, x-axis position does not imply order. Width reflects how many samples landed on a path. Ranked by Lua self time, the first shortlist looked like this: + +| Candidate location | Lua self time | Initial assessment | +|---|---:|---| +| Prometheus exporter | 25.9% | Highest-priority candidate | +| `ctx.var` metamethod | 15.1% | Second candidate | +| Custom logging bypass | 3.9% | Easy to overlook | +| `run_global_rules` | 3.0% | Easy to overlook | + +Here, self time is the share of samples with Lua context that landed directly at a location—not a share of total CPU time. About 19.6% of the samples lacked Lua context, so these percentages are useful for selecting candidates, not predicting throughput gains. + +This ranking has four blind spots: + +1. When LuaJIT executes interpreted code, different Lua code paths may collapse into shared `lj_BC_*` and `lj_vm_*` symbols. +2. Compiled JIT traces cannot always be fully expanded by conventional stack unwinding, so observable JIT samples provide only a lower bound. +3. Costs such as table lookups, memory allocation, and garbage collection are attributed to C symbols rather than to the Lua lines that triggered them. +4. A call can change the caller's JIT state, making the resulting cost appear at the head of the caller function. + +There was another clue: `run_global_rules` did not form one large column. It appeared across stacks from several request phases. No single occurrence was wide, but the combined cost could still be substantial. + +## 3. Follow the Stack to See How 3% Gets Amplified + +Select a `run_global_rules` frame and follow the stack upward. The request-phase entry point sits at the bottom, followed by `common_phase`, Global Rule plugin filtering, dispatch, and finally individual plugin execution. + + + +Figure 2: Interactive zoomed view after selecting one `run_global_rules` stack. The selected stack is stretched to fill the canvas, so its width is normalized and must not be interpreted as its share of total CPU time. Click the image to view it at full size. + +Stack height does not represent elapsed time. It shows where the cost enters, who invokes it, and why it keeps coming back. + +Before the fix, `run_global_rules()` called `_M.filter()` in several request phases. `_M.filter()` iterated through every loaded plugin and checked each one to determine whether it had been configured in the Global Rule: + +```lua +-- Simplified illustration, not the complete APISIX implementation +for _, plugin_obj in ipairs(local_plugins) do + local name = plugin_obj.name + local plugin_conf = user_plugin_conf[name] + if type(plugin_conf) ~= "table" then + goto continue + end + -- Process configured plugins + ::continue:: +end +``` + +Two factors amplified the cost: + +1. The cost of each filtering pass increased with the number of loaded plugins. +2. The same filtering result was regenerated across request phases. The `body_filter` and `delayed_body_filter` phases could also be entered multiple times for response-body chunks. + +In this test configuration, one request triggered 9 filtering passes. The same request scanned more than 100 loaded plugins for the same small configured set 9 times. + +This explains why a Lua-level self time of 3.0% understated the cost of the entire path: + +| Actual work | Common flame-graph attribution | +|---|---| +| The loop itself | Corresponding location in `plugin.lua` | +| Large numbers of table lookups | `lj_BC_TGETS` | +| Temporary table allocation | `lj_alloc_malloc` | +| Temporary object reclamation | `gc_sweep` | +| Uncompiled interpreter dispatch | `lj_vm_*` / `lj_BC_*` | + +At 3% self time, this path looked minor. Following the stack showed that it sat on a shared path entered repeatedly. The optimization followed directly: within one request, if the Global Rule and matched route have not changed, reuse the filtered plugin set instead of rebuilding it in every phase. + +## 4. When the Flame Graph Doesn't Add Up, Check LuaJIT + +The second lead came from a custom observability component. Neither the component nor its logging bypass is part of APISIX OSS, but the failure mode matters to APISIX plugins and OpenResty extensions: a call that looks cheap can add direct cost and change whether subsequent caller code runs in the interpreter or as machine code. + +### 4.1 Interpreter Dispatch Was Abnormally Active + +After reclassifying the C-level samples by runtime category, the most notable signal was not any individual Lua line, but the relationship between interpreter execution and JIT execution: + +| Runtime category | CPU time per request | Share of samples | +|---|---:|---:| +| Interpreter dispatch: `lj_BC_*` / `lj_vm_*` | 5.86 μs | 29.6% | +| Observable JIT trace execution | 2.55 μs | 12.9% | + +JIT traces do not always unwind cleanly, so 12.9% is only a lower bound. Still, the amount of interpreter dispatch in the same environment was a strong signal that some high-frequency paths might not be running consistently as machine code. + +This is not an argument for maximizing trace count. Initialization code does not need to be compiled, and trace costs vary widely. Compilation results are worth investigating only when the CPU is saturated, the path is hot, and interpreter dispatch is unusually active. + +### 4.2 `jit.v` Raised the Alarm—and Caused the First Misdiagnosis + +With `jit.v` enabled, one short load test reported 417 successful trace compilations and 493 aborts. After aggregation by source location, a group of paths each stopped at exactly 11 aborts. + +These are compilation-event counts—not unique functions, coverage, or CPU time. `jit.v` also has several important limitations: + +- An abort line shows the trace abort location, while the penalty is applied to the trace starting point; the two may not be the same line. +- A function never appearing as a trace starting point does not mean it was never compiled. Its body may have been inlined into a parent trace. +- Text logs make it difficult to perform stable set comparisons between results collected with a feature enabled and disabled. + +At first, we read “0 appearances as a starting point” as “the whole function runs in the interpreter.” The bytecode mode of `jit.dump` proved otherwise: several function entries never became root traces, but their bodies repeatedly entered other traces. The recurring failures were in phase-entry and orchestration functions. + +> The absence of a trace starting point proves only that the location did not become a root-trace anchor. It does not prove that the entire function never entered machine code. + +### 4.3 Correlate `start`, `stop`, and `abort` by Trace Start + +To learn what failed to compile and why, we needed the event stream from LuaJIT itself. Store each `start` location by trace ID, then map the matching `stop` or `abort` back to that same starting point: + +```lua +-- Simplified illustration; actual callback arguments and parsing are more complex +local trace_start = {} + +jit.attach(function(what, trace_id, func, pc, err_code) + if what == "start" then + trace_start[trace_id] = locate(func, pc) + elseif what == "stop" then + record_compiled(trace_start[trace_id]) + trace_start[trace_id] = nil + elseif what == "abort" then + record_abort(trace_start[trace_id], err_code) + trace_start[trace_id] = nil + end +end, "trace") +``` + +The real probe also needs `jit.util.funcinfo` to resolve source locations and `jit.vmdef.traceerr` to recover abort reasons. With that data, we can compare the component's enabled and disabled states: which starting points compile, which repeatedly abort, and whether a trace flush occurs. + +In the LuaJIT build used here, the failure penalty started at 72 and doubled after each failure. It was 36,864 on the 10th failure and reached 73,728 on the 11th, above the 60,000 limit. Several starting points stopped at exactly 11 aborts and never entered the compiled set; no trace flush occurred during collection. The number of live traces in both test variants remained below the cache limit, ruling out trace-cache exhaustion. Together, the evidence showed that LuaJIT had abandoned further compilation attempts for those trace starts. + +Keep the conclusion narrow: LuaJIT abandoned those trace starts, not necessarily the entire functions. Other parts of the same functions could still have been inlined into different traces. + +When the data was grouped by caller, every affected phase-entry and orchestration function passed through the same custom logging bypass. When the log level was too low to emit output, this path still inspected the request phase, call stack, and request context. The added call did not produce a wide column of its own, but it changed the JIT outcome of its callers, making part of the cost appear at the heads of ordinary request-processing functions. + +```lua +-- Simplified custom extension, not an APISIX OSS implementation +if log_level_is_suppressed then + check_debug_capture(...) + check_request_buffer(...) + return +end +``` + +The JIT data did two jobs: it exposed costs the flame graph could not attribute cleanly, and it showed that toggling the feature changed how hot paths executed. It still could not quantify the throughput loss. The goal was not to force every function to compile; it was to remove work that should never happen when the feature is disabled. + +One more trap: install the probe before loading the module under observation. A module can capture a function reference during `require`; replacing that function later leaves the captured reference untouched. Our late probe saw 1 call per request. Moving it before `require("apisix")` exposed the real rate: 5 calls per request. + +## 5. Close the Loop with Paired A/B Tests + +Flame graphs identify locations, call stacks reveal amplification, and LuaJIT events explain misplaced costs. Paired experiments tell us how much those paths are actually worth. + +For the Global Rule path, we kept the same dispatch and configuration but returned immediately after entering the Prometheus business function. This helped distinguish the cost of the plugin's business logic from that of the shared path before plugin entry. To avoid presenting absolute RPS from a customized environment as an APISIX OSS benchmark, we normalized throughput with Prometheus disabled to 100: + +| Internal A/B scenario | Relative throughput index | Relative to Prometheus disabled | +|---|---:|---:| +| Prometheus disabled | 100.0 | Baseline | +| Plugin and dispatch retained; business function returns immediately | 77.2 | -22.8% | +| Complete Prometheus Global Rule | 56.9 | -43.1% | + +The gap remained even after short-circuiting the plugin's business code. The experiment did not identify a single expensive line, but it ruled out metric calculation as the only cause. Combined with 9 filtering passes per request, the call stacks, and the C-level cost distribution, it closed the amplification chain. + +We used the same method for the custom observability component. With workload and configuration held constant, we collected compilation events, per-request call counts, throughput, and response correctness with the component on and off. JIT events explained why no wide new column appeared in the graph; the end-to-end A/B test measured the actual cost. + +The investigation comes down to five steps: + +| Step | Core question | Evidence | +|---|---|---| +| 1. Verify the worker is CPU-bound | Is the target worker actually CPU-bound? | Worker saturation, CPU pinning, spare upstream and load-generator capacity, and stable reproduction | +| 2. Compare widths | Where do samples accumulate? | Global flame graph and candidate ranking | +| 3. Follow stacks | What multiplies a small local cost? | Request phases, shared functions, and per-request call counts | +| 4. Inspect LuaJIT | Why does cost appear elsewhere or go missing? | `start`, `stop`, `abort`, `flush`, and `jit.dump` | +| 5. Run paired A/B tests | How large is the effect, and is it causal? | Throughput, latency, call counts, error rate, and response consistency | + +Keep the conclusions within clear boundaries: + +- Flame-graph width, Lua self time, and throughput changes use different denominators and cannot be directly subtracted or divided. +- The custom observability component is not part of APISIX OSS. It is included only to illustrate a general issue that custom extensions may encounter. +- The values 29.6%, 12.9%, 417, 493, and abort ×11 apply only to this build and collection window and must not be extrapolated. +- “Did not become a trace starting point” does not mean “the function was not compiled.” You must check whether the function body entered other traces. +- JIT compilation results are diagnostic signals, not final performance metrics. Any optimization must still be validated against throughput, latency, error rate, response content, and resource reclamation. + +The flame graph was not wrong. Width showed where CPU samples accumulated, and call stacks showed how shared paths amplified the cost. But once that cost spread across interpreter dispatch, JIT traces, the allocator, and caller functions, the graph no longer showed complete attribution. + +When the graph stops adding up, do not keep guessing which Lua line should be faster. Pull the compilation-event stream from LuaJIT, count calls per request, and run paired A/B tests. The best optimization target is often not the widest column, but the work the evidence shows should never have repeated in the first place. + +## References + +1. [WPS with Apache APISIX: Flame Graph and LuaJIT Performance Practices](https://apisix.apache.org/blog/2021/09/28/wps-usercase/) +2. [1s to 10ms: Reproducing, Diagnosing, and Fixing Prometheus Tail Latency](https://api7.ai/blog/1s-to-10ms-reducing-prometheus-delay-in-api-gateway) Review Comment: Updated in abd89cc. Verified both linked pages and replaced the paraphrases with their canonical English titles. ########## blog/en/blog/2026/08/28/debugging-apisix-throughput-regression.md: ########## @@ -0,0 +1,232 @@ +--- +title: "APISIX Throughput Regression: Beyond the Flame Graph" +authors: + - name: "Xin Rong" + title: "Author" + url: "https://github.com/AlinsRan"; + image_url: "https://github.com/AlinsRan.png"; + - name: "Yilia Lin" + title: "Technical Writer" + url: "https://github.com/Yilialinn"; + image_url: "https://github.com/Yilialinn.png"; +keywords: + - Apache APISIX + - flame graph + - LuaJIT + - performance optimization + - throughput regression +description: "An APISIX throughput regression showed why the widest path in the flame graph is not always the real bottleneck—and how CPU data, call stacks, LuaJIT events, and paired A/B tests exposed it." +tags: [Ecosystem] +--- + +Flame graphs are honest, but they are not verdicts. In this APISIX throughput regression, the widest path was not the real bottleneck. The paths worth chasing accounted for just 3.0% and 3.9% of the Lua samples. + +<!--truncate--> + +Ranked by hotspot size alone, neither path would have made the first optimization shortlist. The key was not a single patch but a chain of evidence: confirm that the worker is CPU-bound, compare flame-graph widths, follow repeated call paths, inspect LuaJIT compilation and aborts when the numbers stop adding up, and use per-request call counts plus paired A/B tests to measure the impact. + +> **Data scope:** The data below comes from one internally customized APISIX build in the same controlled environment, with more than 100 plugins loaded. Throughput is normalized and is used only to illustrate the diagnostic method and causal chain. It does not represent the general performance of Apache APISIX OSS under other hardware, configurations, or workloads. + +## 1. Confirm the Worker Is CPU-Bound + +A flame graph shows where the CPU spent its sampled time. Its width matters to a throughput regression only when the target worker is close to saturation and that core limits throughput. + +Before collecting the profile, we held the following conditions constant: + +- APISIX ran with a single worker pinned to a dedicated physical core. +- The upstream service and load generator ran on other cores to avoid CPU contention. +- The request model, configuration, and response content remained unchanged. +- The regression reproduced consistently, with stable error rates and response results. +- The target worker remained close to saturation, while the upstream service, network, and load generator still had headroom. + +If any of these conditions is not met, start with connections, the network, the upstream service, or the load generator—not an on-CPU flame graph. + +## 2. Read Width, Not Rank + +We used eBPF to sample C and Lua call stacks simultaneously at 500 Hz. Here is the actual Lua on-CPU flame graph from the investigation. + + + +Figure 1: Global view of the actual flame graph. Searching for `run_global_rules` produced 3 matches, none of which stood out in the full graph. The original profile contained 2,446 samples; process PIDs were removed from the screenshot. + +In a flame graph, x-axis position does not imply order. Width reflects how many samples landed on a path. Ranked by Lua self time, the first shortlist looked like this: + +| Candidate location | Lua self time | Initial assessment | +|---|---:|---| +| Prometheus exporter | 25.9% | Highest-priority candidate | +| `ctx.var` metamethod | 15.1% | Second candidate | +| Custom logging bypass | 3.9% | Easy to overlook | +| `run_global_rules` | 3.0% | Easy to overlook | + +Here, self time is the share of samples with Lua context that landed directly at a location—not a share of total CPU time. About 19.6% of the samples lacked Lua context, so these percentages are useful for selecting candidates, not predicting throughput gains. + +This ranking has four blind spots: + +1. When LuaJIT executes interpreted code, different Lua code paths may collapse into shared `lj_BC_*` and `lj_vm_*` symbols. +2. Compiled JIT traces cannot always be fully expanded by conventional stack unwinding, so observable JIT samples provide only a lower bound. +3. Costs such as table lookups, memory allocation, and garbage collection are attributed to C symbols rather than to the Lua lines that triggered them. +4. A call can change the caller's JIT state, making the resulting cost appear at the head of the caller function. + +There was another clue: `run_global_rules` did not form one large column. It appeared across stacks from several request phases. No single occurrence was wide, but the combined cost could still be substantial. + +## 3. Follow the Stack to See How 3% Gets Amplified + +Select a `run_global_rules` frame and follow the stack upward. The request-phase entry point sits at the bottom, followed by `common_phase`, Global Rule plugin filtering, dispatch, and finally individual plugin execution. + + + +Figure 2: Interactive zoomed view after selecting one `run_global_rules` stack. The selected stack is stretched to fill the canvas, so its width is normalized and must not be interpreted as its share of total CPU time. Click the image to view it at full size. + +Stack height does not represent elapsed time. It shows where the cost enters, who invokes it, and why it keeps coming back. + +Before the fix, `run_global_rules()` called `_M.filter()` in several request phases. `_M.filter()` iterated through every loaded plugin and checked each one to determine whether it had been configured in the Global Rule: + +```lua +-- Simplified illustration, not the complete APISIX implementation +for _, plugin_obj in ipairs(local_plugins) do + local name = plugin_obj.name + local plugin_conf = user_plugin_conf[name] + if type(plugin_conf) ~= "table" then + goto continue + end + -- Process configured plugins + ::continue:: +end +``` + +Two factors amplified the cost: + +1. The cost of each filtering pass increased with the number of loaded plugins. +2. The same filtering result was regenerated across request phases. The `body_filter` and `delayed_body_filter` phases could also be entered multiple times for response-body chunks. + +In this test configuration, one request triggered 9 filtering passes. The same request scanned more than 100 loaded plugins for the same small configured set 9 times. + +This explains why a Lua-level self time of 3.0% understated the cost of the entire path: + +| Actual work | Common flame-graph attribution | +|---|---| +| The loop itself | Corresponding location in `plugin.lua` | +| Large numbers of table lookups | `lj_BC_TGETS` | +| Temporary table allocation | `lj_alloc_malloc` | +| Temporary object reclamation | `gc_sweep` | +| Uncompiled interpreter dispatch | `lj_vm_*` / `lj_BC_*` | + +At 3% self time, this path looked minor. Following the stack showed that it sat on a shared path entered repeatedly. The optimization followed directly: within one request, if the Global Rule and matched route have not changed, reuse the filtered plugin set instead of rebuilding it in every phase. + +## 4. When the Flame Graph Doesn't Add Up, Check LuaJIT + +The second lead came from a custom observability component. Neither the component nor its logging bypass is part of APISIX OSS, but the failure mode matters to APISIX plugins and OpenResty extensions: a call that looks cheap can add direct cost and change whether subsequent caller code runs in the interpreter or as machine code. + +### 4.1 Interpreter Dispatch Was Abnormally Active + +After reclassifying the C-level samples by runtime category, the most notable signal was not any individual Lua line, but the relationship between interpreter execution and JIT execution: + +| Runtime category | CPU time per request | Share of samples | +|---|---:|---:| +| Interpreter dispatch: `lj_BC_*` / `lj_vm_*` | 5.86 μs | 29.6% | +| Observable JIT trace execution | 2.55 μs | 12.9% | + +JIT traces do not always unwind cleanly, so 12.9% is only a lower bound. Still, the amount of interpreter dispatch in the same environment was a strong signal that some high-frequency paths might not be running consistently as machine code. + +This is not an argument for maximizing trace count. Initialization code does not need to be compiled, and trace costs vary widely. Compilation results are worth investigating only when the CPU is saturated, the path is hot, and interpreter dispatch is unusually active. + +### 4.2 `jit.v` Raised the Alarm—and Caused the First Misdiagnosis + +With `jit.v` enabled, one short load test reported 417 successful trace compilations and 493 aborts. After aggregation by source location, a group of paths each stopped at exactly 11 aborts. + +These are compilation-event counts—not unique functions, coverage, or CPU time. `jit.v` also has several important limitations: + +- An abort line shows the trace abort location, while the penalty is applied to the trace starting point; the two may not be the same line. +- A function never appearing as a trace starting point does not mean it was never compiled. Its body may have been inlined into a parent trace. +- Text logs make it difficult to perform stable set comparisons between results collected with a feature enabled and disabled. Review Comment: Updated in abd89cc. The text now says that text logs make it hard to reliably diff results between enabled and disabled runs. ########## blog/en/blog/2026/08/28/debugging-apisix-throughput-regression.md: ########## @@ -0,0 +1,232 @@ +--- +title: "APISIX Throughput Regression: Beyond the Flame Graph" +authors: + - name: "Xin Rong" + title: "Author" + url: "https://github.com/AlinsRan"; + image_url: "https://github.com/AlinsRan.png"; + - name: "Yilia Lin" + title: "Technical Writer" + url: "https://github.com/Yilialinn"; + image_url: "https://github.com/Yilialinn.png"; +keywords: + - Apache APISIX + - flame graph + - LuaJIT + - performance optimization + - throughput regression +description: "An APISIX throughput regression showed why the widest path in the flame graph is not always the real bottleneck—and how CPU data, call stacks, LuaJIT events, and paired A/B tests exposed it." +tags: [Ecosystem] +--- + +Flame graphs are honest, but they are not verdicts. In this APISIX throughput regression, the widest path was not the real bottleneck. The paths worth chasing accounted for just 3.0% and 3.9% of the Lua samples. + +<!--truncate--> + +Ranked by hotspot size alone, neither path would have made the first optimization shortlist. The key was not a single patch but a chain of evidence: confirm that the worker is CPU-bound, compare flame-graph widths, follow repeated call paths, inspect LuaJIT compilation and aborts when the numbers stop adding up, and use per-request call counts plus paired A/B tests to measure the impact. + +> **Data scope:** The data below comes from one internally customized APISIX build in the same controlled environment, with more than 100 plugins loaded. Throughput is normalized and is used only to illustrate the diagnostic method and causal chain. It does not represent the general performance of Apache APISIX OSS under other hardware, configurations, or workloads. + +## 1. Confirm the Worker Is CPU-Bound + +A flame graph shows where the CPU spent its sampled time. Its width matters to a throughput regression only when the target worker is close to saturation and that core limits throughput. + +Before collecting the profile, we held the following conditions constant: + +- APISIX ran with a single worker pinned to a dedicated physical core. +- The upstream service and load generator ran on other cores to avoid CPU contention. +- The request model, configuration, and response content remained unchanged. +- The regression reproduced consistently, with stable error rates and response results. +- The target worker remained close to saturation, while the upstream service, network, and load generator still had headroom. + +If any of these conditions is not met, start with connections, the network, the upstream service, or the load generator—not an on-CPU flame graph. + +## 2. Read Width, Not Rank + +We used eBPF to sample C and Lua call stacks simultaneously at 500 Hz. Here is the actual Lua on-CPU flame graph from the investigation. + + + +Figure 1: Global view of the actual flame graph. Searching for `run_global_rules` produced 3 matches, none of which stood out in the full graph. The original profile contained 2,446 samples; process PIDs were removed from the screenshot. + +In a flame graph, x-axis position does not imply order. Width reflects how many samples landed on a path. Ranked by Lua self time, the first shortlist looked like this: + +| Candidate location | Lua self time | Initial assessment | +|---|---:|---| +| Prometheus exporter | 25.9% | Highest-priority candidate | +| `ctx.var` metamethod | 15.1% | Second candidate | +| Custom logging bypass | 3.9% | Easy to overlook | +| `run_global_rules` | 3.0% | Easy to overlook | + +Here, self time is the share of samples with Lua context that landed directly at a location—not a share of total CPU time. About 19.6% of the samples lacked Lua context, so these percentages are useful for selecting candidates, not predicting throughput gains. + +This ranking has four blind spots: + +1. When LuaJIT executes interpreted code, different Lua code paths may collapse into shared `lj_BC_*` and `lj_vm_*` symbols. +2. Compiled JIT traces cannot always be fully expanded by conventional stack unwinding, so observable JIT samples provide only a lower bound. +3. Costs such as table lookups, memory allocation, and garbage collection are attributed to C symbols rather than to the Lua lines that triggered them. +4. A call can change the caller's JIT state, making the resulting cost appear at the head of the caller function. + +There was another clue: `run_global_rules` did not form one large column. It appeared across stacks from several request phases. No single occurrence was wide, but the combined cost could still be substantial. + +## 3. Follow the Stack to See How 3% Gets Amplified + +Select a `run_global_rules` frame and follow the stack upward. The request-phase entry point sits at the bottom, followed by `common_phase`, Global Rule plugin filtering, dispatch, and finally individual plugin execution. + + + +Figure 2: Interactive zoomed view after selecting one `run_global_rules` stack. The selected stack is stretched to fill the canvas, so its width is normalized and must not be interpreted as its share of total CPU time. Click the image to view it at full size. + +Stack height does not represent elapsed time. It shows where the cost enters, who invokes it, and why it keeps coming back. + +Before the fix, `run_global_rules()` called `_M.filter()` in several request phases. `_M.filter()` iterated through every loaded plugin and checked each one to determine whether it had been configured in the Global Rule: + +```lua +-- Simplified illustration, not the complete APISIX implementation +for _, plugin_obj in ipairs(local_plugins) do + local name = plugin_obj.name + local plugin_conf = user_plugin_conf[name] + if type(plugin_conf) ~= "table" then + goto continue + end + -- Process configured plugins + ::continue:: +end +``` + +Two factors amplified the cost: + +1. The cost of each filtering pass increased with the number of loaded plugins. +2. The same filtering result was regenerated across request phases. The `body_filter` and `delayed_body_filter` phases could also be entered multiple times for response-body chunks. + +In this test configuration, one request triggered 9 filtering passes. The same request scanned more than 100 loaded plugins for the same small configured set 9 times. + +This explains why a Lua-level self time of 3.0% understated the cost of the entire path: + +| Actual work | Common flame-graph attribution | +|---|---| +| The loop itself | Corresponding location in `plugin.lua` | +| Large numbers of table lookups | `lj_BC_TGETS` | +| Temporary table allocation | `lj_alloc_malloc` | +| Temporary object reclamation | `gc_sweep` | +| Uncompiled interpreter dispatch | `lj_vm_*` / `lj_BC_*` | + +At 3% self time, this path looked minor. Following the stack showed that it sat on a shared path entered repeatedly. The optimization followed directly: within one request, if the Global Rule and matched route have not changed, reuse the filtered plugin set instead of rebuilding it in every phase. + +## 4. When the Flame Graph Doesn't Add Up, Check LuaJIT + +The second lead came from a custom observability component. Neither the component nor its logging bypass is part of APISIX OSS, but the failure mode matters to APISIX plugins and OpenResty extensions: a call that looks cheap can add direct cost and change whether subsequent caller code runs in the interpreter or as machine code. + +### 4.1 Interpreter Dispatch Was Abnormally Active + +After reclassifying the C-level samples by runtime category, the most notable signal was not any individual Lua line, but the relationship between interpreter execution and JIT execution: + +| Runtime category | CPU time per request | Share of samples | +|---|---:|---:| +| Interpreter dispatch: `lj_BC_*` / `lj_vm_*` | 5.86 μs | 29.6% | +| Observable JIT trace execution | 2.55 μs | 12.9% | + +JIT traces do not always unwind cleanly, so 12.9% is only a lower bound. Still, the amount of interpreter dispatch in the same environment was a strong signal that some high-frequency paths might not be running consistently as machine code. + +This is not an argument for maximizing trace count. Initialization code does not need to be compiled, and trace costs vary widely. Compilation results are worth investigating only when the CPU is saturated, the path is hot, and interpreter dispatch is unusually active. + +### 4.2 `jit.v` Raised the Alarm—and Caused the First Misdiagnosis + +With `jit.v` enabled, one short load test reported 417 successful trace compilations and 493 aborts. After aggregation by source location, a group of paths each stopped at exactly 11 aborts. + +These are compilation-event counts—not unique functions, coverage, or CPU time. `jit.v` also has several important limitations: + +- An abort line shows the trace abort location, while the penalty is applied to the trace starting point; the two may not be the same line. +- A function never appearing as a trace starting point does not mean it was never compiled. Its body may have been inlined into a parent trace. +- Text logs make it difficult to perform stable set comparisons between results collected with a feature enabled and disabled. + +At first, we read “0 appearances as a starting point” as “the whole function runs in the interpreter.” The bytecode mode of `jit.dump` proved otherwise: several function entries never became root traces, but their bodies repeatedly entered other traces. The recurring failures were in phase-entry and orchestration functions. + +> The absence of a trace starting point proves only that the location did not become a root-trace anchor. It does not prove that the entire function never entered machine code. + +### 4.3 Correlate `start`, `stop`, and `abort` by Trace Start + +To learn what failed to compile and why, we needed the event stream from LuaJIT itself. Store each `start` location by trace ID, then map the matching `stop` or `abort` back to that same starting point: + +```lua +-- Simplified illustration; actual callback arguments and parsing are more complex +local trace_start = {} + +jit.attach(function(what, trace_id, func, pc, err_code) + if what == "start" then + trace_start[trace_id] = locate(func, pc) + elseif what == "stop" then + record_compiled(trace_start[trace_id]) + trace_start[trace_id] = nil + elseif what == "abort" then + record_abort(trace_start[trace_id], err_code) + trace_start[trace_id] = nil + end +end, "trace") +``` + +The real probe also needs `jit.util.funcinfo` to resolve source locations and `jit.vmdef.traceerr` to recover abort reasons. With that data, we can compare the component's enabled and disabled states: which starting points compile, which repeatedly abort, and whether a trace flush occurs. + +In the LuaJIT build used here, the failure penalty started at 72 and doubled after each failure. It was 36,864 on the 10th failure and reached 73,728 on the 11th, above the 60,000 limit. Several starting points stopped at exactly 11 aborts and never entered the compiled set; no trace flush occurred during collection. The number of live traces in both test variants remained below the cache limit, ruling out trace-cache exhaustion. Together, the evidence showed that LuaJIT had abandoned further compilation attempts for those trace starts. + +Keep the conclusion narrow: LuaJIT abandoned those trace starts, not necessarily the entire functions. Other parts of the same functions could still have been inlined into different traces. + +When the data was grouped by caller, every affected phase-entry and orchestration function passed through the same custom logging bypass. When the log level was too low to emit output, this path still inspected the request phase, call stack, and request context. The added call did not produce a wide column of its own, but it changed the JIT outcome of its callers, making part of the cost appear at the heads of ordinary request-processing functions. + +```lua +-- Simplified custom extension, not an APISIX OSS implementation +if log_level_is_suppressed then + check_debug_capture(...) + check_request_buffer(...) + return +end +``` + +The JIT data did two jobs: it exposed costs the flame graph could not attribute cleanly, and it showed that toggling the feature changed how hot paths executed. It still could not quantify the throughput loss. The goal was not to force every function to compile; it was to remove work that should never happen when the feature is disabled. + +One more trap: install the probe before loading the module under observation. A module can capture a function reference during `require`; replacing that function later leaves the captured reference untouched. Our late probe saw 1 call per request. Moving it before `require("apisix")` exposed the real rate: 5 calls per request. + +## 5. Close the Loop with Paired A/B Tests + +Flame graphs identify locations, call stacks reveal amplification, and LuaJIT events explain misplaced costs. Paired experiments tell us how much those paths are actually worth. + +For the Global Rule path, we kept the same dispatch and configuration but returned immediately after entering the Prometheus business function. This helped distinguish the cost of the plugin's business logic from that of the shared path before plugin entry. To avoid presenting absolute RPS from a customized environment as an APISIX OSS benchmark, we normalized throughput with Prometheus disabled to 100: + +| Internal A/B scenario | Relative throughput index | Relative to Prometheus disabled | +|---|---:|---:| +| Prometheus disabled | 100.0 | Baseline | +| Plugin and dispatch retained; business function returns immediately | 77.2 | -22.8% | +| Complete Prometheus Global Rule | 56.9 | -43.1% | + +The gap remained even after short-circuiting the plugin's business code. The experiment did not identify a single expensive line, but it ruled out metric calculation as the only cause. Combined with 9 filtering passes per request, the call stacks, and the C-level cost distribution, it closed the amplification chain. + +We used the same method for the custom observability component. With workload and configuration held constant, we collected compilation events, per-request call counts, throughput, and response correctness with the component on and off. JIT events explained why no wide new column appeared in the graph; the end-to-end A/B test measured the actual cost. + +The investigation comes down to five steps: + +| Step | Core question | Evidence | +|---|---|---| +| 1. Verify the worker is CPU-bound | Is the target worker actually CPU-bound? | Worker saturation, CPU pinning, spare upstream and load-generator capacity, and stable reproduction | +| 2. Compare widths | Where do samples accumulate? | Global flame graph and candidate ranking | +| 3. Follow stacks | What multiplies a small local cost? | Request phases, shared functions, and per-request call counts | +| 4. Inspect LuaJIT | Why does cost appear elsewhere or go missing? | `start`, `stop`, `abort`, `flush`, and `jit.dump` | +| 5. Run paired A/B tests | How large is the effect, and is it causal? | Throughput, latency, call counts, error rate, and response consistency | + +Keep the conclusions within clear boundaries: Review Comment: Updated in abd89cc. Replaced the editor-style lead-in with “A few limits on what this shows” and changed resource reclamation to GC behavior. ########## blog/en/blog/2026/08/28/debugging-apisix-throughput-regression.md: ########## @@ -0,0 +1,232 @@ +--- +title: "APISIX Throughput Regression: Beyond the Flame Graph" +authors: + - name: "Xin Rong" + title: "Author" + url: "https://github.com/AlinsRan"; + image_url: "https://github.com/AlinsRan.png"; + - name: "Yilia Lin" + title: "Technical Writer" + url: "https://github.com/Yilialinn"; + image_url: "https://github.com/Yilialinn.png"; +keywords: + - Apache APISIX + - flame graph + - LuaJIT + - performance optimization + - throughput regression +description: "An APISIX throughput regression showed why the widest path in the flame graph is not always the real bottleneck—and how CPU data, call stacks, LuaJIT events, and paired A/B tests exposed it." +tags: [Ecosystem] +--- + +Flame graphs are honest, but they are not verdicts. In this APISIX throughput regression, the widest path was not the real bottleneck. The paths worth chasing accounted for just 3.0% and 3.9% of the Lua samples. Review Comment: Updated in abd89cc. The opening now follows the source more closely and reads naturally without the slogan-like phrasing. ########## blog/en/blog/2026/08/28/debugging-apisix-throughput-regression.md: ########## @@ -0,0 +1,232 @@ +--- +title: "APISIX Throughput Regression: Beyond the Flame Graph" +authors: + - name: "Xin Rong" + title: "Author" + url: "https://github.com/AlinsRan"; + image_url: "https://github.com/AlinsRan.png"; + - name: "Yilia Lin" + title: "Technical Writer" + url: "https://github.com/Yilialinn"; + image_url: "https://github.com/Yilialinn.png"; +keywords: + - Apache APISIX + - flame graph + - LuaJIT + - performance optimization + - throughput regression +description: "An APISIX throughput regression showed why the widest path in the flame graph is not always the real bottleneck—and how CPU data, call stacks, LuaJIT events, and paired A/B tests exposed it." +tags: [Ecosystem] +--- + +Flame graphs are honest, but they are not verdicts. In this APISIX throughput regression, the widest path was not the real bottleneck. The paths worth chasing accounted for just 3.0% and 3.9% of the Lua samples. + +<!--truncate--> + +Ranked by hotspot size alone, neither path would have made the first optimization shortlist. The key was not a single patch but a chain of evidence: confirm that the worker is CPU-bound, compare flame-graph widths, follow repeated call paths, inspect LuaJIT compilation and aborts when the numbers stop adding up, and use per-request call counts plus paired A/B tests to measure the impact. + +> **Data scope:** The data below comes from one internally customized APISIX build in the same controlled environment, with more than 100 plugins loaded. Throughput is normalized and is used only to illustrate the diagnostic method and causal chain. It does not represent the general performance of Apache APISIX OSS under other hardware, configurations, or workloads. + +## 1. Confirm the Worker Is CPU-Bound + +A flame graph shows where the CPU spent its sampled time. Its width matters to a throughput regression only when the target worker is close to saturation and that core limits throughput. + +Before collecting the profile, we held the following conditions constant: + +- APISIX ran with a single worker pinned to a dedicated physical core. +- The upstream service and load generator ran on other cores to avoid CPU contention. +- The request model, configuration, and response content remained unchanged. +- The regression reproduced consistently, with stable error rates and response results. +- The target worker remained close to saturation, while the upstream service, network, and load generator still had headroom. + +If any of these conditions is not met, start with connections, the network, the upstream service, or the load generator—not an on-CPU flame graph. + +## 2. Read Width, Not Rank + +We used eBPF to sample C and Lua call stacks simultaneously at 500 Hz. Here is the actual Lua on-CPU flame graph from the investigation. + + + +Figure 1: Global view of the actual flame graph. Searching for `run_global_rules` produced 3 matches, none of which stood out in the full graph. The original profile contained 2,446 samples; process PIDs were removed from the screenshot. + +In a flame graph, x-axis position does not imply order. Width reflects how many samples landed on a path. Ranked by Lua self time, the first shortlist looked like this: + +| Candidate location | Lua self time | Initial assessment | +|---|---:|---| +| Prometheus exporter | 25.9% | Highest-priority candidate | +| `ctx.var` metamethod | 15.1% | Second candidate | +| Custom logging bypass | 3.9% | Easy to overlook | +| `run_global_rules` | 3.0% | Easy to overlook | + +Here, self time is the share of samples with Lua context that landed directly at a location—not a share of total CPU time. About 19.6% of the samples lacked Lua context, so these percentages are useful for selecting candidates, not predicting throughput gains. + +This ranking has four blind spots: + +1. When LuaJIT executes interpreted code, different Lua code paths may collapse into shared `lj_BC_*` and `lj_vm_*` symbols. +2. Compiled JIT traces cannot always be fully expanded by conventional stack unwinding, so observable JIT samples provide only a lower bound. +3. Costs such as table lookups, memory allocation, and garbage collection are attributed to C symbols rather than to the Lua lines that triggered them. +4. A call can change the caller's JIT state, making the resulting cost appear at the head of the caller function. + +There was another clue: `run_global_rules` did not form one large column. It appeared across stacks from several request phases. No single occurrence was wide, but the combined cost could still be substantial. + +## 3. Follow the Stack to See How 3% Gets Amplified + +Select a `run_global_rules` frame and follow the stack upward. The request-phase entry point sits at the bottom, followed by `common_phase`, Global Rule plugin filtering, dispatch, and finally individual plugin execution. + + + +Figure 2: Interactive zoomed view after selecting one `run_global_rules` stack. The selected stack is stretched to fill the canvas, so its width is normalized and must not be interpreted as its share of total CPU time. Click the image to view it at full size. + +Stack height does not represent elapsed time. It shows where the cost enters, who invokes it, and why it keeps coming back. + +Before the fix, `run_global_rules()` called `_M.filter()` in several request phases. `_M.filter()` iterated through every loaded plugin and checked each one to determine whether it had been configured in the Global Rule: + +```lua +-- Simplified illustration, not the complete APISIX implementation +for _, plugin_obj in ipairs(local_plugins) do + local name = plugin_obj.name + local plugin_conf = user_plugin_conf[name] + if type(plugin_conf) ~= "table" then + goto continue + end + -- Process configured plugins + ::continue:: +end +``` + +Two factors amplified the cost: + +1. The cost of each filtering pass increased with the number of loaded plugins. +2. The same filtering result was regenerated across request phases. The `body_filter` and `delayed_body_filter` phases could also be entered multiple times for response-body chunks. + +In this test configuration, one request triggered 9 filtering passes. The same request scanned more than 100 loaded plugins for the same small configured set 9 times. + +This explains why a Lua-level self time of 3.0% understated the cost of the entire path: + +| Actual work | Common flame-graph attribution | +|---|---| +| The loop itself | Corresponding location in `plugin.lua` | +| Large numbers of table lookups | `lj_BC_TGETS` | +| Temporary table allocation | `lj_alloc_malloc` | +| Temporary object reclamation | `gc_sweep` | +| Uncompiled interpreter dispatch | `lj_vm_*` / `lj_BC_*` | + +At 3% self time, this path looked minor. Following the stack showed that it sat on a shared path entered repeatedly. The optimization followed directly: within one request, if the Global Rule and matched route have not changed, reuse the filtered plugin set instead of rebuilding it in every phase. + +## 4. When the Flame Graph Doesn't Add Up, Check LuaJIT + +The second lead came from a custom observability component. Neither the component nor its logging bypass is part of APISIX OSS, but the failure mode matters to APISIX plugins and OpenResty extensions: a call that looks cheap can add direct cost and change whether subsequent caller code runs in the interpreter or as machine code. + +### 4.1 Interpreter Dispatch Was Abnormally Active + +After reclassifying the C-level samples by runtime category, the most notable signal was not any individual Lua line, but the relationship between interpreter execution and JIT execution: + +| Runtime category | CPU time per request | Share of samples | +|---|---:|---:| +| Interpreter dispatch: `lj_BC_*` / `lj_vm_*` | 5.86 μs | 29.6% | +| Observable JIT trace execution | 2.55 μs | 12.9% | + +JIT traces do not always unwind cleanly, so 12.9% is only a lower bound. Still, the amount of interpreter dispatch in the same environment was a strong signal that some high-frequency paths might not be running consistently as machine code. + +This is not an argument for maximizing trace count. Initialization code does not need to be compiled, and trace costs vary widely. Compilation results are worth investigating only when the CPU is saturated, the path is hot, and interpreter dispatch is unusually active. + +### 4.2 `jit.v` Raised the Alarm—and Caused the First Misdiagnosis + +With `jit.v` enabled, one short load test reported 417 successful trace compilations and 493 aborts. After aggregation by source location, a group of paths each stopped at exactly 11 aborts. + +These are compilation-event counts—not unique functions, coverage, or CPU time. `jit.v` also has several important limitations: + +- An abort line shows the trace abort location, while the penalty is applied to the trace starting point; the two may not be the same line. +- A function never appearing as a trace starting point does not mean it was never compiled. Its body may have been inlined into a parent trace. +- Text logs make it difficult to perform stable set comparisons between results collected with a feature enabled and disabled. + +At first, we read “0 appearances as a starting point” as “the whole function runs in the interpreter.” The bytecode mode of `jit.dump` proved otherwise: several function entries never became root traces, but their bodies repeatedly entered other traces. The recurring failures were in phase-entry and orchestration functions. + +> The absence of a trace starting point proves only that the location did not become a root-trace anchor. It does not prove that the entire function never entered machine code. + +### 4.3 Correlate `start`, `stop`, and `abort` by Trace Start + +To learn what failed to compile and why, we needed the event stream from LuaJIT itself. Store each `start` location by trace ID, then map the matching `stop` or `abort` back to that same starting point: + +```lua +-- Simplified illustration; actual callback arguments and parsing are more complex +local trace_start = {} + +jit.attach(function(what, trace_id, func, pc, err_code) + if what == "start" then + trace_start[trace_id] = locate(func, pc) + elseif what == "stop" then + record_compiled(trace_start[trace_id]) + trace_start[trace_id] = nil + elseif what == "abort" then + record_abort(trace_start[trace_id], err_code) + trace_start[trace_id] = nil + end +end, "trace") +``` + +The real probe also needs `jit.util.funcinfo` to resolve source locations and `jit.vmdef.traceerr` to recover abort reasons. With that data, we can compare the component's enabled and disabled states: which starting points compile, which repeatedly abort, and whether a trace flush occurs. + +In the LuaJIT build used here, the failure penalty started at 72 and doubled after each failure. It was 36,864 on the 10th failure and reached 73,728 on the 11th, above the 60,000 limit. Several starting points stopped at exactly 11 aborts and never entered the compiled set; no trace flush occurred during collection. The number of live traces in both test variants remained below the cache limit, ruling out trace-cache exhaustion. Together, the evidence showed that LuaJIT had abandoned further compilation attempts for those trace starts. + +Keep the conclusion narrow: LuaJIT abandoned those trace starts, not necessarily the entire functions. Other parts of the same functions could still have been inlined into different traces. + +When the data was grouped by caller, every affected phase-entry and orchestration function passed through the same custom logging bypass. When the log level was too low to emit output, this path still inspected the request phase, call stack, and request context. The added call did not produce a wide column of its own, but it changed the JIT outcome of its callers, making part of the cost appear at the heads of ordinary request-processing functions. + +```lua +-- Simplified custom extension, not an APISIX OSS implementation +if log_level_is_suppressed then + check_debug_capture(...) + check_request_buffer(...) + return +end +``` + +The JIT data did two jobs: it exposed costs the flame graph could not attribute cleanly, and it showed that toggling the feature changed how hot paths executed. It still could not quantify the throughput loss. The goal was not to force every function to compile; it was to remove work that should never happen when the feature is disabled. + +One more trap: install the probe before loading the module under observation. A module can capture a function reference during `require`; replacing that function later leaves the captured reference untouched. Our late probe saw 1 call per request. Moving it before `require("apisix")` exposed the real rate: 5 calls per request. + +## 5. Close the Loop with Paired A/B Tests + +Flame graphs identify locations, call stacks reveal amplification, and LuaJIT events explain misplaced costs. Paired experiments tell us how much those paths are actually worth. + +For the Global Rule path, we kept the same dispatch and configuration but returned immediately after entering the Prometheus business function. This helped distinguish the cost of the plugin's business logic from that of the shared path before plugin entry. To avoid presenting absolute RPS from a customized environment as an APISIX OSS benchmark, we normalized throughput with Prometheus disabled to 100: + +| Internal A/B scenario | Relative throughput index | Relative to Prometheus disabled | +|---|---:|---:| +| Prometheus disabled | 100.0 | Baseline | +| Plugin and dispatch retained; business function returns immediately | 77.2 | -22.8% | +| Complete Prometheus Global Rule | 56.9 | -43.1% | + +The gap remained even after short-circuiting the plugin's business code. The experiment did not identify a single expensive line, but it ruled out metric calculation as the only cause. Combined with 9 filtering passes per request, the call stacks, and the C-level cost distribution, it closed the amplification chain. + +We used the same method for the custom observability component. With workload and configuration held constant, we collected compilation events, per-request call counts, throughput, and response correctness with the component on and off. JIT events explained why no wide new column appeared in the graph; the end-to-end A/B test measured the actual cost. + +The investigation comes down to five steps: + +| Step | Core question | Evidence | +|---|---|---| +| 1. Verify the worker is CPU-bound | Is the target worker actually CPU-bound? | Worker saturation, CPU pinning, spare upstream and load-generator capacity, and stable reproduction | Review Comment: Updated in abd89cc. The core question is now whether the flame graph can explain the regression, and the evidence column explicitly includes network headroom. ########## blog/en/blog/2026/08/28/debugging-apisix-throughput-regression.md: ########## @@ -0,0 +1,232 @@ +--- +title: "APISIX Throughput Regression: Beyond the Flame Graph" +authors: + - name: "Xin Rong" + title: "Author" + url: "https://github.com/AlinsRan"; + image_url: "https://github.com/AlinsRan.png"; + - name: "Yilia Lin" + title: "Technical Writer" + url: "https://github.com/Yilialinn"; + image_url: "https://github.com/Yilialinn.png"; +keywords: + - Apache APISIX + - flame graph + - LuaJIT + - performance optimization + - throughput regression +description: "An APISIX throughput regression showed why the widest path in the flame graph is not always the real bottleneck—and how CPU data, call stacks, LuaJIT events, and paired A/B tests exposed it." +tags: [Ecosystem] +--- + +Flame graphs are honest, but they are not verdicts. In this APISIX throughput regression, the widest path was not the real bottleneck. The paths worth chasing accounted for just 3.0% and 3.9% of the Lua samples. + +<!--truncate--> + +Ranked by hotspot size alone, neither path would have made the first optimization shortlist. The key was not a single patch but a chain of evidence: confirm that the worker is CPU-bound, compare flame-graph widths, follow repeated call paths, inspect LuaJIT compilation and aborts when the numbers stop adding up, and use per-request call counts plus paired A/B tests to measure the impact. + +> **Data scope:** The data below comes from one internally customized APISIX build in the same controlled environment, with more than 100 plugins loaded. Throughput is normalized and is used only to illustrate the diagnostic method and causal chain. It does not represent the general performance of Apache APISIX OSS under other hardware, configurations, or workloads. + +## 1. Confirm the Worker Is CPU-Bound + +A flame graph shows where the CPU spent its sampled time. Its width matters to a throughput regression only when the target worker is close to saturation and that core limits throughput. Review Comment: Updated in abd89cc. The sentence now says that flame-graph width can explain a throughput drop only when the worker is near saturation and that core is the bottleneck. ########## blog/en/blog/2026/08/28/debugging-apisix-throughput-regression.md: ########## @@ -0,0 +1,232 @@ +--- +title: "APISIX Throughput Regression: Beyond the Flame Graph" +authors: + - name: "Xin Rong" + title: "Author" + url: "https://github.com/AlinsRan"; + image_url: "https://github.com/AlinsRan.png"; + - name: "Yilia Lin" + title: "Technical Writer" + url: "https://github.com/Yilialinn"; + image_url: "https://github.com/Yilialinn.png"; +keywords: + - Apache APISIX + - flame graph + - LuaJIT + - performance optimization + - throughput regression +description: "An APISIX throughput regression showed why the widest path in the flame graph is not always the real bottleneck—and how CPU data, call stacks, LuaJIT events, and paired A/B tests exposed it." +tags: [Ecosystem] +--- + +Flame graphs are honest, but they are not verdicts. In this APISIX throughput regression, the widest path was not the real bottleneck. The paths worth chasing accounted for just 3.0% and 3.9% of the Lua samples. + +<!--truncate--> + +Ranked by hotspot size alone, neither path would have made the first optimization shortlist. The key was not a single patch but a chain of evidence: confirm that the worker is CPU-bound, compare flame-graph widths, follow repeated call paths, inspect LuaJIT compilation and aborts when the numbers stop adding up, and use per-request call counts plus paired A/B tests to measure the impact. + +> **Data scope:** The data below comes from one internally customized APISIX build in the same controlled environment, with more than 100 plugins loaded. Throughput is normalized and is used only to illustrate the diagnostic method and causal chain. It does not represent the general performance of Apache APISIX OSS under other hardware, configurations, or workloads. + +## 1. Confirm the Worker Is CPU-Bound + +A flame graph shows where the CPU spent its sampled time. Its width matters to a throughput regression only when the target worker is close to saturation and that core limits throughput. + +Before collecting the profile, we held the following conditions constant: + +- APISIX ran with a single worker pinned to a dedicated physical core. +- The upstream service and load generator ran on other cores to avoid CPU contention. +- The request model, configuration, and response content remained unchanged. +- The regression reproduced consistently, with stable error rates and response results. Review Comment: Updated in abd89cc. Replaced the unnatural response-results phrasing with two direct sentences about reproducibility, error rates, and responses. -- This is an automated message from the Apache Git Service. To respond to the message, please log on to GitHub and use the URL above to go to the specific comment. To unsubscribe, e-mail: [email protected] For queries about this service, please contact Infrastructure at: [email protected]
