Marco-Zheng opened a new issue #4470:
URL: https://github.com/apache/apisix/issues/4470
### Issue description
I have configured "X-Forwarded-For" in proxy-rewrite:
"$proxy_add_x_forwarded_for"
In order to get the Real IP, per we used K8S, so the IP would be transferred
to the clusterIP of K8S, but we could not get this value, and X-real-IP was
always obtained from the clusterIP of K8S.
### Environment
* apisix version (cmd: `apisix version`): 2.6
### Minimal test code / Steps to reproduce the issue

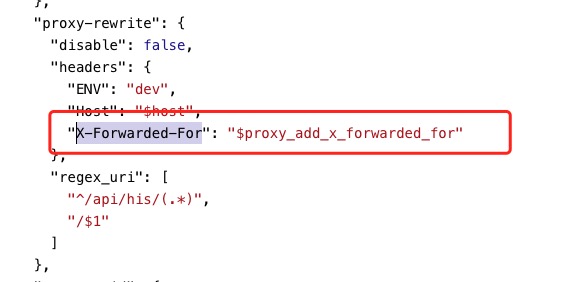

1.add plugin in service
```
"plugins": {
"proxy-rewrite": {
"disable": false,
"headers": {
"ENV": "pre",
"Host": "$host",
"X-Forwarded-For": "$proxy_add_x_forwarded_for"
},
"regex_uri": [
"/api/scrm/(.*)",
"/common-rest/$1"
]
}
}
```
2.print the header for X-Forwarded-For
the ip for 172.19... is k8s clusterip, 220.249.. is correct real ip, but
X-Forwarded-For is null and X-Real-IP is 172.19.. which is not correct real ip,
i also try to configure like this `"X-Real-IP": "$proxy_add_x_forwarded_for"`,
I expect to get the result like this `220.249.., 172.19...`(got two ip),
actually i got only one ip `172.19...`
below is the log for apisix, show correct ip which i expect for
3. so i guess the X-Real-IP/X-Forwarded-For was rewrite by apisix

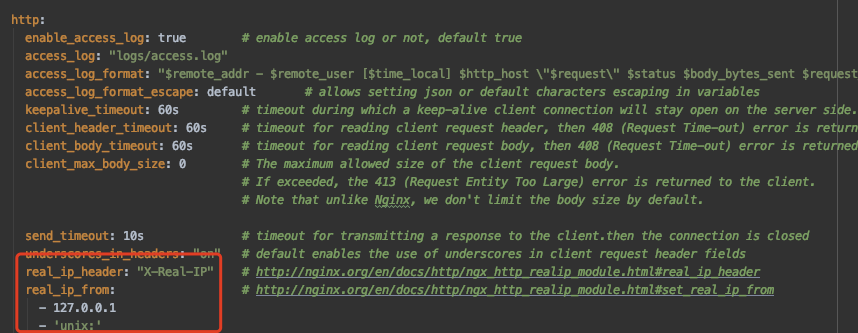

i also checked the config-default.yaml, not sure if below configuration will
influence the result, i try to add the ip
172.19.0.0 in order to filter the incorrect k8s ip segment, but doesn't work
### What's the actual result? (including assertion message & call stack if
applicable)
`172.19...`
### What's the expected result?
`220.249.., 172.19...`
--
