zhaobu opened a new issue #267:
URL: https://github.com/apache/apisix-docker/issues/267
### Issue description
使用官方的docker-compos文件,下面这一部分
```yaml
......
apisix:
image: apache/apisix:2.11.0-alpine
restart: always
volumes:
- ./apisix_log:/usr/local/apisix/logs
- ./apisix_conf/config.yaml:/usr/local/apisix/conf/config.yaml:ro
depends_on:
- etcd
##network_mode: host
ports:
- "9080:9080/tcp"
- "9091:9091/tcp"
- "9443:9443/tcp"
- "9092:9092/tcp"
networks:
apisix:
etcd:
image: bitnami/etcd:3.4.15
restart: always
volumes:
- etcd_data:/bitnami/etcd
environment:
ETCD_ENABLE_V2: "true"
ALLOW_NONE_AUTHENTICATION: "yes"
ETCD_ADVERTISE_CLIENT_URLS: "http://0.0.0.0:2379";
ETCD_LISTEN_CLIENT_URLS: "http://0.0.0.0:2379";
ports:
- "2379:2379/tcp"
networks:
apisix:
......
```
此时对应的apisix镜像的配置文件etcd部分是这样的
```yaml
......
etcd:
host: # it's possible to define multiple etcd
hosts addresses of the same etcd cluster.
- "http://etcd:2379"; # multiple etcd address
prefix: "/apisix" # apisix configurations prefix
timeout: 30 # 30 seconds
......
```
这是官方的默认配置是没有问题的.
如果把其中的etcd的部分改成下面这样
```yaml
mf_etcd:
image: bitnami/etcd:3.4.15
container_name: mf_etcd
restart: always
volumes:
- etcd_data:/bitnami/etcd
environment:
ETCD_ENABLE_V2: "true"
ALLOW_NONE_AUTHENTICATION: "yes"
ETCD_ADVERTISE_CLIENT_URLS: "http://0.0.0.0:2379";
ETCD_LISTEN_CLIENT_URLS: "http://0.0.0.0:2379";
ports:
- "2379:2379/tcp"
networks:
apisix:
```
此时对应的etcd配置应当修改为如下
```yaml
......
etcd:
host: # it's possible to define multiple etcd
hosts addresses of the same etcd cluster.
- "http://mf_etcd:2379"; # multiple etcd address
prefix: "/apisix" # apisix configurations prefix
timeout: 30 # 30 seconds
......
```
此时就会启动报错
### Environment
```bash
bash-5.1# apisix version
/usr/local/openresty/luajit/bin/luajit ./apisix/cli/apisix.lua version
2.11.0
bash-5.1# uname -a
Linux b2c3fc362a79 5.10.60.1-microsoft-standard-WSL2 apache/apisix#1 SMP Wed
Aug 25 23:20:18 UTC 2021 x86_64 Linux
bash-5.1# nginx -V
nginx version: openresty/1.19.3.2
built by gcc 9.3.0 (Alpine 9.3.0)
built with OpenSSL 1.1.1g 21 Apr 2020
TLS SNI support enabled
configure arguments: --prefix=/usr/local/openresty/nginx --with-cc-opt='-O2
-DAPISIX_BASE_VER=1.19.3.2.2 -DNGX_LUA_ABORT_AT_PANIC
-I/usr/local/openresty/zlib/include -I/usr/local/openresty/pcre/include
-I/usr/local/openresty/openssl111/include' --add-module=../ngx_devel_kit-0.3.1
--add-module=../echo-nginx-module-0.62 --add-module=../xss-nginx-module-0.06
--add-module=../ngx_coolkit-0.2 --add-module=../set-misc-nginx-module-0.32
--add-module=../form-input-nginx-module-0.12
--add-module=../encrypted-session-nginx-module-0.08
--add-module=../srcache-nginx-module-0.32 --add-module=../ngx_lua-0.10.19
--add-module=../ngx_lua_upstream-0.07
--add-module=../headers-more-nginx-module-0.33
--add-module=../array-var-nginx-module-0.05
--add-module=../memc-nginx-module-0.19 --add-module=../redis2-nginx-module-0.15
--add-module=../redis-nginx-module-0.3.7 --add-module=../ngx_stream_lua-0.0.9
--with-ld-opt='-Wl,-rpath,/usr/local/openresty/luajit/lib
-Wl,-rpath,/usr/local/openresty/wasmtime-c-api
/lib -L/usr/local/openresty/zlib/lib -L/usr/local/openresty/pcre/lib
-L/usr/local/openresty/openssl111/lib
-Wl,-rpath,/usr/local/openresty/zlib/lib:/usr/local/openresty/pcre/lib:/usr/local/openresty/openssl111/lib'
--add-module=/tmp/tmp.Po19j8606M/openresty-1.19.3.2/../mod_dubbo
--add-module=/tmp/tmp.Po19j8606M/openresty-1.19.3.2/../ngx_multi_upstream_module
--add-module=/tmp/tmp.Po19j8606M/openresty-1.19.3.2/../apisix-nginx-module
--add-module=/tmp/tmp.Po19j8606M/openresty-1.19.3.2/../wasm-nginx-module
--add-module=/tmp/tmp.Po19j8606M/openresty-1.19.3.2/../lua-var-nginx-module
--with-poll_module --with-pcre-jit --with-stream --with-stream_ssl_module
--with-stream_ssl_preread_module --with-http_v2_module
--without-mail_pop3_module --without-mail_imap_module
--without-mail_smtp_module --with-http_stub_status_module
--with-http_realip_module --with-http_addition_module
--with-http_auth_request_module --with-http_secure_link_module
--with-http_random_index_module --with-http_gzip_stati
c_module --with-http_sub_module --with-http_dav_module --with-http_flv_module
--with-http_mp4_module --with-http_gunzip_module --with-threads --with-compat
--with-stream --with-http_ssl_module
bash-5.1# curl http://127.0.0.1:9092/v1/server_info
{"hostname":"b2c3fc362a79","boot_time":1641116153,"id":"b3949f69-8817-47c0-895e-25387a09adc6","up_time":383,"last_report_time":1641116512,"etcd_version":"3.5.0","version":"2.11.0"}
```
### Steps to reproduce
1. 修改etcd 的label为mf_etcd,container_name为mf_etcd
2. 修改apisix的有关etcd部分的配置文件如下
```yaml
etcd:
host: # it's possible to define multiple etcd
hosts addresses of the same etcd cluster.
- "http://mf_etcd:2379"; # multiple etcd address
prefix: "/apisix" # apisix configurations prefix
timeout: 30 # 30 seconds
```
### Actual result
不能通过etcd的label名初始化

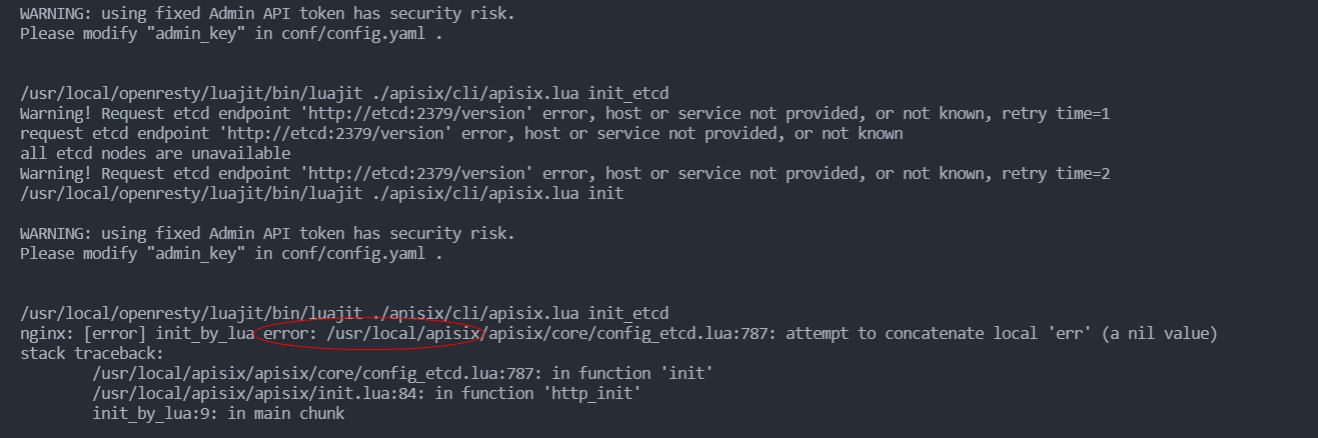

### Error log
WARNING: using fixed Admin API token has security risk.
Please modify "admin_key" in conf/config.yaml .
/usr/local/openresty/luajit/bin/luajit ./apisix/cli/apisix.lua init_etcd
Warning! Request etcd endpoint 'http://etcd:2379/version' error, host or
service not provided, or not known, retry time=1
request etcd endpoint 'http://etcd:2379/version' error, host or service not
provided, or not known
all etcd nodes are unavailable
Warning! Request etcd endpoint 'http://etcd:2379/version' error, host or
service not provided, or not known, retry time=2
/usr/local/openresty/luajit/bin/luajit ./apisix/cli/apisix.lua init
WARNING: using fixed Admin API token has security risk.
Please modify "admin_key" in conf/config.yaml .
/usr/local/openresty/luajit/bin/luajit ./apisix/cli/apisix.lua init_etcd
nginx: [error] init_by_lua error:
/usr/local/apisix/apisix/core/config_etcd.lua:787: attempt to concatenate local
'err' (a nil value)
stack traceback:
/usr/local/apisix/apisix/core/config_etcd.lua:787: in function 'init'
/usr/local/apisix/apisix/init.lua:84: in function 'http_init'
init_by_lua:9: in main chunk
### Expected result
用docker-compose的label名或者容器的container都能正确启动. 其他容器一般都能这样
--
