JohnnyQianP commented on issue #272: URL: https://github.com/apache/apisix-helm-chart/issues/272#issuecomment-1107377784

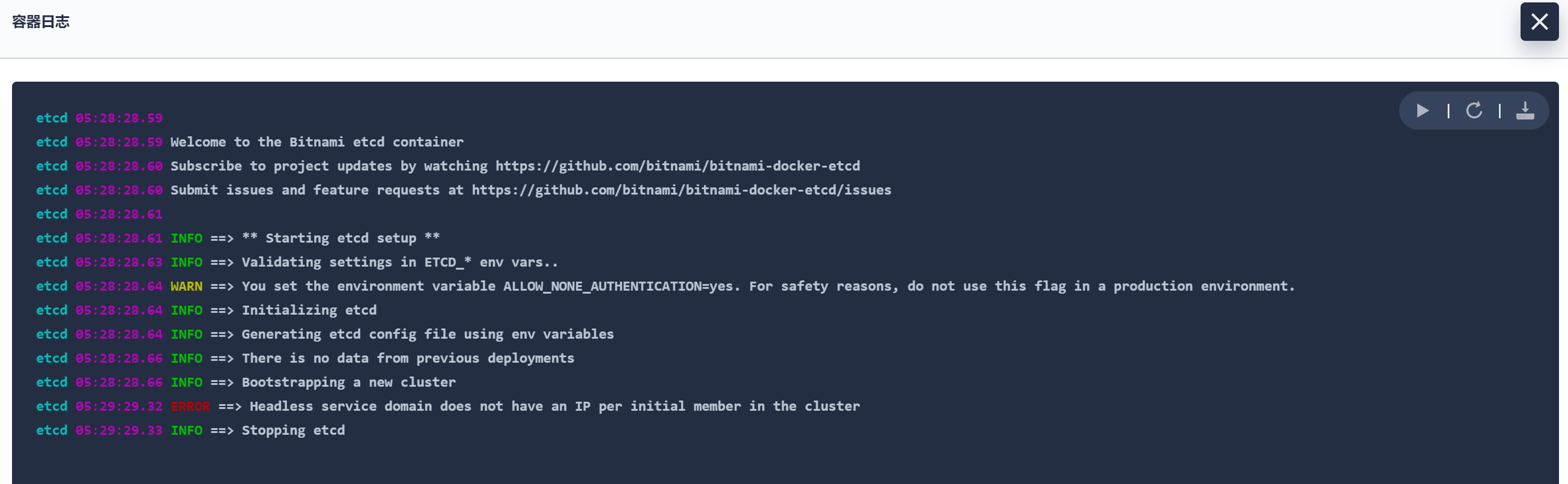

 In the pod, etcd has an error, what's the meaning？ ``` # kubectl describe pod my-apisix-etcd-0 -n ingress-apisix Name: my-apisix-etcd-0 Namespace: ingress-apisix Priority: 0 Node: node2/192.168.126.102 Start Time: Sat, 23 Apr 2022 13:48:55 +0800 Labels: app.kubernetes.io/instance=my-apisix app.kubernetes.io/managed-by=Helm app.kubernetes.io/name=etcd controller-revision-hash=my-apisix-etcd-5b96d6bfb4 helm.sh/chart=etcd-7.0.4 statefulset.kubernetes.io/pod-name=my-apisix-etcd-0 Annotations: checksum/token-secret: 971aed8b8aa5756f775f81a27b2e5d07dae029e5ed787033e6703db5be62b008 Status: Running IP: 10.244.2.37 IPs: IP: 10.244.2.37 Controlled By: StatefulSet/my-apisix-etcd Containers: etcd: Container ID: docker://068633dec99a85c0e2710d8a6385449262284110e4c8ee2f5138dfd52594fc40 Image: docker.io/bitnami/etcd:3.4.18-debian-10-r14 Image ID: docker-pullable://bitnami/etcd@sha256:ce0f7334f0b31f341c0bcea4b9cec6fb1e37837400fd16c257f9f6e84e35192b Ports: 2379/TCP, 2380/TCP Host Ports: 0/TCP, 0/TCP State: Waiting Reason: CrashLoopBackOff Last State: Terminated Reason: Error Exit Code: 1 Started: Sat, 23 Apr 2022 13:54:31 +0800 Finished: Sat, 23 Apr 2022 13:55:31 +0800 Ready: False Restart Count: 4 Liveness: exec [/opt/bitnami/scripts/etcd/healthcheck.sh] delay=60s timeout=5s period=30s #success=1 #failure=5 Readiness: exec [/opt/bitnami/scripts/etcd/healthcheck.sh] delay=60s timeout=5s period=10s #success=1 #failure=5 Environment: BITNAMI_DEBUG: false MY_POD_IP: (v1:status.podIP) MY_POD_NAME: my-apisix-etcd-0 (v1:metadata.name) MY_STS_NAME: my-apisix-etcd ETCDCTL_API: 3 ETCD_ON_K8S: yes ETCD_START_FROM_SNAPSHOT: no ETCD_DISASTER_RECOVERY: no ETCD_NAME: $(MY_POD_NAME) ETCD_DATA_DIR: /bitnami/etcd/data ETCD_LOG_LEVEL: info ALLOW_NONE_AUTHENTICATION: yes ETCD_AUTH_TOKEN: jwt,priv-key=/opt/bitnami/etcd/certs/token/jwt-token.pem,sign-method=RS256,ttl=10m ETCD_ADVERTISE_CLIENT_URLS: http://$(MY_POD_NAME).my-apisix-etcd-headless.ingress-apisix.svc.cluster.local:2379,http://my-apisix-etcd.ingress-apisix.svc.cluster.local:2379 ETCD_LISTEN_CLIENT_URLS: http://0.0.0.0:2379 ETCD_INITIAL_ADVERTISE_PEER_URLS: http://$(MY_POD_NAME).my-apisix-etcd-headless.ingress-apisix.svc.cluster.local:2380 ETCD_LISTEN_PEER_URLS: http://0.0.0.0:2380 ETCD_INITIAL_CLUSTER_TOKEN: etcd-cluster-k8s ETCD_INITIAL_CLUSTER_STATE: new ETCD_INITIAL_CLUSTER: my-apisix-etcd-0=http://my-apisix-etcd-0.my-apisix-etcd-headless.ingress-apisix.svc.cluster.local:2380,my-apisix-etcd-1=http://my-apisix-etcd-1.my-apisix-etcd-headless.ingress-apisix.svc.cluster.local:2380,my-apisix-etcd-2=http://my-apisix-etcd-2.my-apisix-etcd-headless.ingress-apisix.svc.cluster.local:2380 ETCD_CLUSTER_DOMAIN: my-apisix-etcd-headless.ingress-apisix.svc.cluster.local Mounts: /bitnami/etcd from data (rw) /opt/bitnami/etcd/certs/token/ from etcd-jwt-token (ro) /var/run/secrets/kubernetes.io/serviceaccount from default-token-2756j (ro) Conditions: Type Status Initialized True Ready False ContainersReady False PodScheduled True Volumes: data: Type: PersistentVolumeClaim (a reference to a PersistentVolumeClaim in the same namespace) ClaimName: data-my-apisix-etcd-0 ReadOnly: false etcd-jwt-token: Type: Secret (a volume populated by a Secret) SecretName: my-apisix-etcd-jwt-token Optional: false default-token-2756j: Type: Secret (a volume populated by a Secret) SecretName: default-token-2756j Optional: false QoS Class: BestEffort Node-Selectors: <none> Tolerations: node.kubernetes.io/not-ready:NoExecute for 300s node.kubernetes.io/unreachable:NoExecute for 300s Events: Type Reason Age From Message ---- ------ ---- ---- ------- Normal Scheduled <unknown> default-scheduler Successfully assigned ingress-apisix/my-apisix-etcd-0 to node2 Warning Unhealthy 5m54s kubelet, node2 Readiness probe failed: Terminated etcd 05:49:57.13 ERROR ==> Unhealthy endpoint! Warning Unhealthy 3m34s kubelet, node2 Readiness probe errored: rpc error: code = Unknown desc = container not running (e97a1ee83cc7d48411f94abcca346a968bee4d64d3d6c31d09b6ab05e99fe02c) Warning Unhealthy 2m5s kubelet, node2 Readiness probe errored: rpc error: code = Unknown desc = container not running (47fd452ade0d048f45e71bfe378f4e73f8857a0ddfdd7b25791a0b144607b645) Warning BackOff 91s (x8 over 4m51s) kubelet, node2 Back-off restarting failed container Normal Created 80s (x5 over 6m55s) kubelet, node2 Created container etcd Normal Started 80s (x5 over 6m55s) kubelet, node2 Started container etcd Normal Pulled 80s (x5 over 6m55s) kubelet, node2 Container image "docker.io/bitnami/etcd:3.4.18-debian-10-r14" already present on machine ``` etcd pod error -- This is an automated message from the Apache Git Service. To respond to the message, please log on to GitHub and use the URL above to go to the specific comment. To unsubscribe, e-mail: notifications-unsubscr...@apisix.apache.org For queries about this service, please contact Infrastructure at: us...@infra.apache.org
